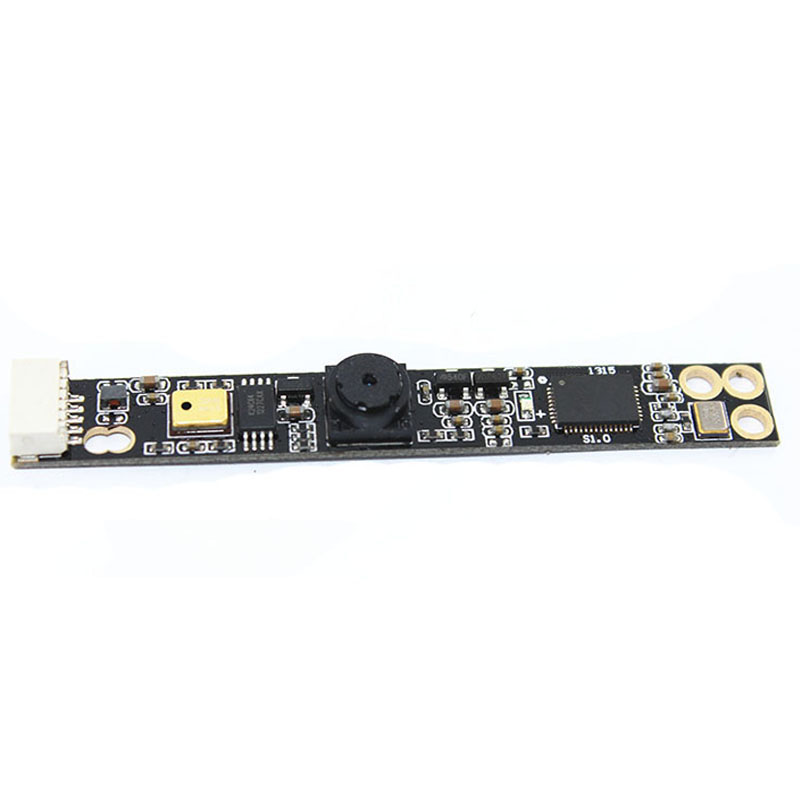

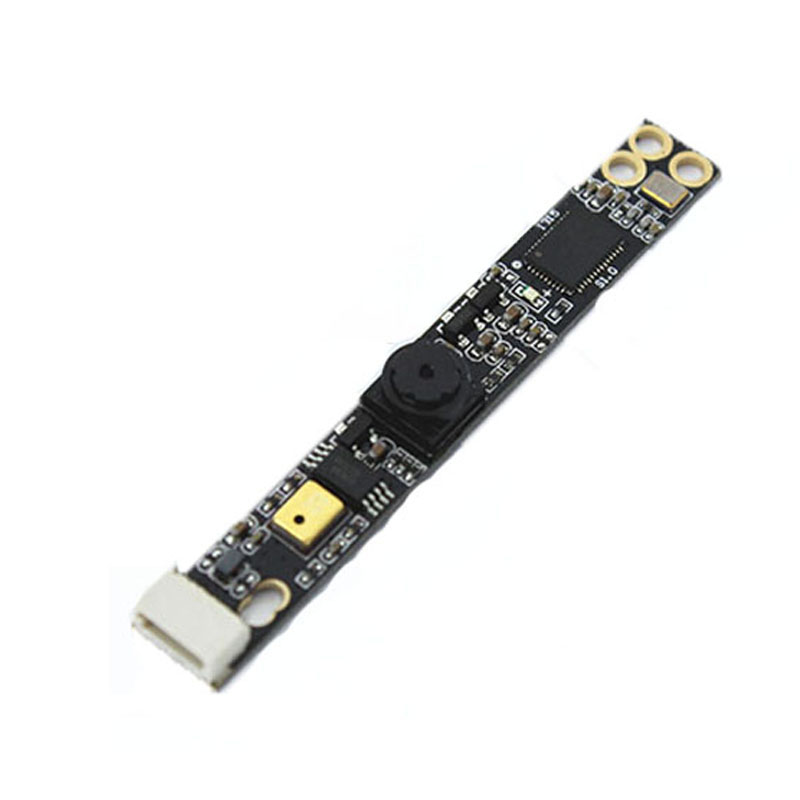

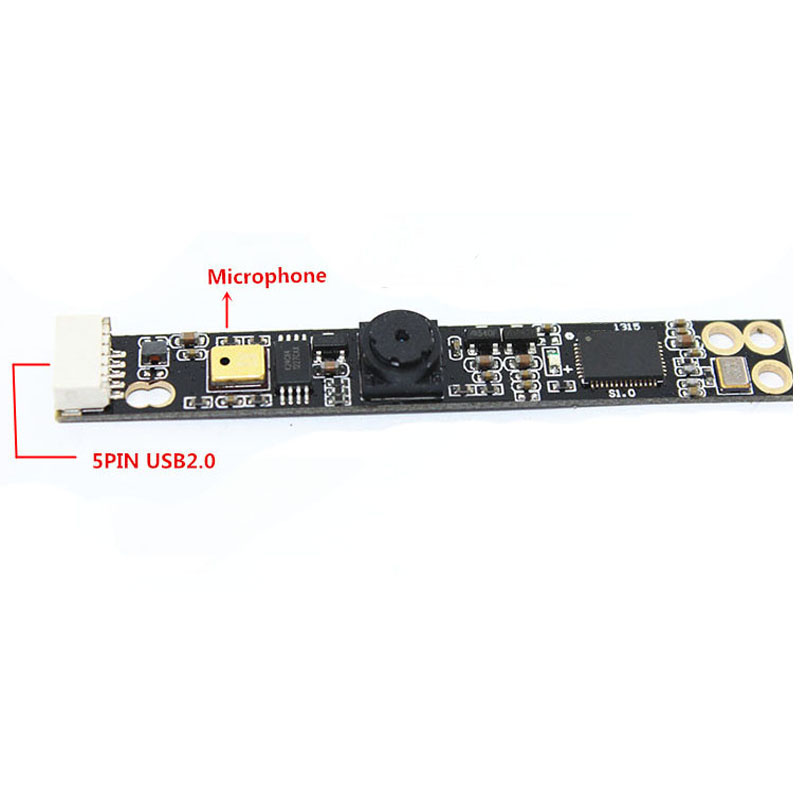

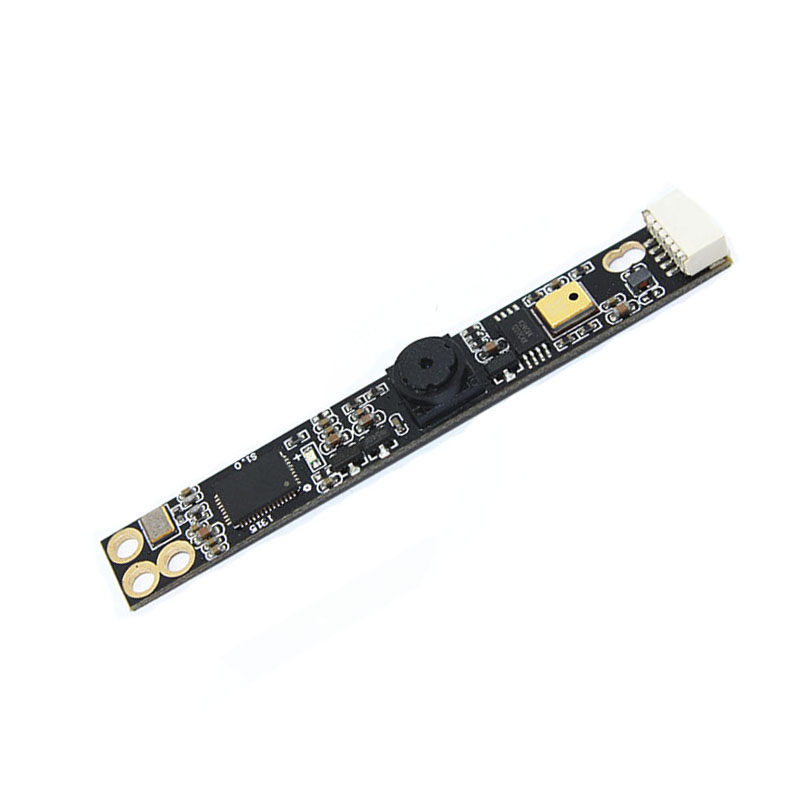

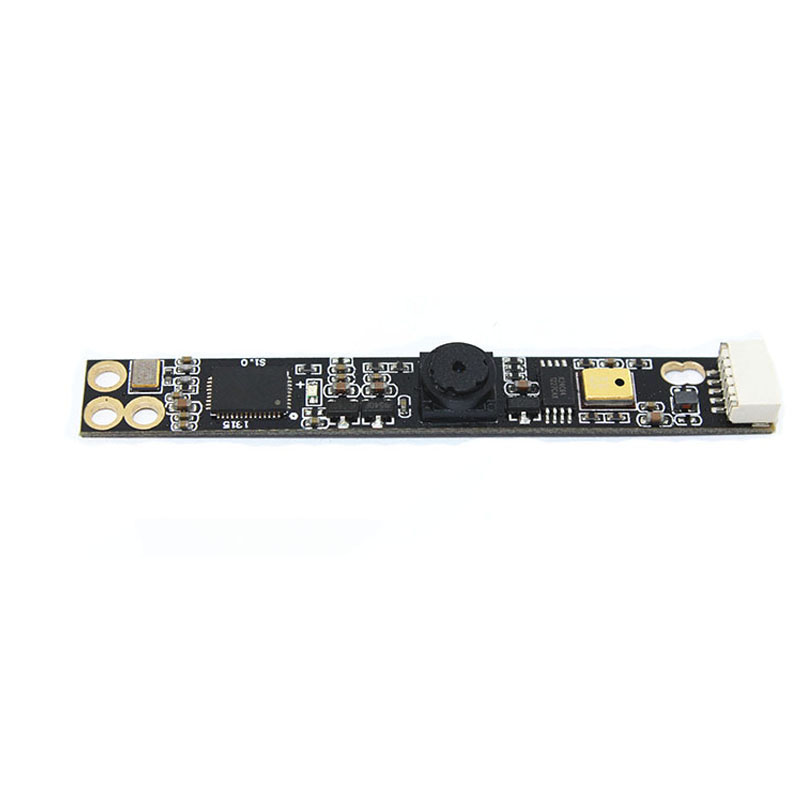

Fixed focus 2mp free driver 5 pin usb 2.0 webcam with Standard UVC Protocol

Product category:

USB Camera Board

SKU:

216979

Price:

$10.80

Description

Fixed focus 2mp free driver 5 pin usb 2.0 webcam with Standard UVC Protocol

Model No.	BM1315-S1.0
Model Size	60mm × 8mm × 4.5mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	HM2057 (1/5" )
Seneor Package	CSP,Bare Die
Maximum resolution	1600*1200
Sensitivity	1200mv /(lux-sec)
Pixel Size	1.75μm x 1.75μm
Maximum Image Transfer Rate	MJPEG 160x120 30FPS / YUY2 320x240 30FPS MJPEG 320x240 30FPS / YUY2 640x480 30FPS MJPEG 640x480 30FPS / YUY2 800x600 15FPS MJPEG 800x600 30FPS / YUY2 1280x720 10FPS MJPEG 1280x720 30FPS / YUY2 1280x1024 5FPS MJPEG 1280x1024 30FPS YUY2 1600x1200 5FPS
S/N Ratio	36B
Max Dynamic Range	70B
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	2P
F/No	2.8
EFL	2.8mm
FOV	60°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
