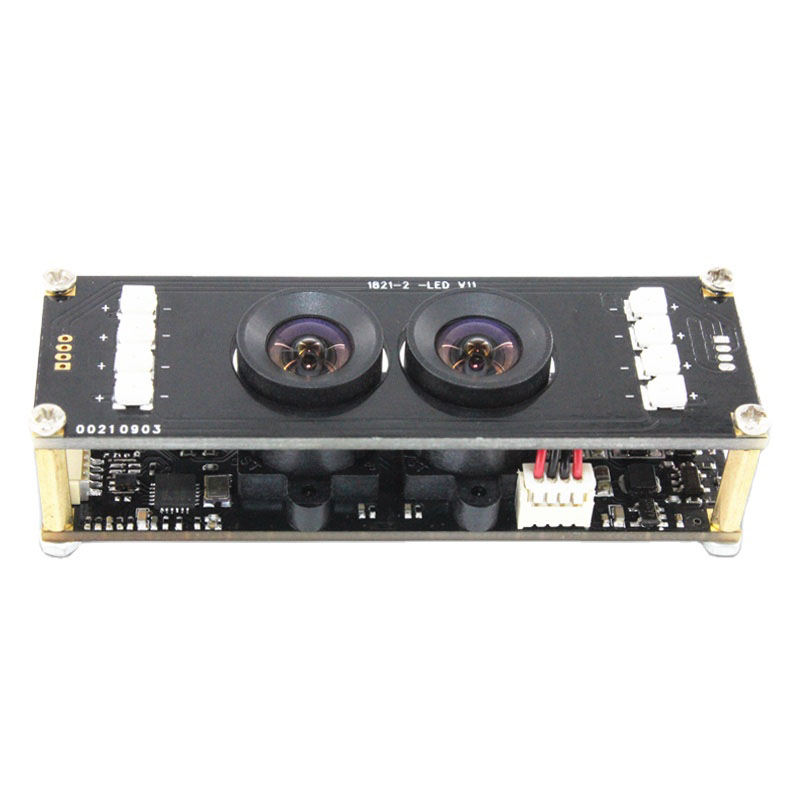

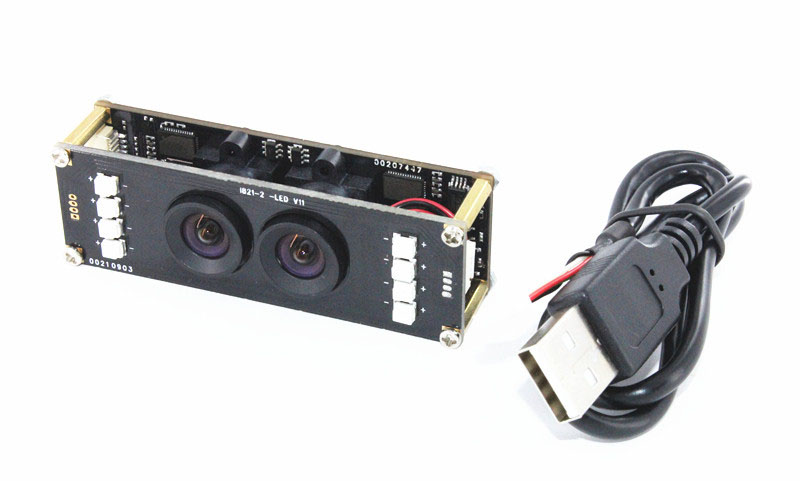

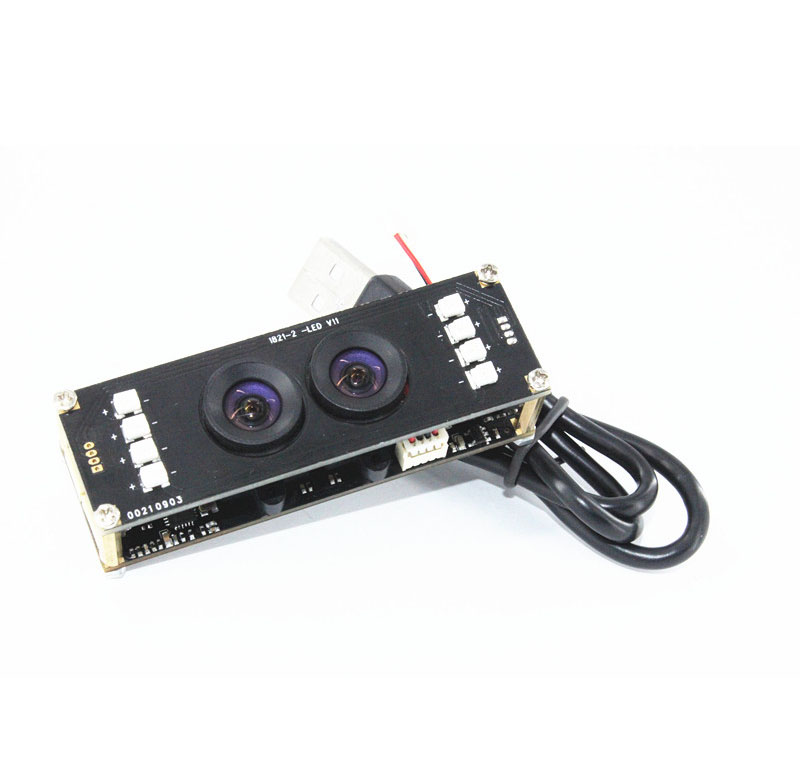

2MP HD CMOS HM2131 dual camera module for Face Recognition

Product category:

USB Camera Board

SKU:

216659

Price:

$58.80

Quantity	Price
1 - 499	$58.80
500 - 999	$54.05
1000 - Unlimited	$47.30

full product footer

Description

Product Specification

Module No.	BM1821-2 V11

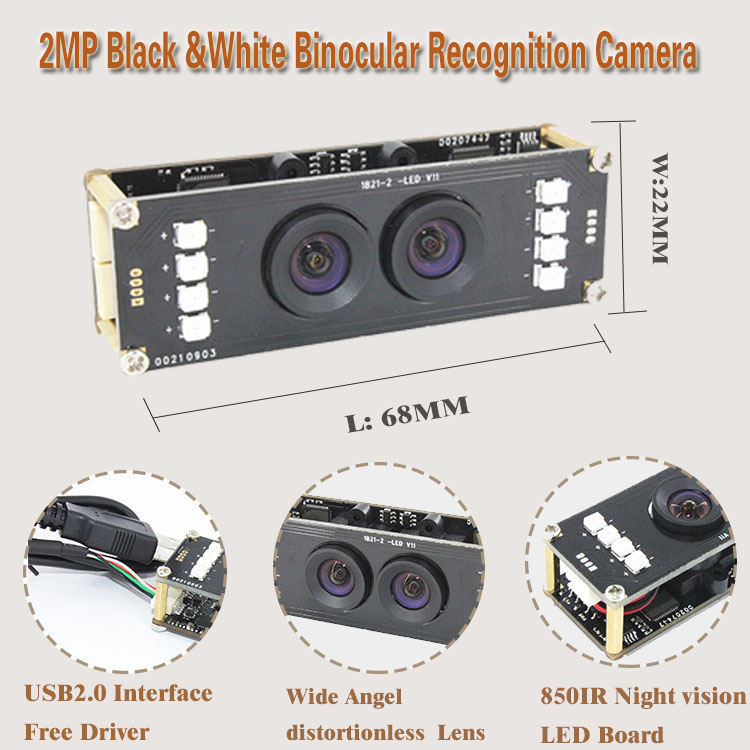

Module Size	68mm × 22mm × 17.4mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	2100mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	HM2131 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4600mv /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 20FPS MJPEG 352x288 30FPS / YUY2 352x288 20FPS MJPEG 640x480 30FPS / YUY2 640x480 20FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	38.9 db
Max Dynamic Range	62 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.2
EFL	3.0mm
FOV	100°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm 850±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Product Usage

* 2MP Dual camera module for face recognition

1. This is 2MP 1080P dual camera module, one camera is color and another one is black white.
2. It is can be used for body temperature , face recognition and 3D robot.
3. It is free driver, with standard UVC protocol for window /Linux/Android system.
