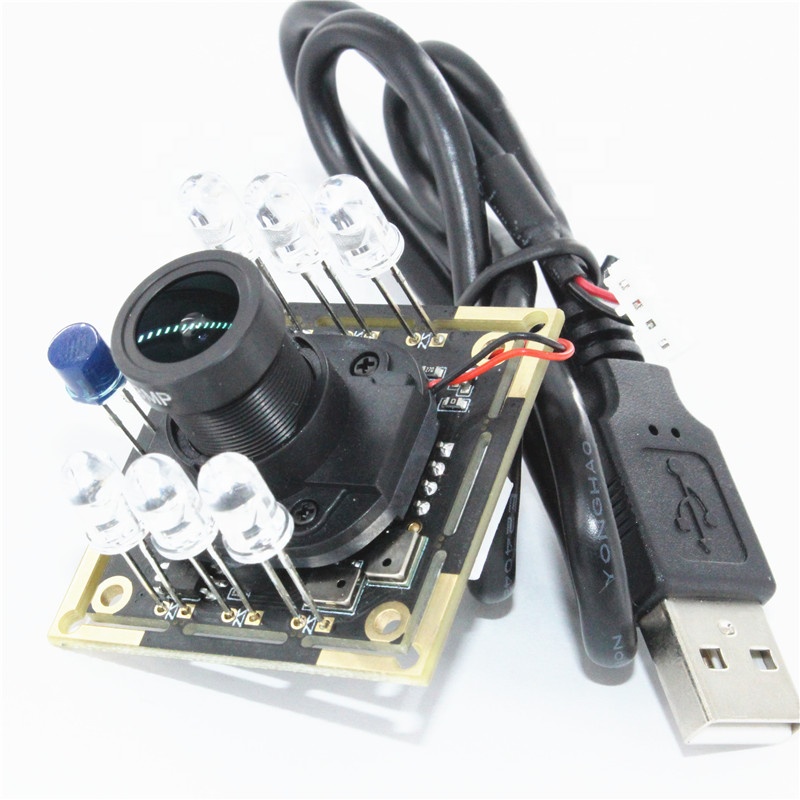

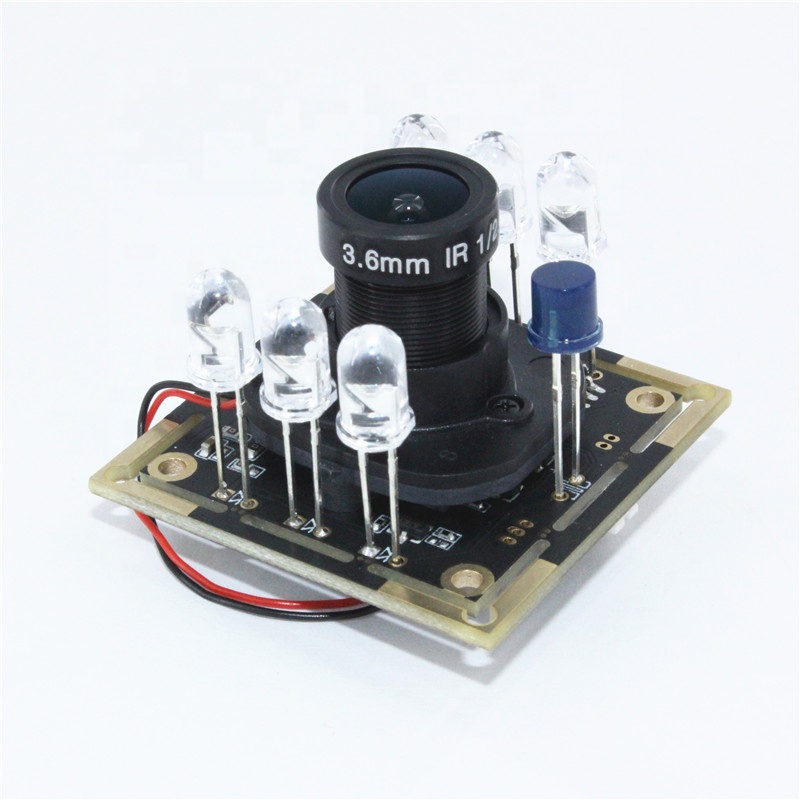

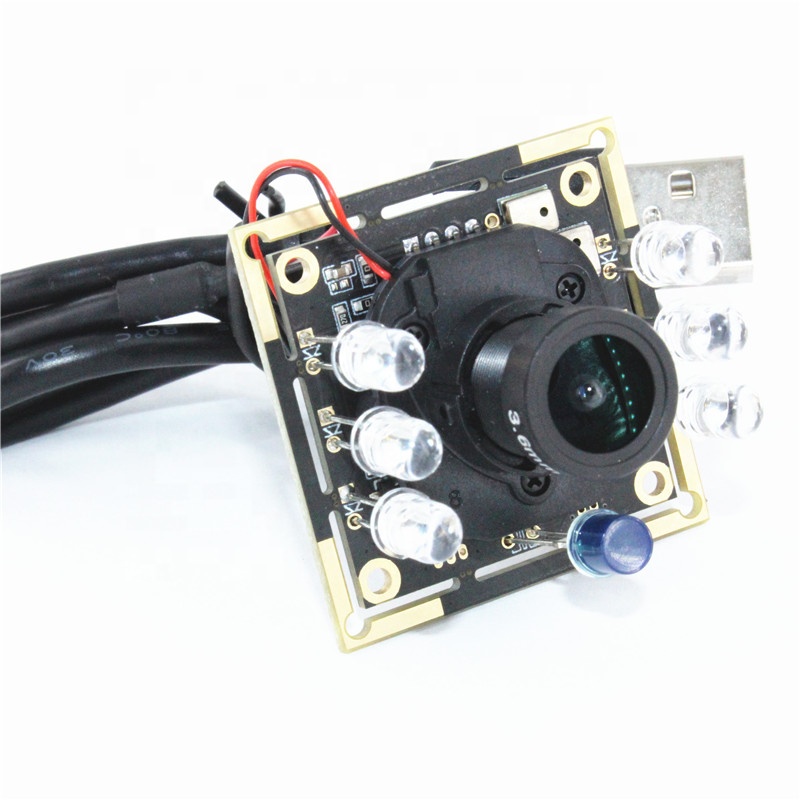

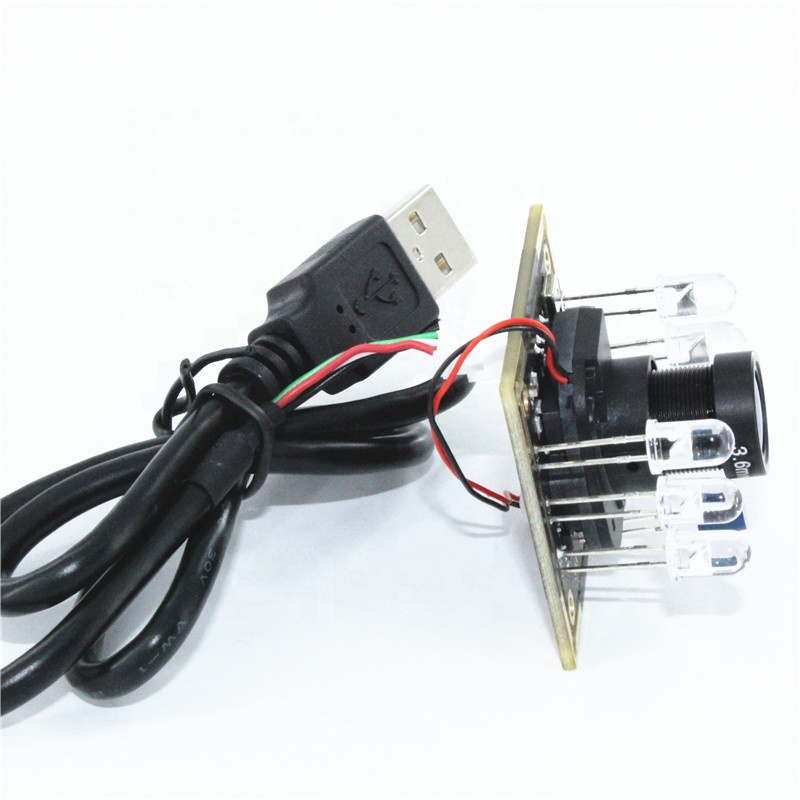

2MP HD 1920*1080 Wide Dynamic Range IR CUT Infrared mini HM2131 CMOS Camera Module with low price

Product category:

USB Camera Board

SKU:

217130

Price:

$33.60

Description

Module No.	BM1823HD V33

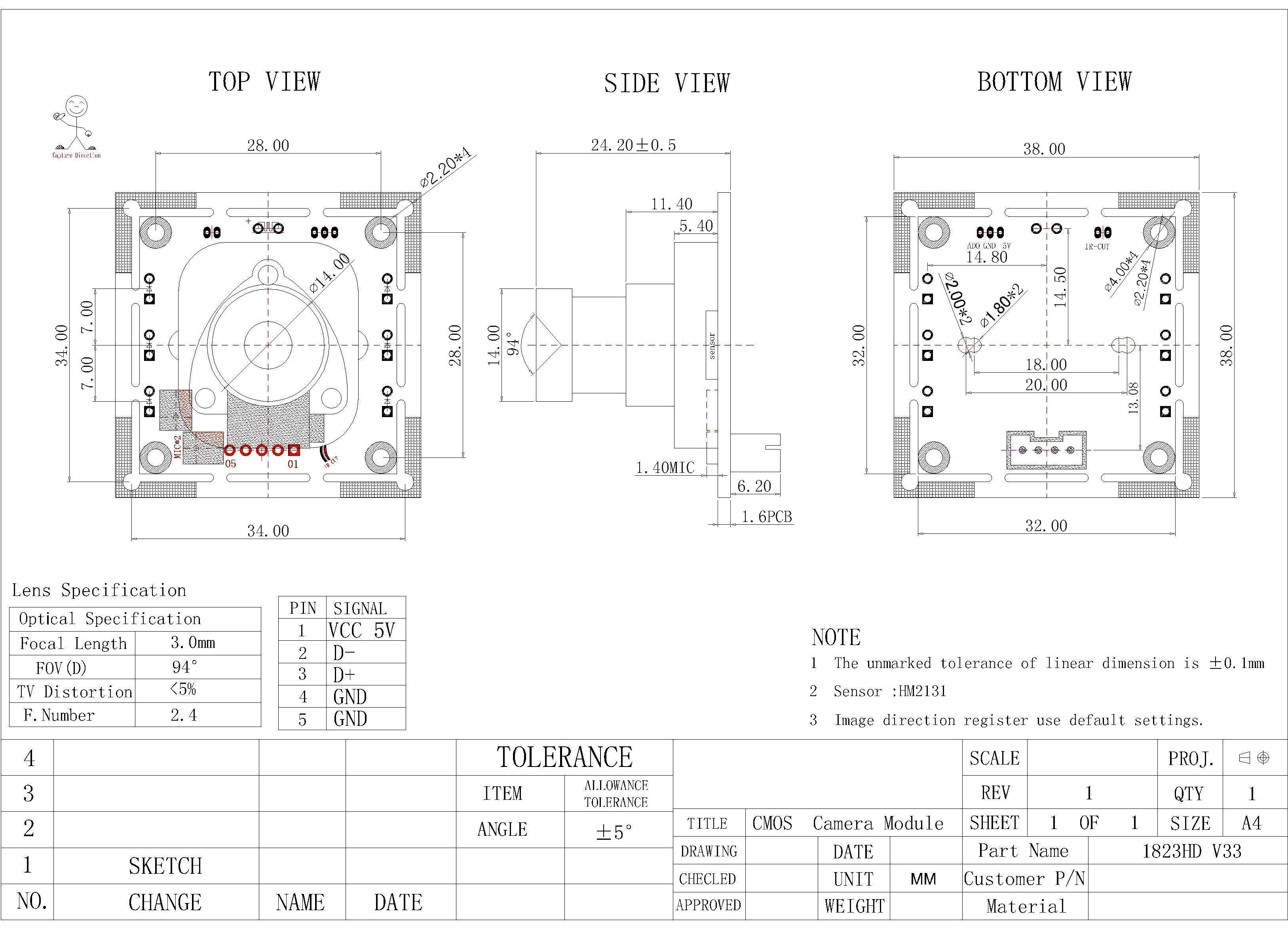

Module Size	38mm × 38mm × 24.2mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power	USB bus power
Power consumption	DC 5V±5%
Operating system request	800mW
Package	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Certifications	HM2131 (1/2.7" )
Sensor Type	CSP,Bare Die
Active Array Size	1920*1080
Sensitivity	4600mv /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
S/N Ratio	38.9 db
Dynamic Range	62 db
Package	Electronic rolling shutter
Lens Type	Auto
Lens Construction	YUY2/MJPEG
F/No	Support
EFL	2G2P
BFL(Optical)	2.4
FOV	3.0mm
TV Distortion	94°
Relative Illumination (Sensor)	<1%
IR Filter	70%
DSP Type	650±10nm
AGC/AEC/Whiter balance	Anti-electrostatic tray
Output Formats	FCC/CE/ROSH
Fixed Pattern Noise	< 0.03% of VPEAK-TO-PEAK
Package	LQFN-40pin
The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding.
