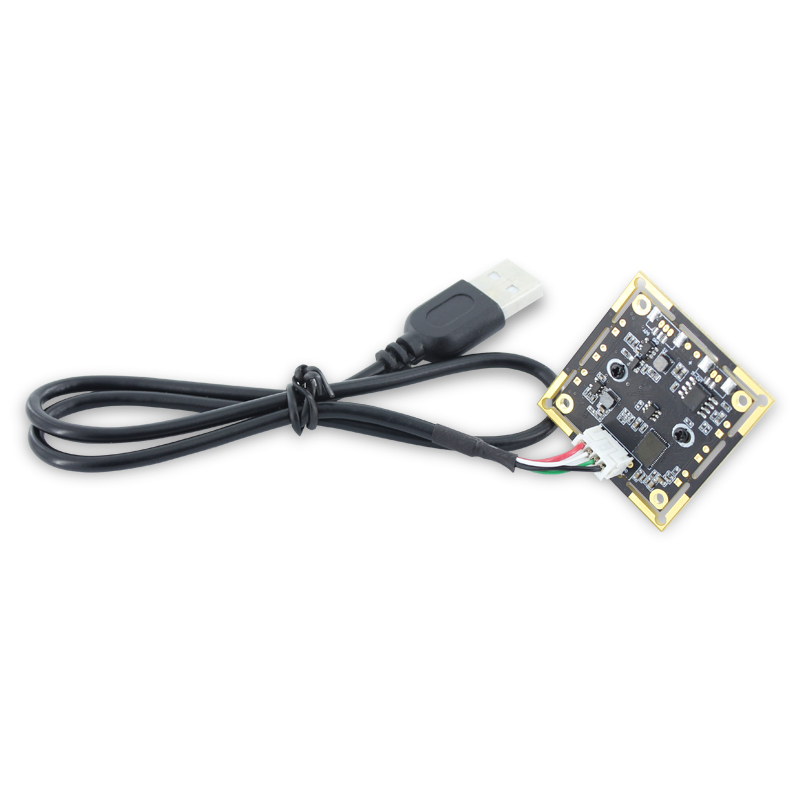

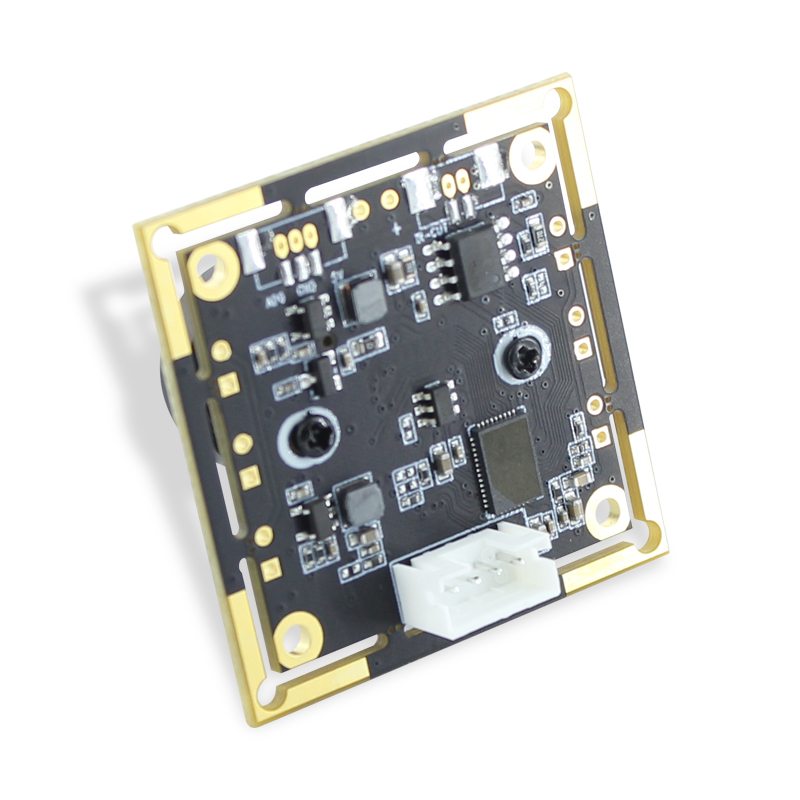

ODM 2MP USB camera module industrial control machine equipment camera module

Product category:

USB Camera Board

SKU:

216637

Price:

$24.00

Quantity	Price
1 - 99	$24.00
100 - 499	$21.85
500 - Unlimited	$18.70

full product footer

Description

Product Parameter

Product Name	2MP 100 degree distortion free lens Camera Module

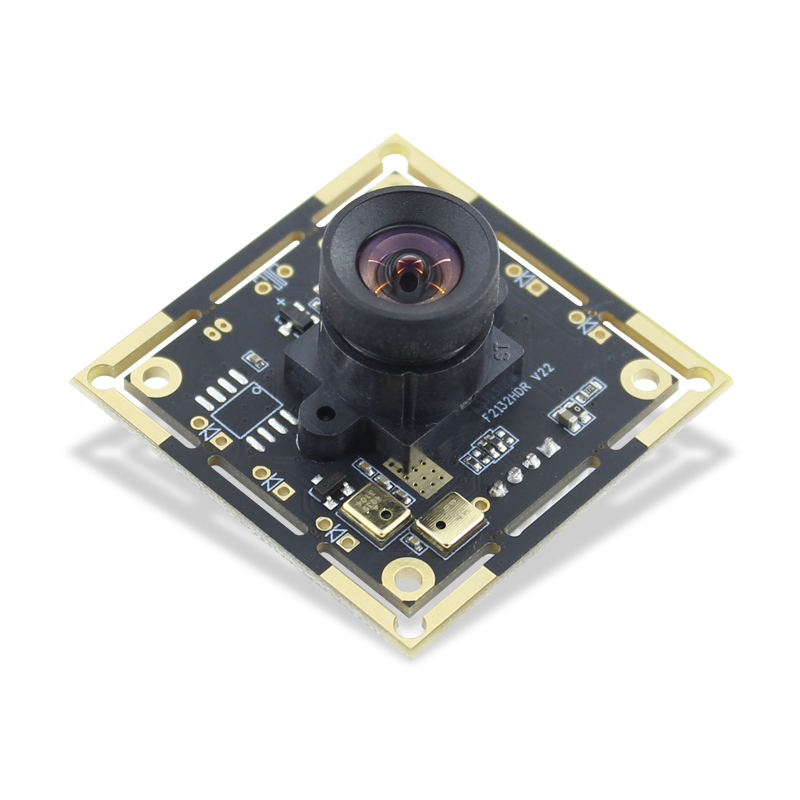

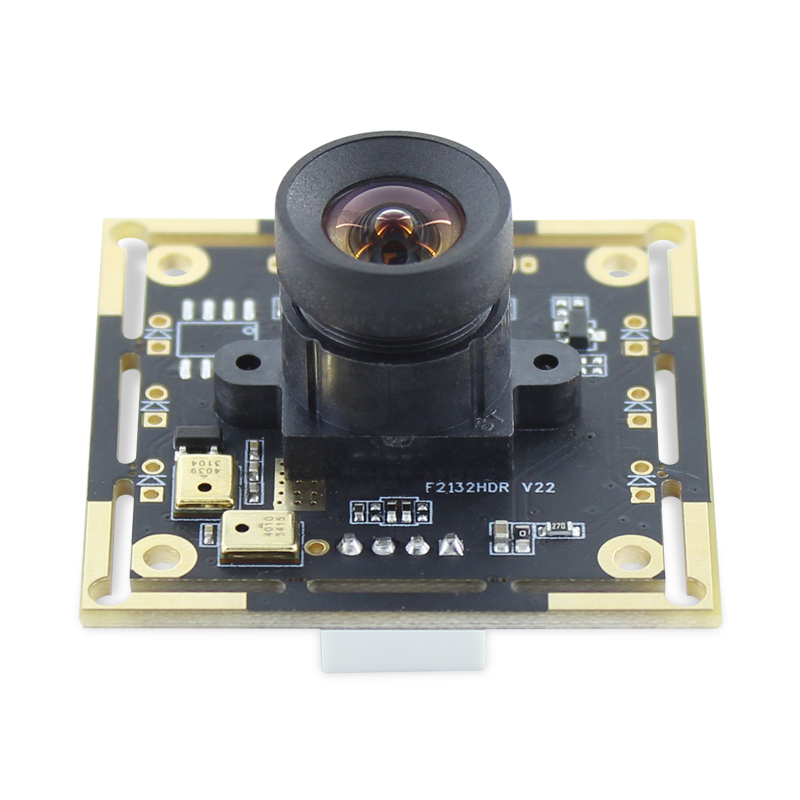

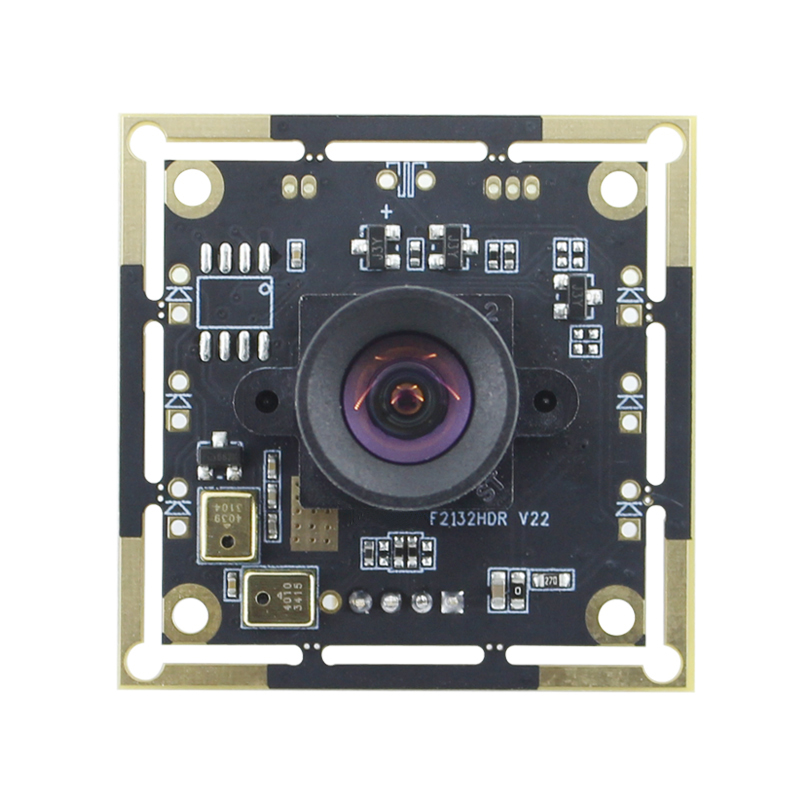

Module No	BMF2132HDR V22 - 100

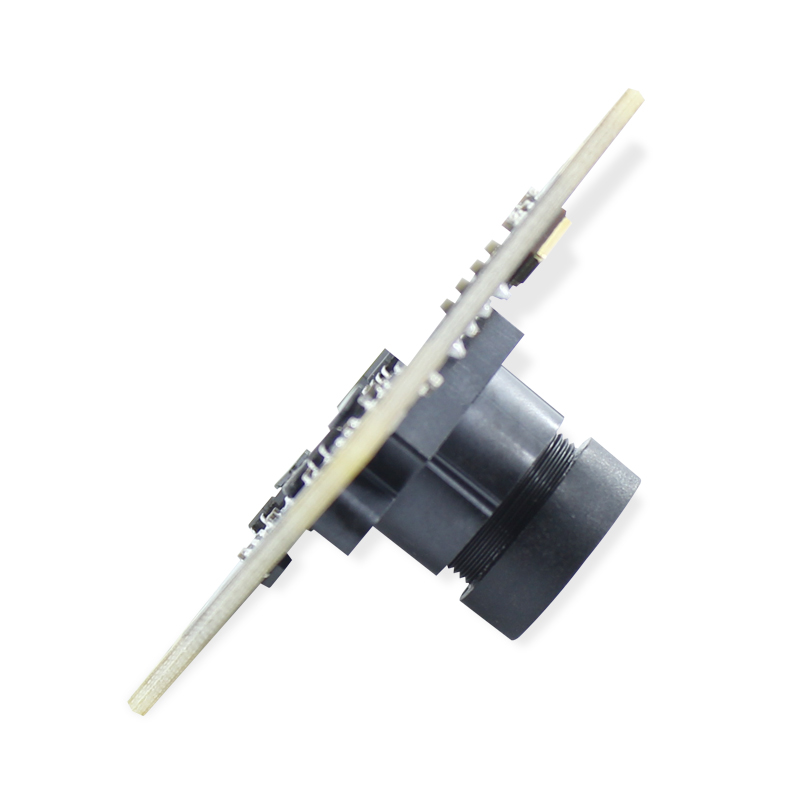

Module Size	38mm × 38mm × 17.50mm±0.5MM
Features	1. Standard industrial camera 3832mm plate structure 2. The effect of backlit portrait and recognition is better 3. Wide range of lens options 4. It can be welded with 6 plug-in lamps (infrared white light), which can be made into an open picture, bright and off, and can also be controlled by photosensitivity 5. 1823 main promotion with software dynamic - replacing 2131 sensor
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	800mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	PS5260 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4700mV /（lux-sec）
Pixel Size	3.0µm x 3.0µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 30FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	46 db
Max Dynamic Range	83 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	2G2P
F/No	2.4
EFL	3.0mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
