2MP Usb Camera Module Global Shutter 1600*600 60FPS 1080P Standard Industrial Camera Cmos Camera Pcb Board Module

Product category:

USB Camera Board

SKU:

216896

Price:

$60.00

Quantity	Price
1 - 499	$60.00
500 - Unlimited	$56.35

Description

Product Description

Product Name	2 MP industrial computer, advertising machine, equipment embedded built-in camera module
Module No.	BMU2205GS V11 130

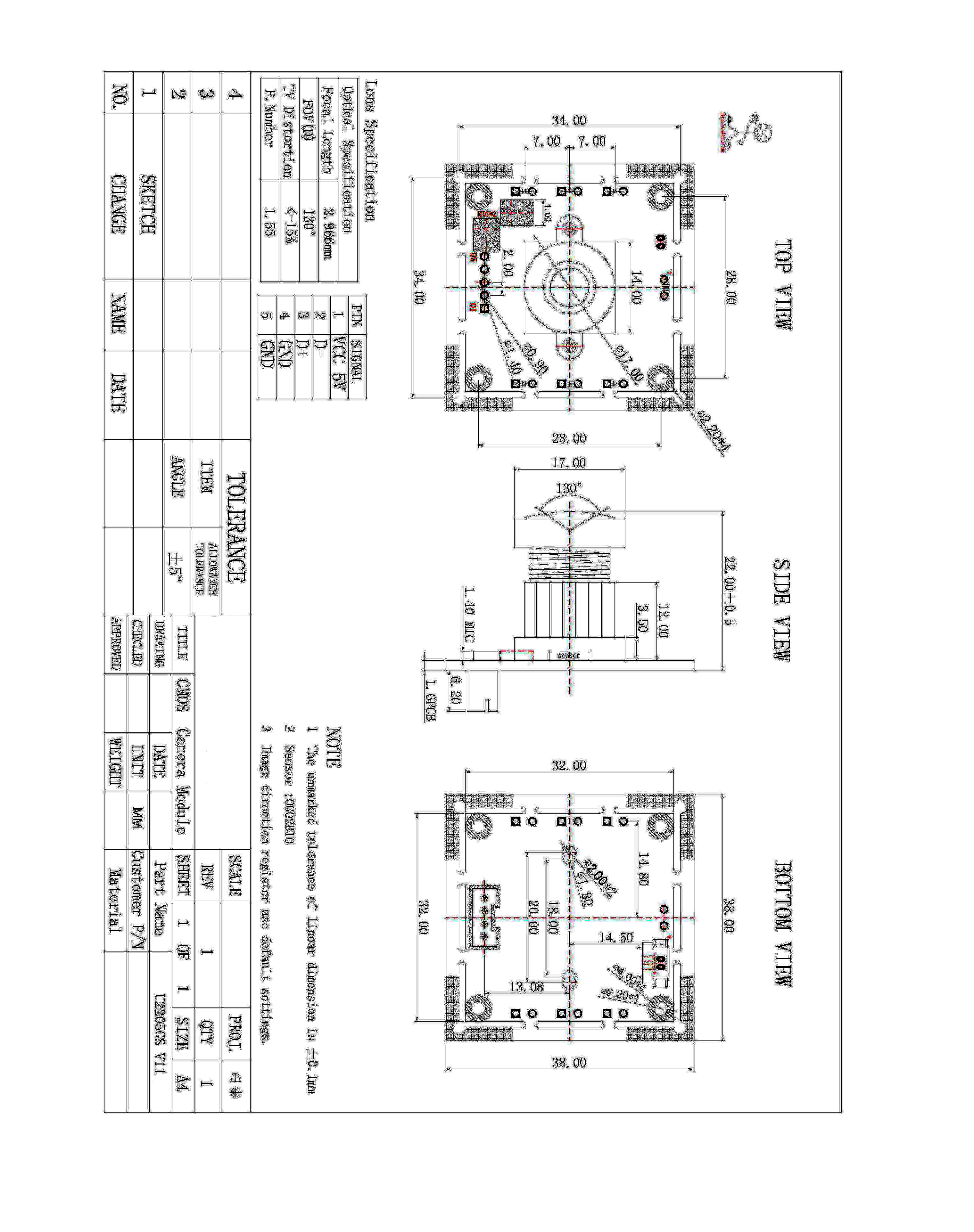

Module Size	38mm × 38mm × 22mm±0.5MM
Features	1. Standard industrial camera 38, 32mm panel structure 2. Wide range of lens options and high cost performance 3. 6 plug-in lights (infrared white light) can be added and welded, which can be turned on and off, or photosensitive control.
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	890mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OG02B10 (1/2.9" )
Seneor Package	CSP,Bare Die
Maximum resolution	1600*1200
Sensitivity	1900mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 640x480 120FPS / YUY2 640x480 30FPS MJPEG 848x480 120FPS / YUY2 848x480 15FPS MJPEG 1280x720 120FPS / YUY2 1280x720 10FPS MJPEG 1280x960 60FPS / YUY2 1280x960 1FPS MJPEG 1600x1200 60FPS / YUY2 1600x1200 1FPS
		S/N Ratio	37.4db
		Max Dynamic Range	68db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	Support
		Lens Construction	2G4P
		F/No	1.55
EFL	2.966 mm

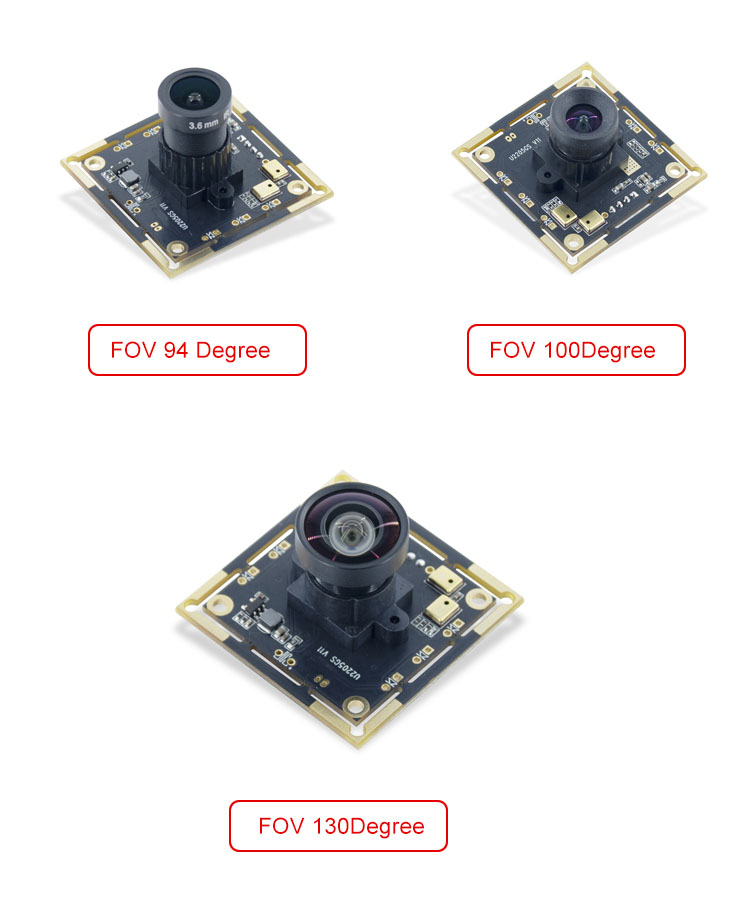

FOV	130°
TV Distortion	<-15%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Detailed Images
