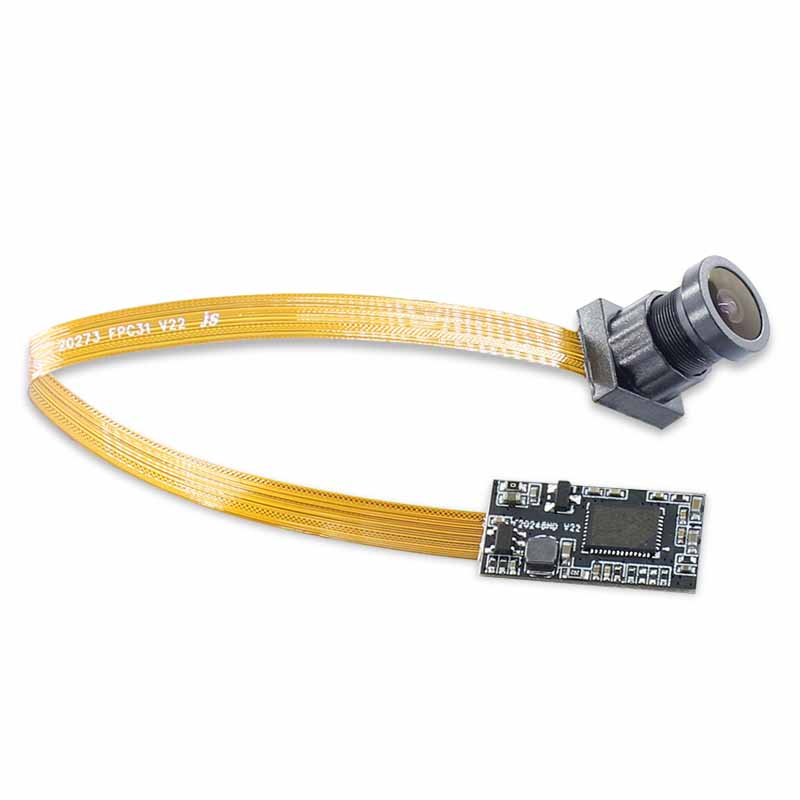

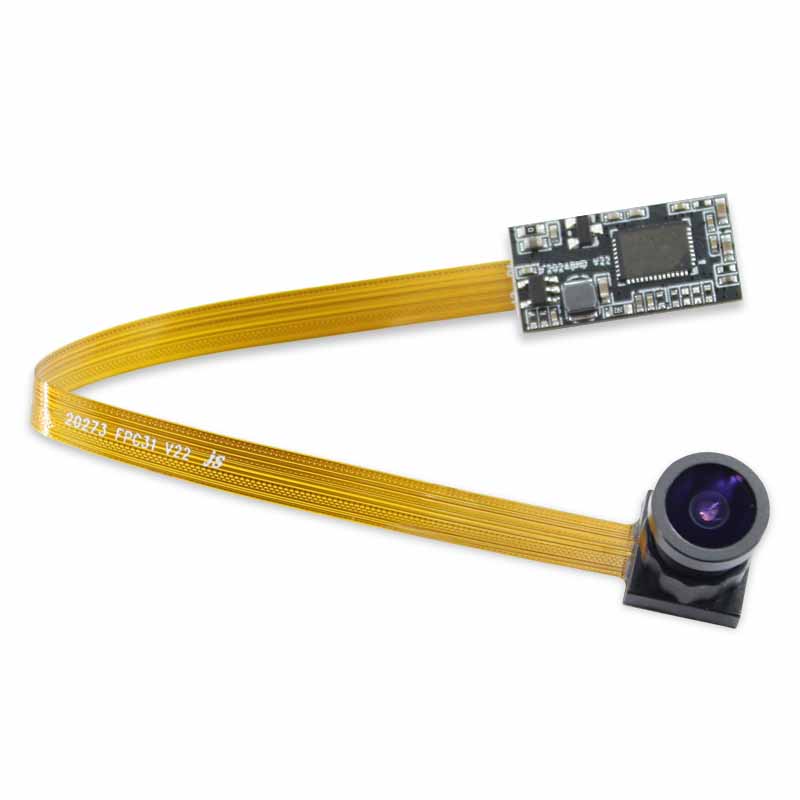

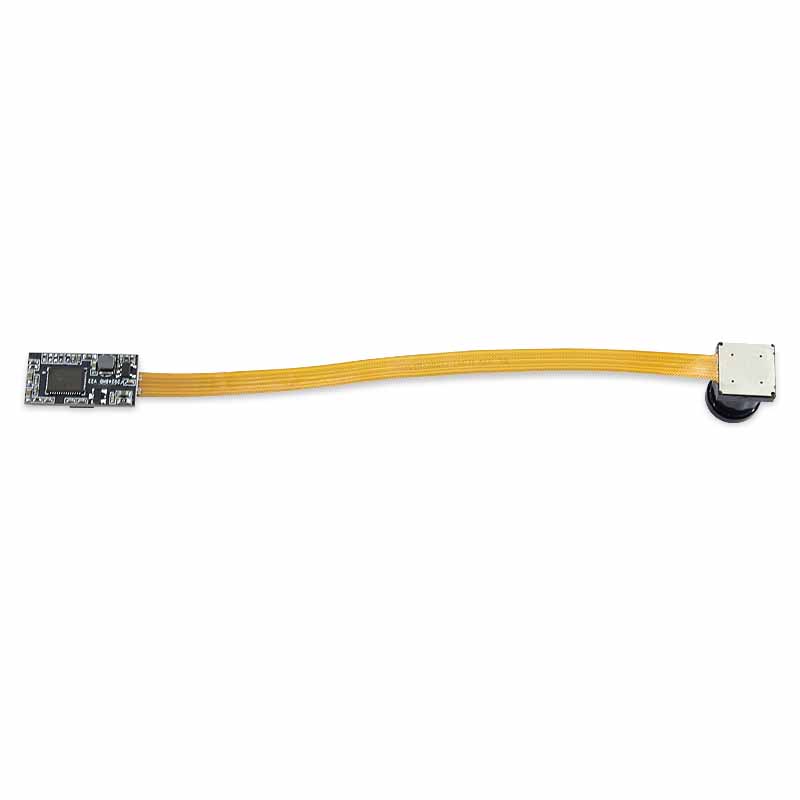

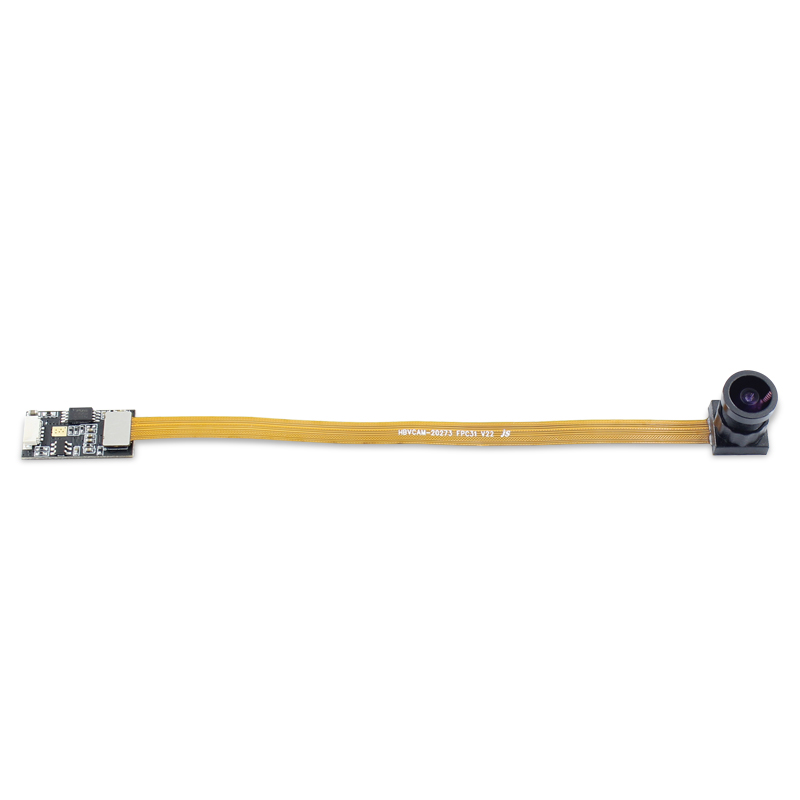

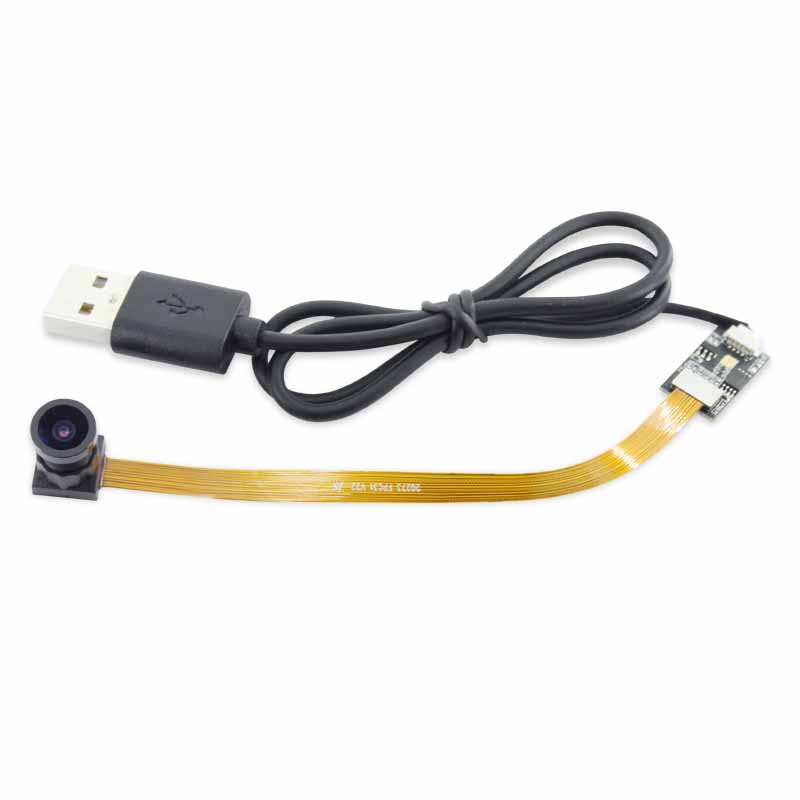

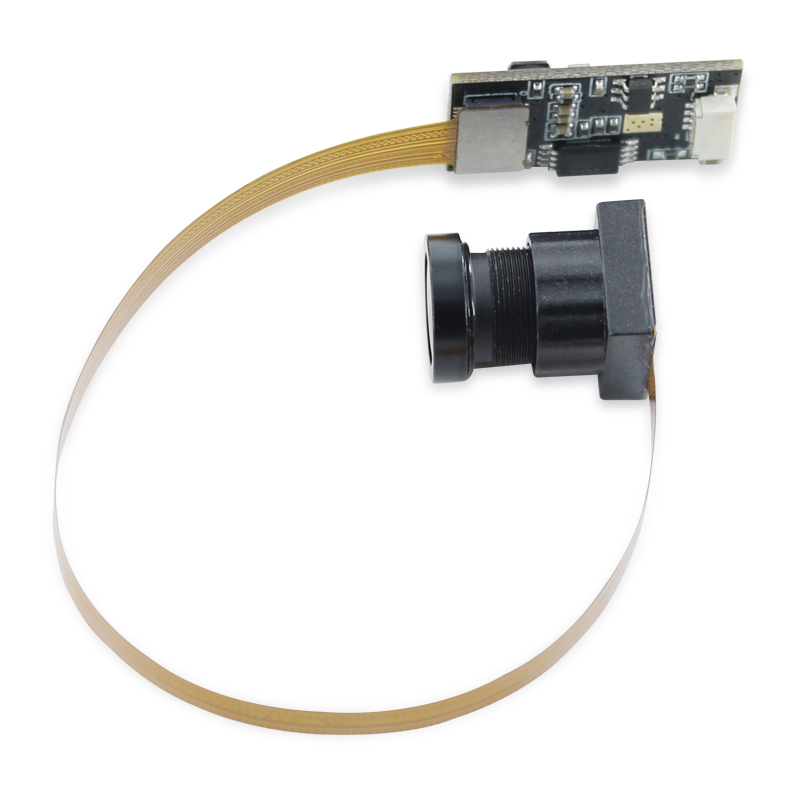

2MP 1080P usb camera module embedded built-in camera module

Product category:

USB Camera Board

SKU:

216690

Price:

$30.00

Description

Product Name	2MP UVC Camera Module
Module No	BMF20248HD V22-160
Module Size	135mm × 10mm × 14.5mm±0.3MM
Features	1. Flexible structure of soft and hard board, large image surface, high-definition effect, small volume 2. Can do 30/60 frame selection 3. The head can be made 9X9mm/10X10mm 4. Several specifications of the lens are optional
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV2735 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4600mv /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	38.6 db
Max Dynamic Range	72 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	5G
F/No	2.4
EFL	2.9mm
FOV	160°
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
