2Mp Industrial Computer Advertising Machine Equipment Embedded With Day/Night Switch Dual-Mode Built-In Camera Module

Product category:

USB Camera Board

SKU:

217048

Price:

$33.60

Description

Product Description

Product Name	2 mp industrial computer, advertising machine, equipment embedded with day/night switch dual mode built-in camera module
Module No.	BMF2132HDR V22

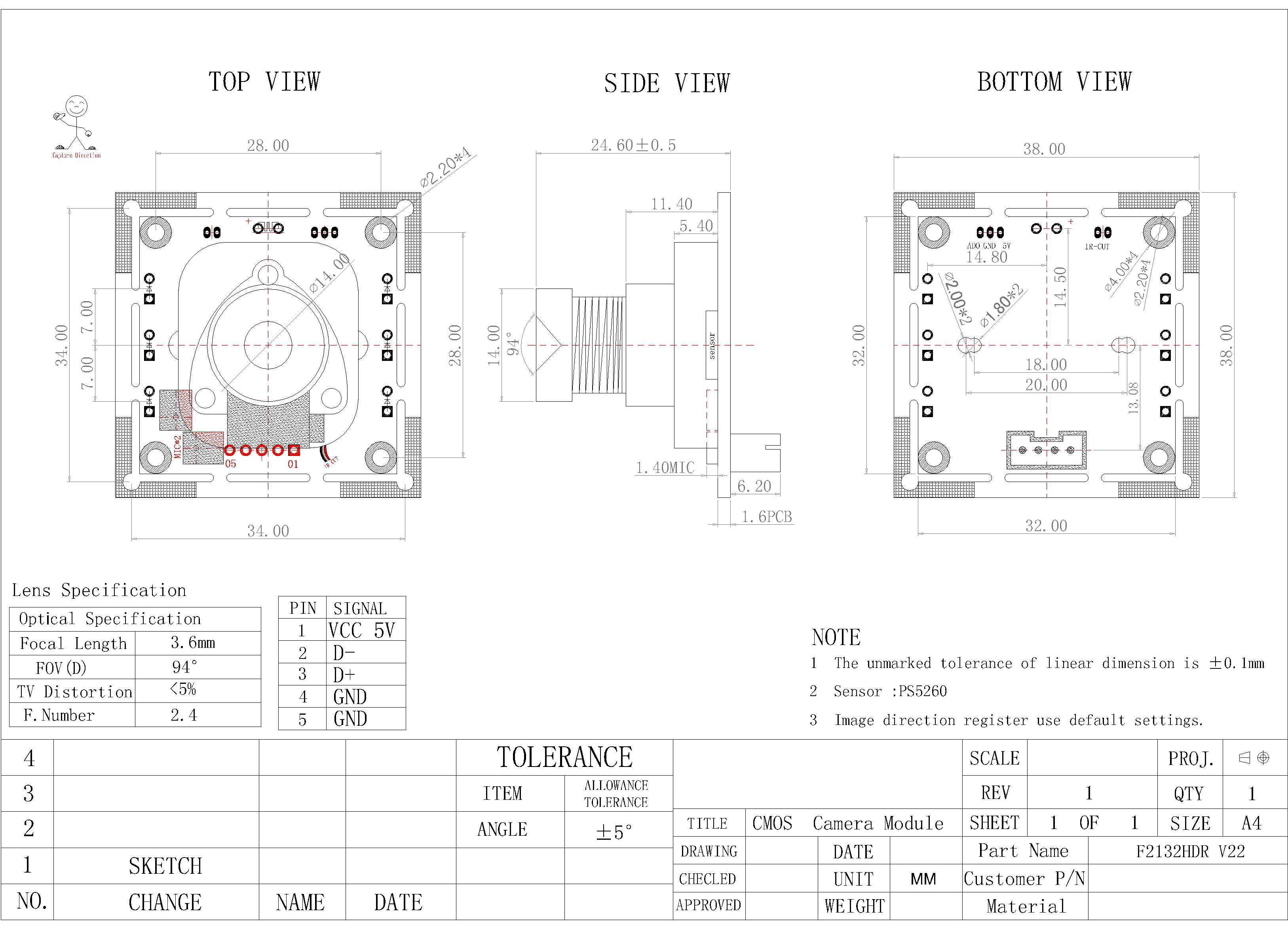

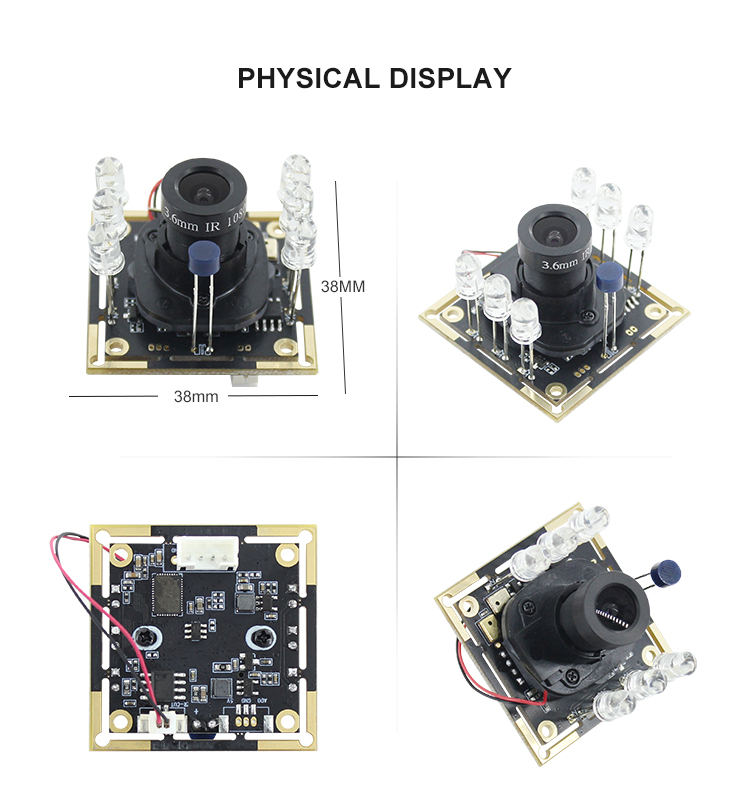

Module Size	38mm × 38mm × 24.60mm±0.5MM
Features	1, support IR-Cut-850/940nm infrared 2, with double digital silicon wheat 3,with white night mode but change - daytime color night black and white, photosensitive control
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black

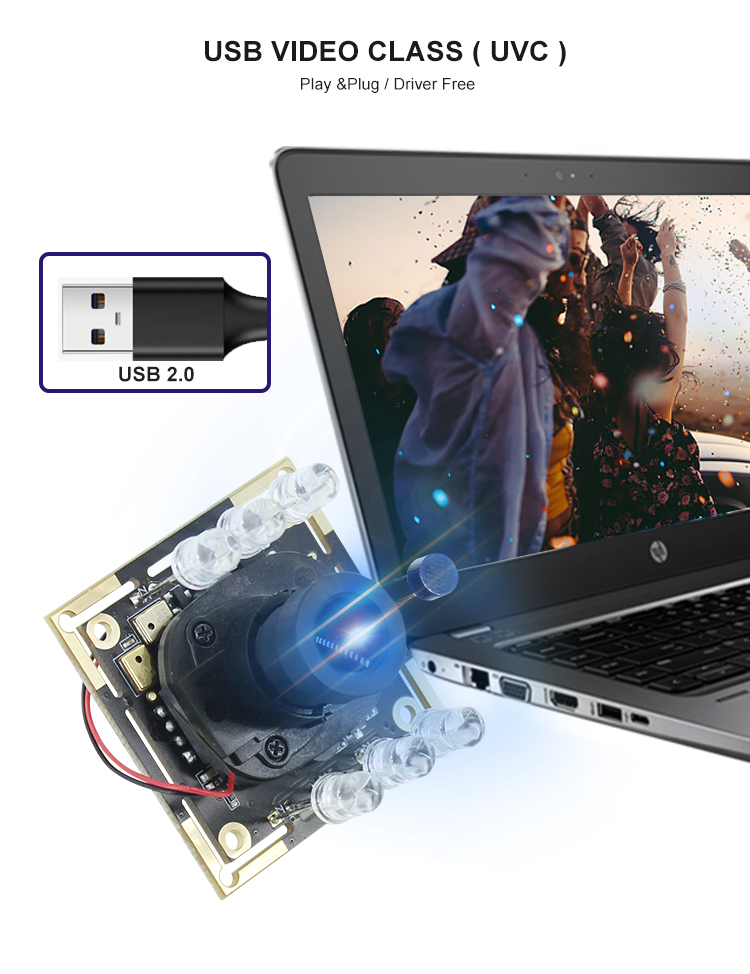

interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	800mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	PS5260 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4700mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 30FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
		S/N Ratio	46 db
		Max Dynamic Range	83 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	Support
		Lens Construction	2G2P
		F/No	2.4
EFL	3.6mm
FOV	94°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Detailed Images
