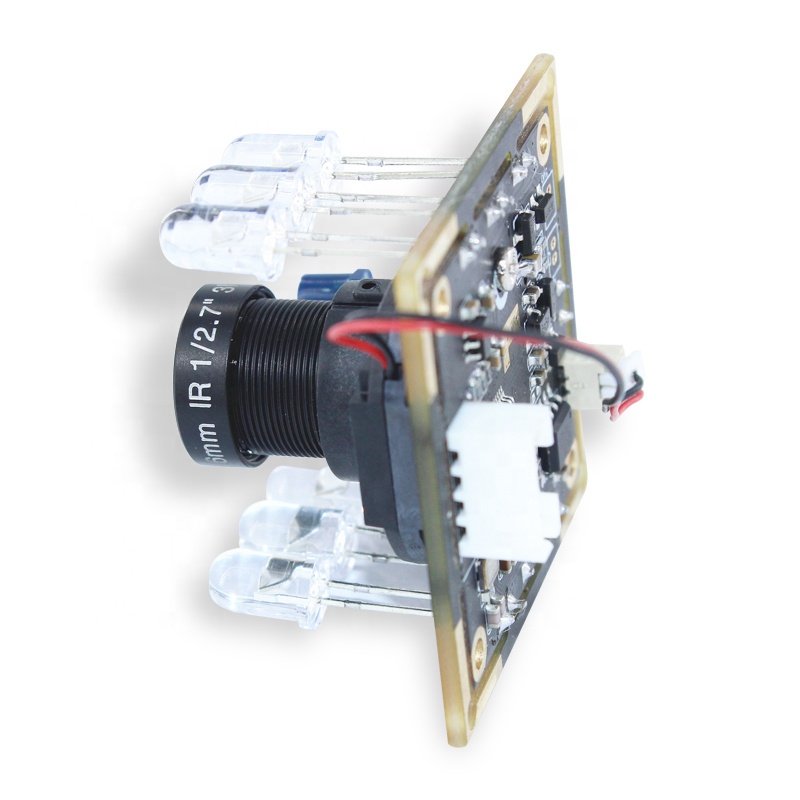

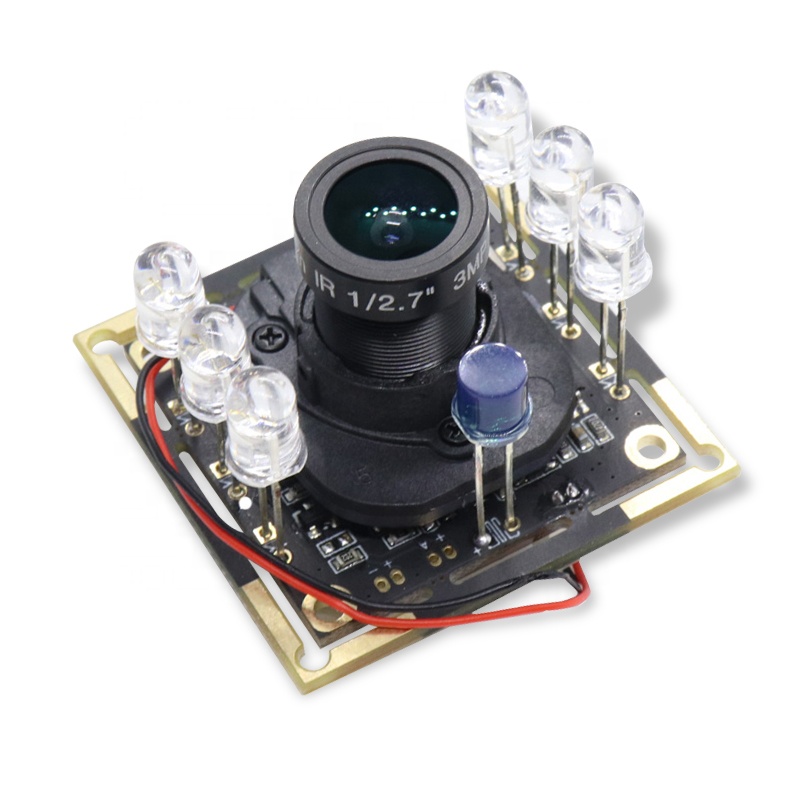

New 2Mp 1080P Hd Plug & Play Usb 2.0 Day And Night Ir Automatic Switch Night Vision Mini Camera Module

Product category:

USB Camera Board

SKU:

216930

Price:

$30.00

Description

Module No.	BM1716HD-IR -CUT V33

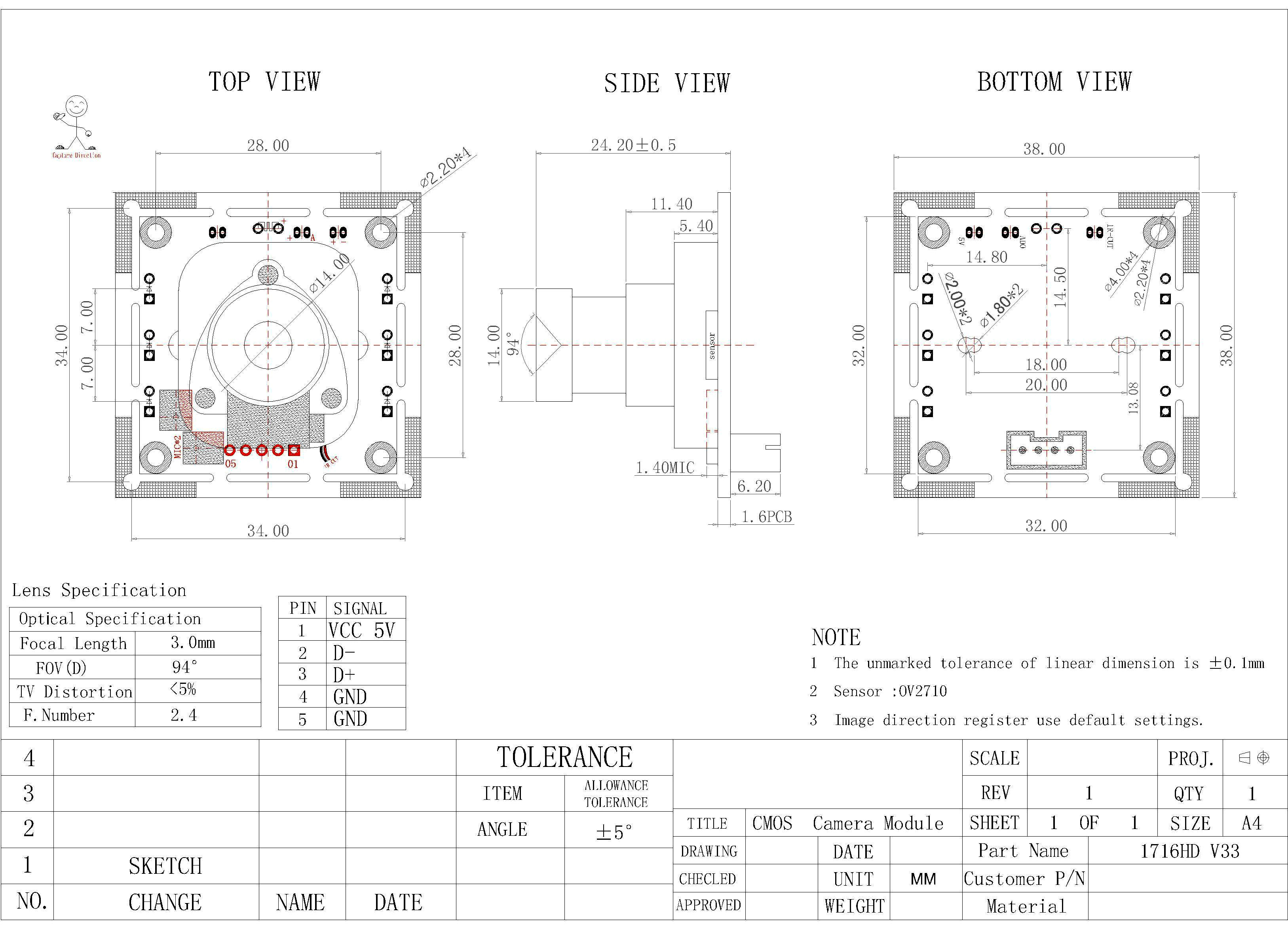

Module Size	38mm × 38mm × 24.2mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1650mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV2710 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	10mv /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 160x120 30FPS / YUY2 160x120 30FPS
	MJPEG 320x240 30FPS / YUY2 320x240 30FPS
	MJPEG 352x288 30FPS / YUY2 352x288 30FPS
	MJPEG 640x480 30FPS / YUY2 640x480 30FPS
	MJPEG 1280x720 30FPS /
	MJPEG 1920x1080 30FPS /
	MJPEG 640x360 60FPS / YUY2 640x480 30FPS
	MJPEG 800x600 60FPS / YUY2 800x600 20FPS
	MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
S/N Ratio	39 db
Max Dynamic Range	69 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	2G2P
F/No	2.4
EFL	3.0mm
FOV	94°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
Package	LQFN-46pin
