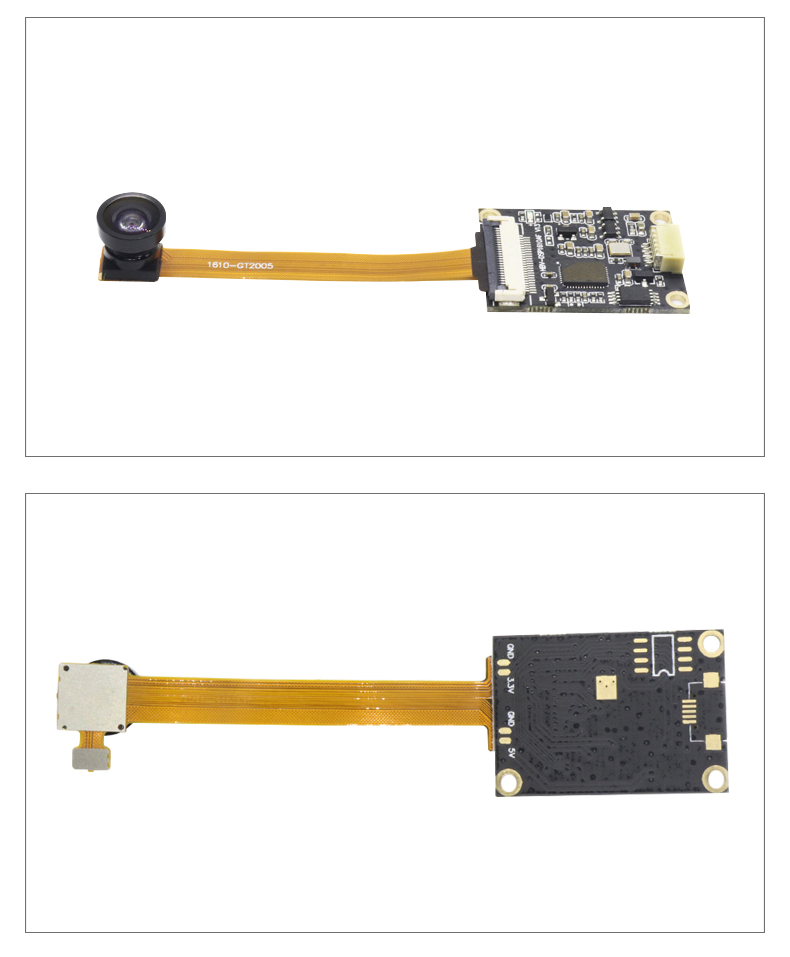

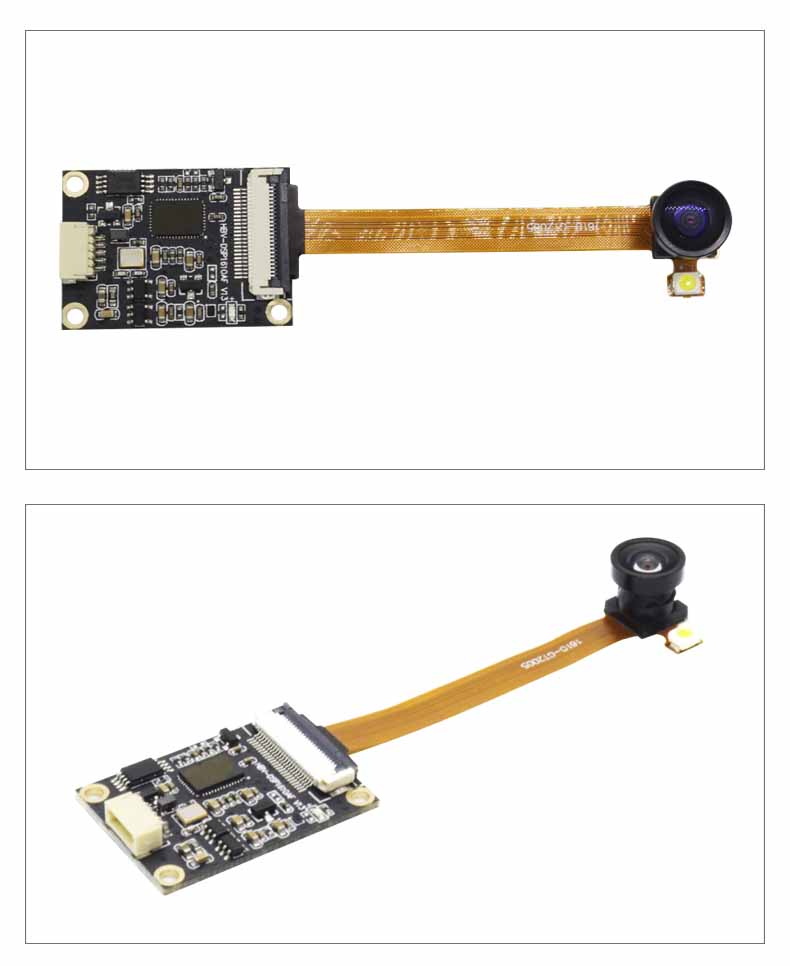

Customized 2mp Wide Angle 120 Degree Fisheye Webcam Module with LED Flash

Product category:

USB Camera Board

SKU:

216685

Price:

$16.80

Description

Model No.	DSP1610AF

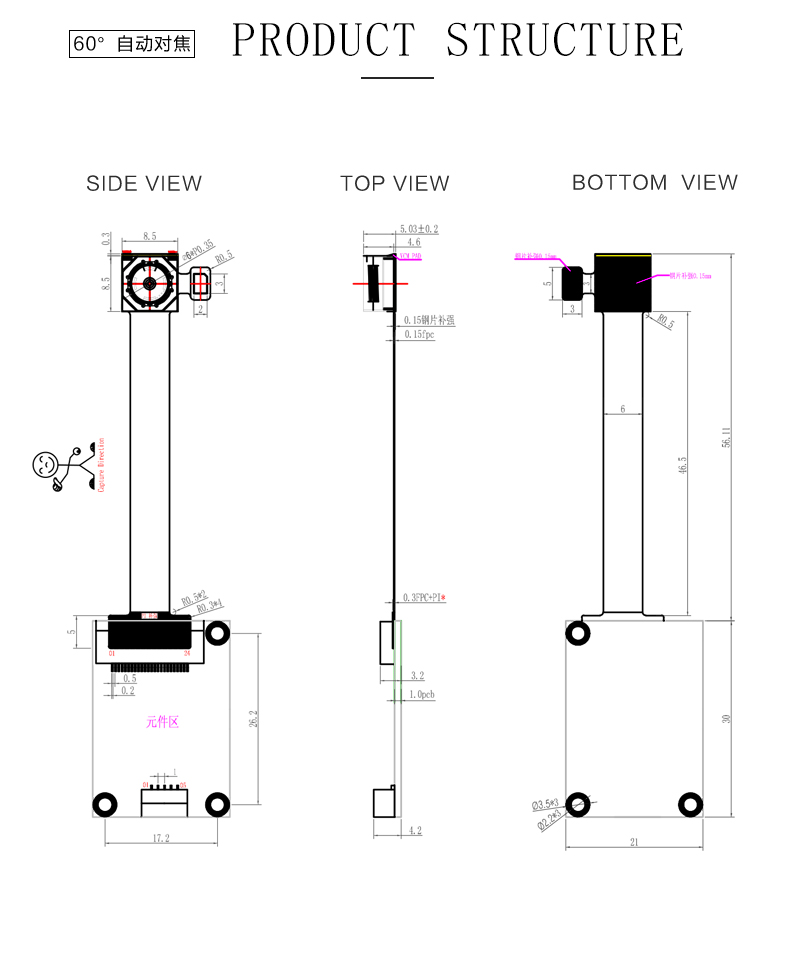

Model Size	86.11mm × 21mm × 5.03mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	730 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc
Sensor	GT2005 (1/5" )
Seneor Package	CSP,Bare Die
Maximum resolution	1600*1200
Sensitivity	33000mv /(lux-sec)
Pixel Size	1.75m x 1.75μm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1024x768 15FPS / YUY2 1024x768 6FPS MJPEG 1280x960 15FPS / YUY2 1280x960 6FPS MJPEG 1600x1200 15FPS / YUY2 1600x1200 6FPS
S/N Ratio	42B
Max Dynamic Range	72B
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P+IR
F/No	2.2
EFL	3.0 mm
FOV	120
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
