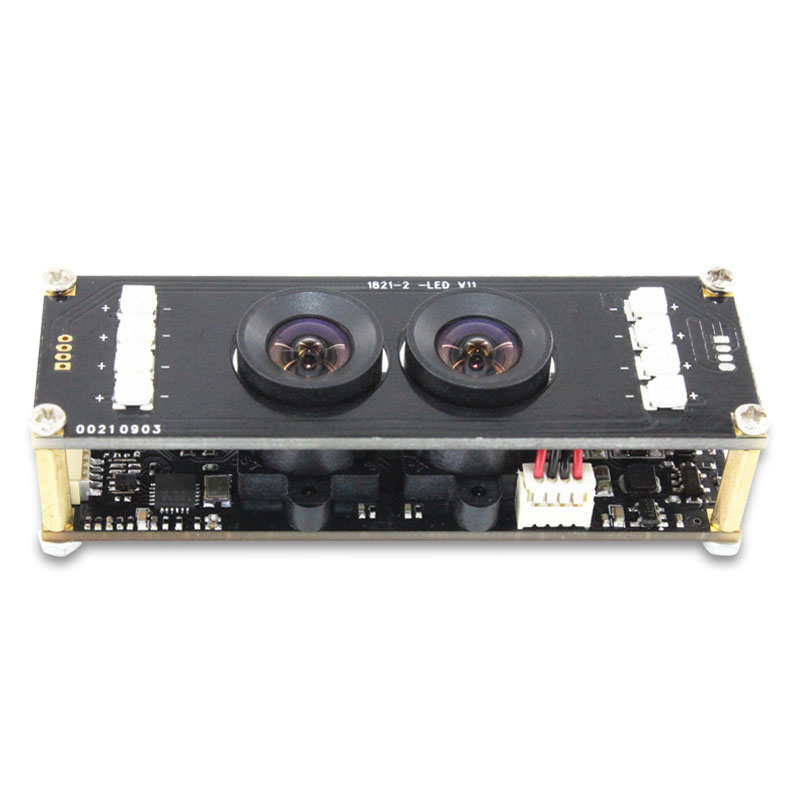

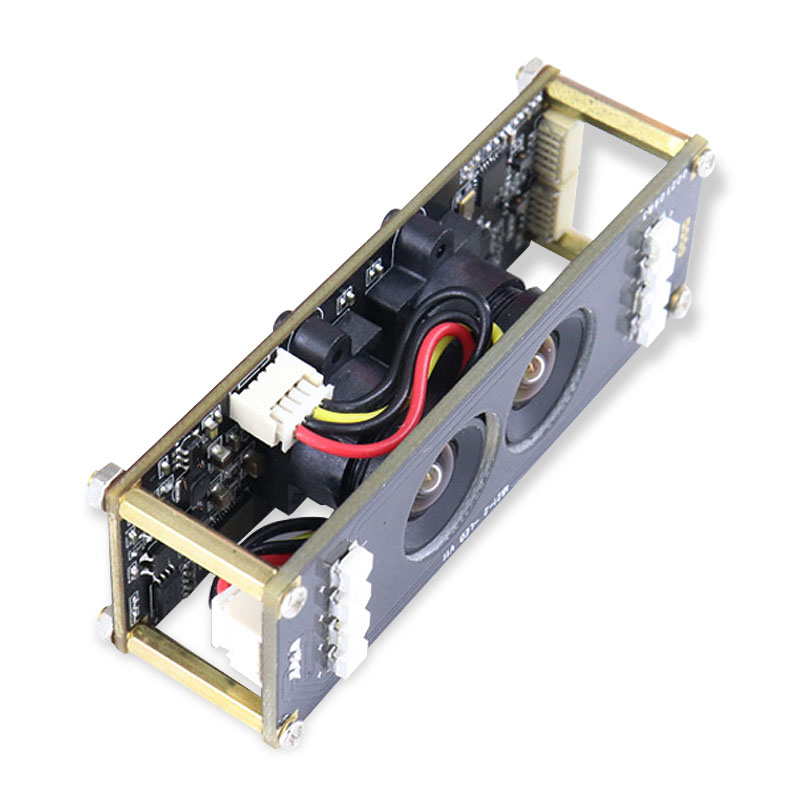

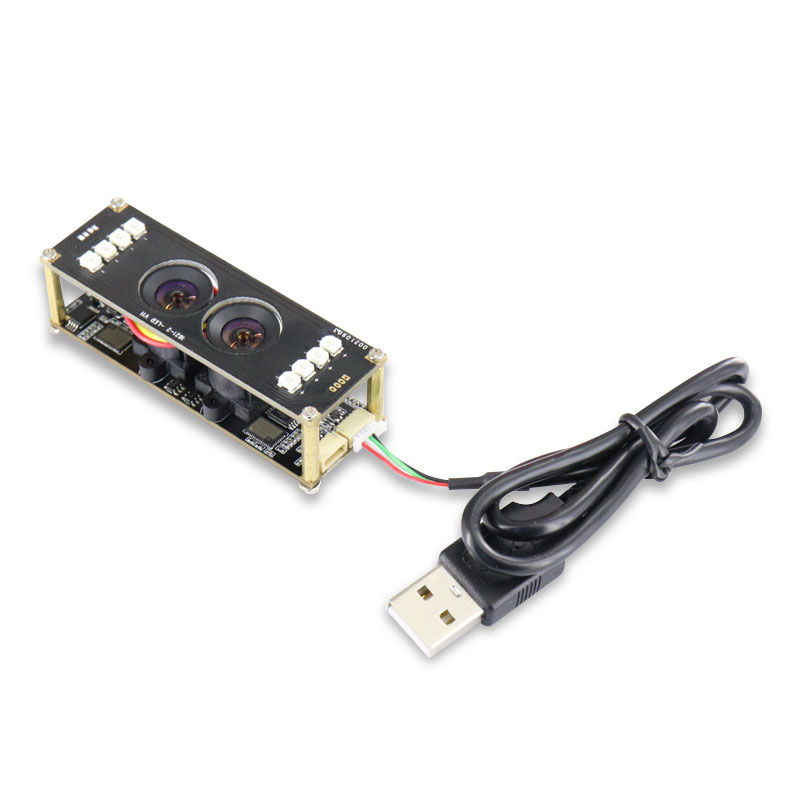

2MP 3d face recognition camera for ID scanner equipment

Product category:

USB Camera Board

SKU:

217154

Price:

$60.00

Description

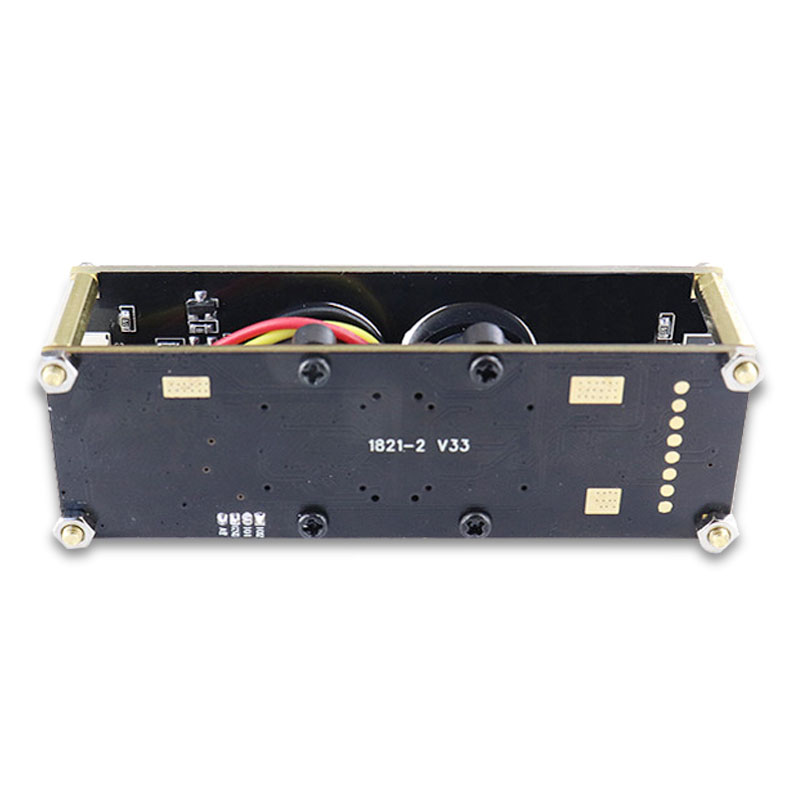

Module No.	BM1821-2 V11
Module Size	68mm × 22mm × 17.4mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	2100mW

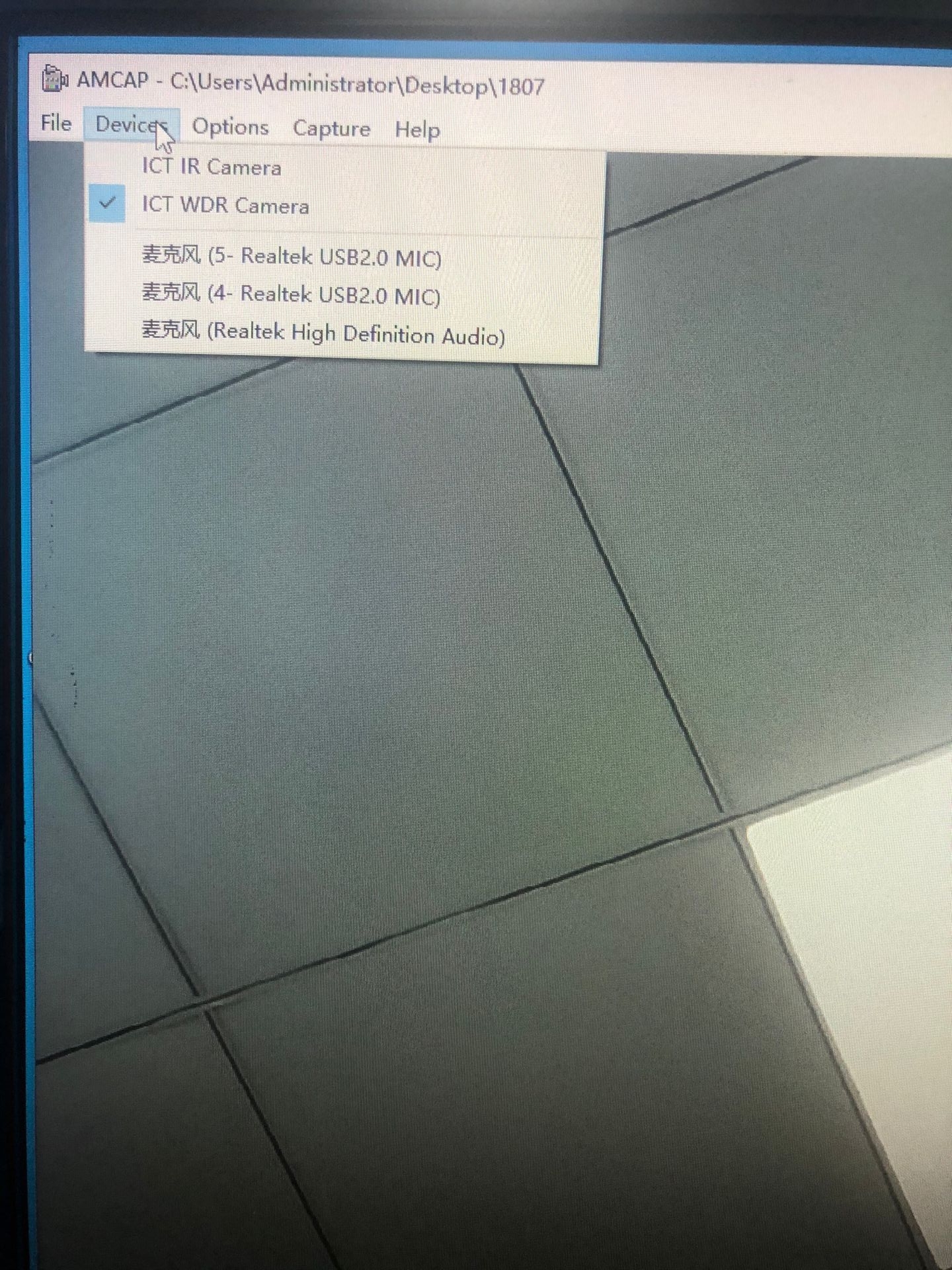

Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	HM2131 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4600mv /（lux-sec）
Pixel Size	3µm x 3µm

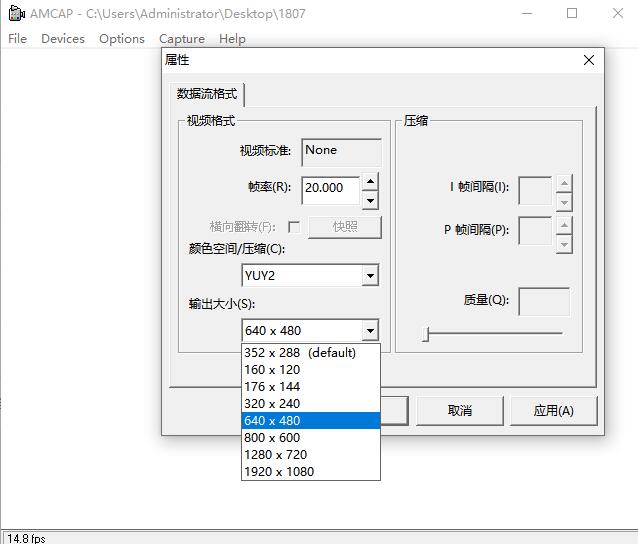

Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 20FPS MJPEG 352x288 30FPS / YUY2 352x288 20FPS MJPEG 640x480 30FPS / YUY2 640x480 20FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 640x360 60FPS / YUY2 640x480 30FPS MJPEG 800x600 60FPS / YUY2 800x600 20FPS MJPEG 1280x720 60FPS / YUY2 1280x720 10FPS
S/N Ratio	38.9 db
Max Dynamic Range	62 db
Shutter type	Electronic rolling shutter

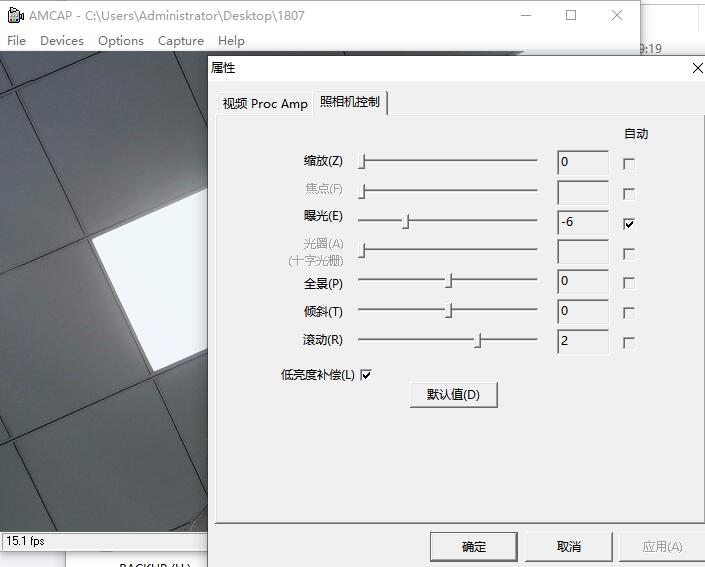

AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.4
EFL	3.0mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm 850±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
