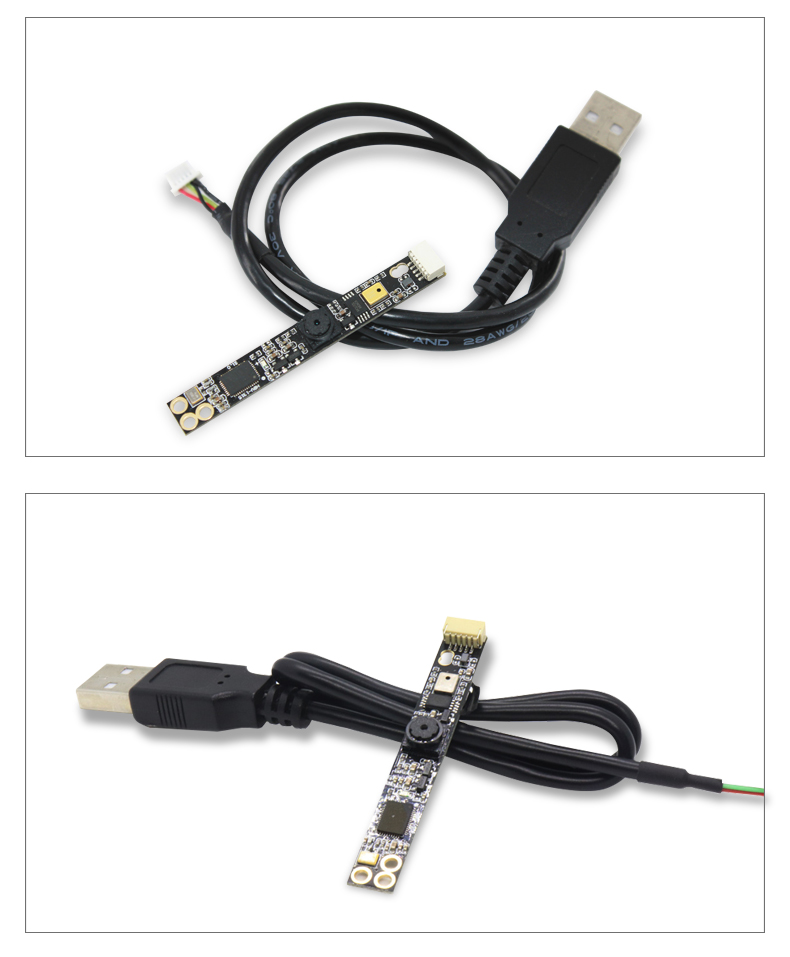

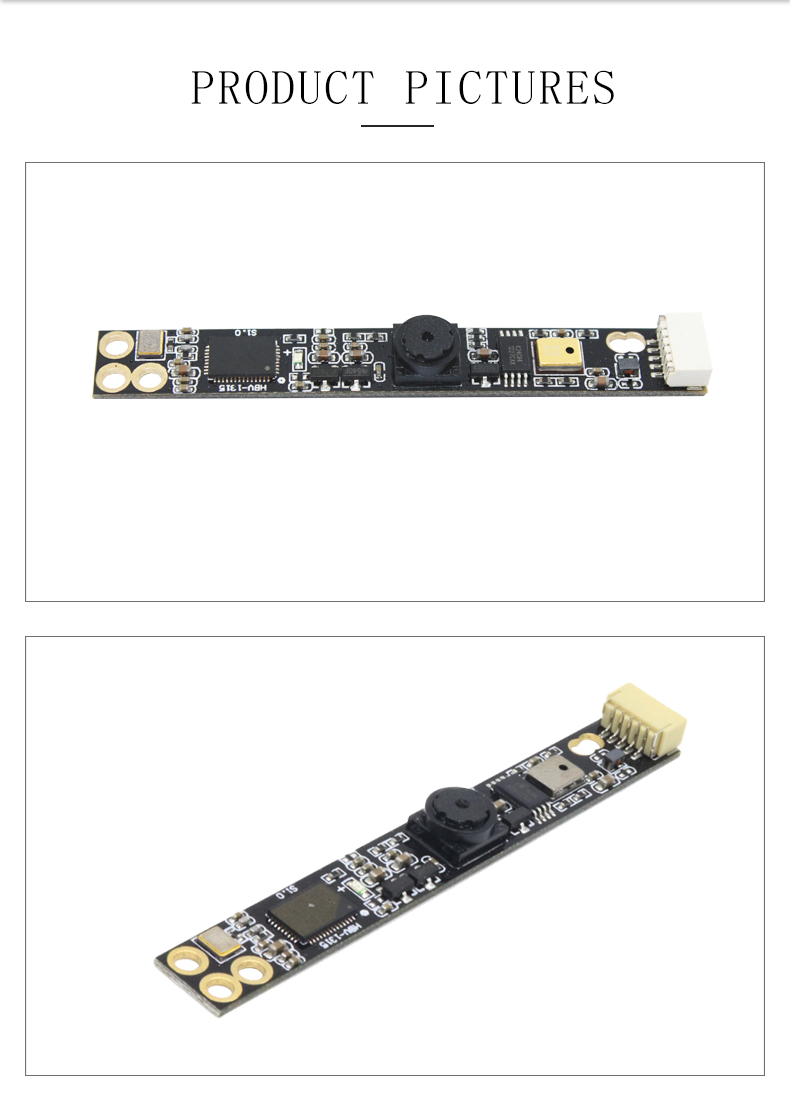

2mp fixed focus HM2057(1/5") 2.8mm lens usb camera module with 1600*1200 5fps resolution

Product category:

USB Camera Board

SKU:

216976

Price:

$12.00

Description

Product Descripiton

Model No.	1315 S1.0

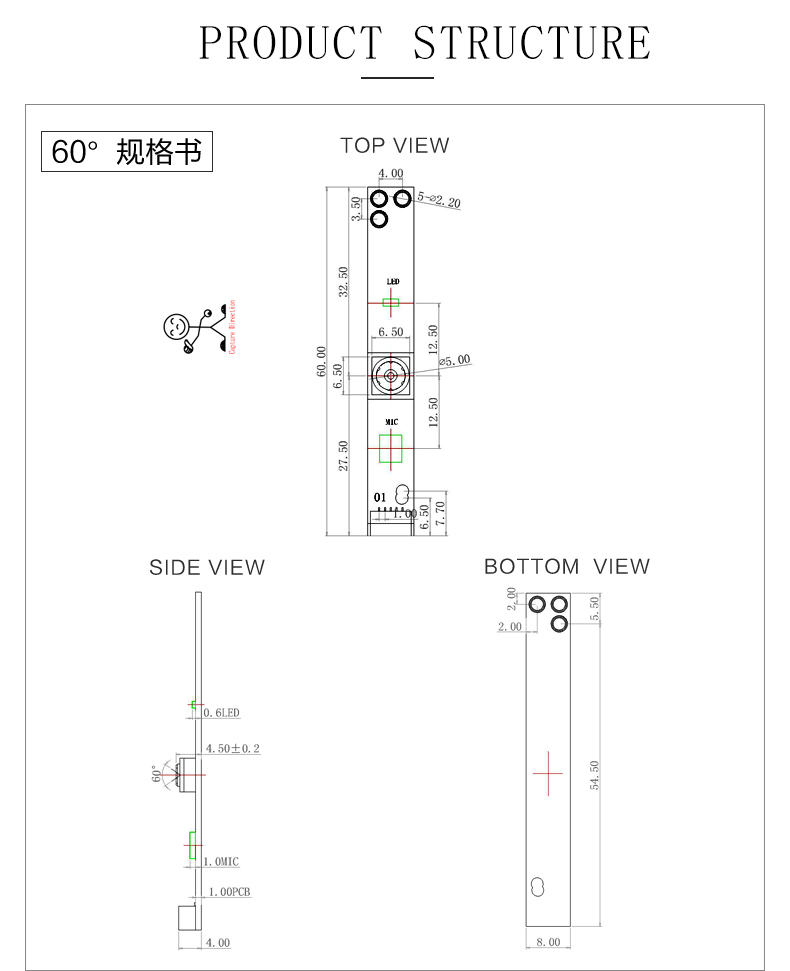

Model Size	60mm × 8mm × 4.6mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Image Area	3888um*2208um
Object distance	15CM-130CM
Resolution	600LW/PH (Center)
Interface	USB 2.0
Power	USB bus power
Power consumption	110mW (VGA); 130 mW (UXGA);
Package	Anti-electrostatic tray
Operating system request	Windows 2000\ Windows XP\Windows 7
Certifications	FCC and CE
Active Array Size	1200*1600
Sensitivity	TBD
Pixel Size	1.75μm x 1.75μm
Maximum Image Transfer Rate	15 fps for UXGA;
S/N Ratio	TBD
Dynamic Range	TBD
Package	CSP,Bare Die
Lens Type
Lens Construction	3P+IR
F/No	2.8
EFL	3.28 mm
BFL(Optical)	2.7mm
FOV	60°
TV Distortion	<0.24%
Relative Illumination (Sensor)	70%
R Filter	650 ± 10nm
DSP Type	1313
AGC/AEC/Whiter balance	Auto
Output Formats	USB suspend out
Fixed Pattern Noise	< 0.03% of V PEAK-TO-PEAK
Package	LQFN-40pin
