High Speed Cmos Hd Face Recognition Wide Dynamic 2mp Mini Usb Camera Module

Product category:

USB Camera Board

SKU:

216901

Price:

$27.60

Description

Product Description

Product Name	2 MP industrial computer, advertising machine, face recognition equipment embedded built-in camera module
Module No.	BMF2110HDR V22

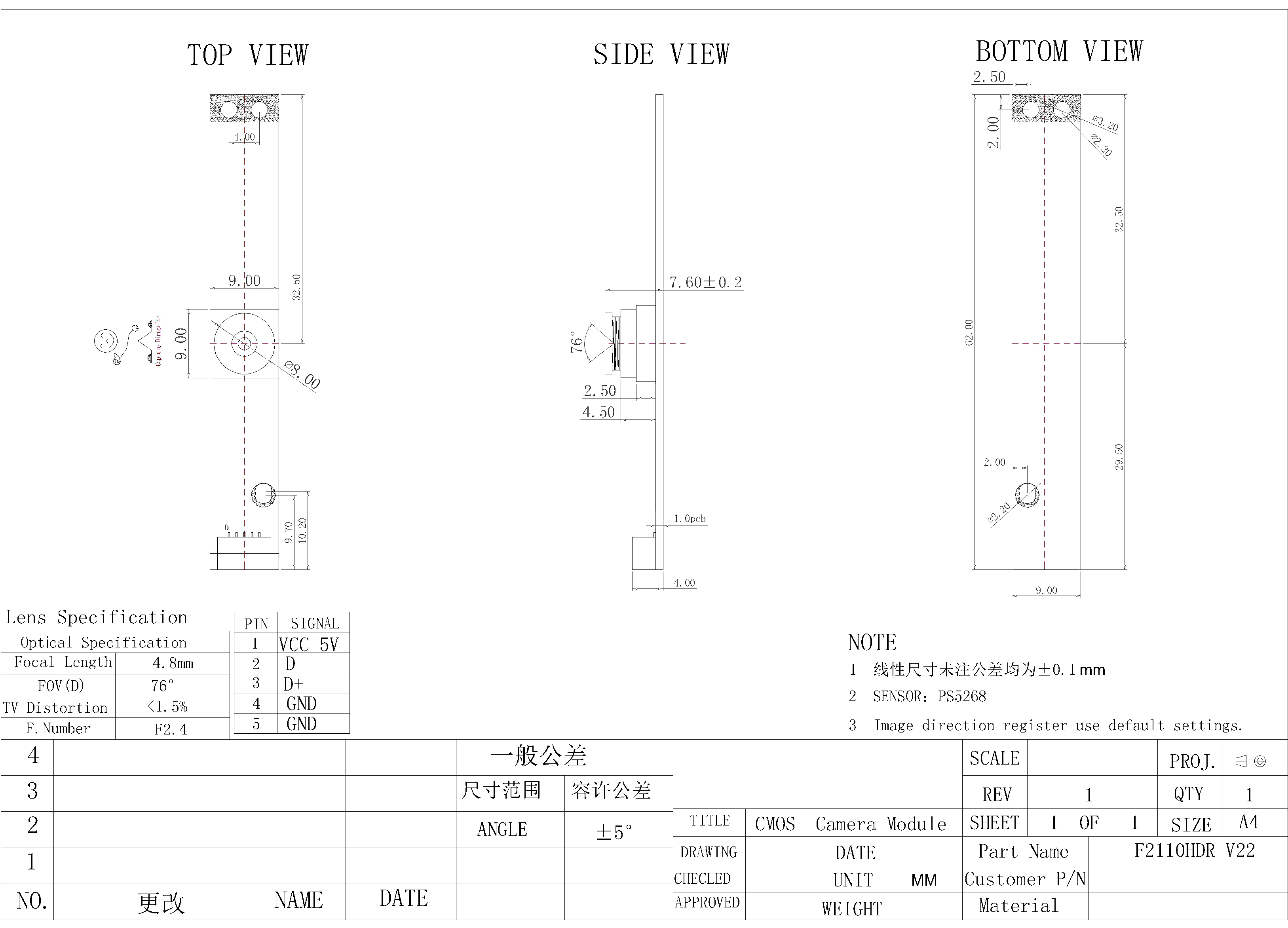

Module Size	62mm × 9mm × 7.6mm±0.2MM
Features	1. Standard advertising machine integrated machine structure, hole position 2. Large pixel 1/2.7-1080P, good effect, good low illumination, real bandwidth with hardware 85db
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	PS5268 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	5800mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
		S/N Ratio	41 db
		Max Dynamic Range	85 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	5P
		F/No	2.4
EFL	4.8mm
FOV	76°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Detailed Images
