2mp ov2710 full hd 1080p cmos micro camera module with 130degree lens

Product category:

USB Camera Board

SKU:

216975

Price:

$25.20

Description

Product Descripiton

Model No.	BM1716

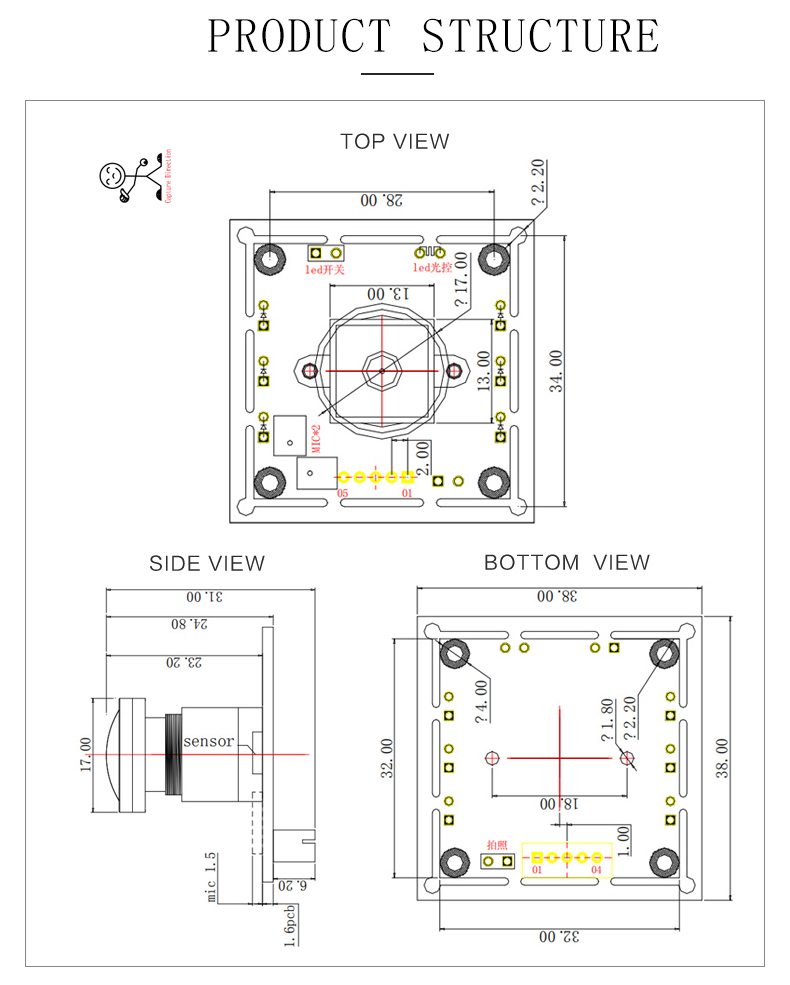

Model Size	8MM(L)38MM(W)18MM(H)
Resolution	1920*1080
Optical Format	1/2.7" inch
Active array size	1920*1080
Sensitivity	3300mV/Lux-sec
Dynamic Range	69dB8Xgain
Pixel Size	3um*3um
Image Area	5856um*3278um
Object distance	30cm-infinity (adjustable)
Interface	4PIN USB2.0
DFOV	130degree
HFOV	103degree
VFOV	65egree
Operating system	Free driver for Windows 2000\ Windows XP\Windows 7 / Linux and Android system with Standard UVC Protocol
Video Format	MJPG
Format output and FPS	19201080(default)30fps 160120 30fps 176144 30fps 320240 30fps 35228830fps 640480 30fps 1280*720 30fps
Video Format	YUY2
Format output and FPS	640480(default)30fps 160120 30fps 176144 30fps 320240 30fps 352*288 30fps
Automatic white balance	√
Exposure	√
Focus	Fixed Focus(the lens is adjustable)
USB cable	1M for default (Also supply 2M)
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
