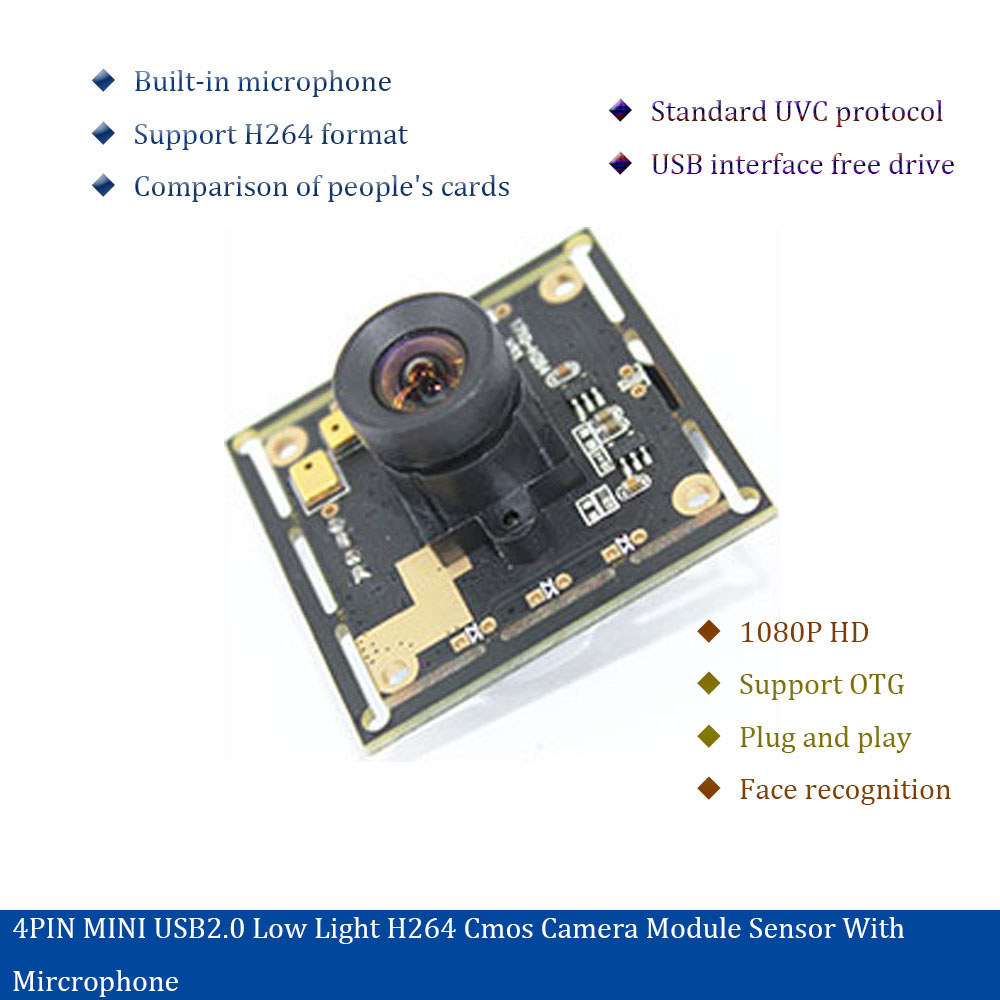

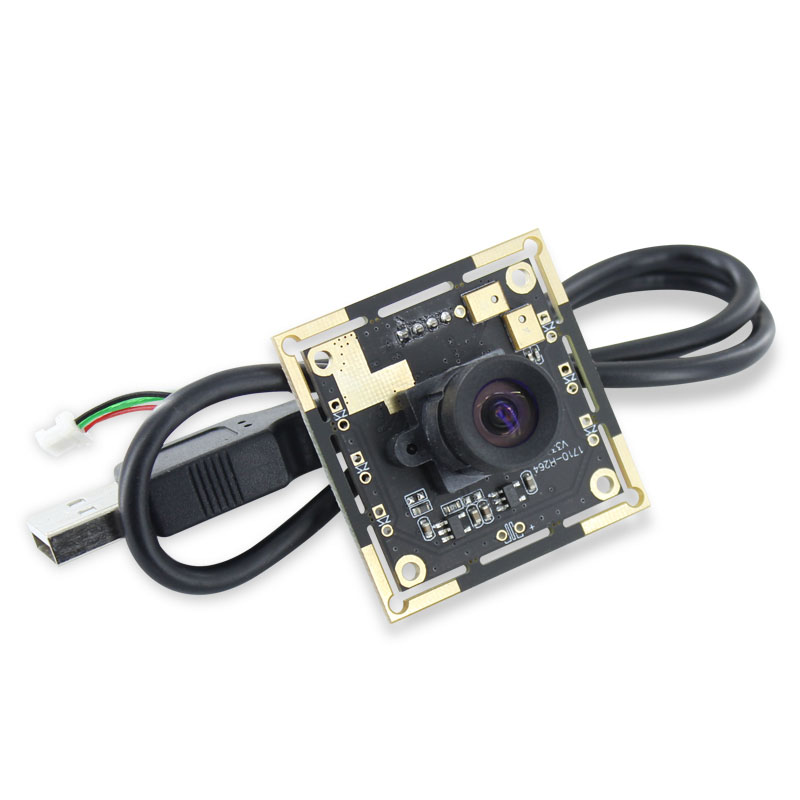

Free Driver 2MP H264 Camera Module with 1080P Camera 85 Degree Indoor IOS Android 1/3" CMOS AR0330 30fps

Product category:

USB Camera Board

SKU:

216925

Price:

$33.60

Description

Product Description

Module No.	BM1710-H264 V33
Module Size	38mm × 38mm × 23.7mm±0.5MM
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	AR0330 (1/3" )
Seneor Package	CSP,Bare Die
Maximum resolution	2304*1536
Sensitivity	2.0V /(lux-sec)
Pixel Size	2.2µm x 2.2µm
Maximum Image Transfer Rate
	MJPEG 640x480 30FPS / YUY2 640x480 30FPS
	MJPEG 960x720 30FPS / YUY2 960x720 10FPS
	MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
	MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	39 db
Max Dynamic Range	69.5 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	2G+2P
F/No	2.4
EFL	2.1 mm
FOV	20°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Effect Picture
