1080P HD 2Mp Camera Usb Module Industrial Computer Sensor OV2722(1/5.8") Cmos Mobile Camera Module

Product category:

USB Camera Board

SKU:

216959

Price:

$9.00

Description

Product Description

Product Name	2 MP industrial computer, advertising machine, notebook, all-in-one computer, device embedded built-in camera module
Module No.	BMNB2104F V33

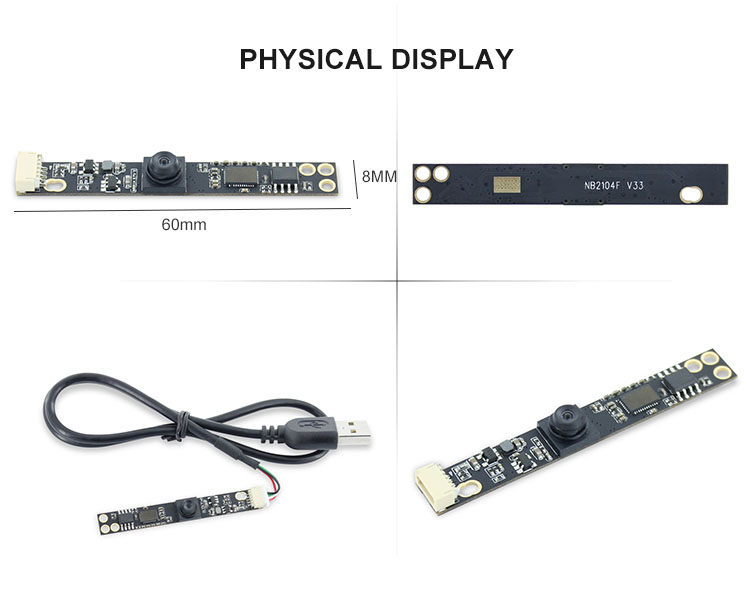

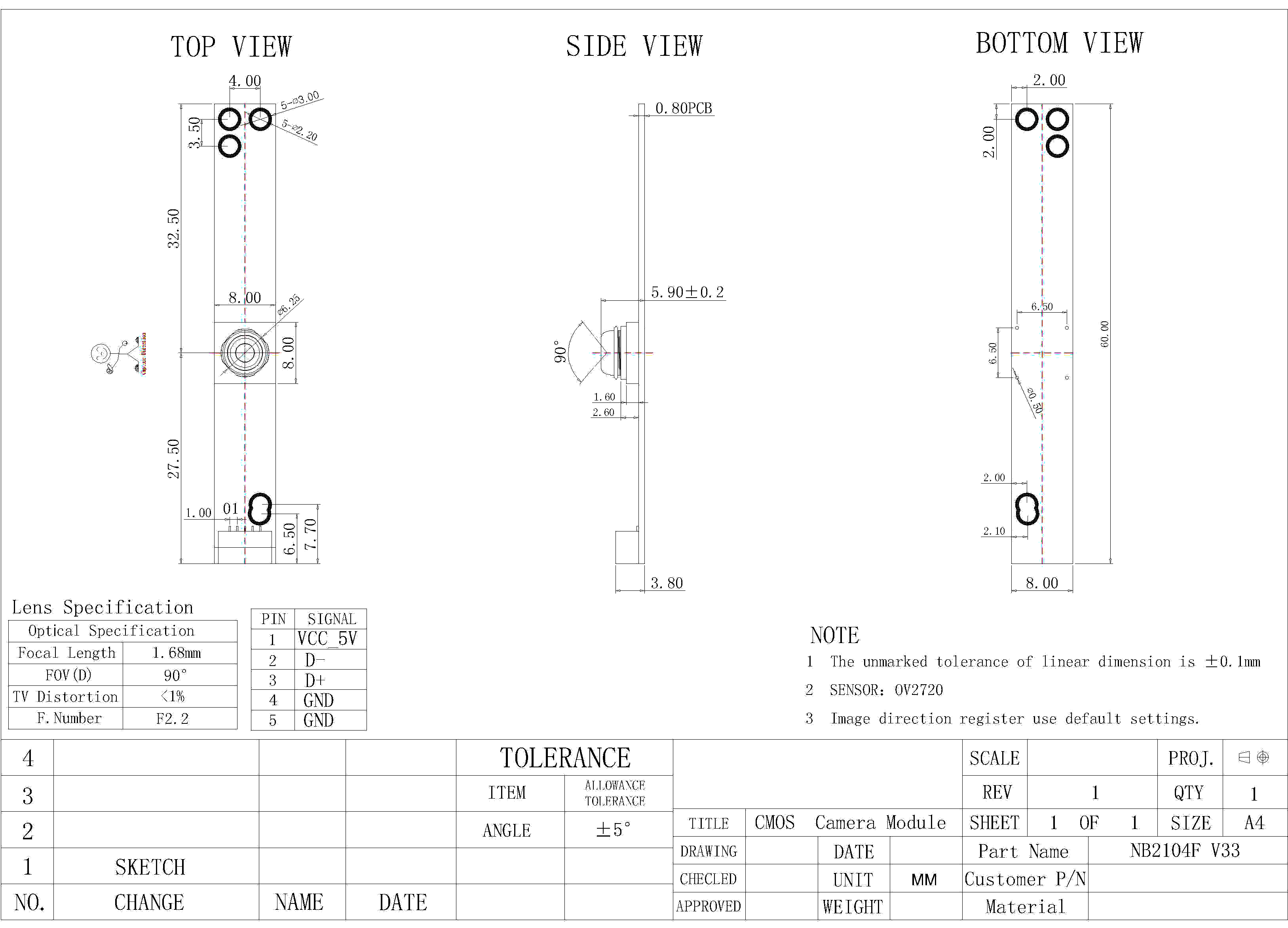

Module Size	60mm × 8mm × 5.9mm±0.2MM
Features	1. Standard advertising machine integrated machine structure, hole position 2. The product is cost-effective
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black

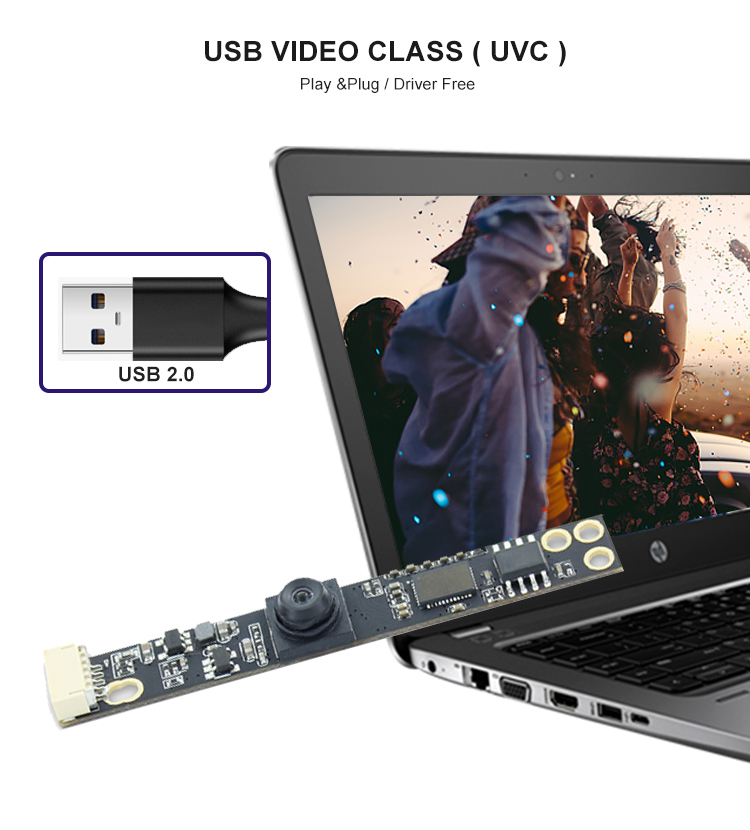

interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	740 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV2720 (1/5.8" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	650mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 320x180 30FPS / YUY2 320x240 30FPS MJPEG 320x240 30FPS / YUY2 352x288 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280X720 10FPS MJPEG 1280x960 30FPS / YUY2 1920X1080 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
		S/N Ratio	35 db
		Max Dynamic Range	68 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	4P
		F/No	2.2
EFL	1.68 mm
FOV	90°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Detailed Images
