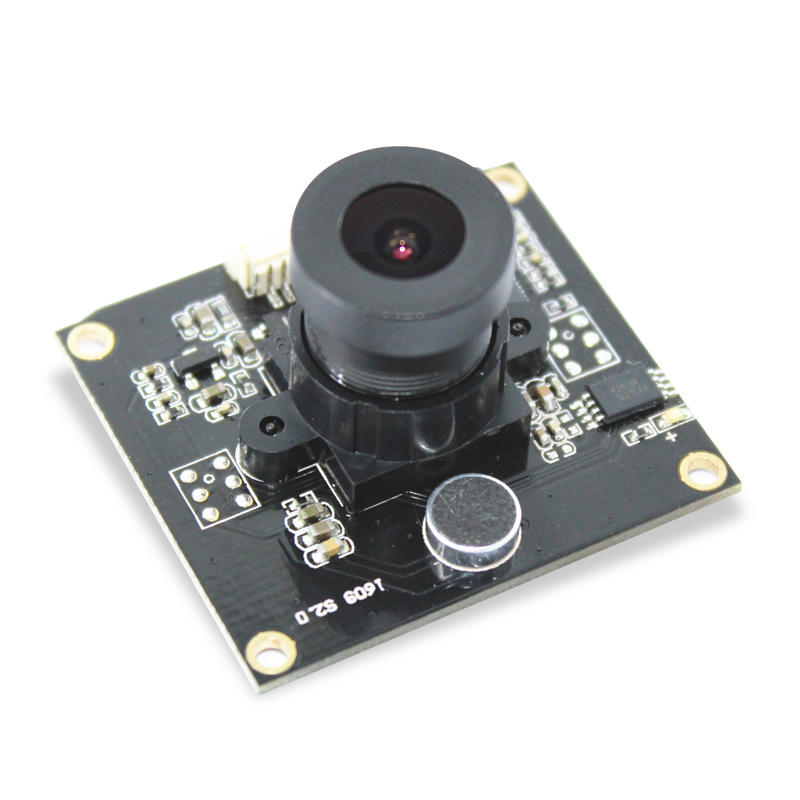

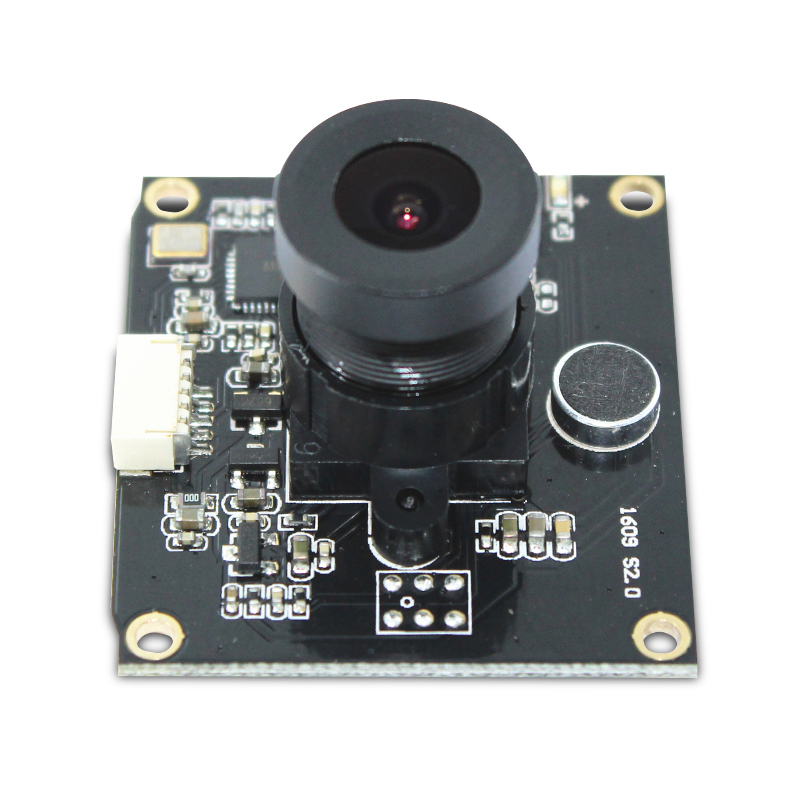

2MP 1600*1200 HD CMOS OV2643 ATM All-in-one machine USB2.0 Camera module with Microphone

Product category:

USB Camera Board

SKU:

217018

Price:

$15.60

Description

Module No.	1609 S2.0

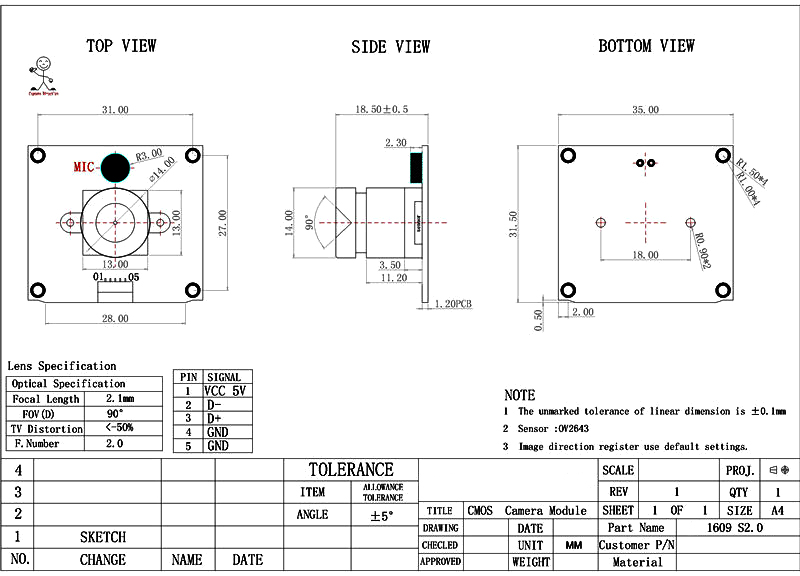

Module Size	35mm × 31.5mm × 18.5mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV2643 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1600*1200
Sensitivity	1250mV /（lux-sec）
Pixel Size	2.2µm x 2.2µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 640x480 30FPS MJPEG 640x480 30FPS / YUY2 800x600 15FPS MJPEG 800x600 30FPS / YUY2 1280x720 8FPS MJPEG 1280x720 30FPC / YUY2 1280x1024 8FPS MJPEG 1280x1024 30FPC / YUY2 1600x1200 4FPS
S/N Ratio	39 db
Max Dynamic Range	66 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4G+IR
F/No	2.0
EFL	2.6 mm
FOV	90°
TV Distortion	<-50%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

1.It is with 60MM*8MM*4.6MM size, it can be installed in ATM Machine, Laptop computer, Advertising Machine

2. it is free driver, with standard UVC protocol for window /Linux/Android system.

2MP laptop camera module

it is can be used many equipment with regular size

with usb cable , we can supply customization service

it is can be used in ATM machine. computer, All-in-one machine

it is also can be used in retail machine
