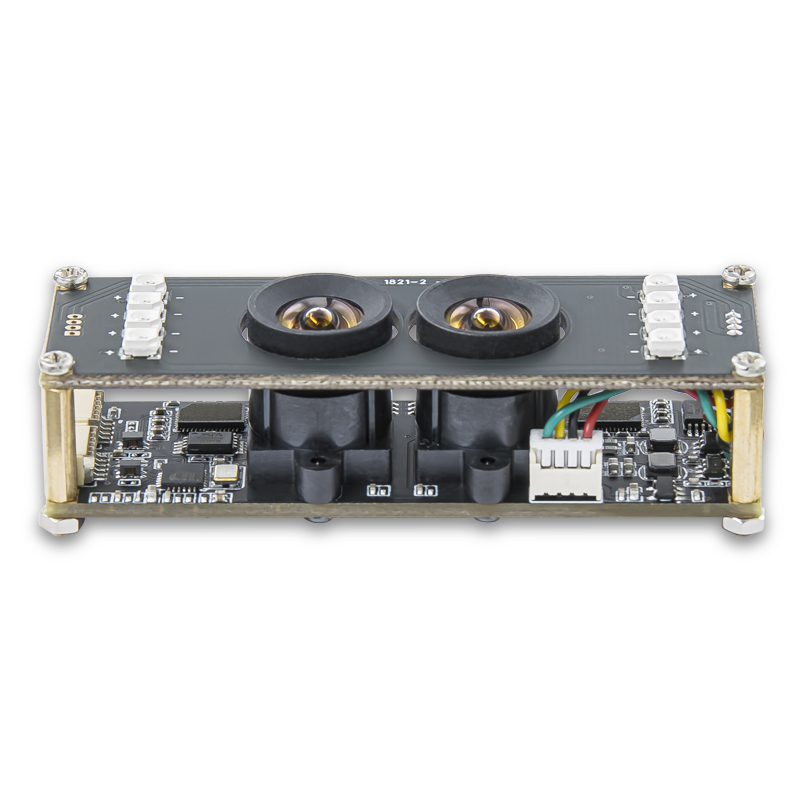

1. Standard binocular live detection+facial recognition module structure (main applications)
2. The module is equipped with dual 5p-1.0 terminal ports, which can be selected for one or two line outputs (default single line
use, right input line with one port above for testing)
3. The left infrared is a narrowband single pass 850nm-IR lens, with a lamp panel emitting 850nm infrared light at 120 °
4. Dynamic with microsoftware

Win XP/win 7 8 / vista /android 4.0/ mac /Linux
with uvc

4700mv /（lux-sec）

MJPEG 320x240
30FPS /
YUY2 320x240
20FPS
MJPEG 352x288
30FPS /
YUY2 352x288
20FPS
MJPEG 640x480
30FPS /
YUY2 640x480
20FPS
MJPEG 800x600
30FPS /
YUY2 800x600
10FPS
MJPEG 1280x720 30FPS /
YUY2 1280x720
10FPS
MJPEG 1920x1080 30FPS /
YUY2 1920x1080
5FPS
