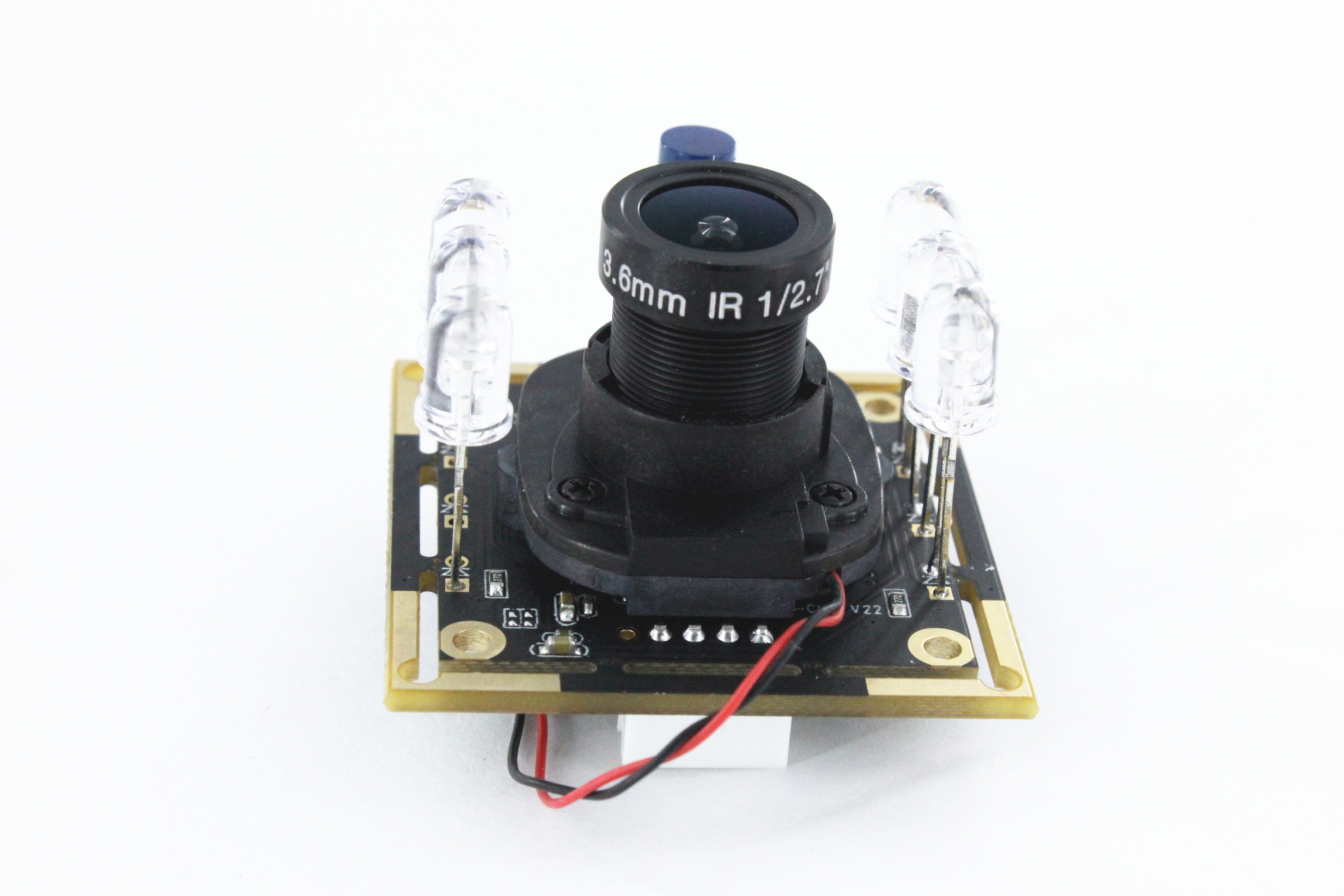

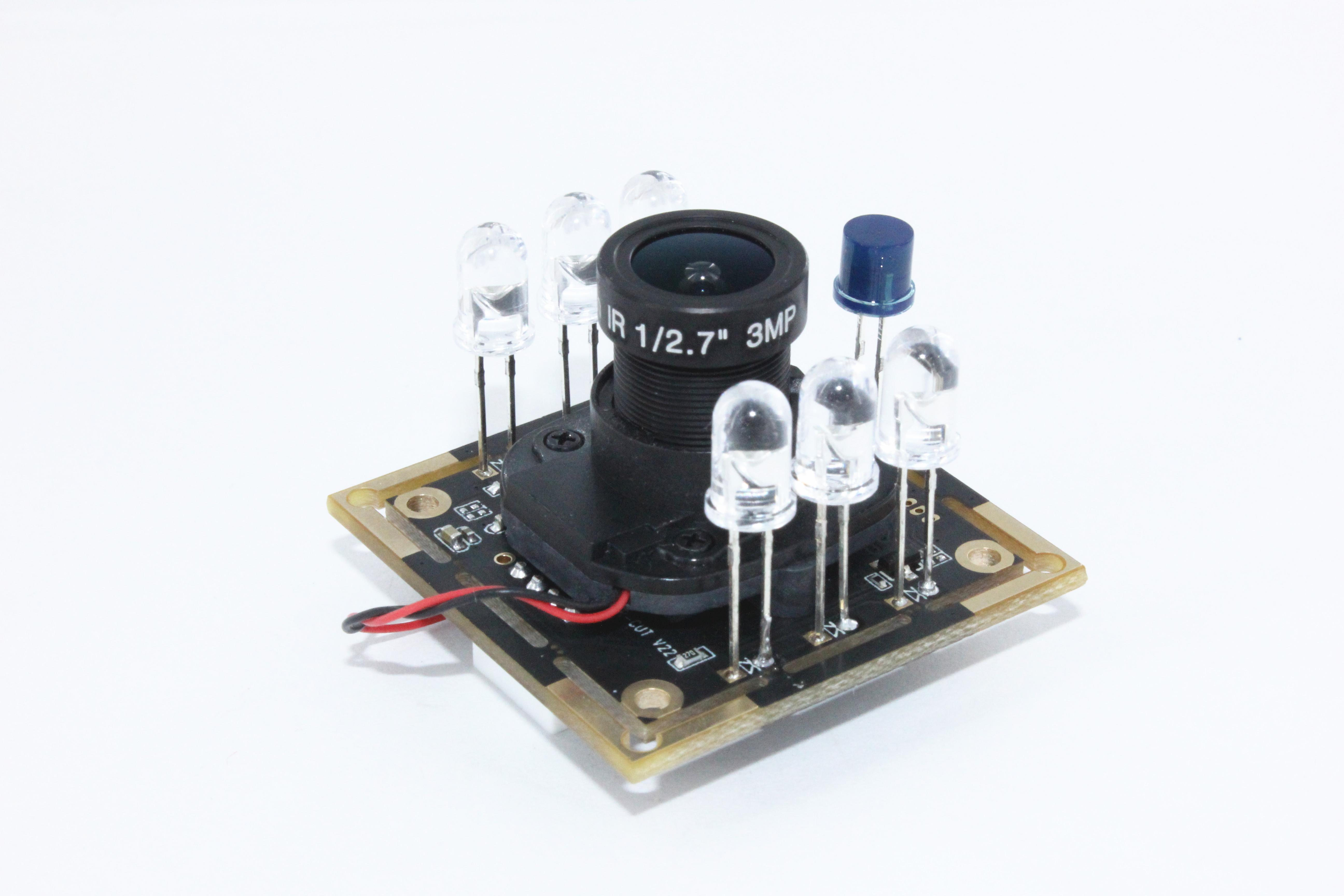

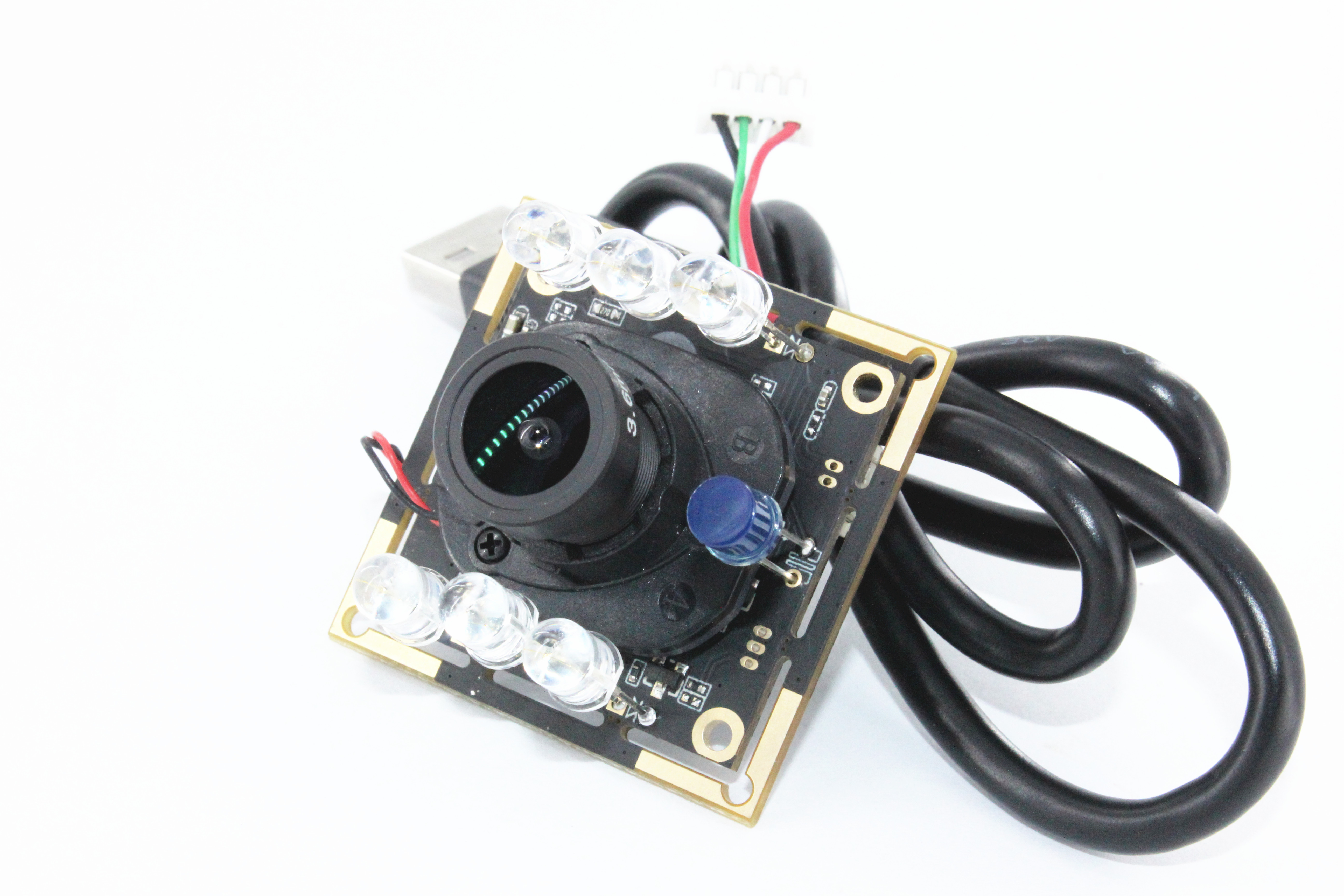

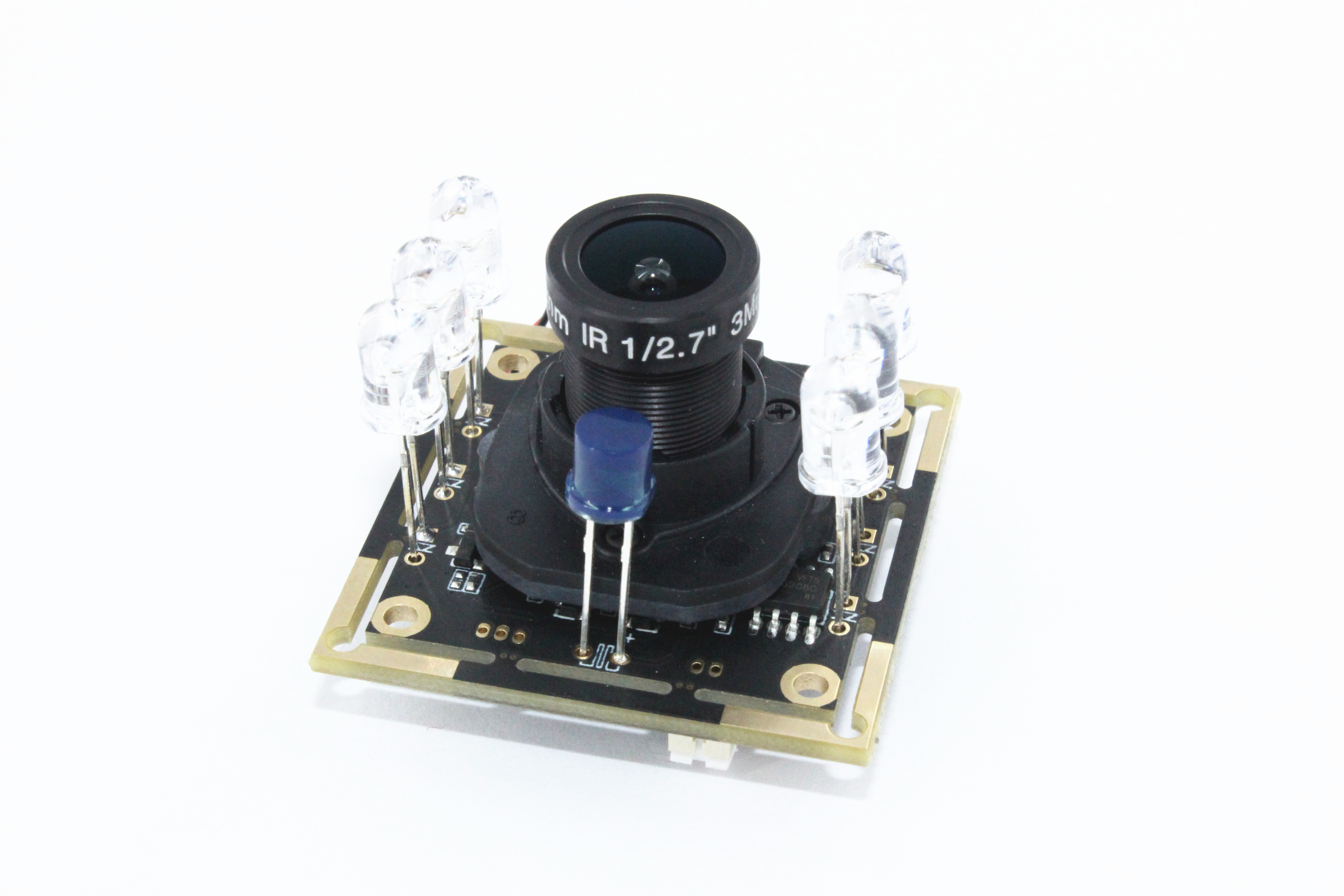

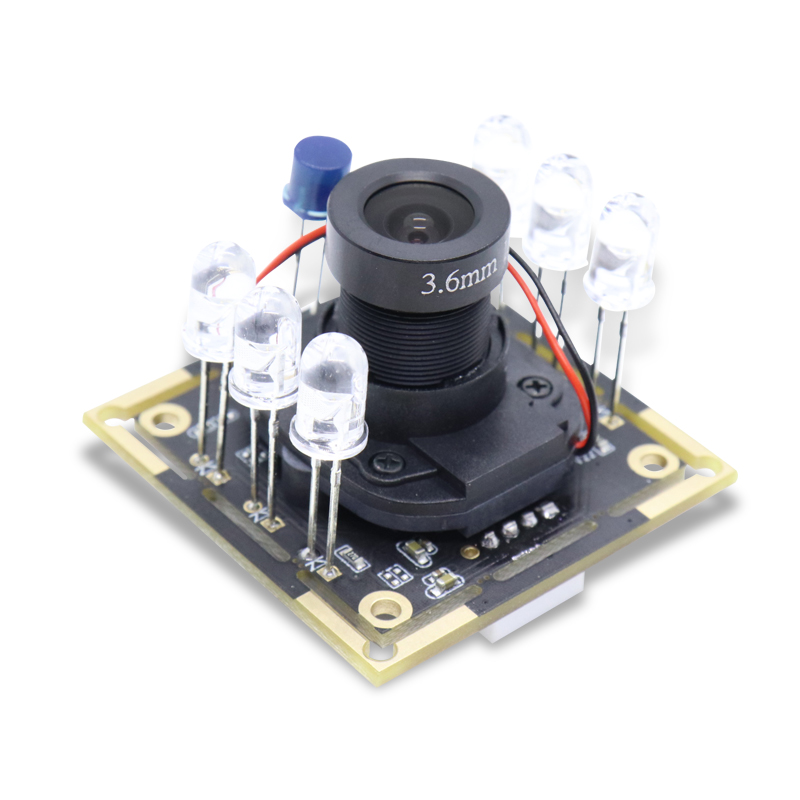

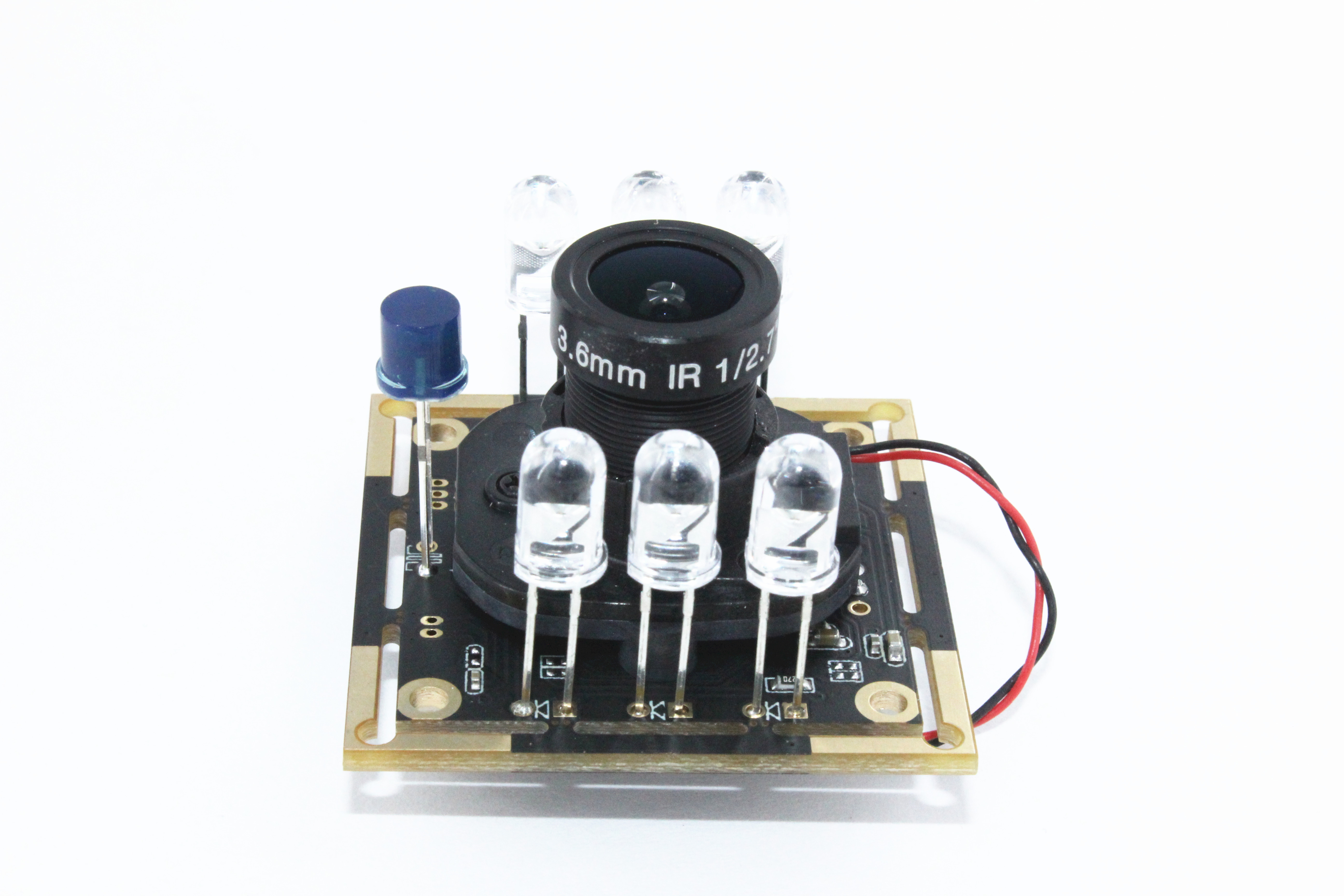

plant 1MP IR-CUT infrared camera module Additional 6 White Lights

Product category:

USB Camera Board

SKU:

216584

Price:

$18.00

Description

Product Name	1MP HD IR-CUT infrared camera module
Module No	BM1920IR-CUT V22-72

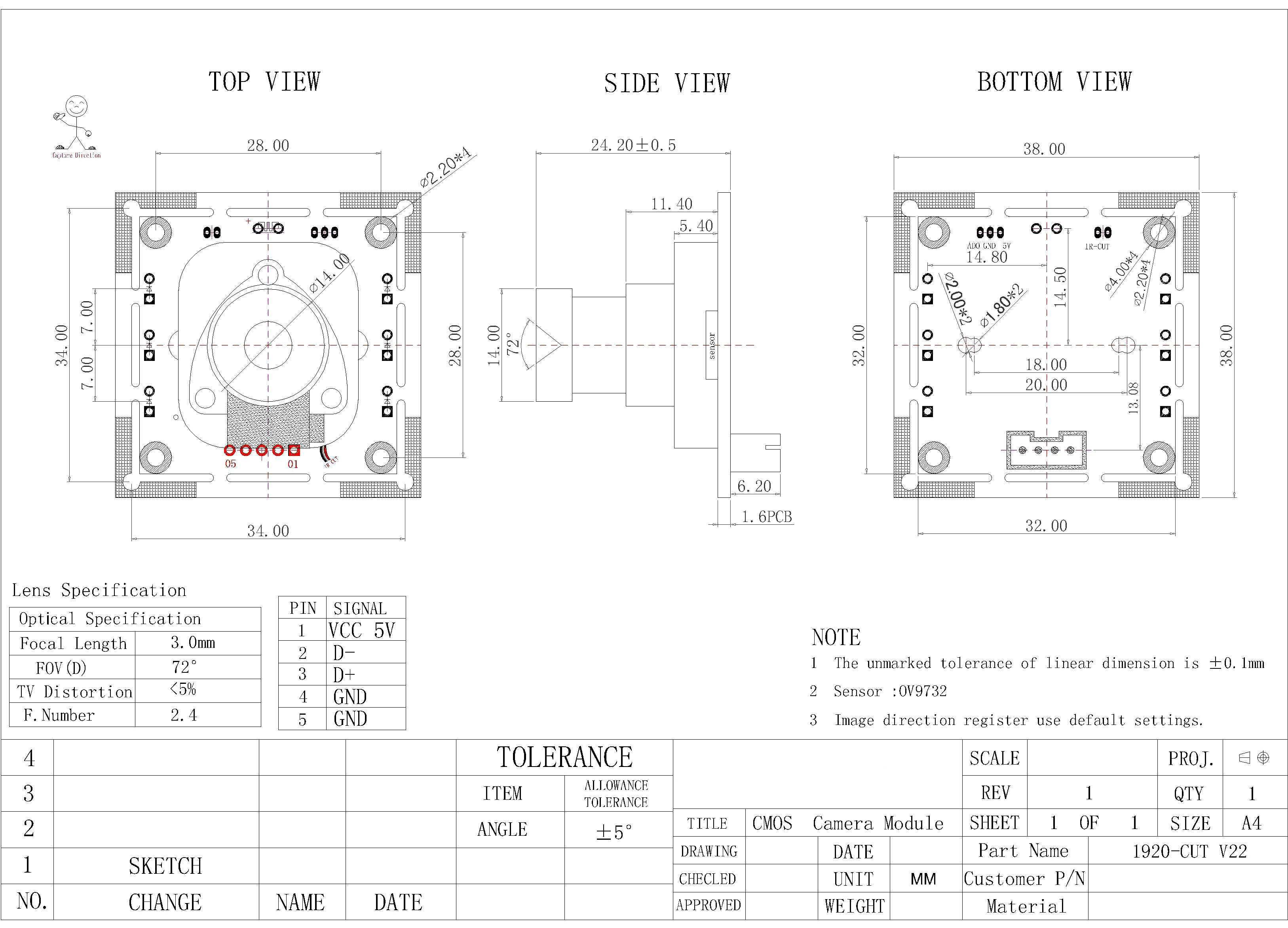

Module Size	38mm × 38mm × 24.2mm±0.5MM
Features	1. Automatic switching between night and day 2. With dual digital microphone 3. with night vision infrared light 4. OTG, USB driver-free 5. Optional other configuration lens
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	840mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9732 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*720
Sensitivity	2066mv /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x180 30FPS YUY2 320x240 20FPS MJPEG 320x240 30FPS / YUY2 320x240 20FPS MJPEG 640x480 30FPS / YUY2 640x480 20FPS MJPEG 800x600 30FPS / YUY2 800x600 20FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
S/N Ratio	39db
Max Dynamic Range	72db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Yes
Lens Construction	2G2P
F/No	2.4
EFL	3.6mm
FOV	72°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
