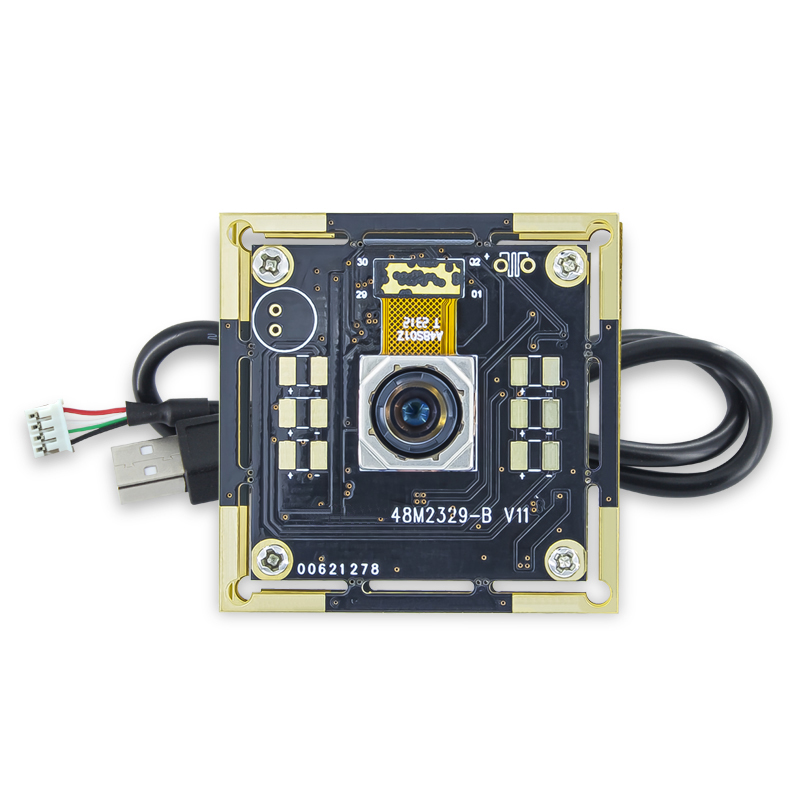

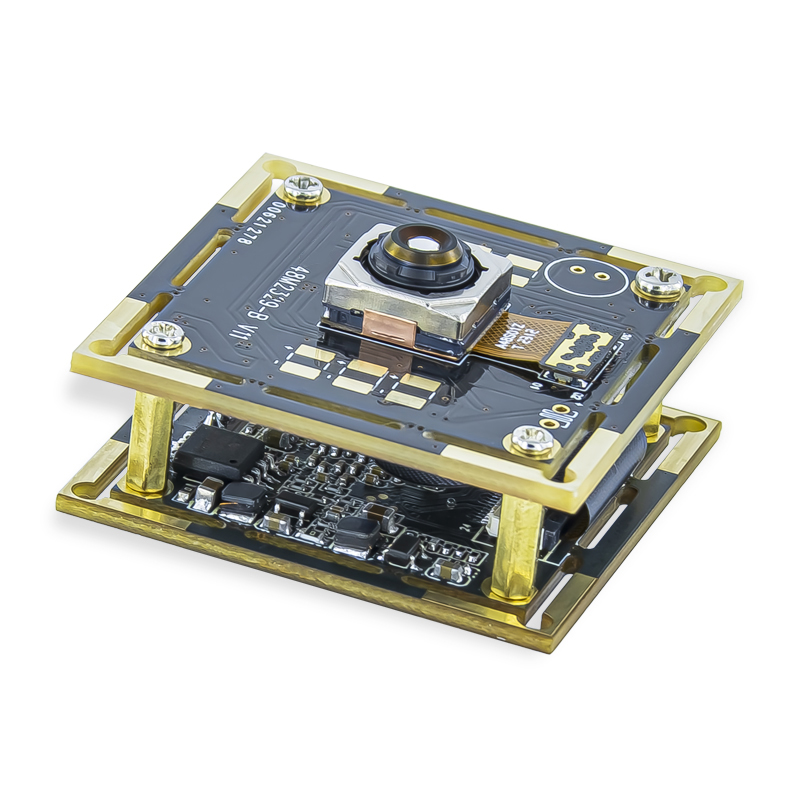

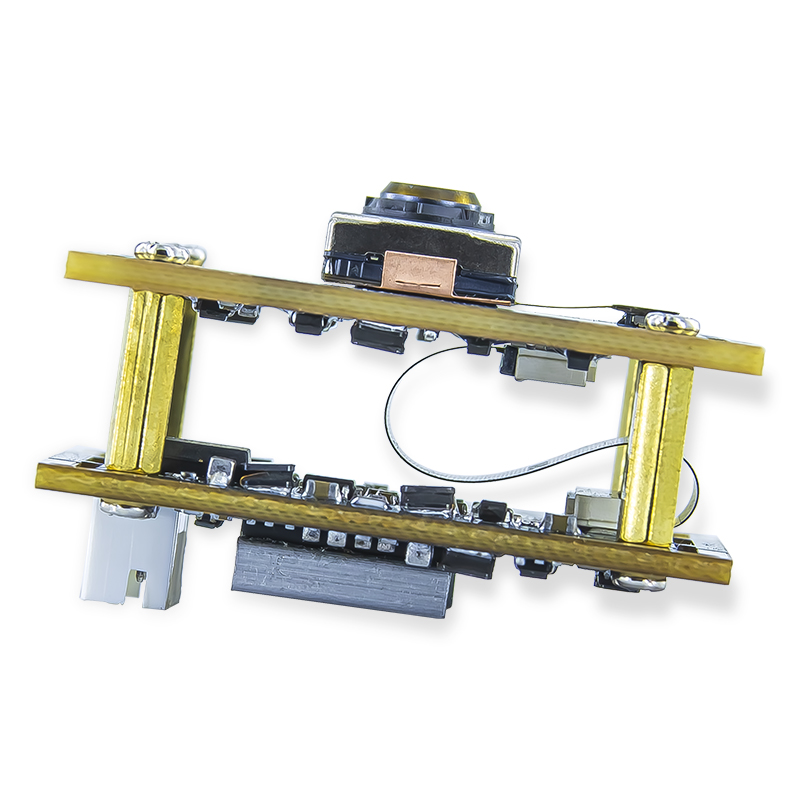

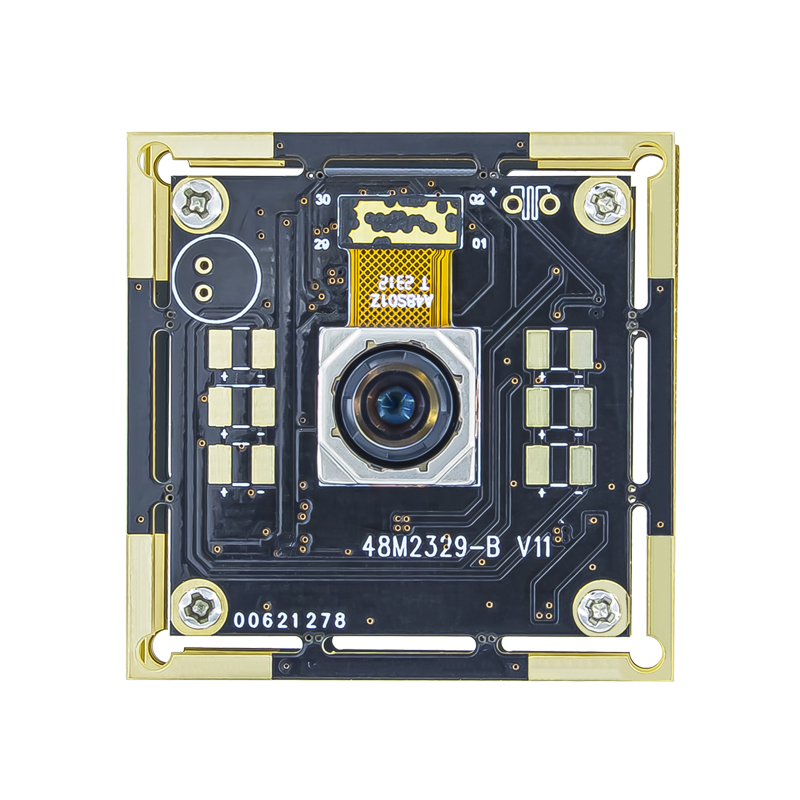

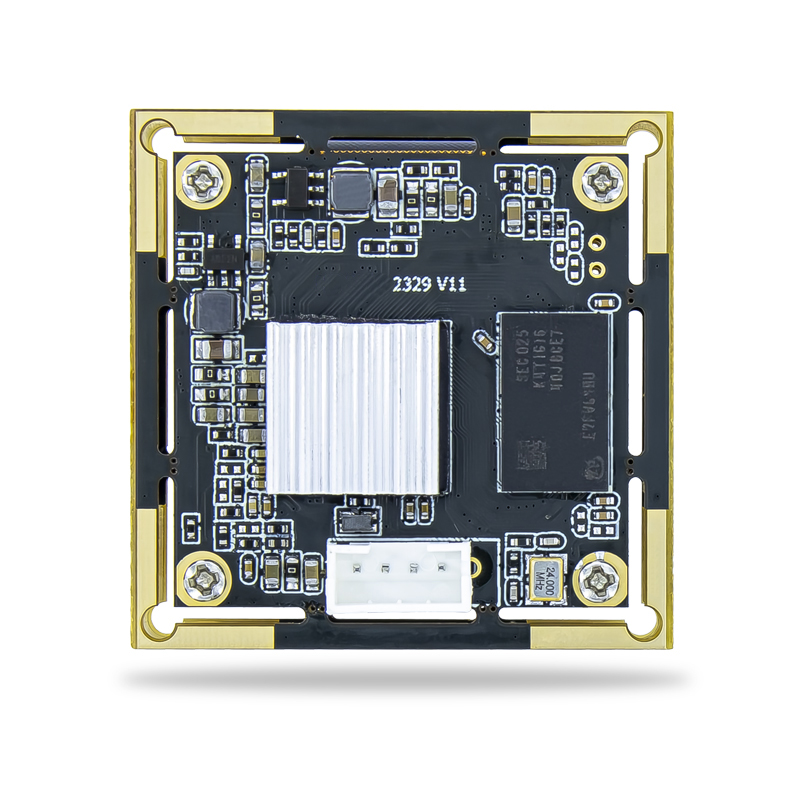

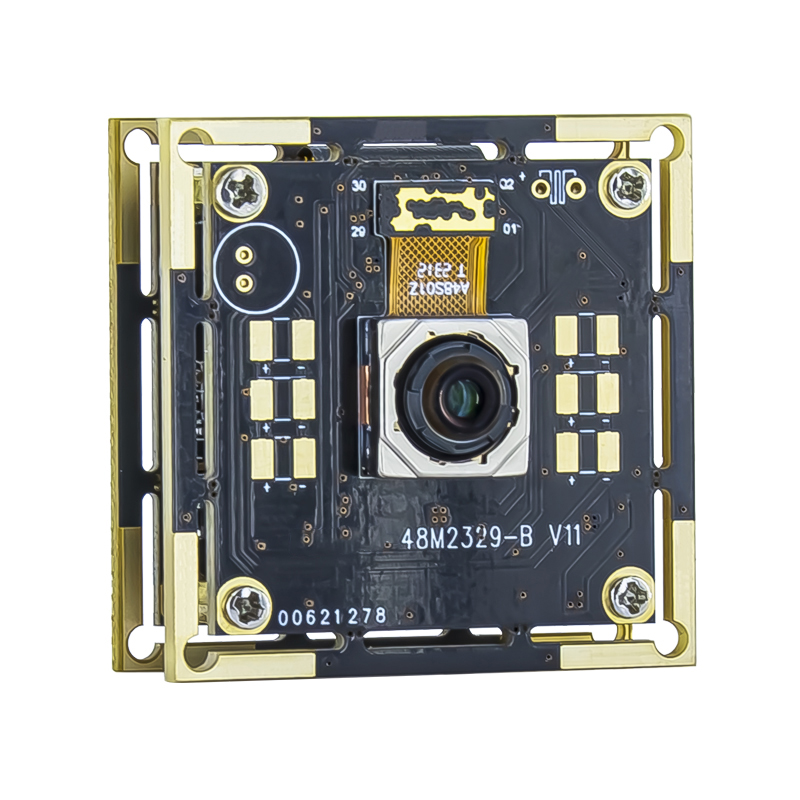

48MP Camera Module 200ms Fast Focus High Speed Camera Module

Product category:

USB Camera Board

SKU:

216600

Price:

$72.00

Description

Product Name	48MP USB Camera Module
Module No	BM48M2329-B V11-79
Module Size	38mm × 38mm × 25.60mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Auto
Object distance	10CM-infinity
Resolution	2000LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	2560 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	S5KGM1 (1/2.25" )
Seneor Package	COB,Bare Die
Maximum resolution	8000*6000
Sensitivity	1.4V /（lux-sec）
Pixel Size	0.8µm x 0.8µm
Maximum Image Transfer Rate	MJPEG 1920x1080 30FPS / YUY2 640x480 25FPS MJPEG 2592x1944 30FPS / YUY2 800x600 25FPS MJPEG 3840x2160 30FPS / YUY2 1920x1080 6FPS MJPEG 4000x3000 15FPS / MJPEG 8000x6000 5FPS /
S/N Ratio	36db
Max Dynamic Range	82db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	6P
F/No	1.79
EFL	4.71 mm
FOV	79°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	940±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
