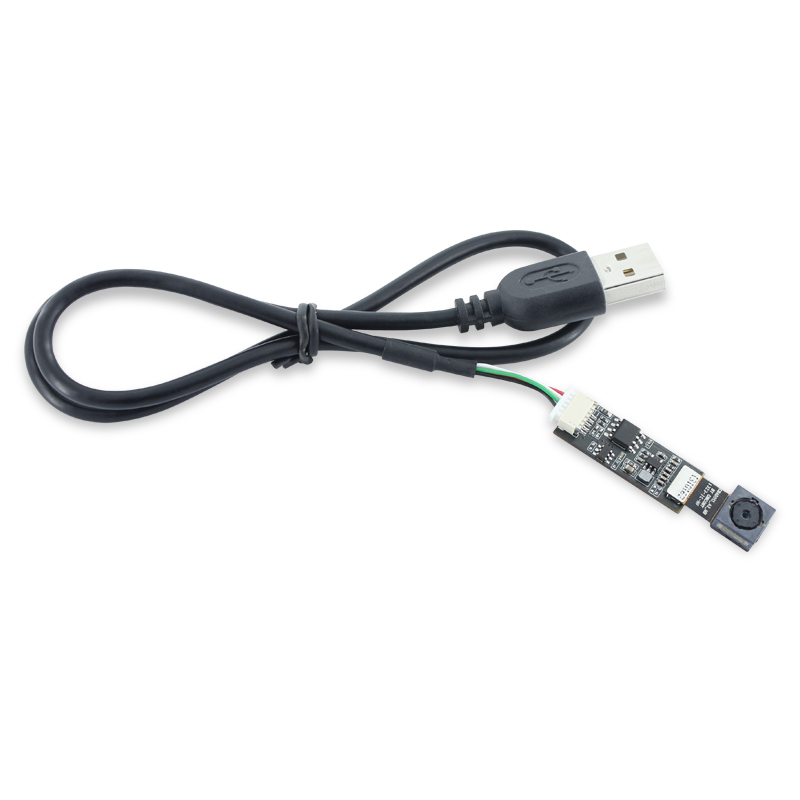

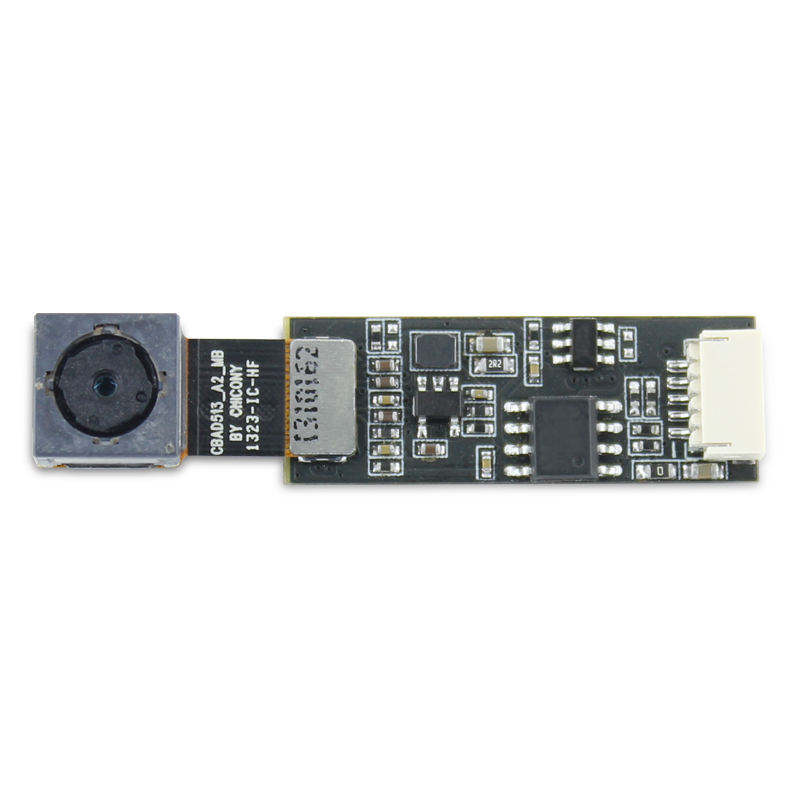

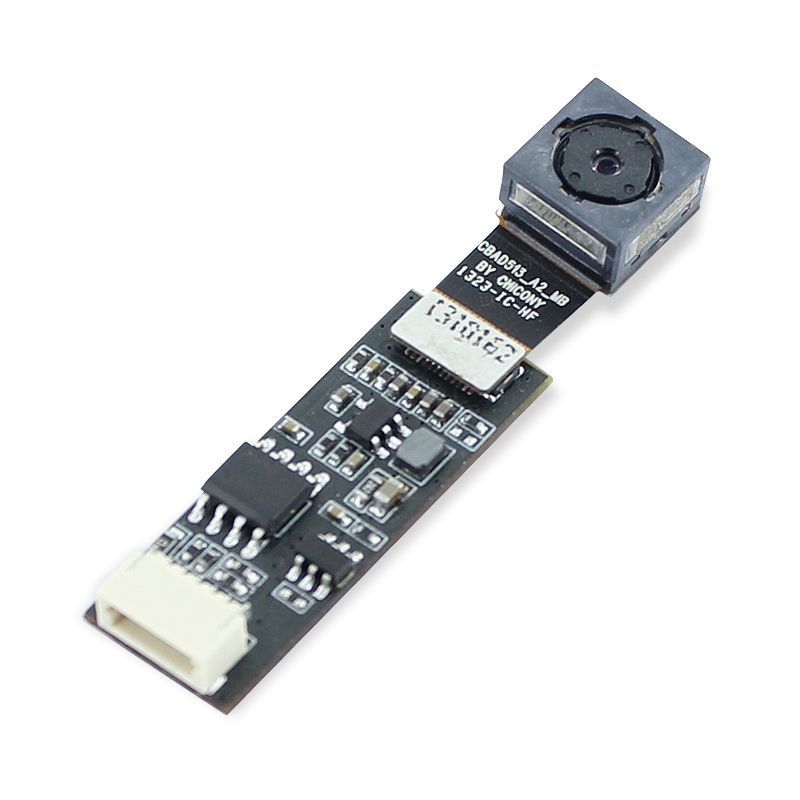

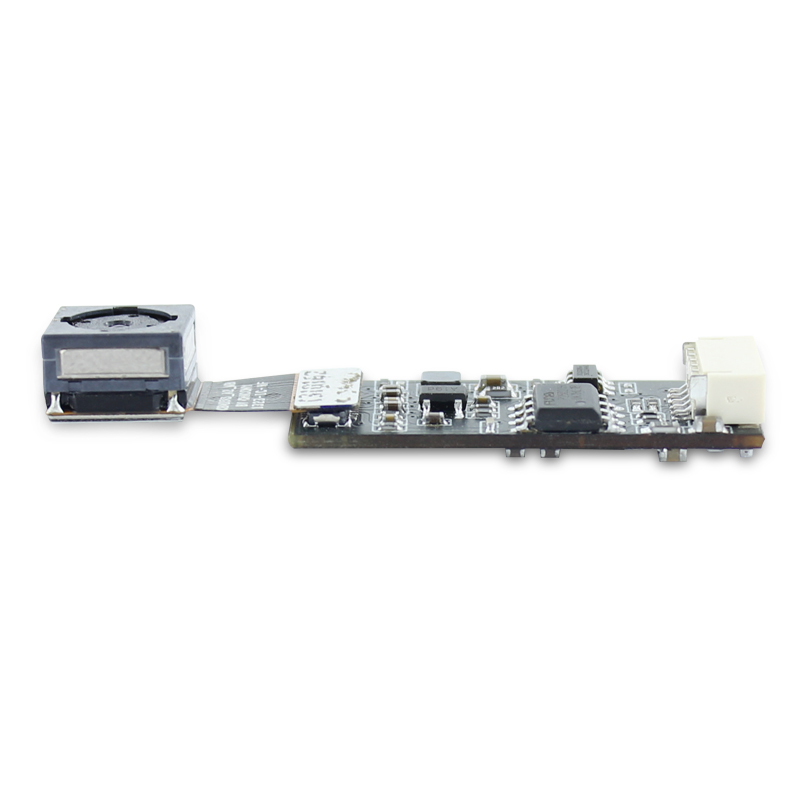

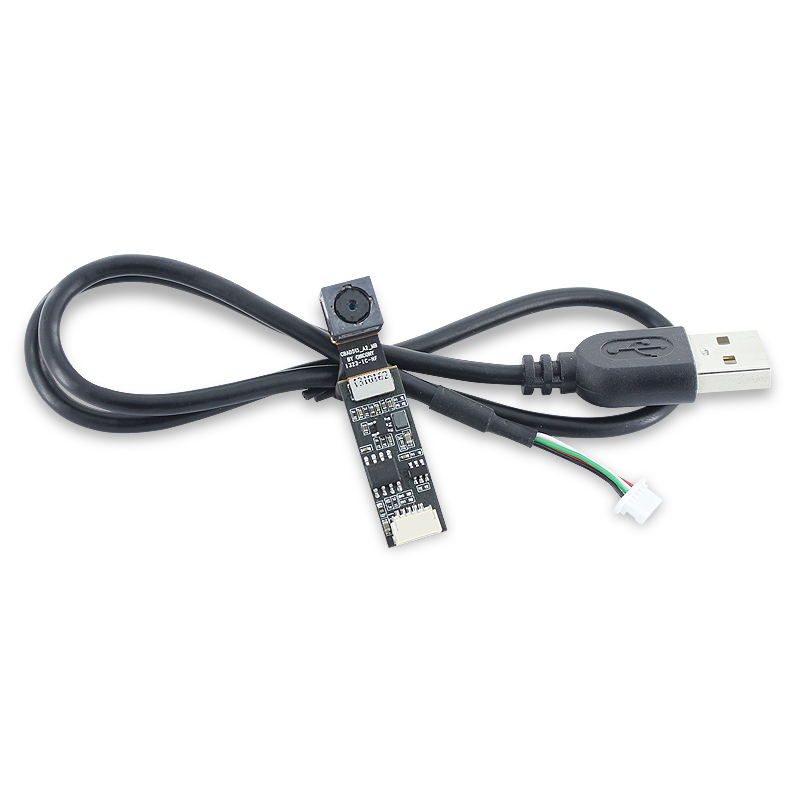

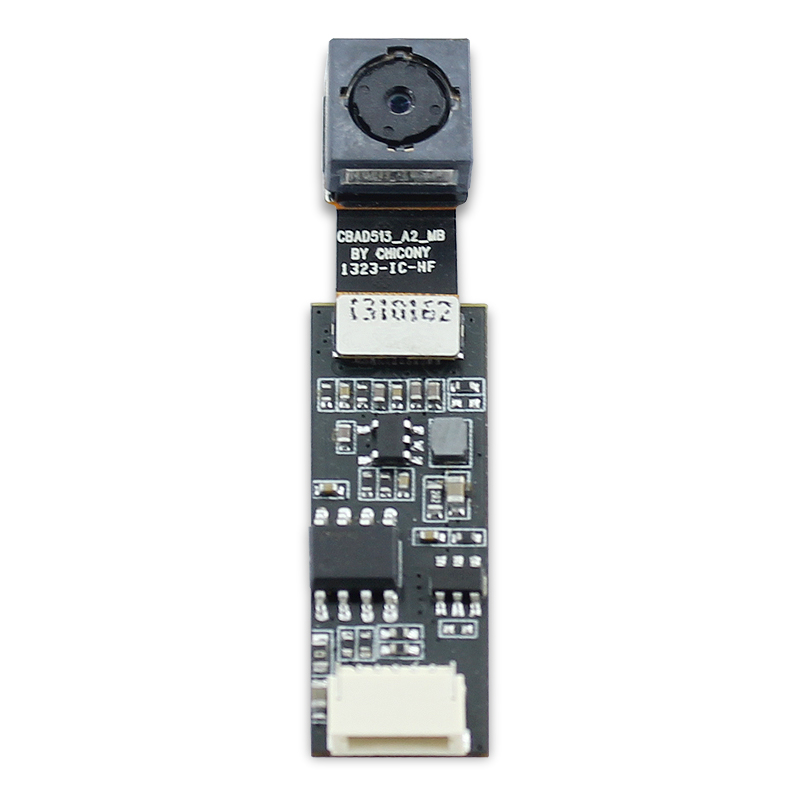

OV5648 5MP auto focus camera module Laptop Camera Module

Product category:

USB Camera Board

SKU:

216609

Price:

$19.20

Description

Product Name	OV5648 5MP Mini USB camera module

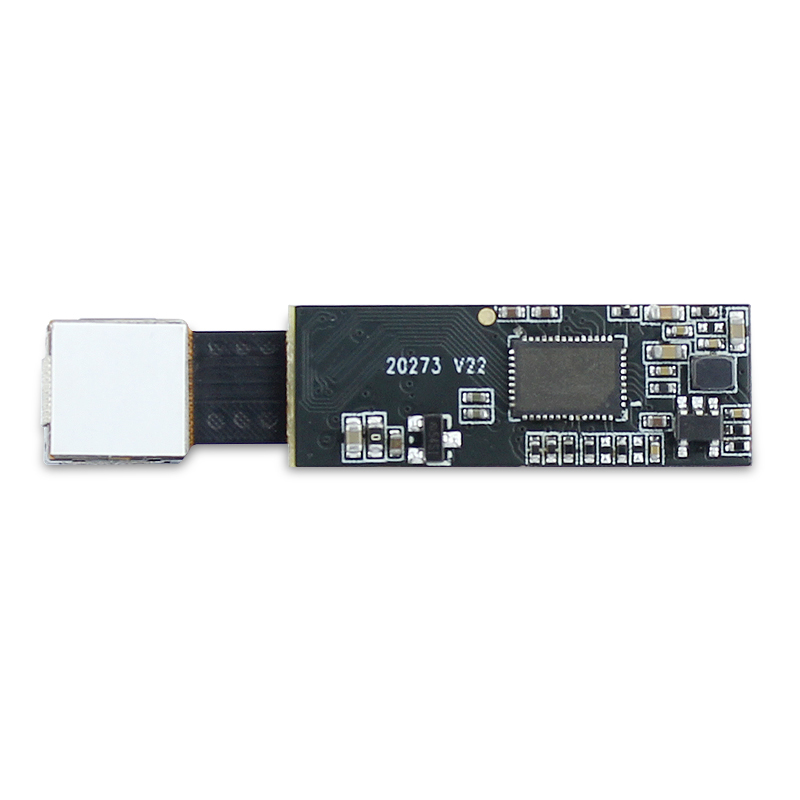

Module No	BM5M20273 V22 - 65.4
Module Size	42.25mm × 10mm × 5.0mm±0.2MM
Specificities	1. Small and flexible structure 2. The head can be customized in terms of structure, size, length, etc 3. The main application can be connected to mobile OTG for use
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5648 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mV /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS
S/N Ratio	34db
Max Dynamic Range	67db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P+IR
F/No	2.8
EFL	3.1 mm
FOV	65.4°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
