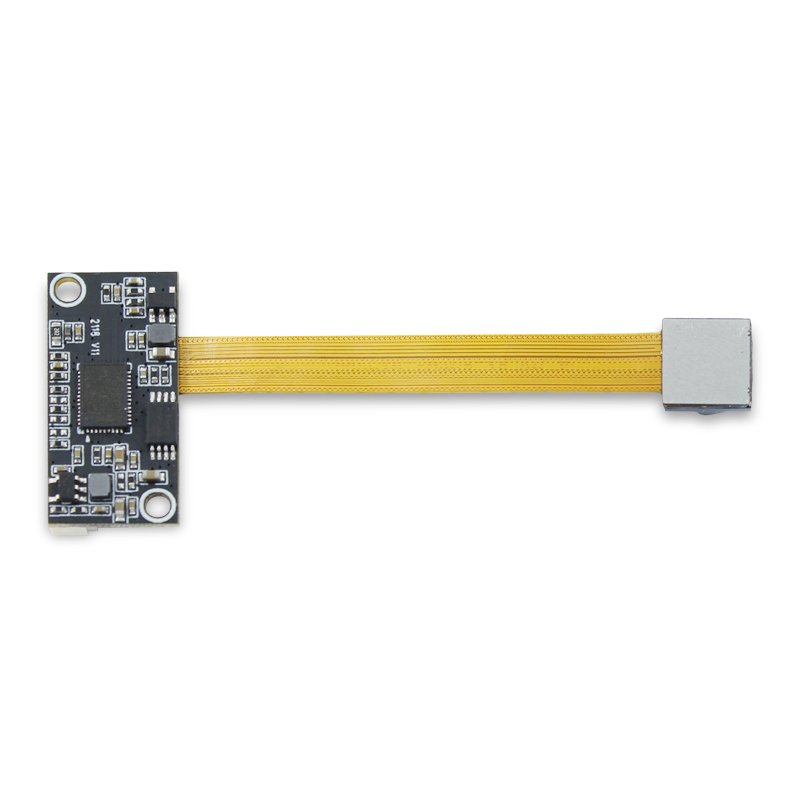

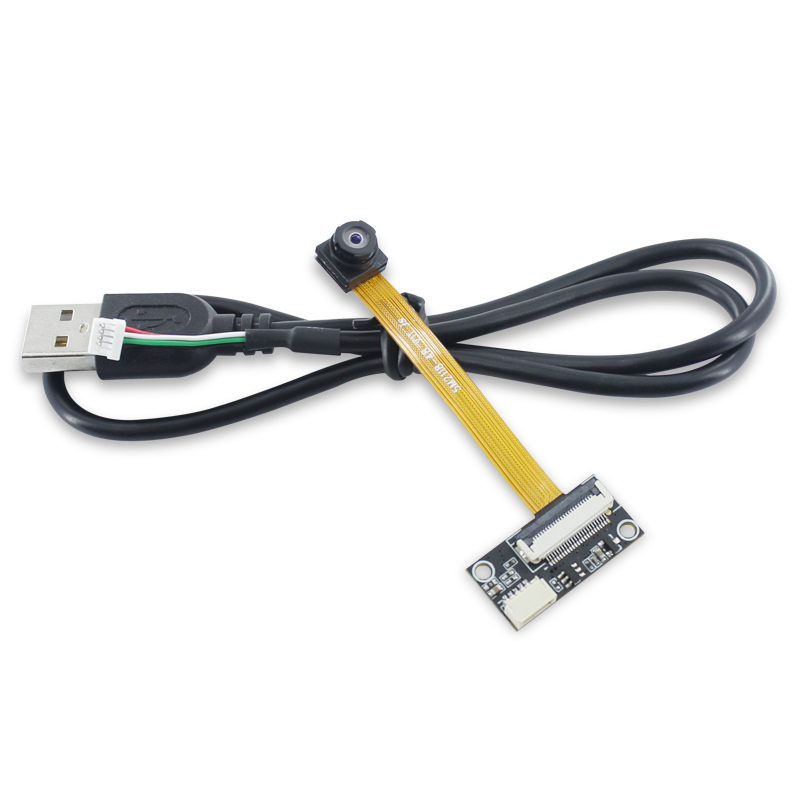

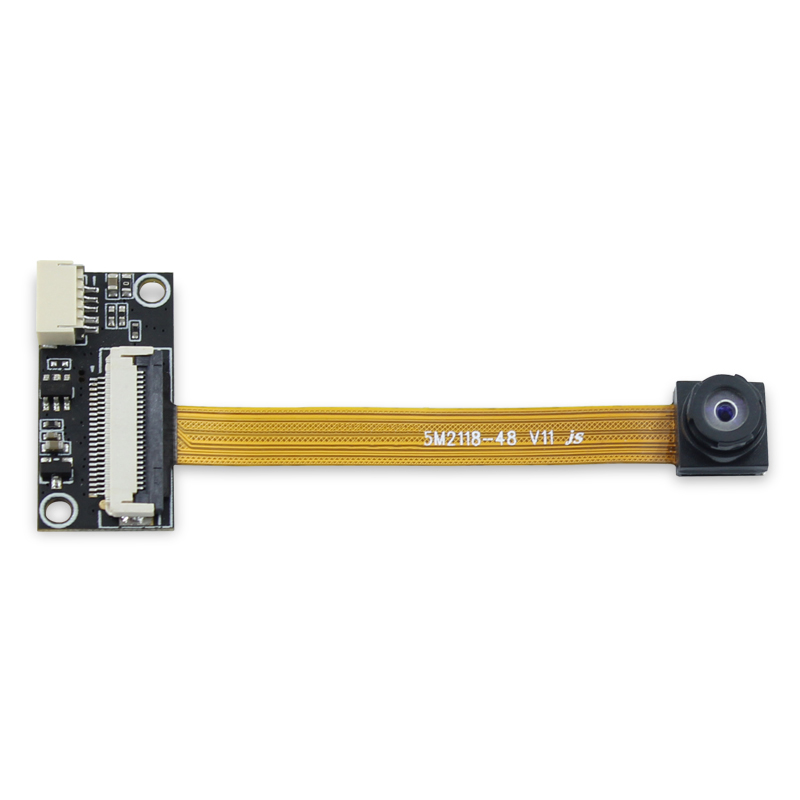

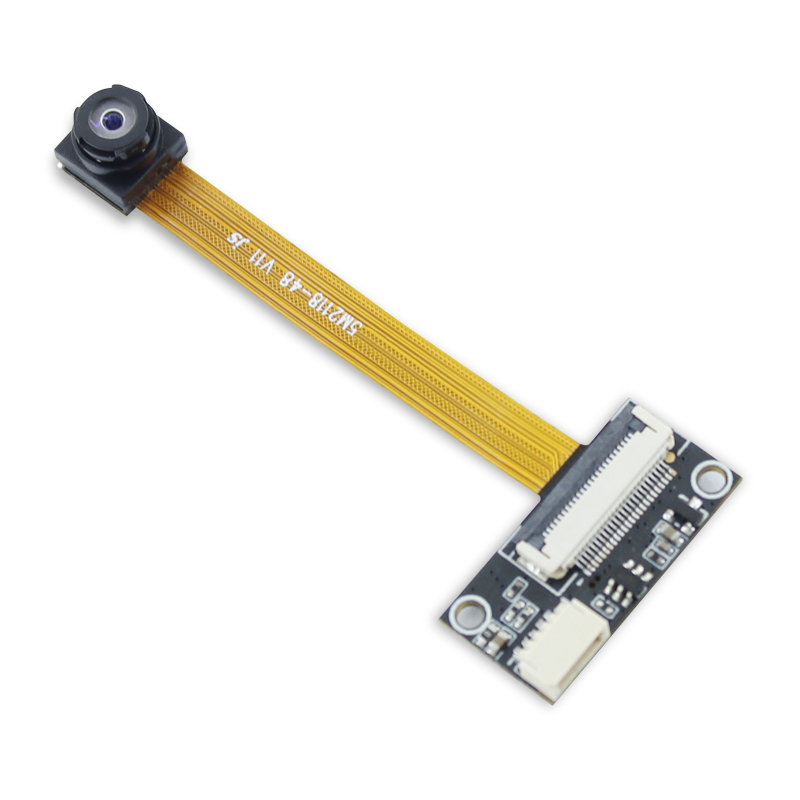

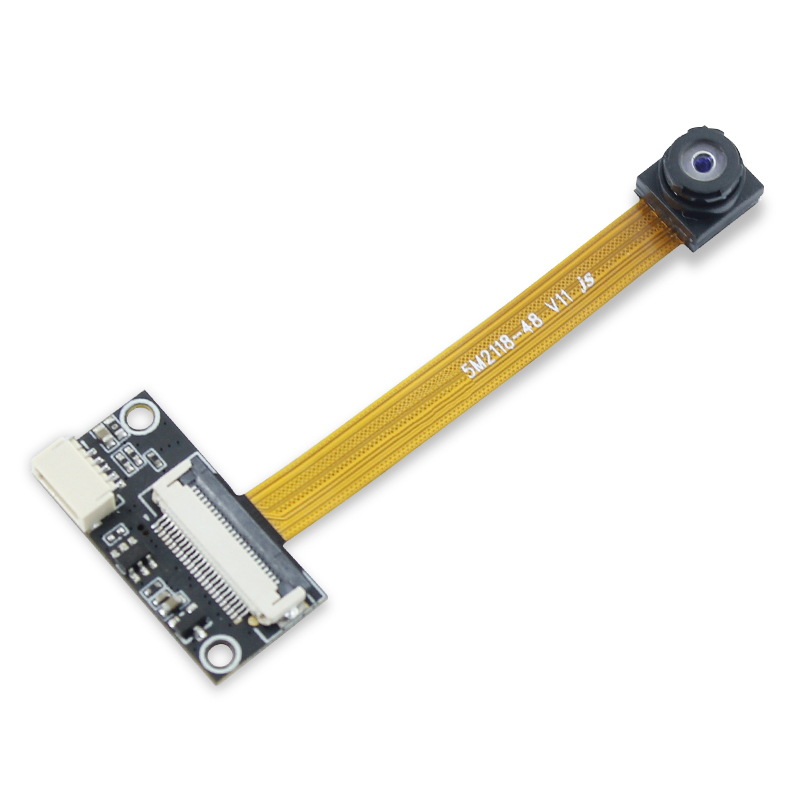

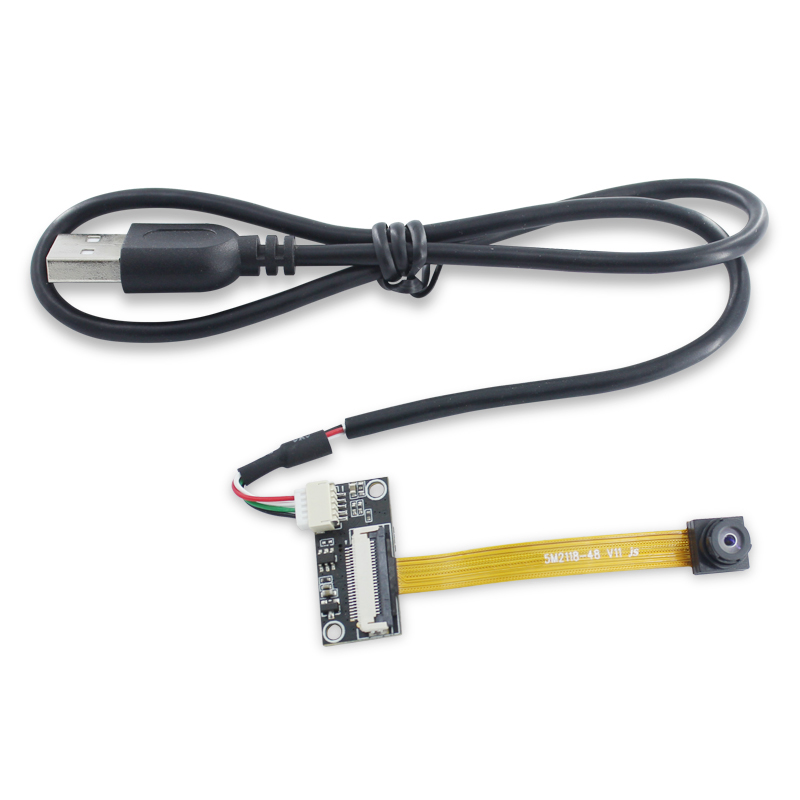

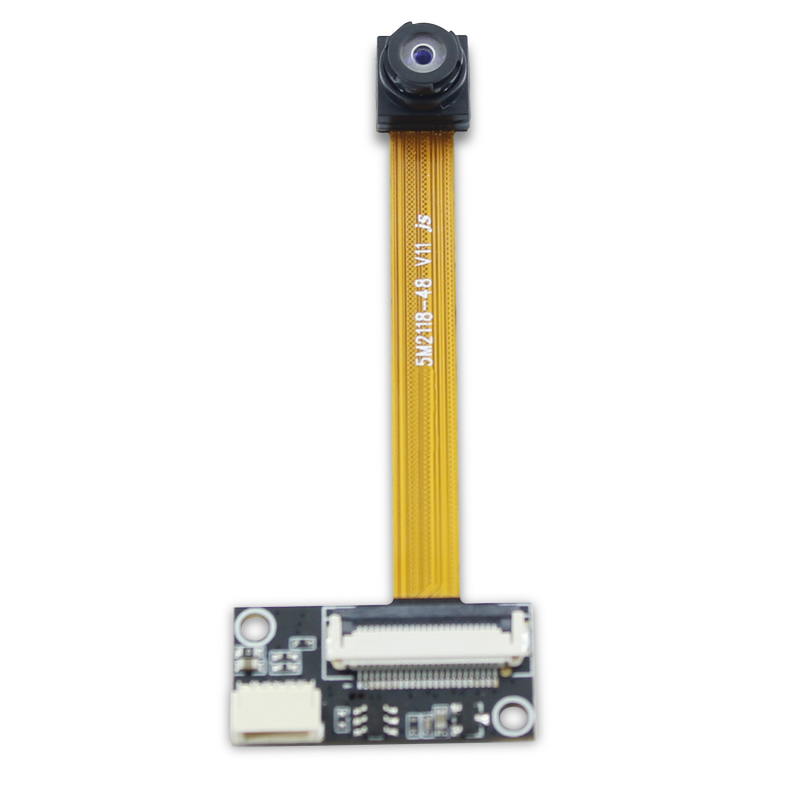

5MP 180 degree wide angle lens camera module with UVC protocol

Product category:

USB Camera Board

SKU:

216674

Price:

$19.20

Description

Product Name	5MP ultra-wide angle lens camera module
Module No	BM5M2118-48 V11-180
Module Size	68.3mm × 26mm × 7.8mm±0.2MM
specificities	1. Flexible structure and small volume of split soft and hard boards 2. Fixed focus and focus can be selected 3. The FPC section can be customized in length 4. Several specifications of lenses available 5. 1466 upgraded version with better focusing accuracy and effect 6. 2592x1944-mjpeg format 30 frames
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	Fixed
Focus	Auto Focus
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5693 (1/4" )
Seneor Package	PLCC,Bare Die
Maximum resolution	2592*1944
Sensitivity	780mV /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
S/N Ratio	36db
Max Dynamic Range	71.6db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4P
F/No	2.0
EFL	1.8 mm
FOV	180°
TV Distortion	<8.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
