5MP Autofocus Camera Module HD 2K Camera Module Mini Sensor OV5647 Usb 2.0 Cmos Camera Module

Product category:

USB Camera Board

SKU:

217079

Price:

$25.20

Description

Product Description

Product name	5 MP 2K soft and hard board docking flexible structure, device embedded built-in camera module
Module No.	BM5M2118 V11

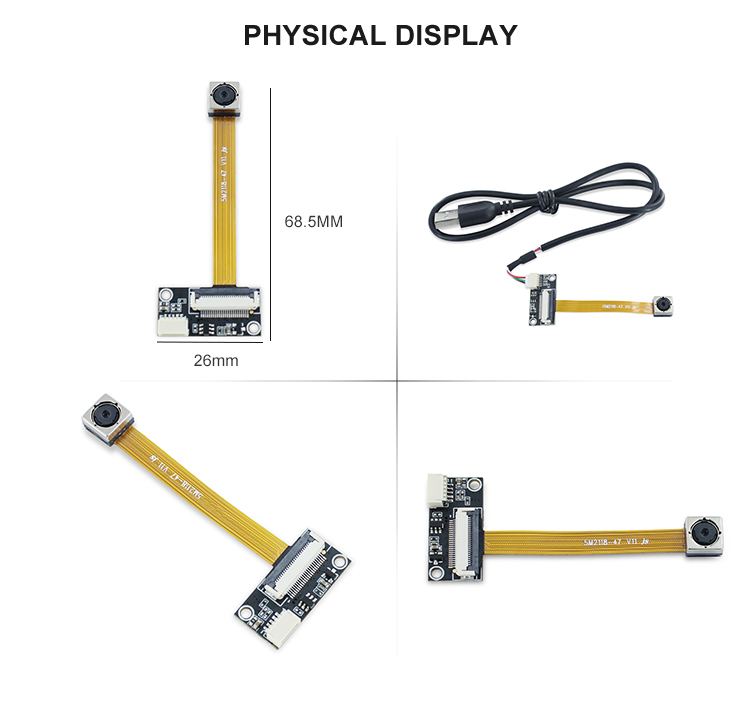

Module Size	68.5mm × 26mm × 4.85mm±0.2MM
Features	1. Flexible and flexible structure of soft and hard board, small volume 2. Selectable fixed focus/focus 3. The length of the FPC part can be customized 4. 1466-upgrade model, focusing accuracy and better effect
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5647 (1/4" )
Seneor Package	PLCC,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS
		S/N Ratio	34db
		Max Dynamic Range	67db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	4P
		F/No	2.2
EFL	2.8 mm
FOV	76°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Effect Picture
