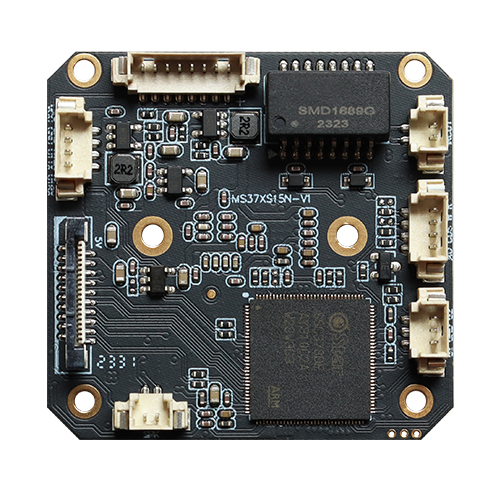

High Quality 4K 8MP IP Camera Board IMX415 CMOS Sensor Mstar 378 Network Camera PCB Security System IP Camera Module

Product category:

Camera Board

SKU:

200784

Price:

$16.00

Quantity	Price
1 - 999	$16.00
1000 - Unlimited	$15.50

Description

Model No.	H8D

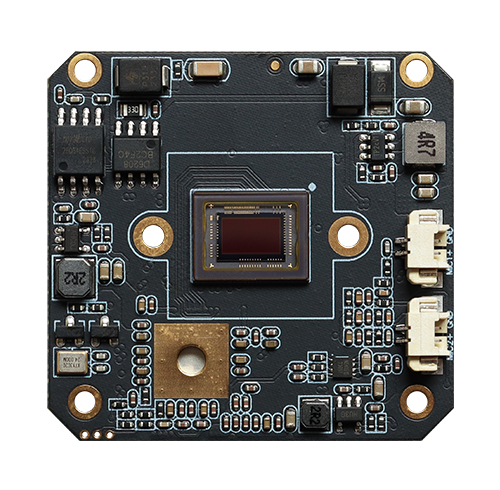

Sensor	1/2.8＂SONY 8MP CMOS IMX415
DSP	Mstar SSC378
System	PAL/NTSC
Illumination	0.05Lux@F1.2; Black & White 0.005 Lux@F1.2
Shutter	AUTO
S/N	≥50db(AGC OFF)
DWDR	DWDR>80db
Audio Input	2CH MIC Input
Audio Output	Speaker output (Max support speaker spec 3W 4Ω)
LED Type	CDS IR LED, White LED, Warm LED(Support PMW)

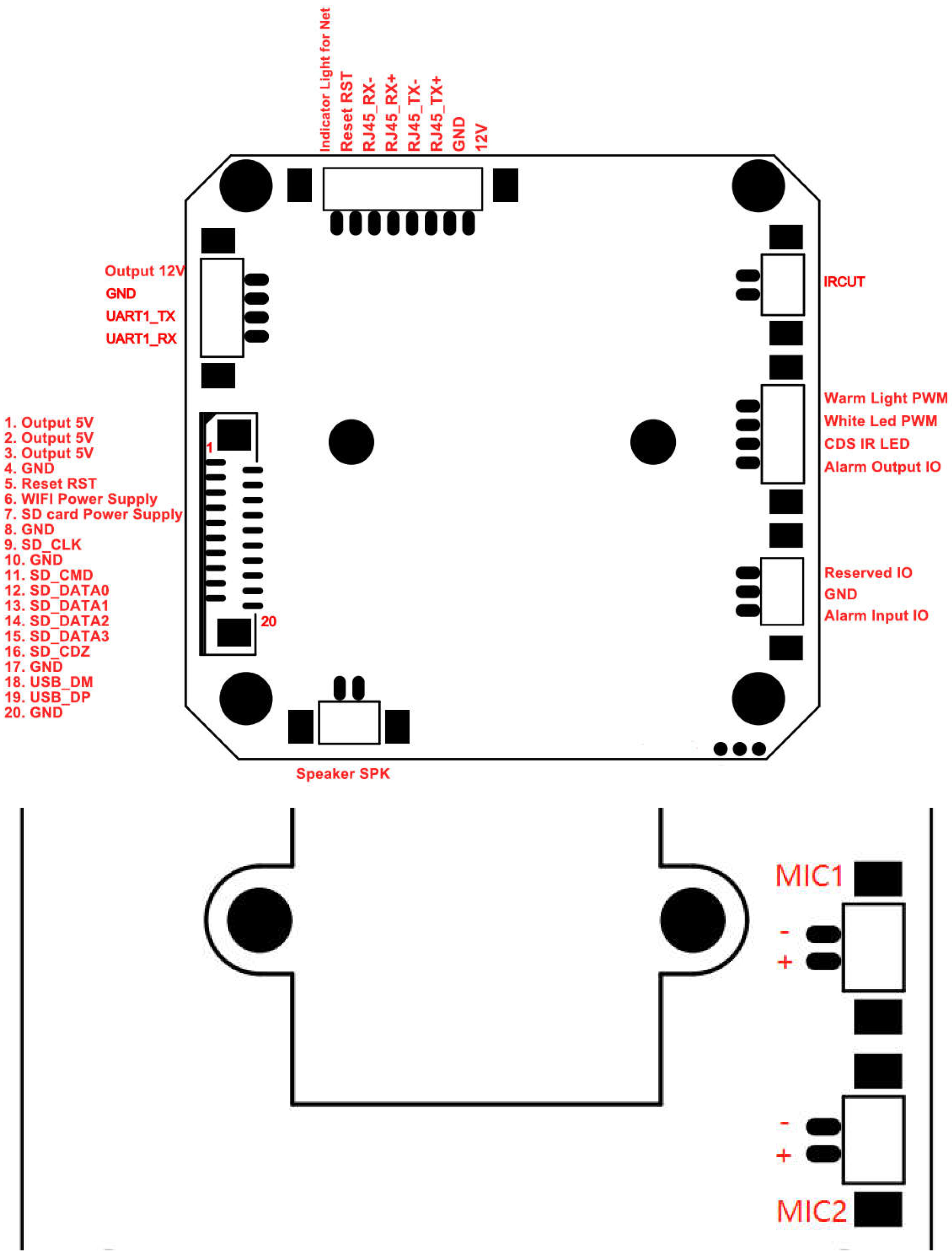

IO Port	IR-CUT, 1CH RESET, Alarm In, Alarm Out, Reserved Port
Other	Extra Motorized Zoom Auto Focus Lens Optional
Coding Format	H.265, H.264
Mainstream	38402160,1-30fps 28801664, 25601440, 23401296, 19201080, 1280720, 1-30fps
Sub-stream	704576, 800448, 640480, 640360, 352*288, 1-30fps
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support Channel Name,Date&Time,Resolution&4 lines characters adding
Data Record	Video, picture
Storage Record	Cycling Recording, Alarm Recording
Alarm Transfer	Browser, management spftware, IO output
Protocol	ONVIF
Browser	Support IE6.0 and above browser(Internet Web Server)
Mobile	Support IOS, Android
Language	ENG/CHN1/ESP/FRA/CHN2/RUS/ITA /POL/POR /KRO
Reset	Support
Operation Temperature	-20℃ to 60℃
Working Humidity	Relative humidity less than 90 %
Power	DC12V/150mA
Dimension	424010mm
Weight	17g
