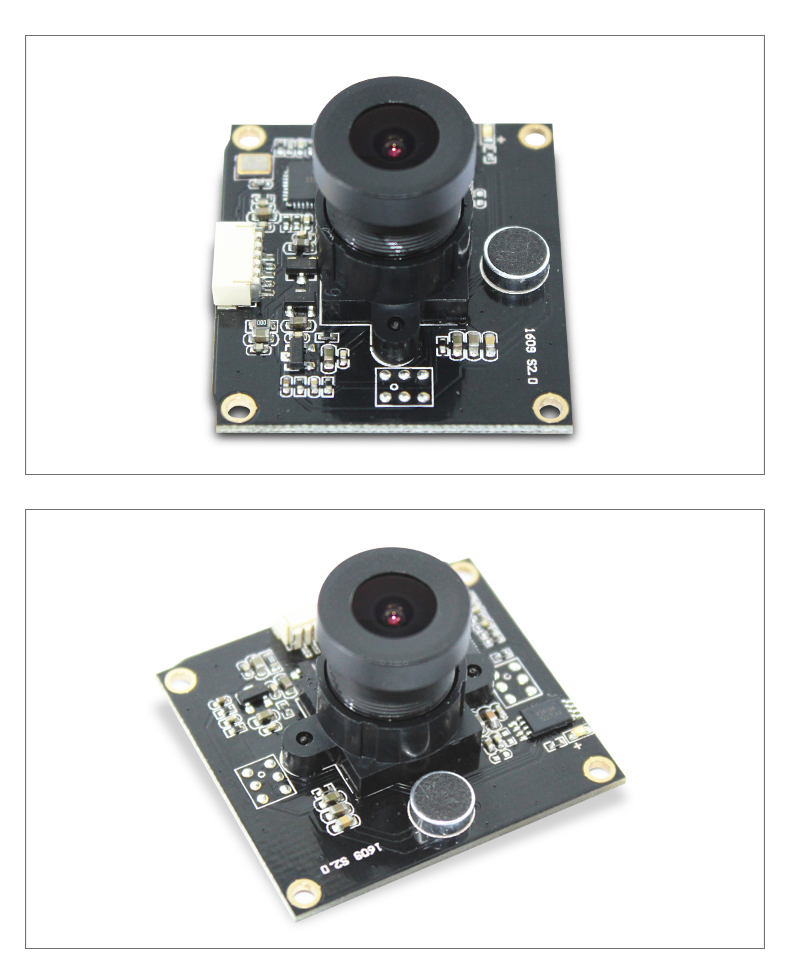

fixed focus ov2643 2MP laptop cmos mini hd camera pcb board

Product category:

USB Camera Board

SKU:

217140

Price:

$15.60

Description

fixed focus ov2643 2MP laptop cmos mini hd camera pcb board

Model No.	BM1609 S1.0

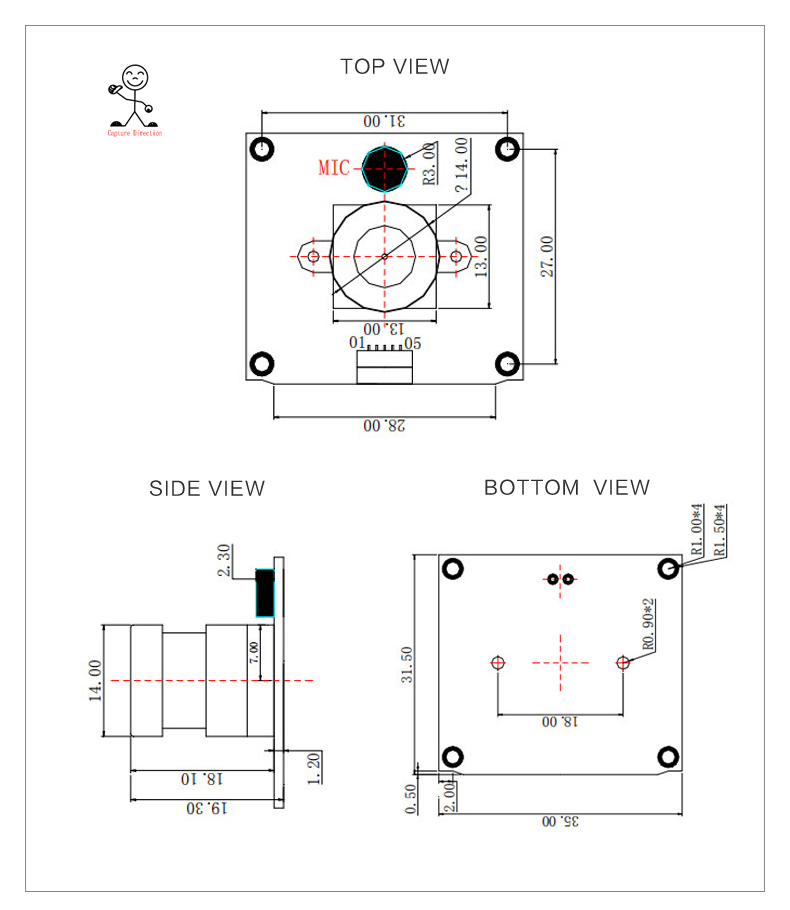

Model Size	35mm × 31.5mm × 18.5mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc
Sensor	OV2643 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1600*1200
Sensitivity	1250mv /(lux-sec)
Pixel Size	2.2μm x 2.2μm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 352x288 30FPS / YUY2 640x480 30FPS MJPEG 640x480 30FPS / YUY2 800x600 15FPS MJPEG 800x600 30FPS / YUY2 1280x720 8FPS MJPEG 1280x720 30FPC / YUY2 1280x1024 8FPS MJPEG 1280x1024 30FPC / YUY2 1600x1200 4FPS
S/N Ratio	39B
Max Dynamic Range	62B
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	4G+R
F/No	2.0
EFL	2.6 mm
FOV	120°
TV Distortion	<-50%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

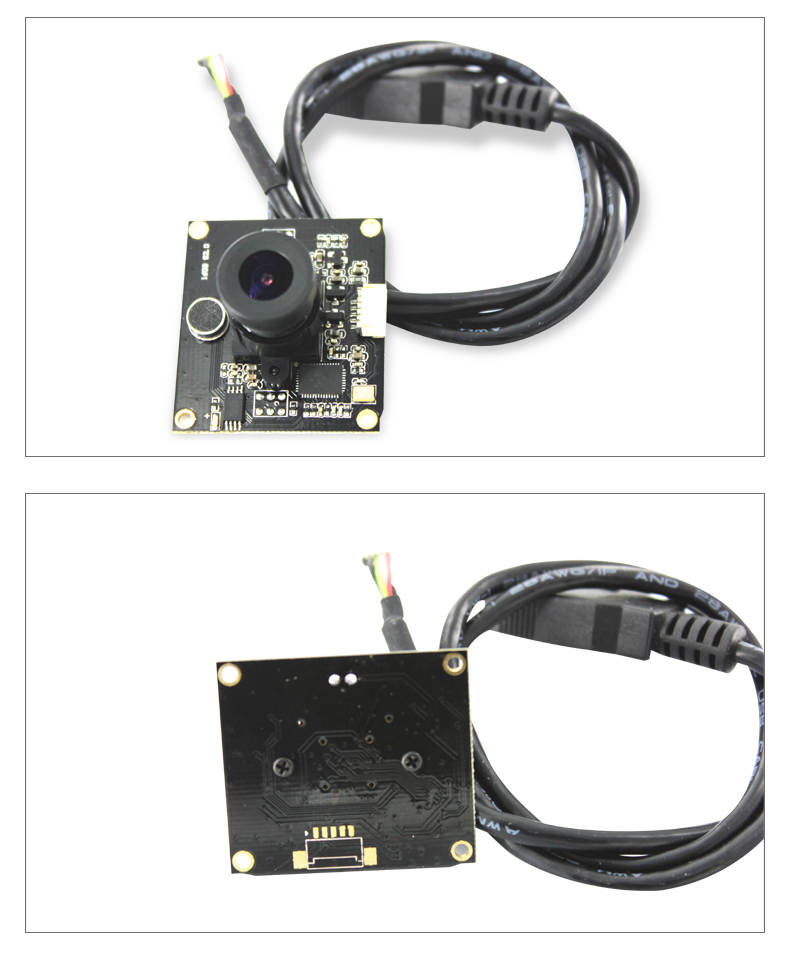

USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
