8MP Nvidia Jetson Nano Development Board Cmos Sensor IMX219 77Degree Night Vision Camera Module

Product category:

USB Camera Board

SKU:

216914

Price:

$21.60

Description

Product Description

Module No.		BMHPLCC-8M
Module Size		25mm × 24mm ×5.3±0.2mm
Temperature (Operation)		-20°C to 70°C
Temperature (Stable Image)		0°C to 50°C
Assembly technique		SMT (ROSH)
Focus		Fixed
Object distance		30CM-∞
Resolution		800LW/PH (Center)
PCB printing ink		Black
interface		15p-1.0 mipi
Working power supply		3.3v(pin15)
Operating system		Jeston Nano
Package		Anti-electrostatic tray
Certifications		FCC and CE
Sensor Type		IMX219 (1/4" )
Active Array Size		3296*2512
Sensitivity		600mV/Lux-sec
Pixel Size		1.12µm x1.12µm
Maximum Image Transfer Rate		30 fps for QSXGA;
Output formats		8/10bit RGB RAW output
S/N Ratio		39db
Dynamic Range		69db
Package		PLCC,Bare Die
Lens Type
Lens Construction		4P
F/No		2
EFL		2.93mm
BFL(Optical)		1.16mm
FOV		77°
TV Distortion		<1.0%
Relative Illumination (Sensor)		70%
IR Filter		650±10nm
DSP Type
AGC/AEC/Whiter balance
Output Formats
Fixed Pattern Noise
Package

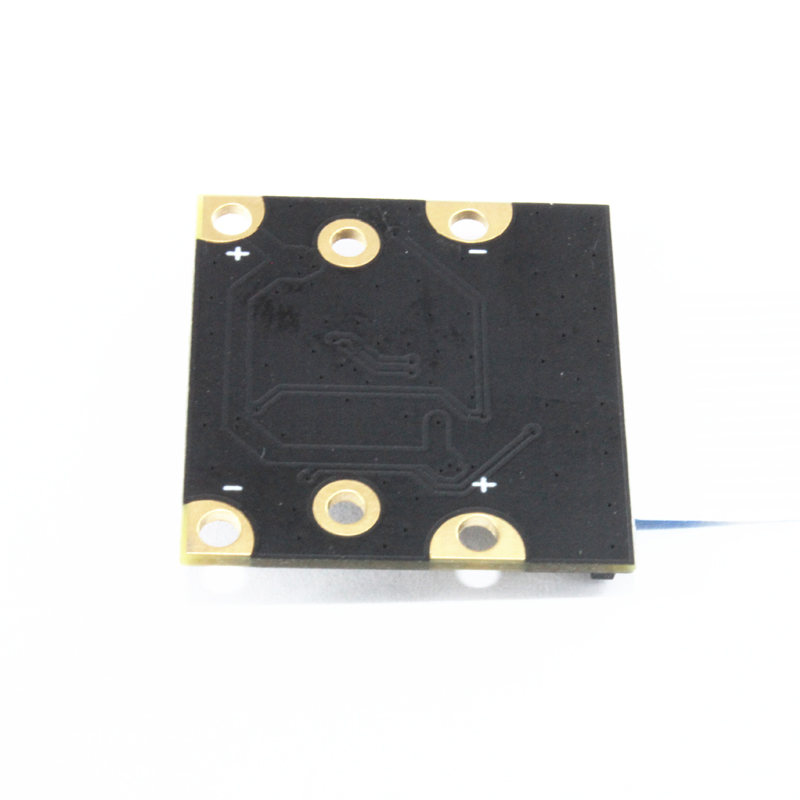

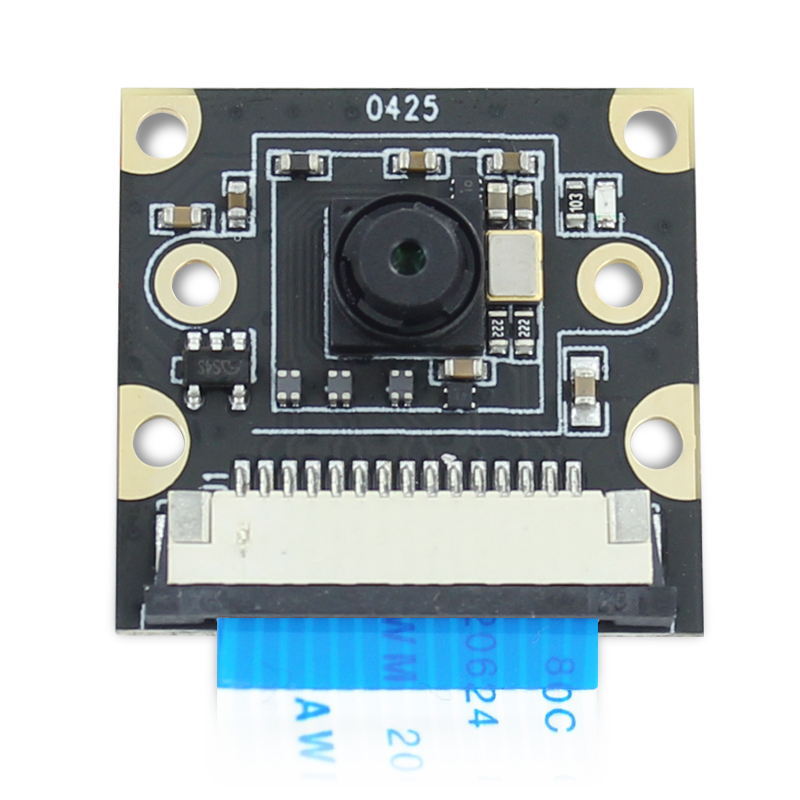

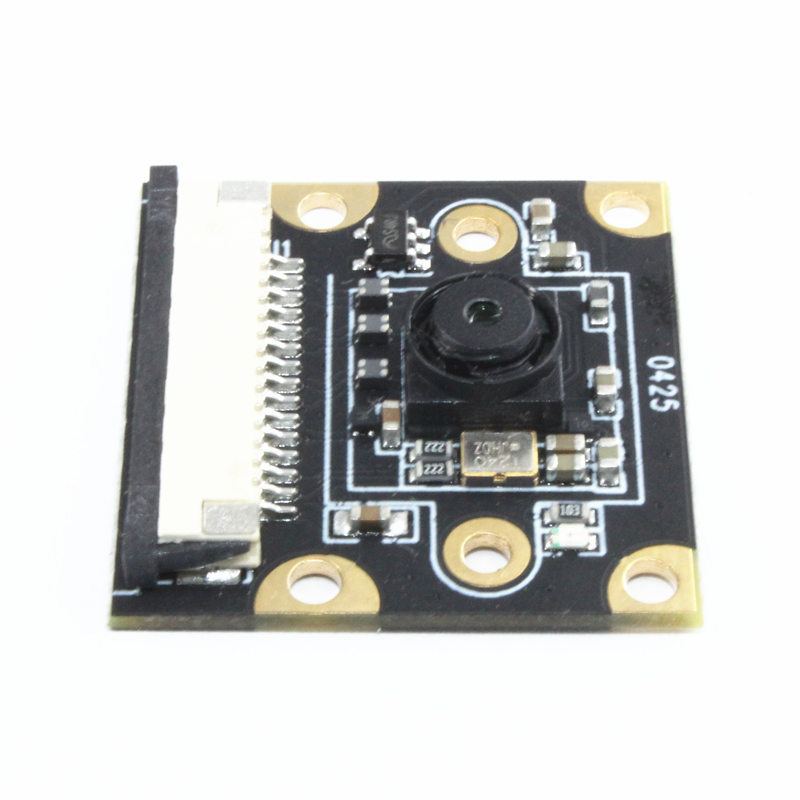

Detailed Images
