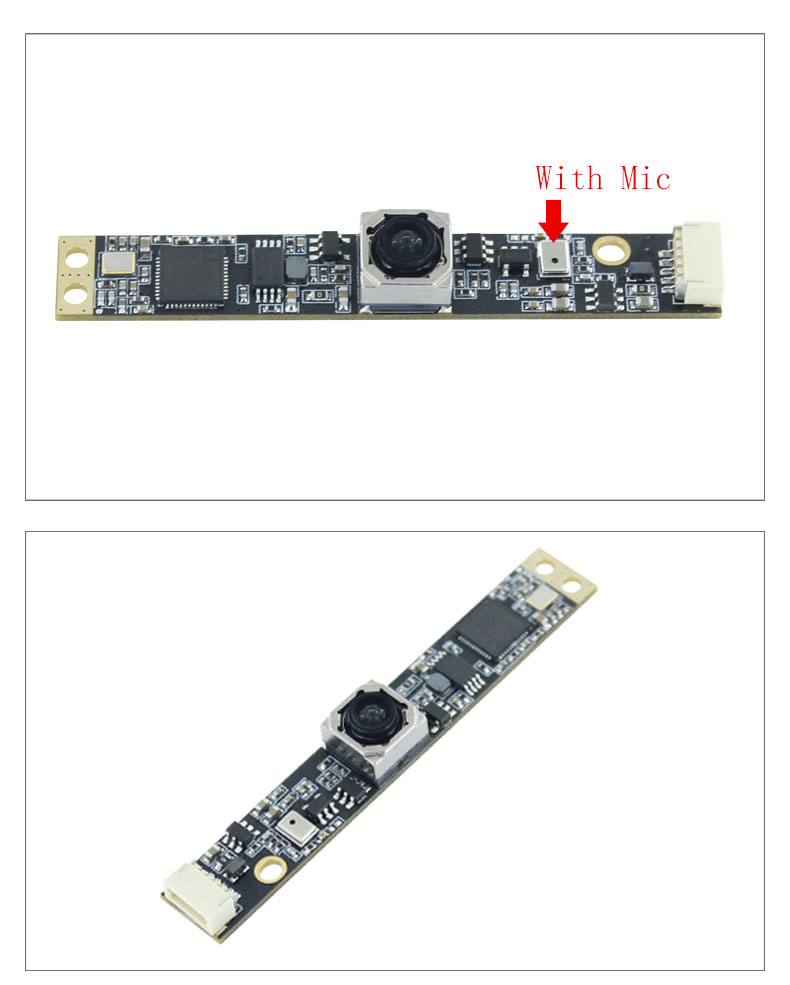

8MP IMX179 Auto Focus Micro USB Security Camera Module with Microphone HD Mini Hidden Design

Product category:

USB Camera Board

SKU:

216781

Price:

$28.80

Description

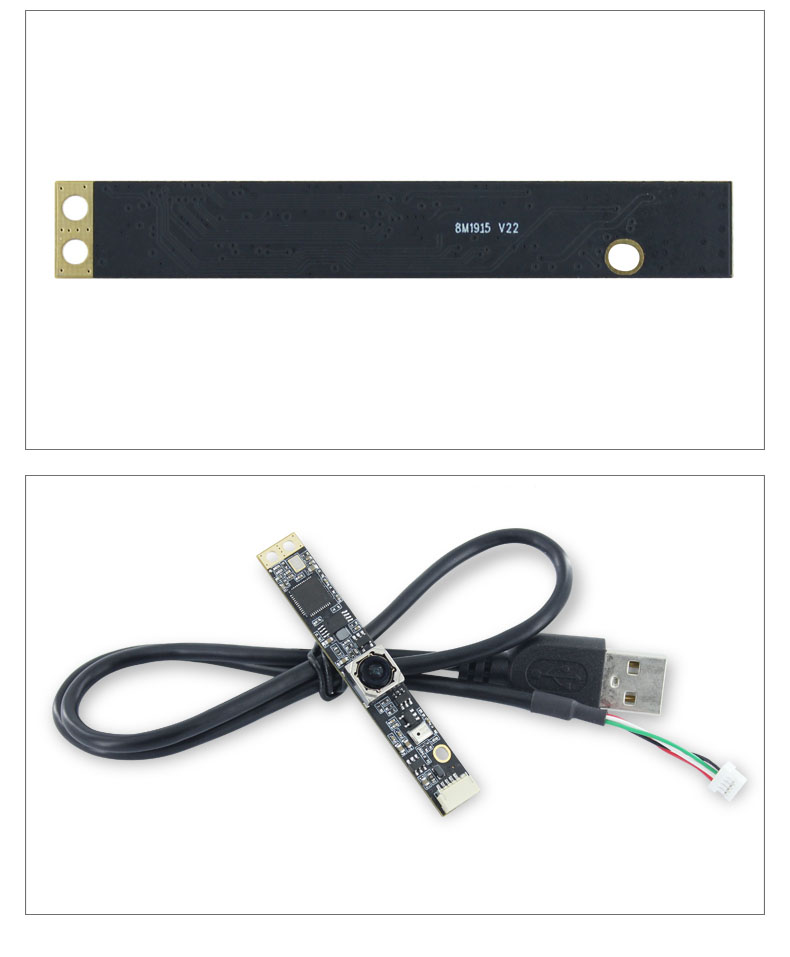

Module No.	BM8M1915 V11

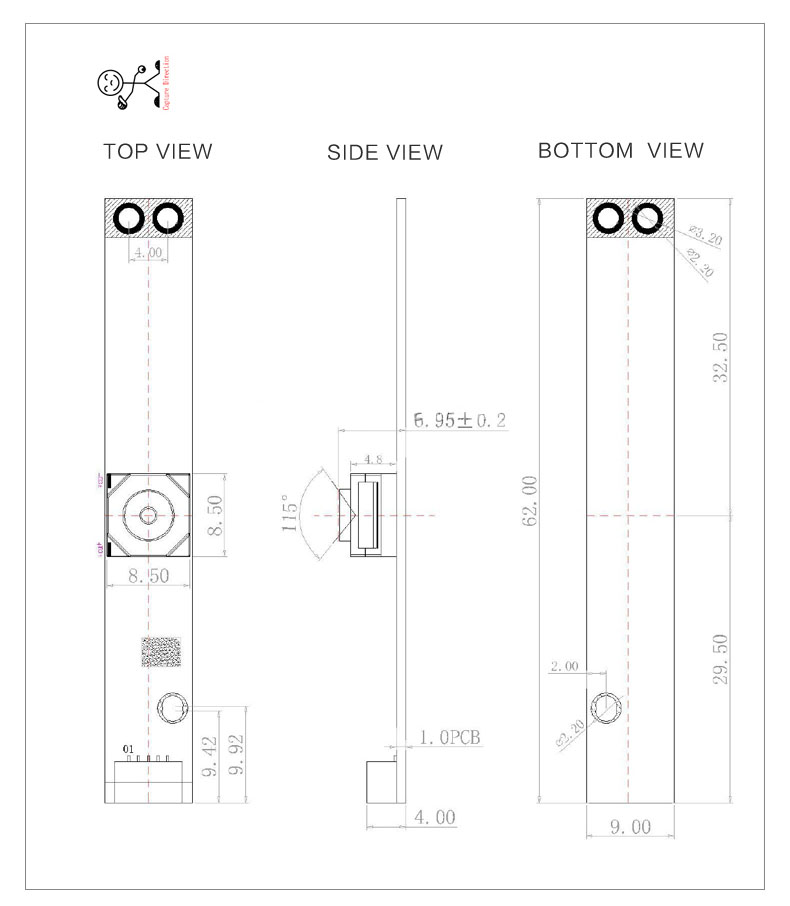

Module Size	62mm9mm6.1mm
Temperature(Operation)	-30°C -70°C
Temperature(Stable Image)	0°C-50°C
Assembly technique	SMT(ROSH)
Focus	Auto
Object distance	30cm-infinity
Resolution	800LW/PH(Center)
PCB printing ink	black
Interface	USB2.0
Power supply	USB bus power
Supply Voltage	DC 5V+5%
Maximum Power consumption	1000mW
Operating system request	Win XP/win 7 , 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX179 (1/3.2" )
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 4FPS MJPEG 2048x1536 20FPS / - MJPEG 2592x1944 20FPS / - MJPEG 3264x2448 15FPS / -
S/N Ratio	44db
Max Dynamic Range	83db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	5P
F/No	2.2
EFL	3.566MM
FOV	115°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Certifications	FCC/ CE /ROSH
