8MP free driver Auto Focus Sensor IMX179 CMOS Mini camera module

Product category:

USB Camera Board

SKU:

216766

Price:

$40.80

Description

Module No.	BM8M1824U3 V11
Module Size	38mm × 38mm × 6.75mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	AUTO
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	black
interface	USB 3.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	1000 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX179 (1/3.2" )
Seneor Package	PLCC,Bare Die
Maximum resolution	3264*2448
Sensitivity	700mv /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 1280x1024 30FPS / YUY2 1280x1024 5FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 20FPS / YUY2 2048x1536 3FPS MJPEG 2592x1944 20FPS / YUY2 2592x1944 2FPS MJPEG 3264x2448 20FPS / YUY2 3264x2448 1FPS
S/N Ratio	44 db
Max Dynamic Range	83 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	5P
F/No	2.2
EFL	3.5 mm
FOV	77.2°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

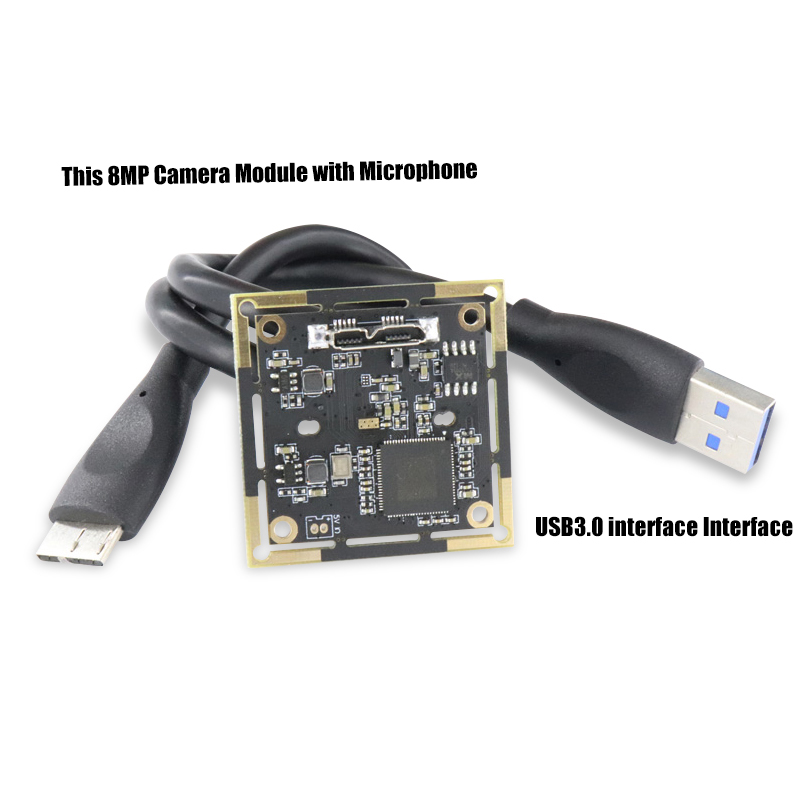

8MP USB3.0 Auto FOCUS CAMERA MODULE

8MP usb3.0 Auto Focus Camera module for Face Recognition/Industrial

equipment/Advisement player/Monitoring equipment

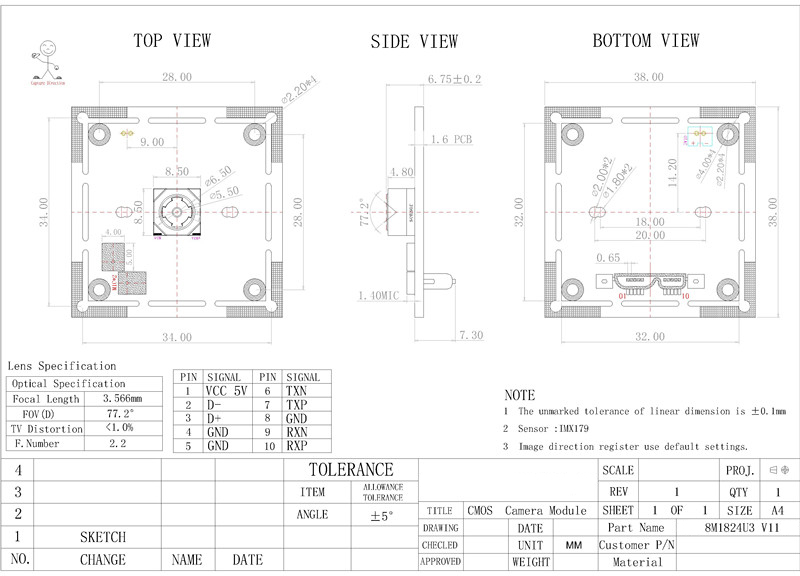

Product Drawing

Product usage introduction

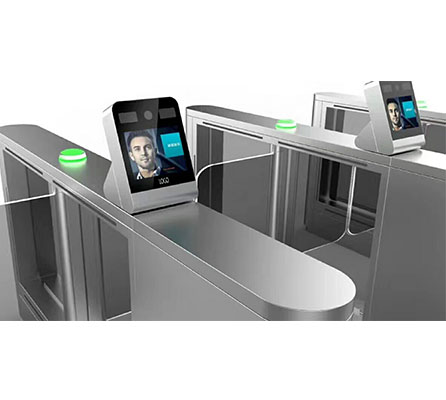

this 8MP Camra module can be used in face recognition access control system

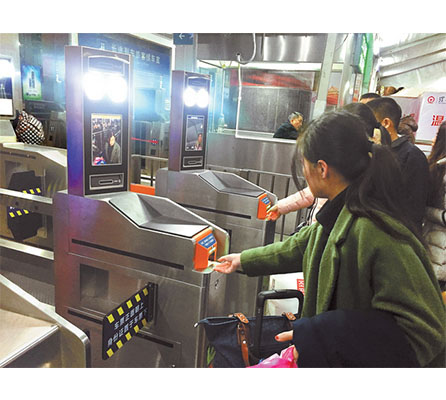

Description of product use effect

IMX179 usb camera module, it is free driver for window/Linux/Andorid system with good quality
