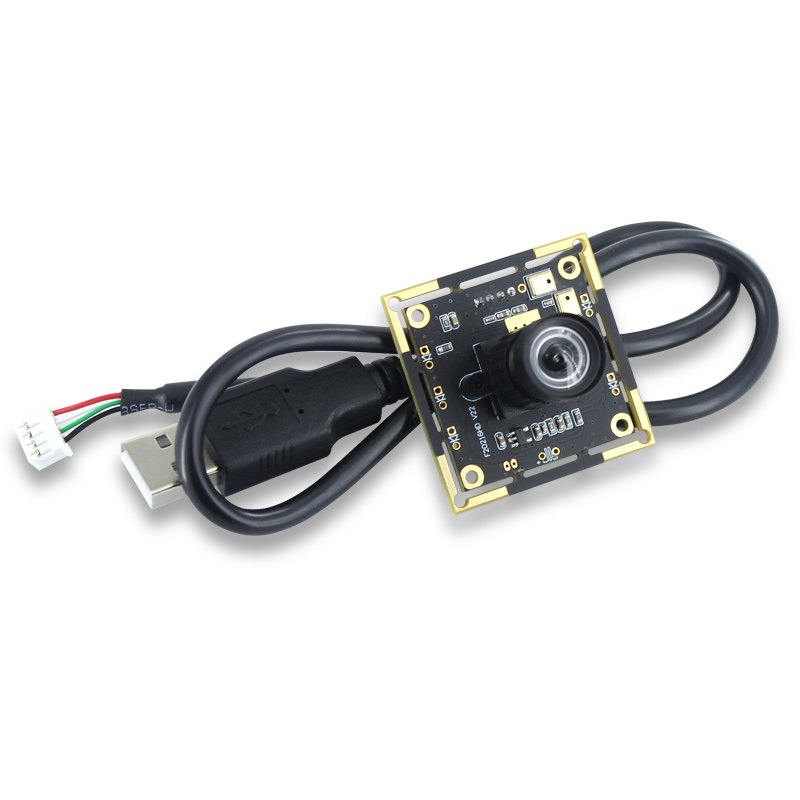

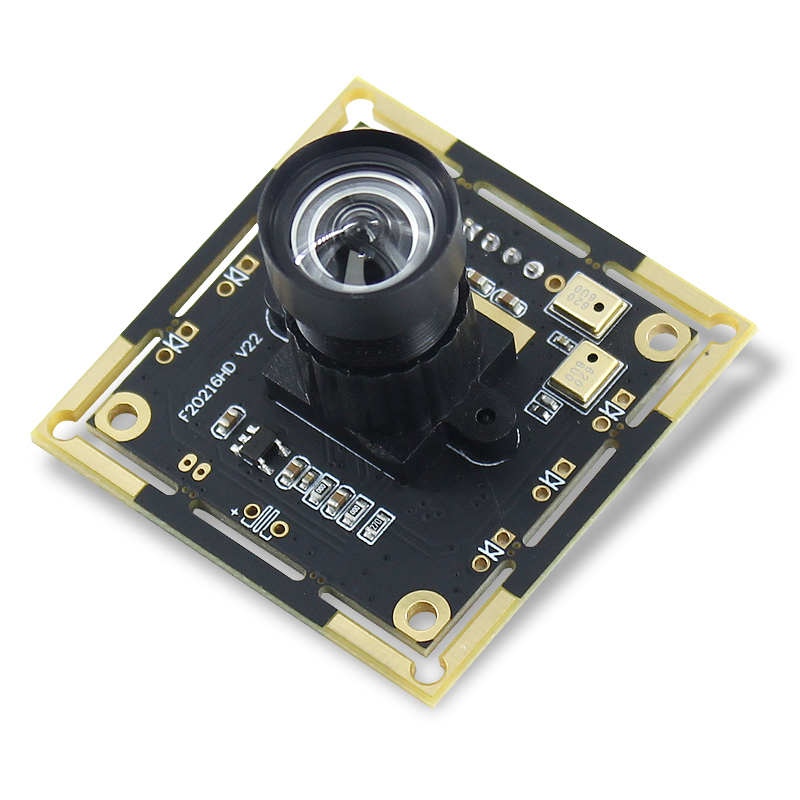

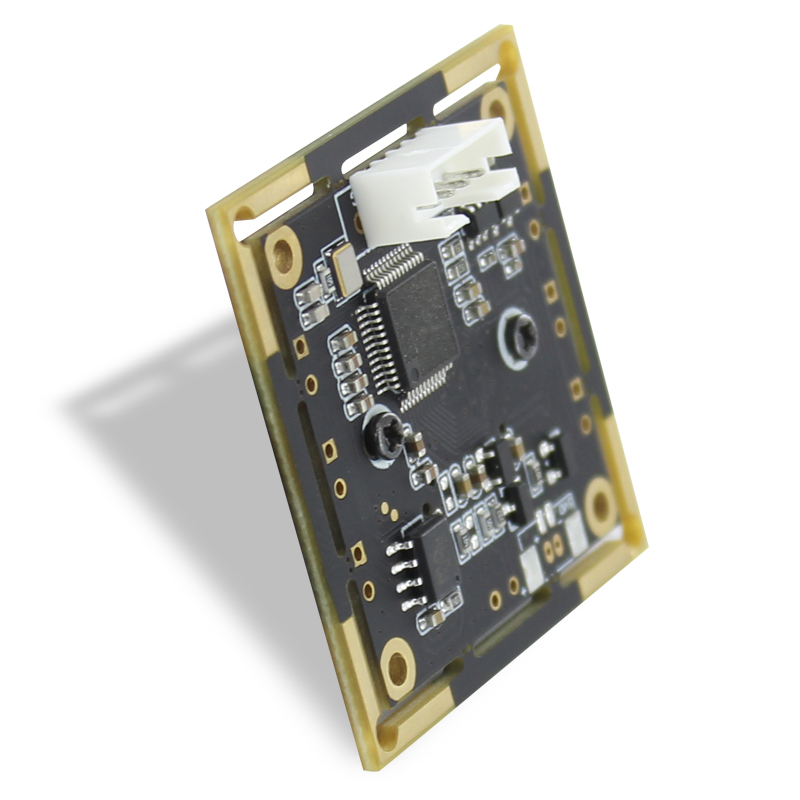

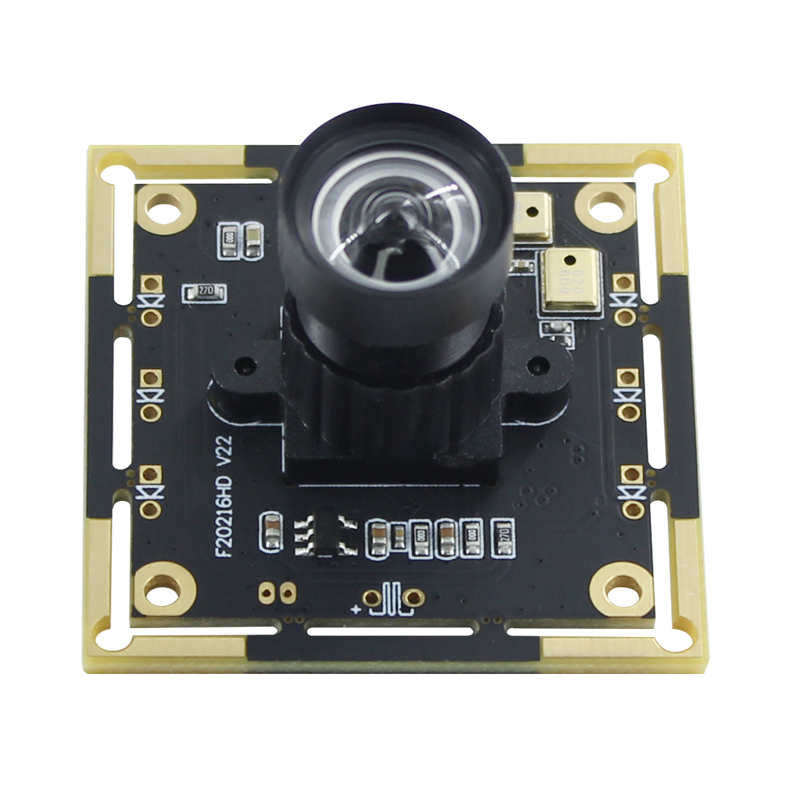

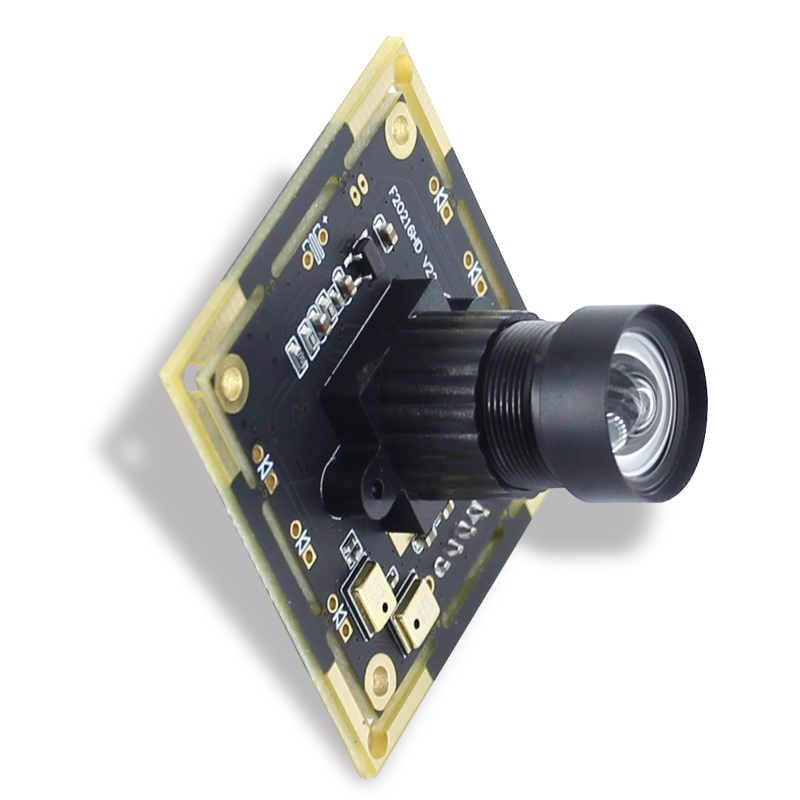

2MP 92 degree distortion-free lens camera module Face Recognition Camera Module

Product category:

USB Camera Board

SKU:

216635

Price:

$18.00

Description

Product Name	2MP Face Recognition Camera Module
Module No	BMF20216HD V33 - 95
Module Size	38mm × 38mm × 24mm±0.5MM
Features	1. Standard industrial camera 38, 32mm plate structure 2. Wide range of lens options , cost-effective 3. It can be welded 6 plug-in lamps (infrared white light), which can be made into an open picture, bright and off, and can also be controlled by photosensitivity
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	800mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	JX-F22 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	3900mV /（lux-sec）
Pixel Size	3.0µm x 3.0µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 800x600 30FPS MJPEG 1280x720 30FPS / YUY2 1024x768 30FPS MJPEG 1280x960 30FPS / MJPEG 1600x960 30FPS / MJPEG 1920x1080 30FPS /
S/N Ratio	38 db
Max Dynamic Range	73 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	2G2P
F/No	2.8
EFL	3.5mm
FOV	95°
TV Distortion	<-0.7%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
