0.3Mp Fixed Focus OV7251 Sensor Usb Camera Global Exposure Black White 120Fps Camera Module

Product category:

USB Camera Board

SKU:

216897

Price:

$19.20

Description

Product Description

Product name	300,000-pixel global exposure black and white high-speed scanning camera module
Module No.	BMV2112GS V11

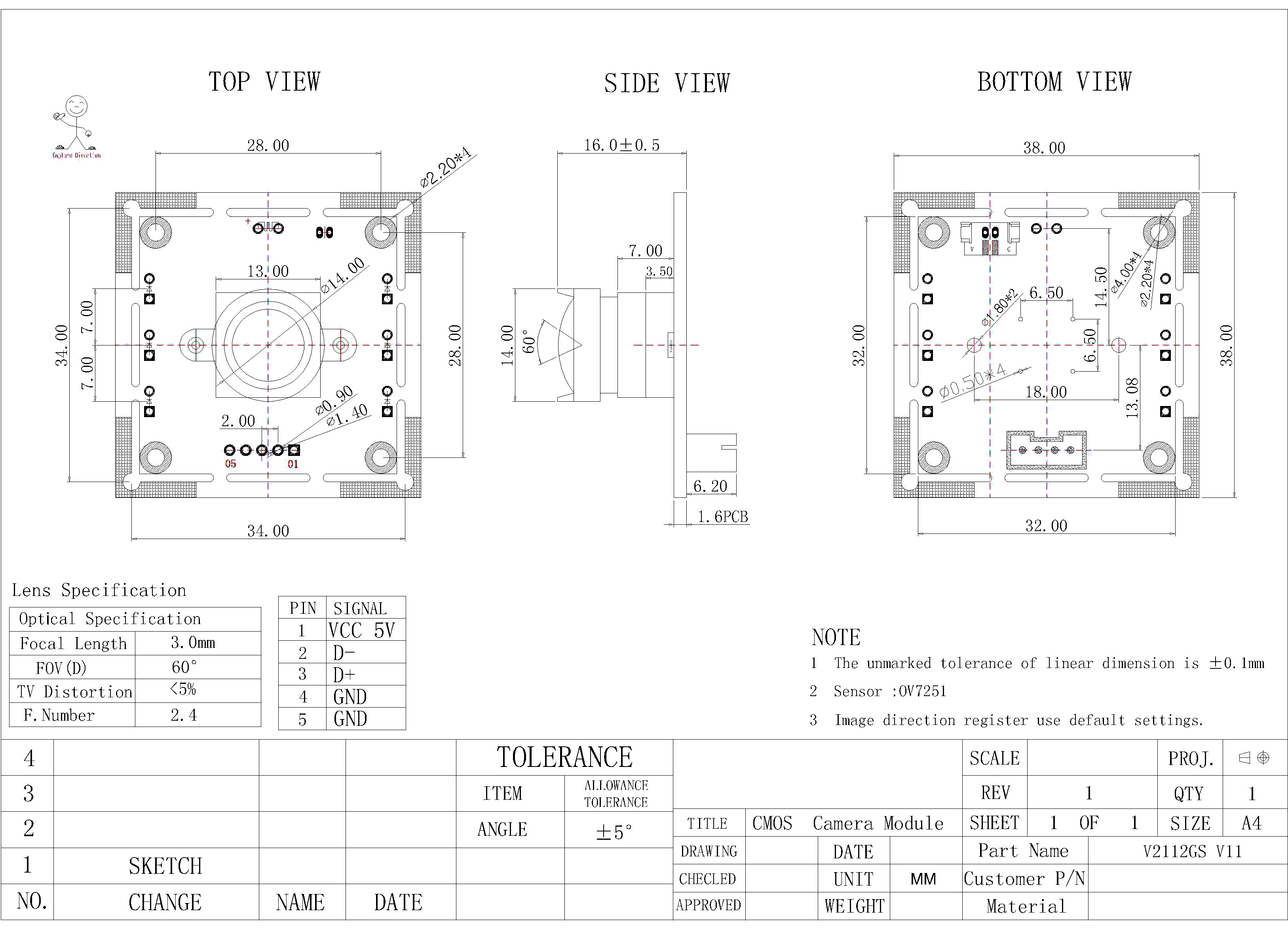

Module Size	38mm × 38mm × 16mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV7251 (1/7.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	2800mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 160x120 120FPS / YUY2 160x120 30FPS MJPEG 320x240 120FPS / YUY2 320x240 30FPS MJPEG 352x288 120FPS / YUY2 352x288 30FPS MJPEG 640x480 120FPS / YUY2 640x480 30FPS
		S/N Ratio	39 db
		Max Dynamic Range	69.6db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	2G2P
		F/No	2.4
EFL	3.0 mm
FOV	60°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
