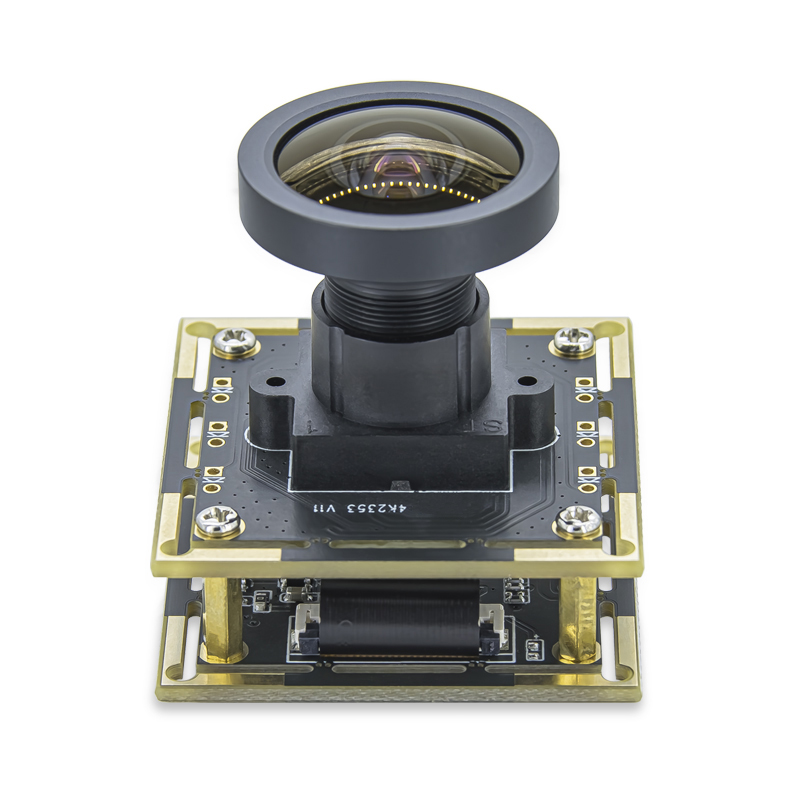

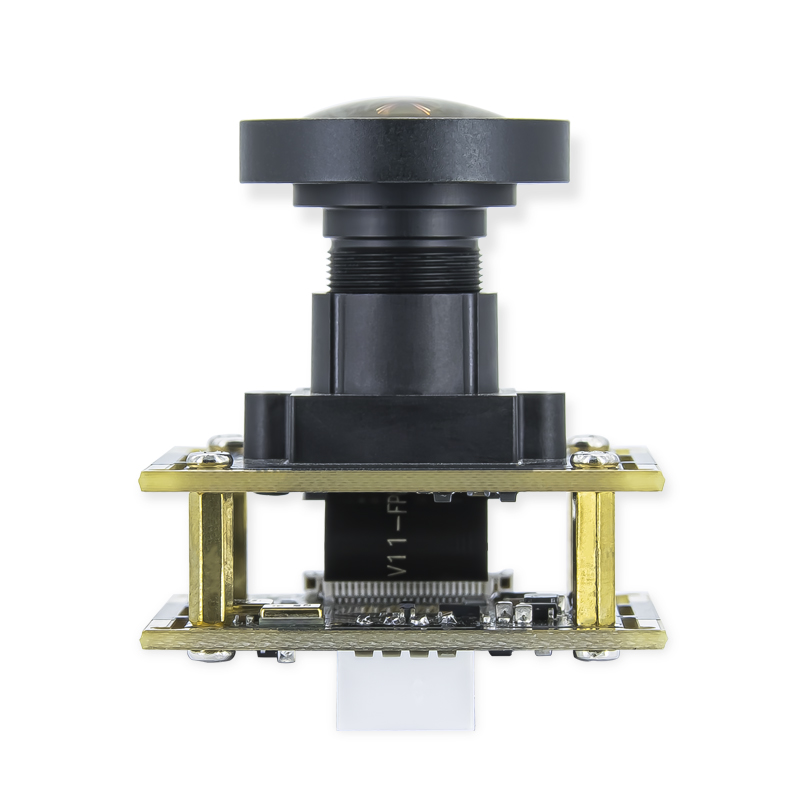

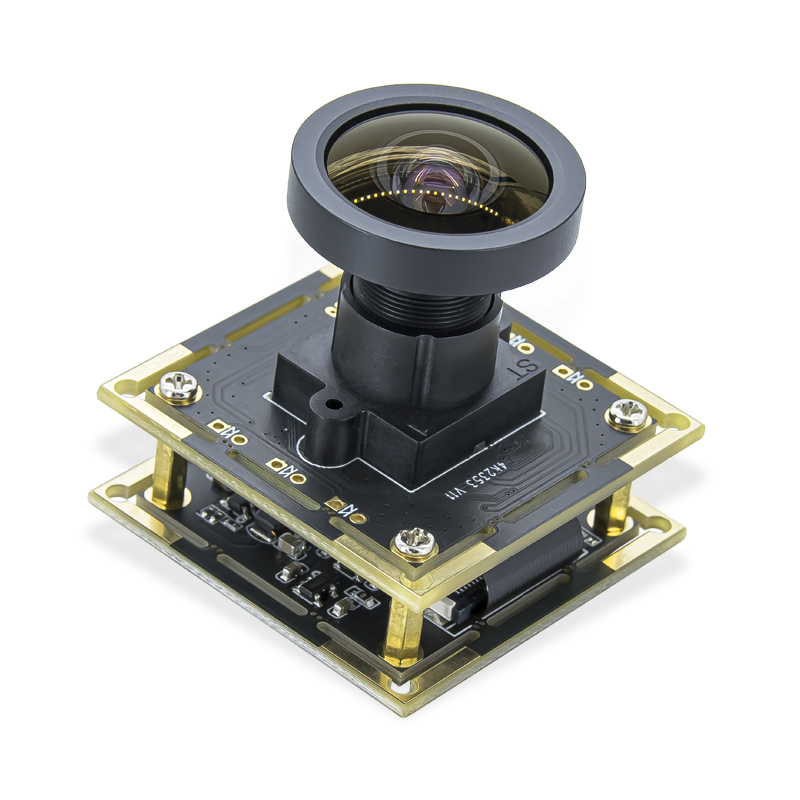

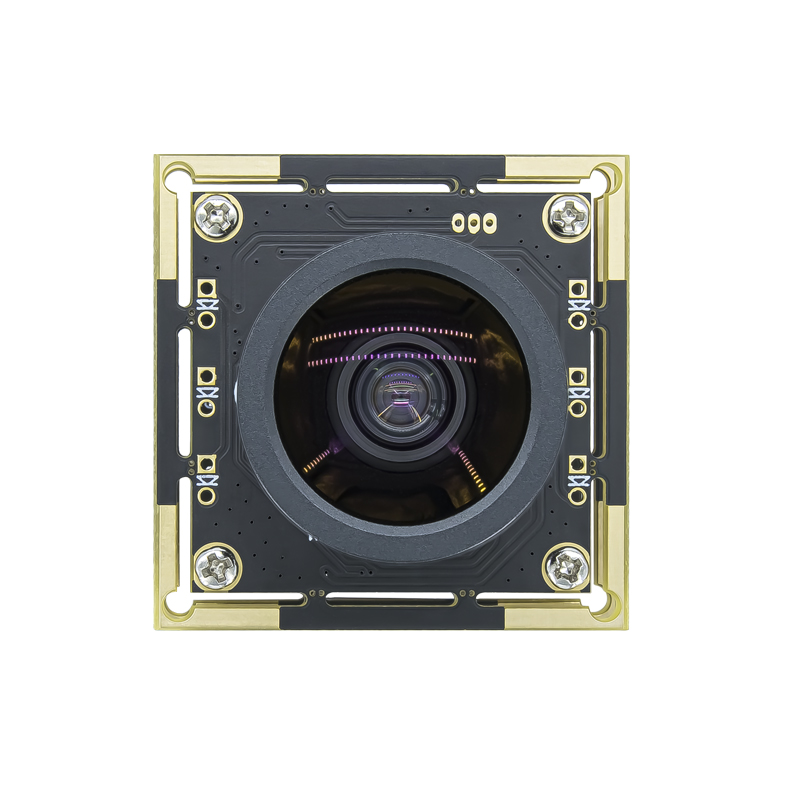

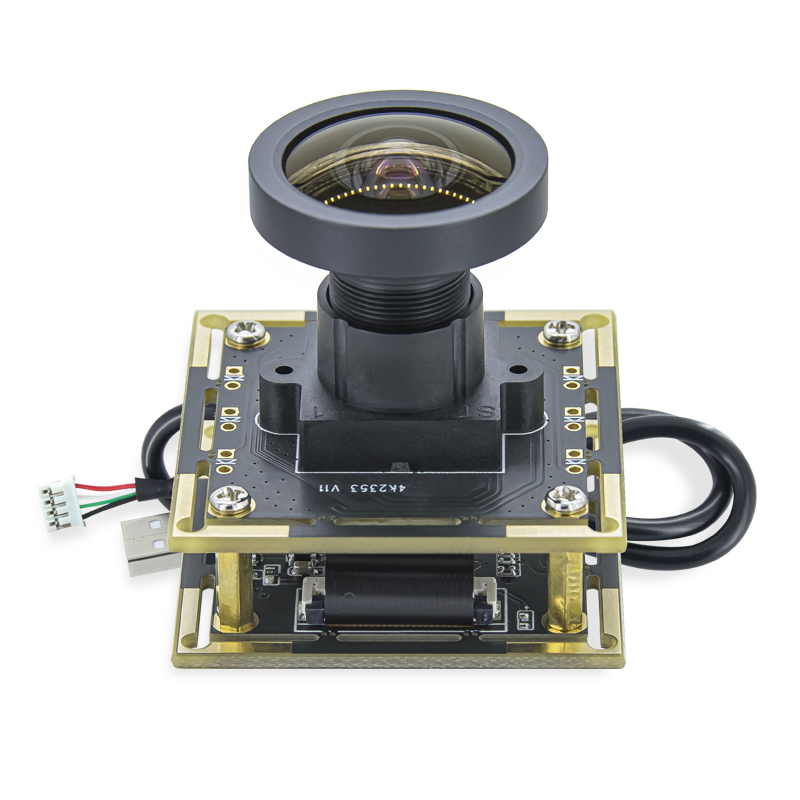

IMX678 Camera Module 8.29MP 4K large screen industrial equipment, all-in-one smart terminal camera module

Product category:

USB Camera Board

SKU:

216542

Price:

$57.60

Description

Product Name	8mp High Resolution Smart Terminal camera module
Module No	BM4K2353 V11-95
Module Size	38mm × 38mm × 42.40mm±0.5MM
Product Features	1. Standard industrial camera 38, 32mm board structure 2. IMX678-1/1.8 large pixel mainly promotes high-end, high pixel effect with requirements, large screen 4k screen, live streaming camera 3. Built in dual digital microphone 4. Can be used for night vision - expandable light board
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	950 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX678 (1/1.8" )
Seneor Package	COB,Bare Die
Maximum resolution	3840*3040
Sensitivity	50mV /（lux-sec）
Pixel Size	1.55µm x 1.55µm
Maximum Image Transfer Rate	MJPEG 1280x720 60FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 60FPS / YUY2 1920x1080 1FPS MJPEG 2408x1536 30FPS / YUY2 2408x1536 1FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS
S/N Ratio	40db
Max Dynamic Range	83db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	5G2P
F/No	2.8
EFL	4.0 mm
FOV	95°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
