New arrivals 5MP embedded device built-in ov5640 coms sensor camera module with Digital microphone

Product category:

USB Camera Board

SKU:

217069

Price:

$25.20

Description

Product Description

Product name	5 MP soft and hard board docking flexible structure, device embedded built-in camera module
Module No.	BM20239 V22

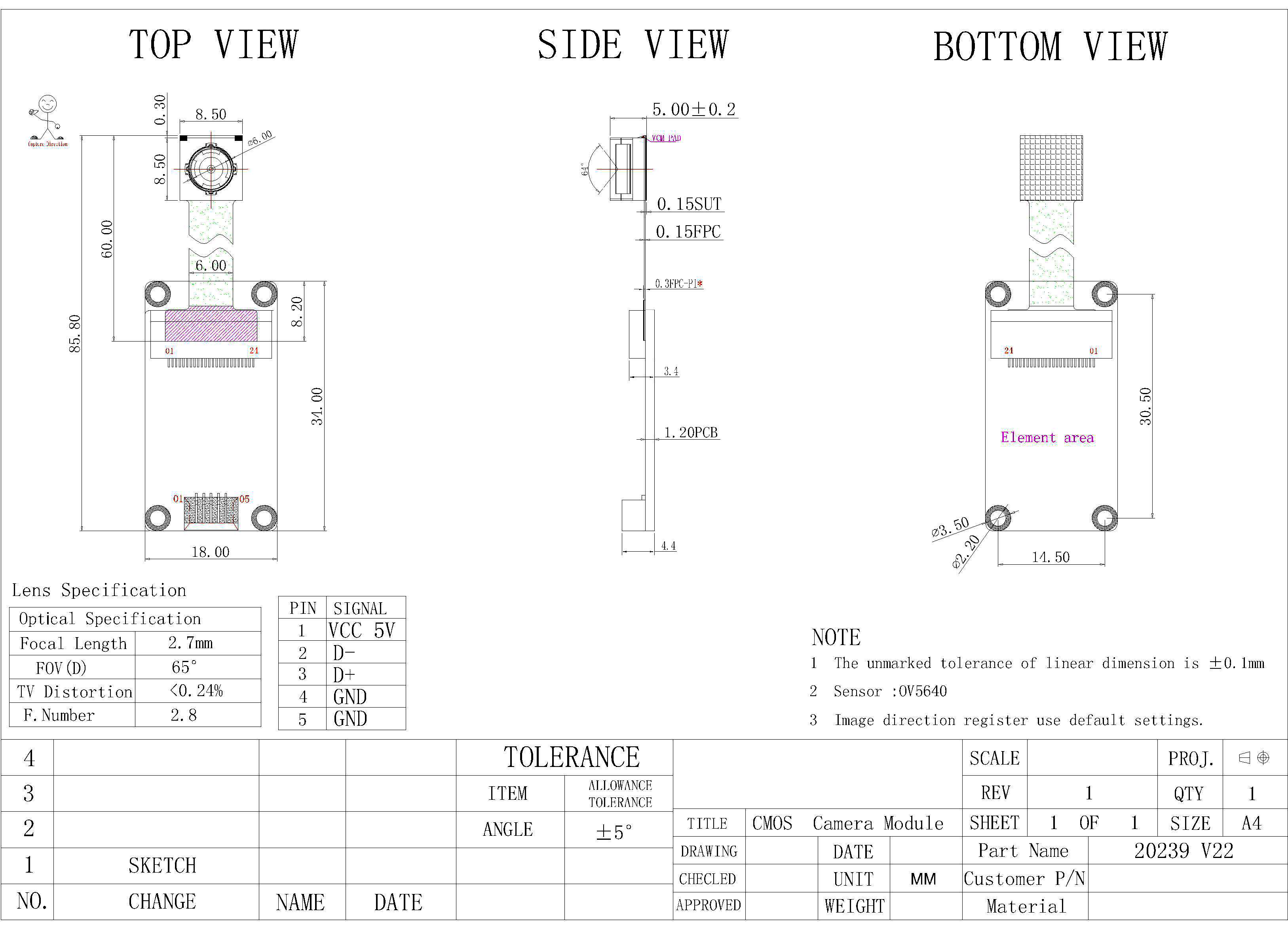

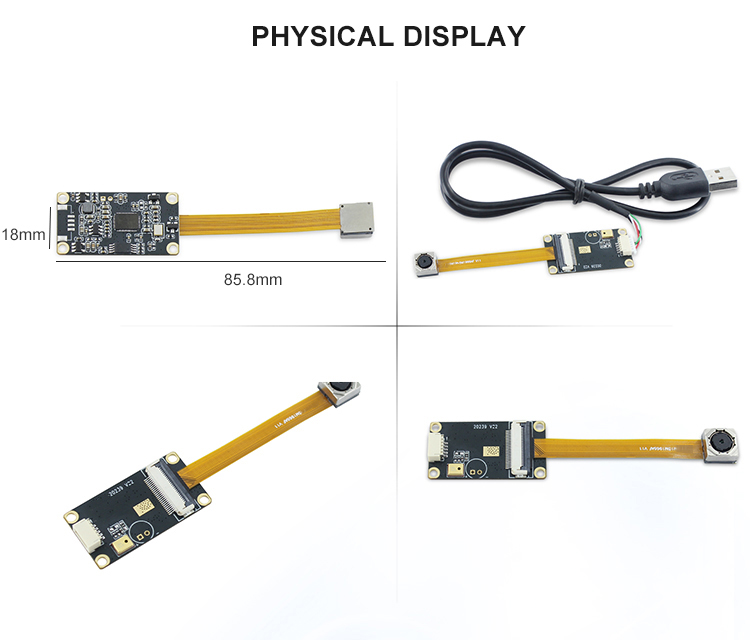

Module Size	85.8mm × 18mm × 5.0mm±0.2MM
Features	1. Flexible and flexible structure of soft and hard board, small volume 2. Selectable fixed focus 3. The length of the FPC part can be customized 4. Several specifications of the lens are optional 6. With digital microphone
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black

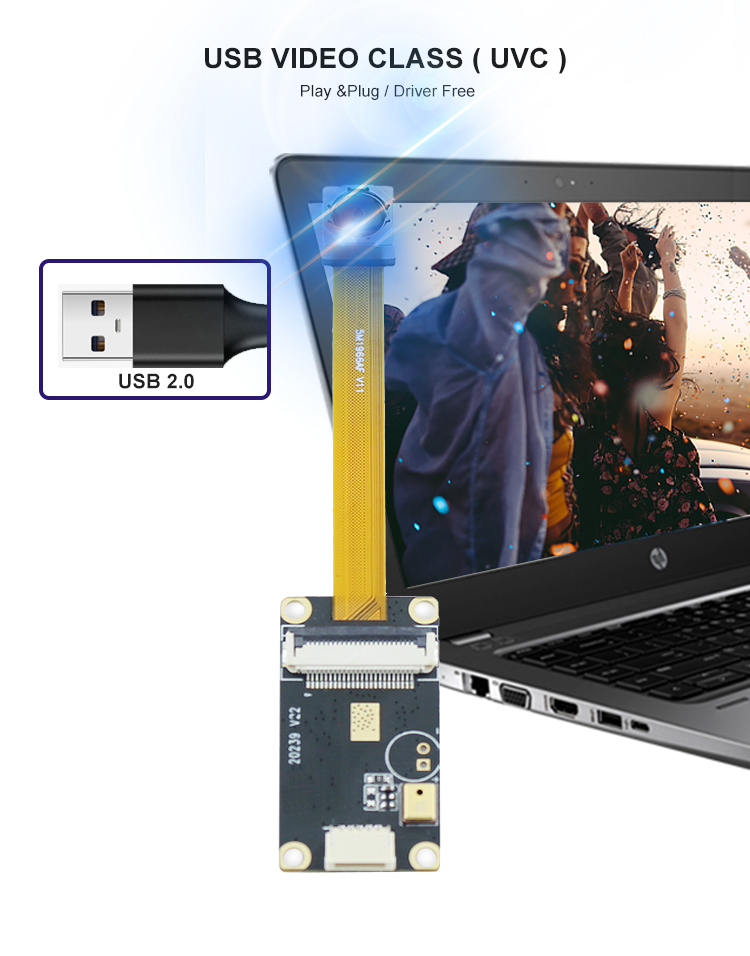

interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	920 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5640 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 1280x720 30FPS / YUY2 1280x720 15FPS MJPEG 1600x1200 30FPS / YUY2 1600x1200 15FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 6FPS MJPEG 2048x1536 15FPS / YUY2 2048x1536 2FPS MJPEG 2592x1944 15FPS / YUY2 2592x1944 2FPS
		S/N Ratio	36db
		Max Dynamic Range	68db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	Support
		Lens Construction	4P+IR
		F/No	2.8
EFL	2.7 mm
FOV	65°
TV Distortion	<0.24%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Effect Picture
