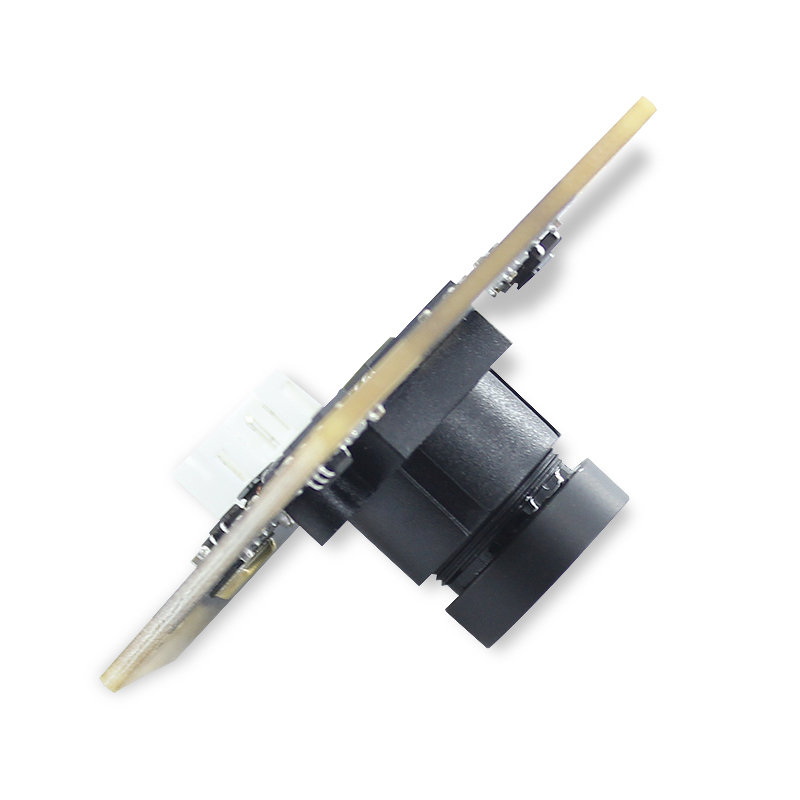

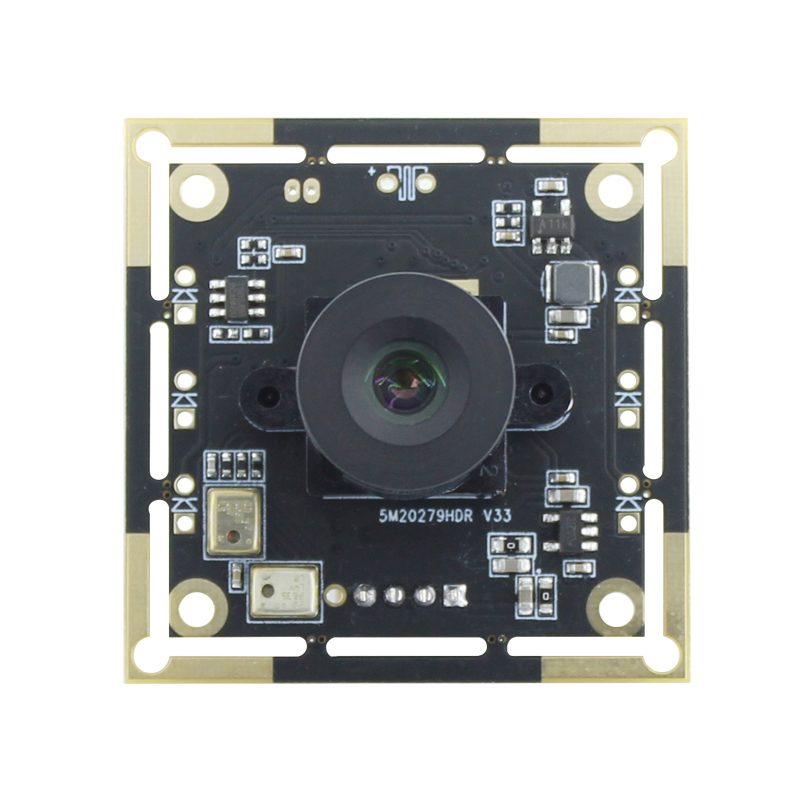

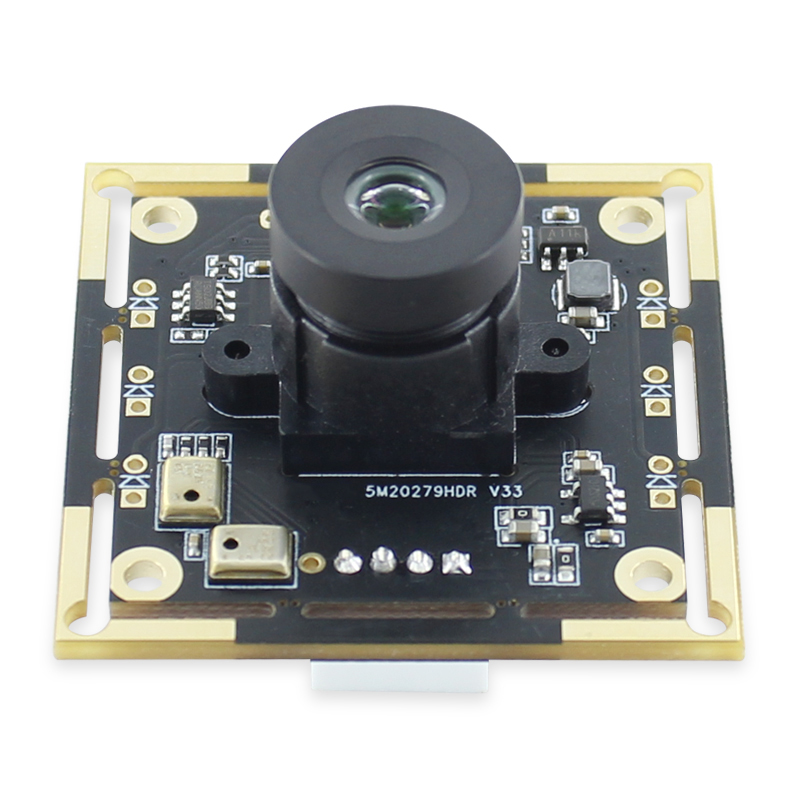

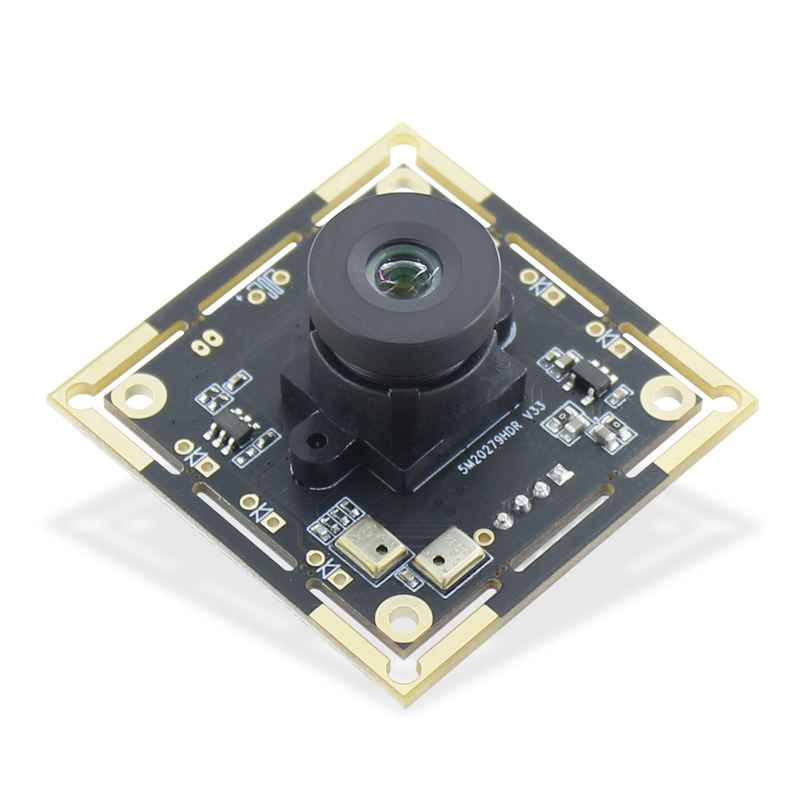

Customized 5MP 85DB HDR Camera Module Face Recognition Camera Module

Product category:

USB Camera Board

SKU:

216668

Price:

$34.80

Quantity	Price
1 - 99	$34.80
100 - 499	$32.20
500 - Unlimited	$28.60

full product footer

Description

Product Parameter

Product Name	5MP 85DB HDR camera module
Module No	BM5M20279HDR V22-70
Module Size	38mm × 38mm × 17.6mm±0.5MM
specificities	1. Standard industrial camera 38, 32mm plate structure 2. 1/2.5 " large pixel 3. Wide range of lens options 4. 6 plug-in lights can be soldered (infrared white light), which can be made into an on/off diagram or a photosensitive control light 5. MJPEG-2592x1944 can support 30 frames 6. Wide dynamic 85db with real hardware, backlight shooting
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	Fixed
Focus	Auto Focus
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	PS5520 (1/2.5" )
Seneor Package	PLCC,Bare Die
Maximum resolution	2592*1944
Sensitivity	2400mV /（lux-sec）
Pixel Size	2.2µm x 2.2µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x540 30FPS / YUY2 960x540 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS
S/N Ratio	39db
Max Dynamic Range	85db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	4G
F/No	2.0
EFL	2.1 mm
FOV	70°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
