Mini USB 0.3MP Camera Module for Smart Terminal Devices CMOS OV7725 Camera Module

Product category:

USB Camera Board

SKU:

216723

Price:

$12.00

Quantity	Price
1 - 49	$12.00
50 - 99	$10.93
100 - Unlimited	$10.23

full product footer

Description

Product Description

Product Name	0.3MP VGA 480P 60fps High Speed Mini USB Camera CMOS OV7725 Plug and Play USB 2.0 Camera for ATM KIOSK

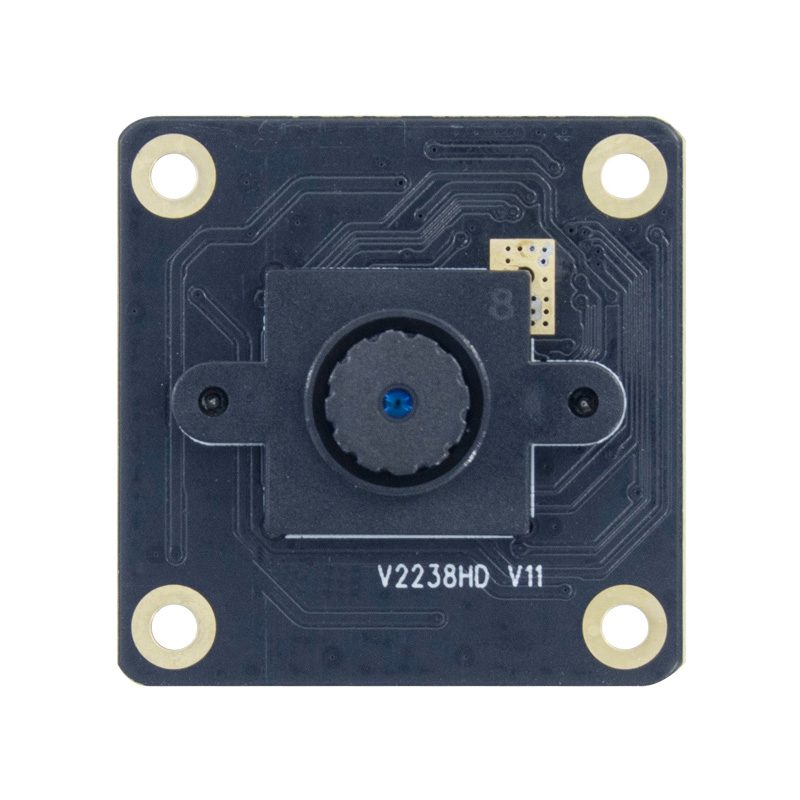

Module No.	BMV2238HD V11

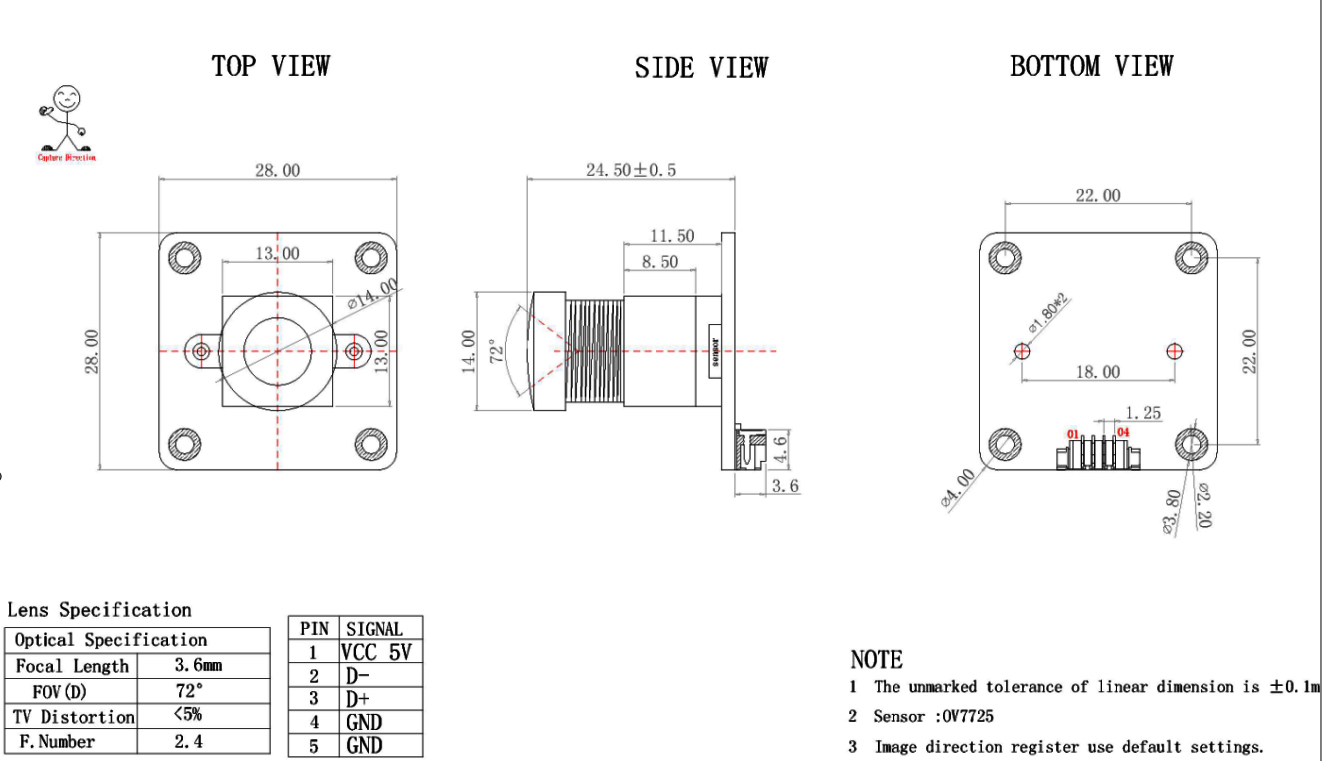

Module Size	28mm × 28mm × 24.50mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	380 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV7725 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	640*480
Sensitivity	3.0V /（lux-sec）
Pixel Size	6.0µm x 6.0µm
Maximum Image Transfer Rate	MJPEG 160x120 60FPS / YUY2 160x120 30FPS MJPEG 320x240 60FPS / YUY2 320x240 30FPS MJPEG 352x288 60FPS / YUY2 352x288 30FPS MJPEG 640x480 60FPS / YUY2 352x288 30FPS
S/N Ratio	50db
Max Dynamic Range	60db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.4
EFL	3.6mm
FOV	76°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

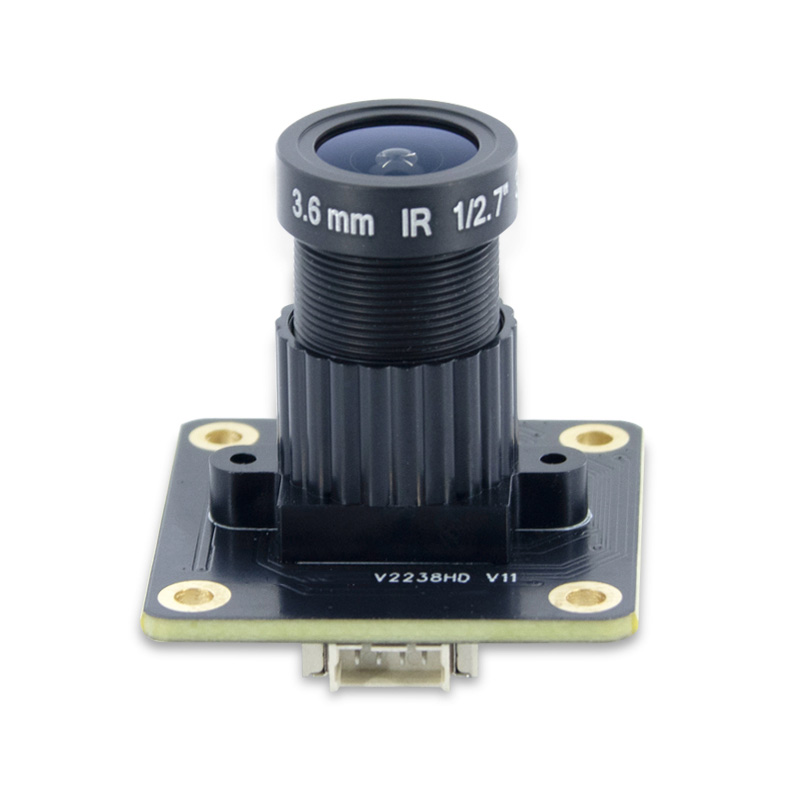

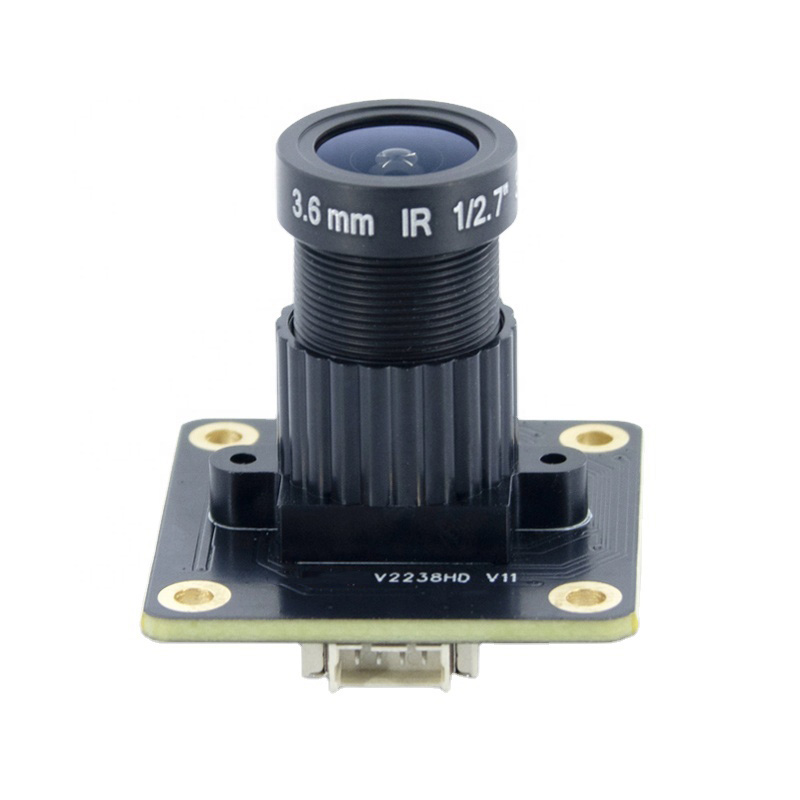

0.3MP OV7725 60FPS USB2.0 Camera Module For Kiosk
Size:28mm*28mm
Frame Rate:60FPS
FOV:76 Degree
Sensor:OV7725
Feature: this camera with high speed frame rate and good effect.

Selling Point

Mini USB 0.3MP VGA 480P 60fps High Speed CMOS OV7725 Camera Plug and Play for ATM KIOSK

1.High-quality 0.3MP VGA 480P 60fps Video Performance: The Mini USB Camera utilizes a high-speed CMOS OV7725 sensor,
providing clear and sharp images at a frame rate of 60FPS with a 76-degree field of view.
2.Easy Plug-and-Play Installation: This camera module comes with a built-in USB 2.0 interface, allowing for quick and hassle-free
installation in any system that requires a compatible camera module, making it ideal for ATM and Kiosk applications.
3.Durable and Compact Design: The camera measures 28mm x 28mm, making it an ideal choice for installations where space is limited.
It is also built to withstand the rigors of daily use, ensuring a long lifespan and reliable performance.
4.Multiple Lens Options: The camera offers three lens options (62-degree, 76-degree, and 165-degree), providing flexibility in
capturing images and videos based on specific application requirements.
5.User-friendly Features: The Mini USB Camera offers a high-quality, plug-and-play solution for ATM and Kiosk applications.
Its user-friendly design allows for easy integration into any system, making it a top choice for businesses and professionals
looking for an efficient and reliable camera solution.
