1Mp Usb Camera Module 1080P 160 Degree Wide angle 720p ov9732 HD Cmos Camera Usb

Product category:

USB Camera Board

SKU:

217061

Price:

$16.80

Description

Product Description

Product Name	1 MP industrial computer, advertising machine, equipment embedded built-in camera module
Module No.	BMF20217HD V22

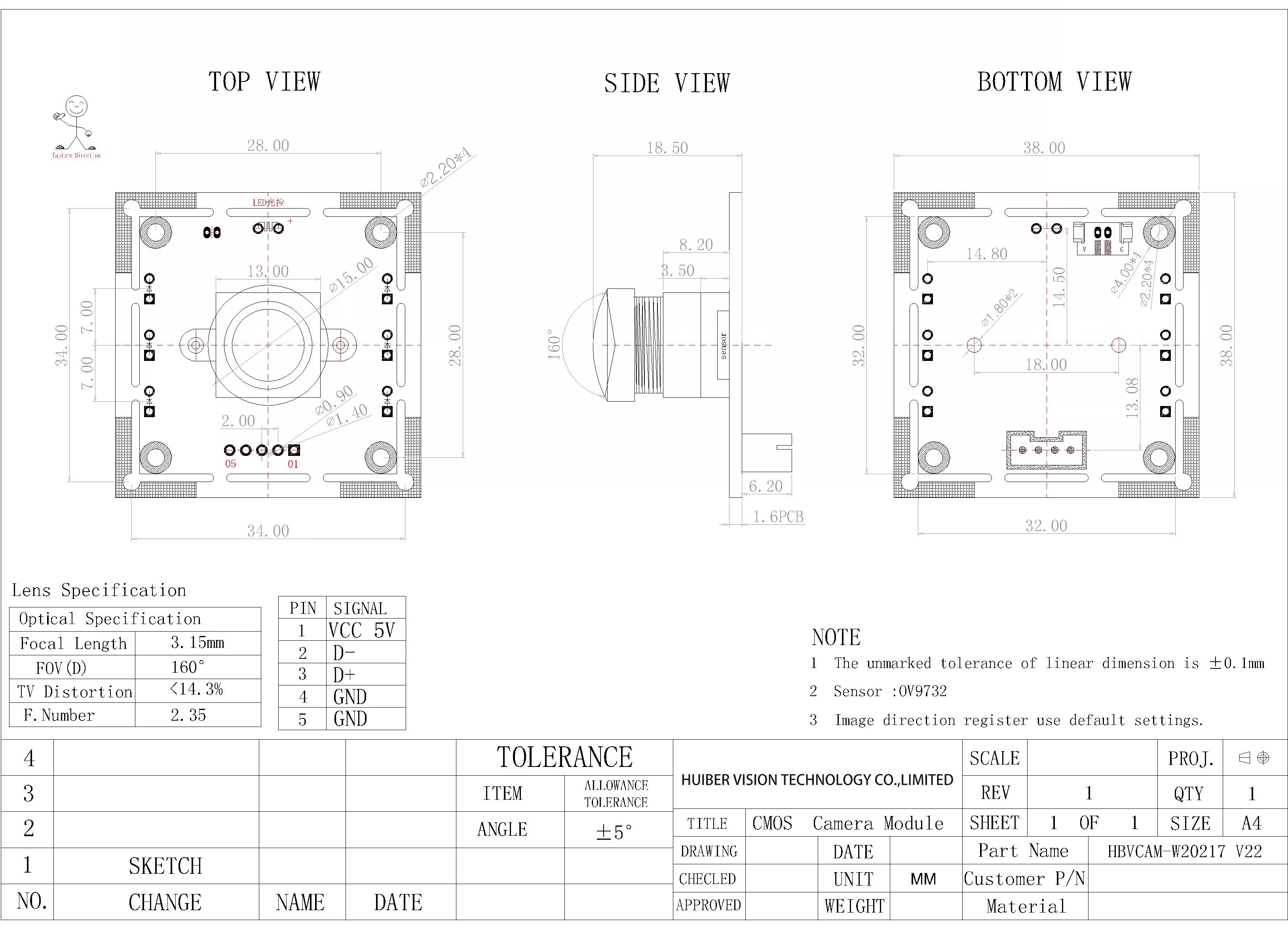

Module Size	38mm × 38mm × 18mm±0.5MM
Features	1. Standard industrial camera 38, 32mm panel structure 2. Wide range of lens options and high cost performance
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	450mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9732(1/4")
Seneor Package	CSP,Bare Die
Maximum resolution	1280*720
Sensitivity	3300mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
		S/N Ratio	39 db
		Max Dynamic Range	72 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	No
		Lens Construction	4G
		F/No	2.35
EFL	3.15mm
FOV	160°
TV Distortion	<14.3%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
