Hd 1920*1080 Mjpeg 30Fps 105Degree Without Distortion Equipment Embedded Built-In Camera Module

Product category:

USB Camera Board

SKU:

216937

Price:

$29.40

Quantity	Price
1 - 99	$29.40
100 - 499	$24.15
500 - Unlimited	$22.00

full product footer

Description

Product Description

Product Name	2 MP industrial computer, advertising machine, equipment embedded built-in camera module
Module No.	BMF20281HD V22

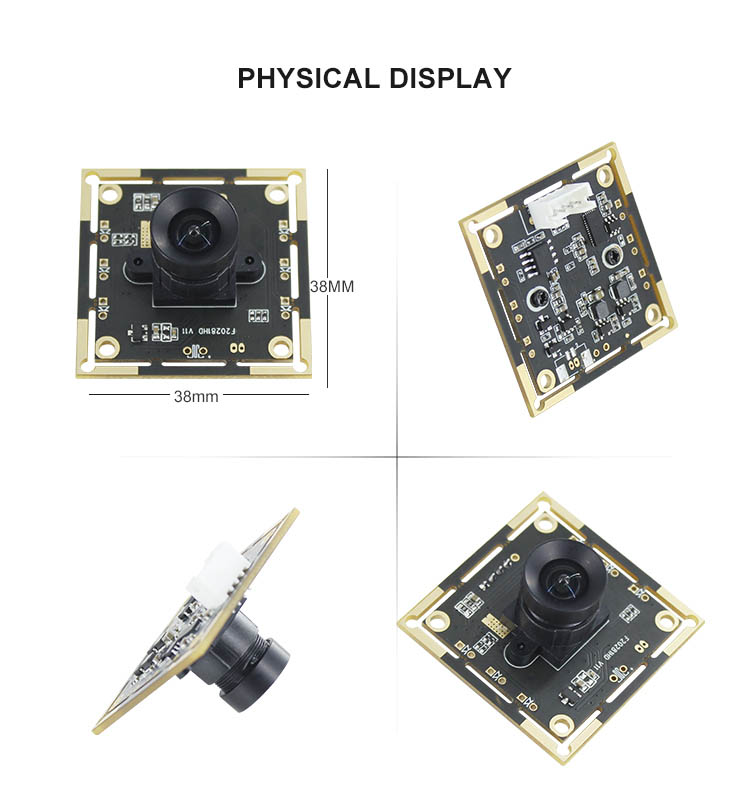

Module Size	38mm × 38mm × 17.2mm±0.5MM
Features	1.standard industrial camera 38, 32mm plate structure 2. backlight portrait, recognition class effect is better 3. There are many optional lenses 4.can add welding 6 plug-in lights (can be infrared white light) can be made on the map light off map can also be photosensitive control
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	600mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	PS5268 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	5800mV /(lux-sec)
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
		S/N Ratio	41 db
		Max Dynamic Range	85 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	2G2P
		F/No	2.4
EFL	2.4mm
FOV	105°
TV Distortion	<-0.1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Detailed Images
