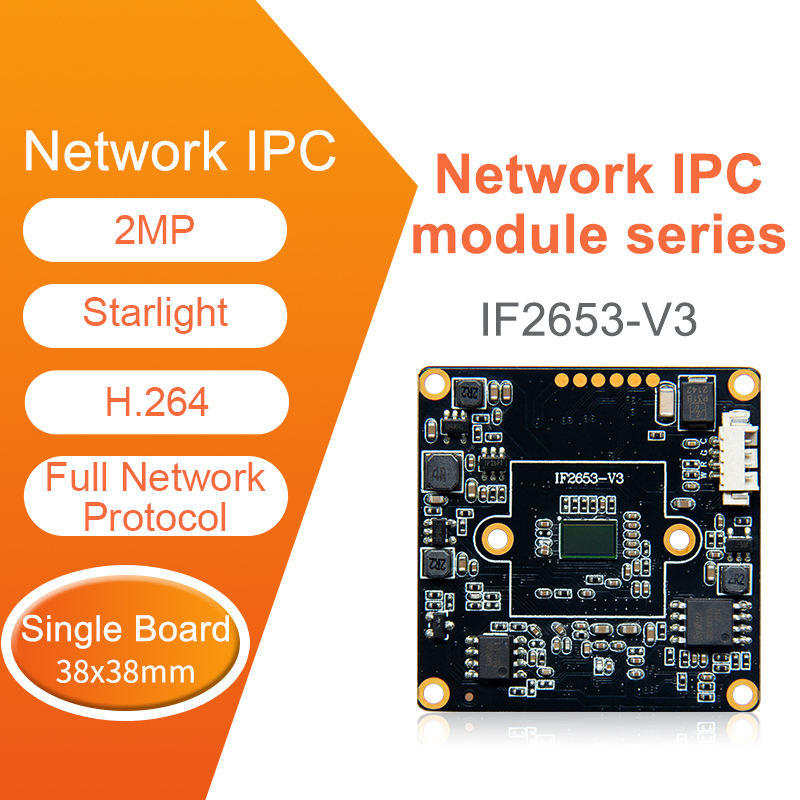

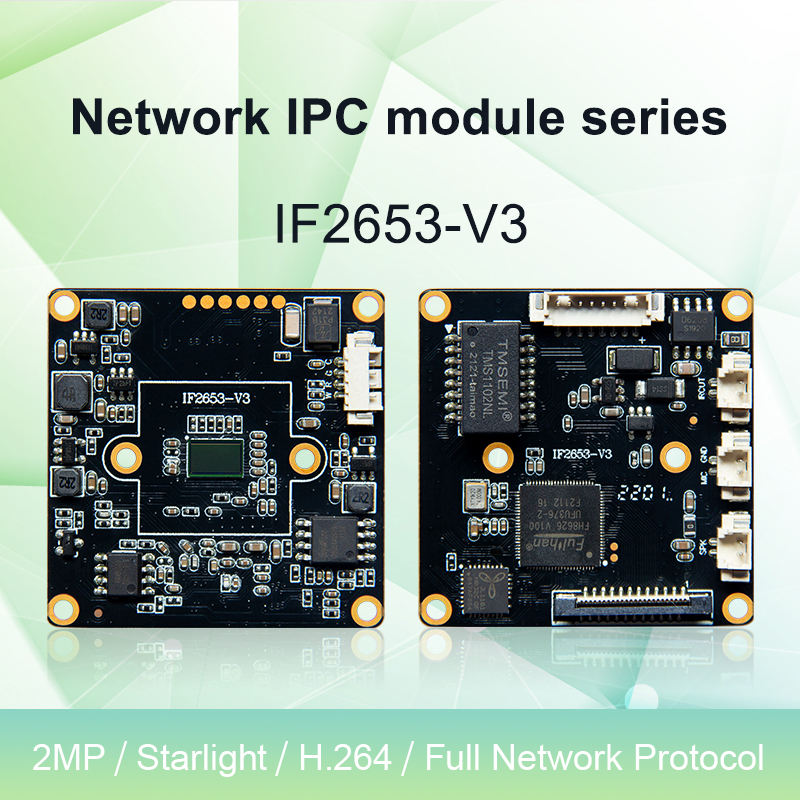

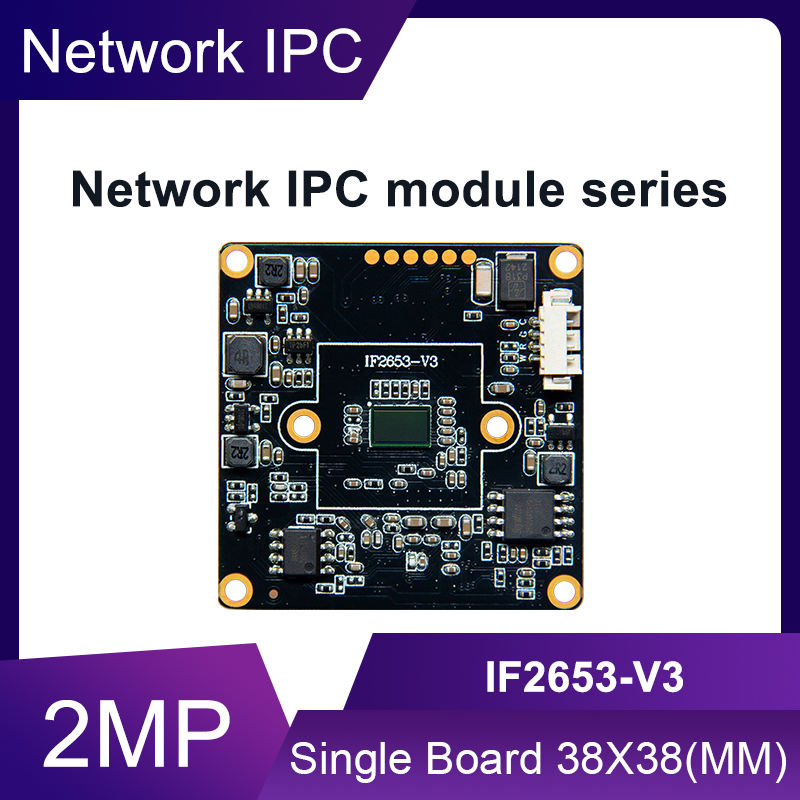

H.264 2MP 1080P Low Lux Infrared IP Camera PCB Board Module CCTV Camera Main Board

Product category:

Camera Board

SKU:

200982

Price:

$8.20

Quantity	Price
1 - 999	$8.20
1000 - Unlimited	$7.70

Description

200982-H.264-2MP-1080P-Low-Lux-Infrared-IP-Camera-PCB-Board-Module-CCTV-Camera-Main-Board-4.jpg

200982-H.264-2MP-1080P-Low-Lux-Infrared-IP-Camera-PCB-Board-Module-CCTV-Camera-Main-Board-5.jpg

200982-H.264-2MP-1080P-Low-Lux-Infrared-IP-Camera-PCB-Board-Module-CCTV-Camera-Main-Board-6.jpg

Model No.	IF2653-V3
Hardware
Module	FH8626+1/2.9" GC2053
LUX	COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2;
S/N	≥50db(AGC OFF)
WDR	DWDR；＞80db
Port
Audio/Intercom Input	1CH MIC Input/linear input
Audio Output	1CH output
IO port	1CH RESET
SD card	NO
WIFI	NO
Video Coding
Main Steam	H.264
Main Steam	1920*1680，5-20FPS/S
Sub steam	1280*720，5-20 FPS/S
Sub steam	640*360 ,5-20 FPS/S
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support channel name、Date、1 group of characters superposition adjustable
Data Transmission &Storage
Data Record	Video,picture
Storage Method	Cycling Recording, Alarm Recording
Alarm Transfer	IO output, browser, management software
Protocol	All Net Connect / ONVIF 2.6
Browser	Support IE6.0 and above browser Client Browser
Data Record	Video,picture
Storage Method	Cycling Recording, Alarm Recording
Alarm Transfer	IO output, browser, management software
Protocol	All Net Connect / ONVIF 2.6
Browser	Support IE6.0 and above browser Client Browser
