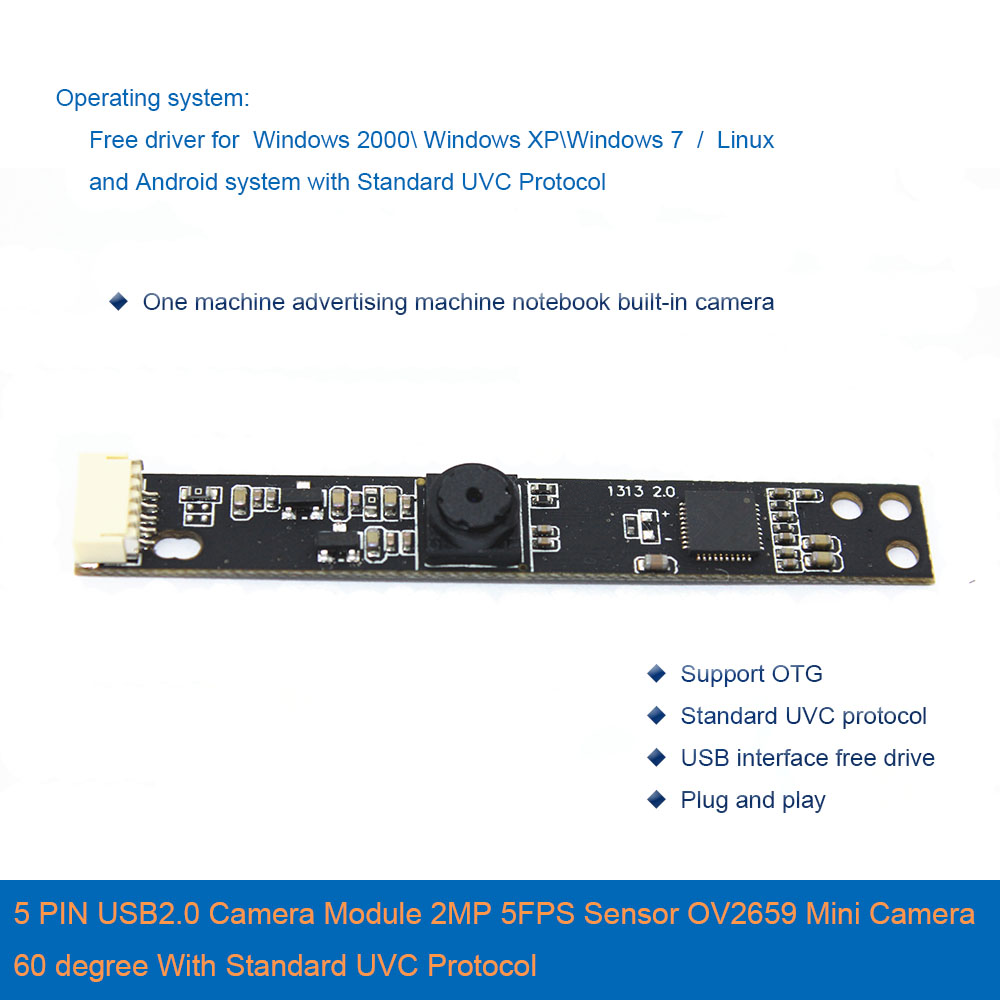

5PIN 1.0 2mp OV2659 (1/5 ) android usb mini camera module

Product category:

USB Camera Board

SKU:

217138

Price:

$10.80

Description

Model No.	BM1313-S2.0

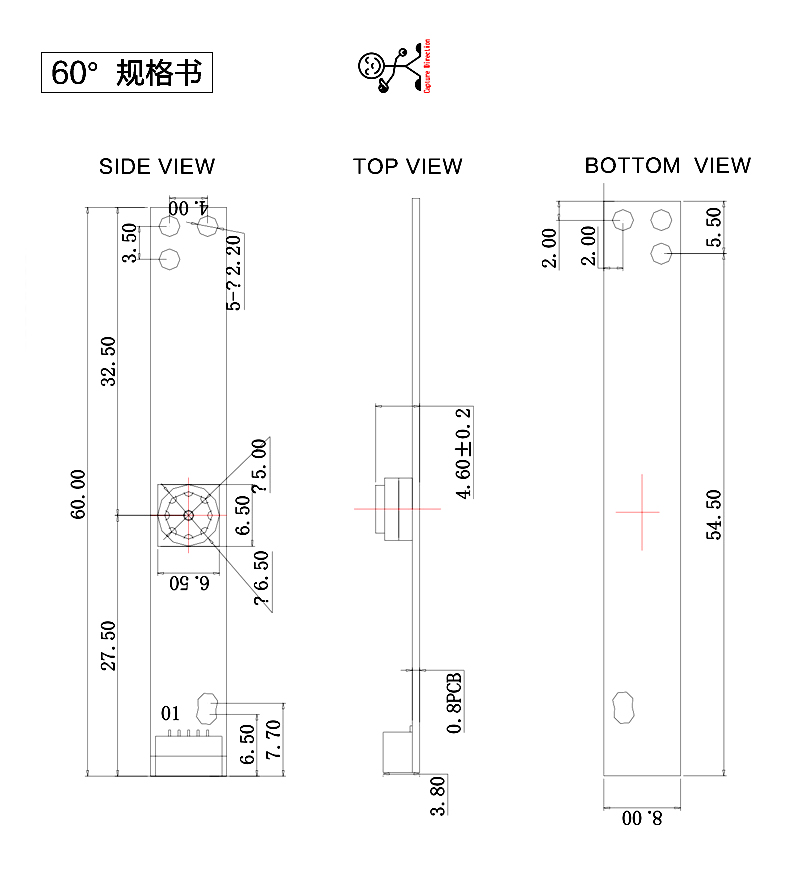

Model Size	60mm × 8mm × 4.5mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power supply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc
Sensor	OV2659 (1/5" )
Seneor Package	CSP,Bare Die
Maximum resolution	1600*1200
Sensitivity	960mv /(lux-sec)
Pixel Size	1.75μm x 1.75μm
Maximum Image Transfer Rate	YUY2 640x480 30FPS YUY2 800x600 15FPS YUY2 1280x720 5FPS YUY2 1280x960 5FPS YUY2 1280x1024 5FPS YUY2 1600x1200 5FPS
S/N Ratio	36db
Max Dynamic Range	66db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2
Microphone	NO
Lens Construction	2P
F/No	2.8
EFL	2.8 mm
FOV	60
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

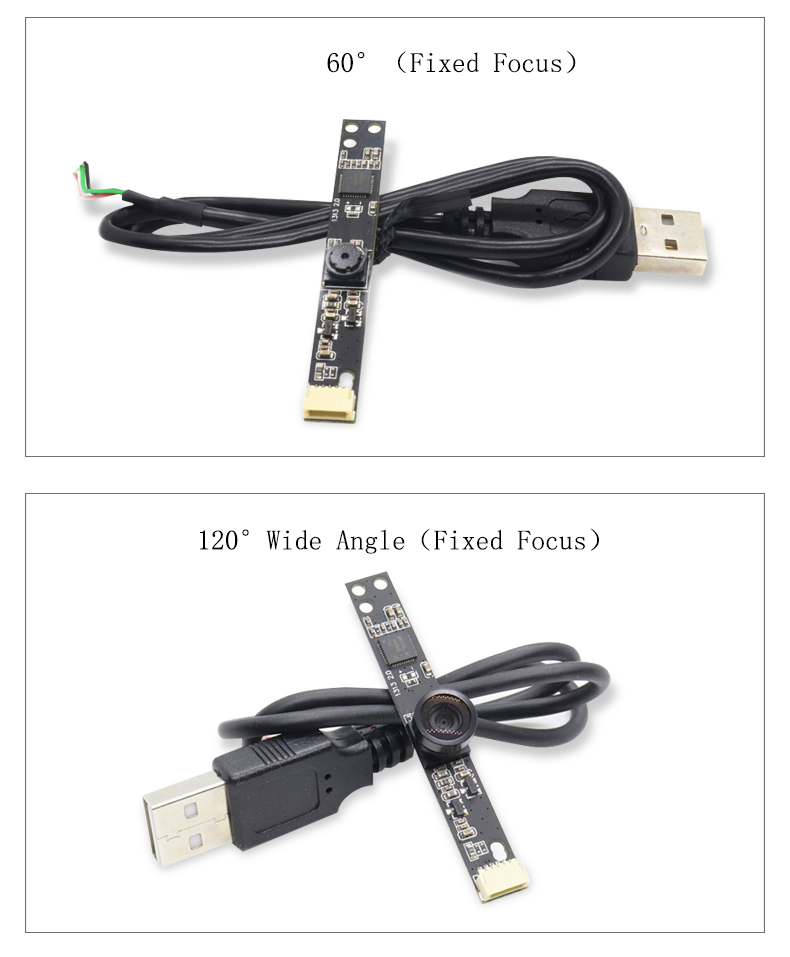

USB cable	50CM 1M 2M 3M
1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding
