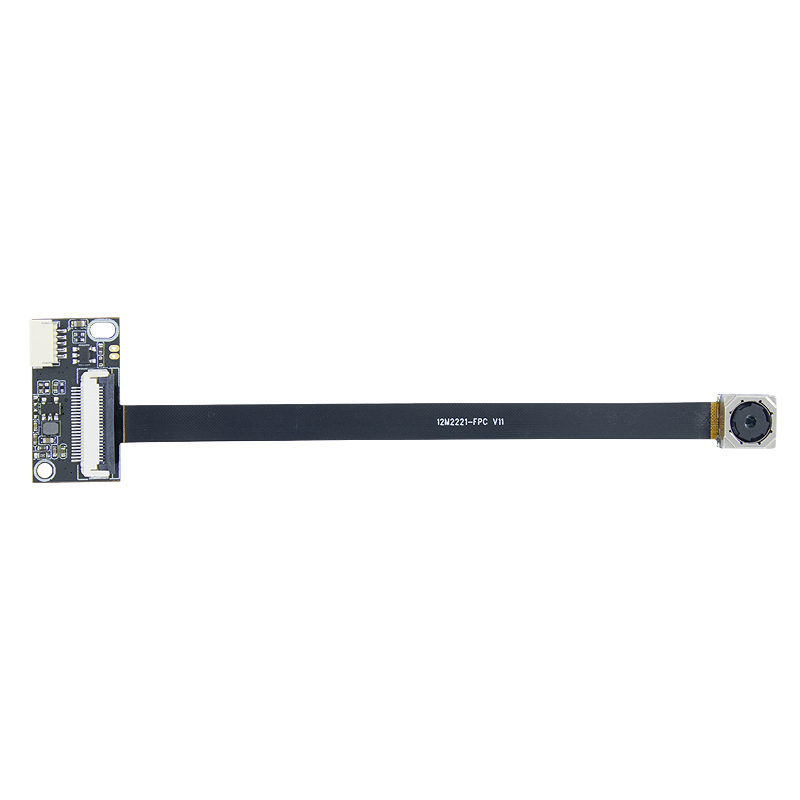

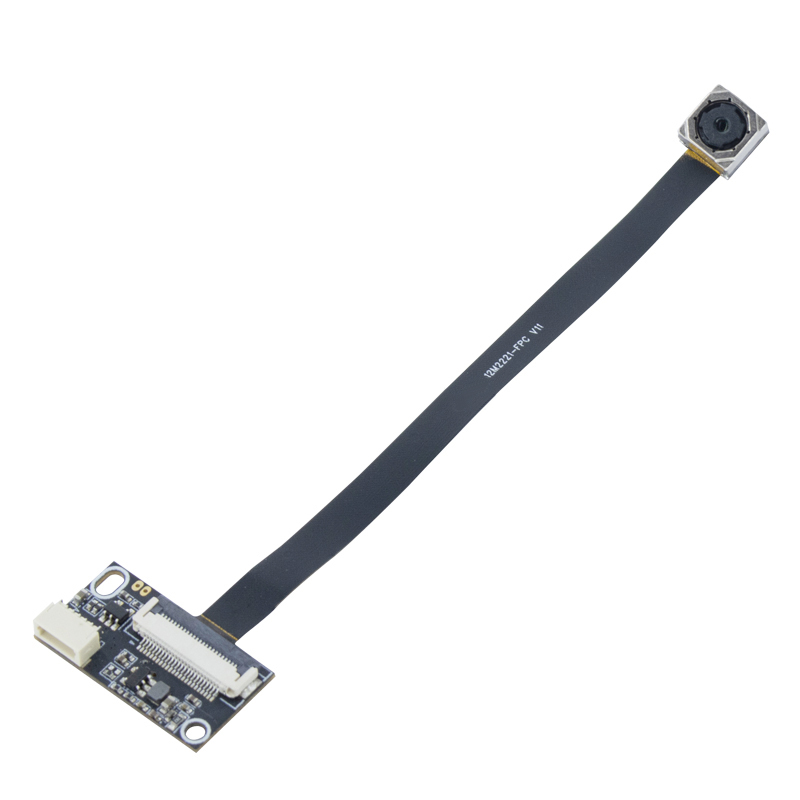

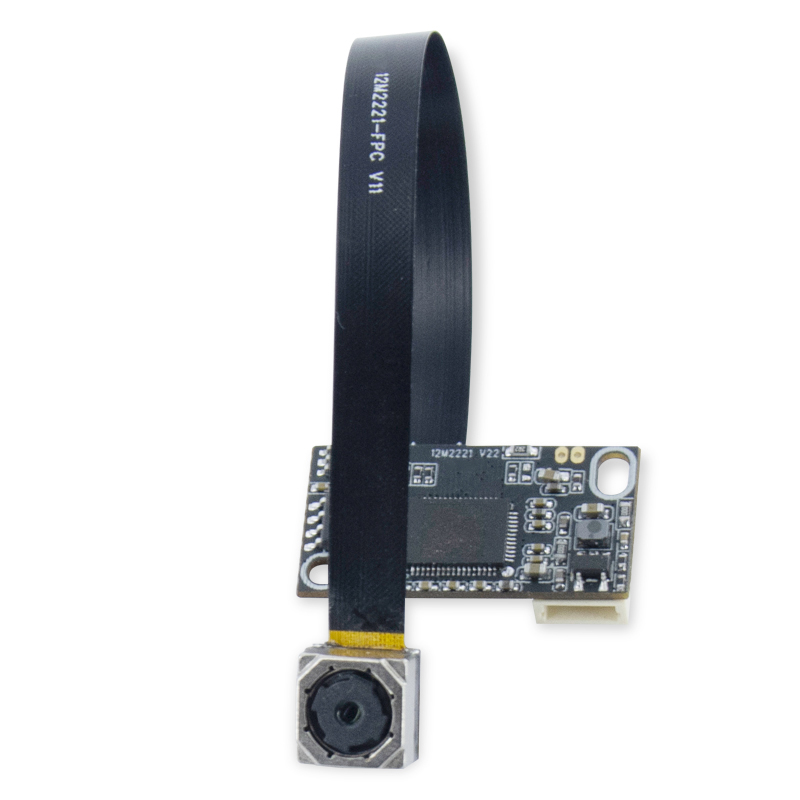

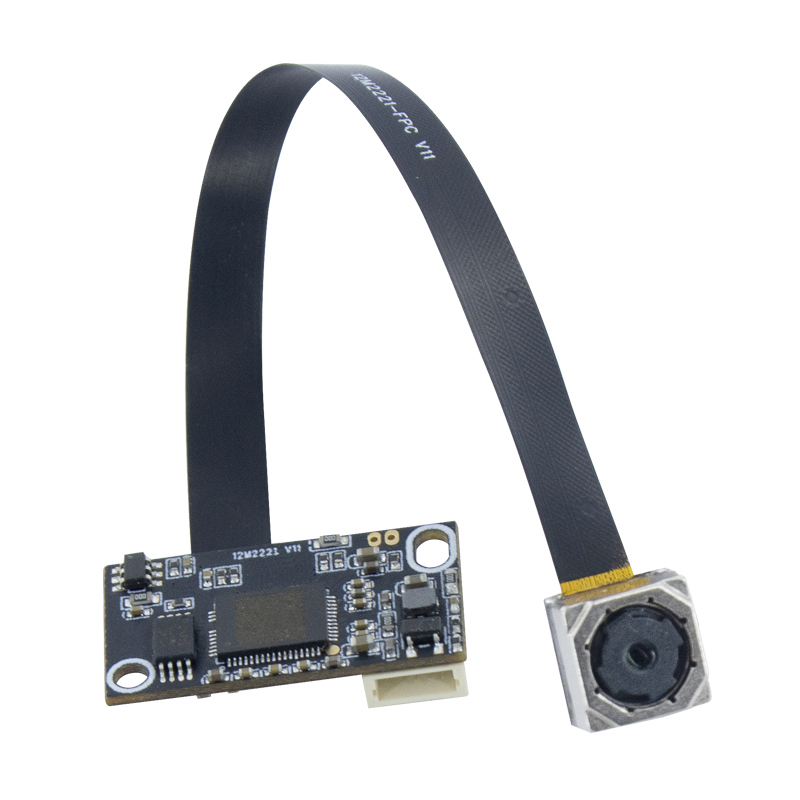

12MP Industrial Equipment Camera Module Embedded Built-in Camera Module

Product category:

USB Camera Board

SKU:

216605

Price:

$32.40

Description

Product Name	4K HD Large Screen Intelligent Terminal Equipment Camera Module
Module No	BM12M2221 V22-78
Module Size	118.30mm × 26.00mm × 5.30mm±0.2MM
Features	1. Flexible structure and small volume of split soft and hard boards 2. The FPC part can be customized in length and shape 3. Default 4K resolution 3840x2160 mjpeg 30 frames 4. Installation hole position compatible with 1466 product structure
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX258 (1/3.06" )
Seneor Package	PLCC,Bare Die
Maximum resolution	3840*3104
Sensitivity	50mV /（lux-sec）
Pixel Size	1.12µm x 1.12µm
Maximum Image Transfer Rate	MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3264x2448 30FPS / YUY2 3264x2448 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS MJPEG 3840x3104 15FPS / YUY2 3840x3104 1FPS
S/N Ratio	40db
Max Dynamic Range	83db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	6P
F/No	2.0
EFL	3.57 mm
FOV	78°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
