5MP Auto Focus USB Camera Module Support OTG cell phone interconnection

Product category:

USB Camera Board

SKU:

216675

Price:

$21.60

Description

Product Name	5MP Auto Focus camera module
Module No	BM1466 V22 +5M1966AF V110-100

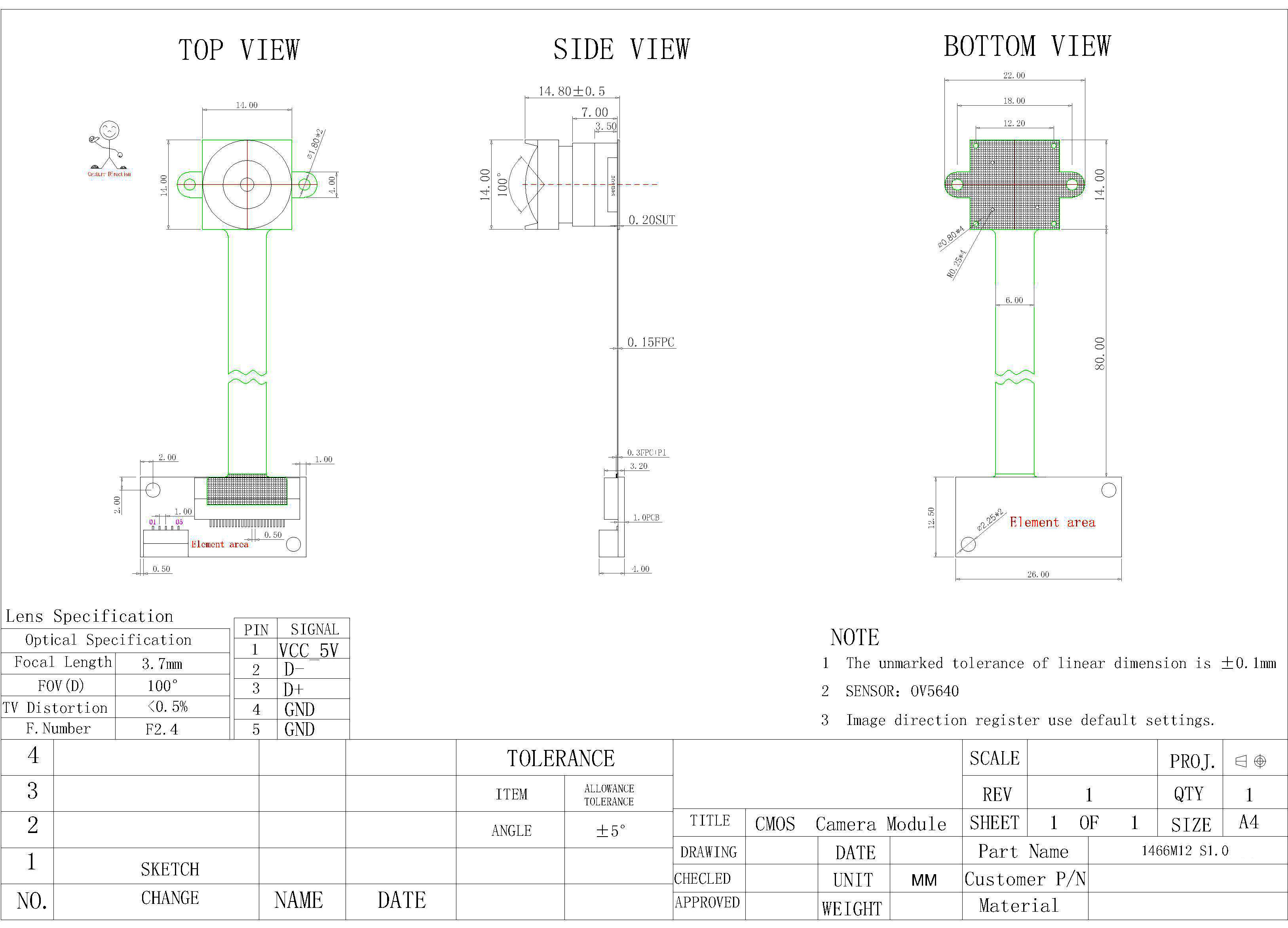

Module Size	102.2mm × 26mm × 14.80mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Auto Focus
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	750 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV5640 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2592*1944
Sensitivity	600mv /（lux-sec）
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 320x240 30FPS MJPEG 1280x720 30FPS / YUY2 352x288 30FPS MJPEG 1600x1200 30FPS / YUY2 640x480 30FPS MJPEG 1920x1080 30FPS / YUY2 1280x720 10FPS MJPEG 2048x1536 15FPS / YUY2 1280x960 10FPS MJPEG 2592x1944 15FPS / YUY2 1920x1080 3FPS
S/N Ratio	36 db
Max Dynamic Range	68 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.4
EFL	3.7 mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
