5MP 1/1.8" Sensor Camera OV5640 Cctv IP Camera Module Black light Mstar Sigmastar SC377 Camera PCB Board

Product category:

Camera Board

SKU:

200783

Price:

$13.00

Quantity	Price
1 - 999	$13.00
1000 - Unlimited	$12.50

Description

1/1.8" 5MP Black light CMOS with new ISP 2.5K DSP, single dimension with 4240mm. Support IR Led, Warm/White Led, Dual Led. H.265+H.264 video coding. Support dual stream, mainstream is 28801664, sub-stream is D1, enabled with ONVIF protocol and full net com. With 0.5 algorithms, multiple algorithm customization.
Model No.	H5B
Chip	Mstar ISP 2.5K DSP + 1/1.8'' 5MP CMOS
Low Lux	Color 0.05Lux@F1.2; B&W0.005Lux@F1.2
S/N	≥50dB(AGC OFF)
DWDR	DWDR>80dB
Audio Input	1CH MIC Input
Audio Output	SPK output(Max support speaker spec 3W 40Ω)
LED Type	CDS IR LED, White Led, Warm Led (Support PWM)

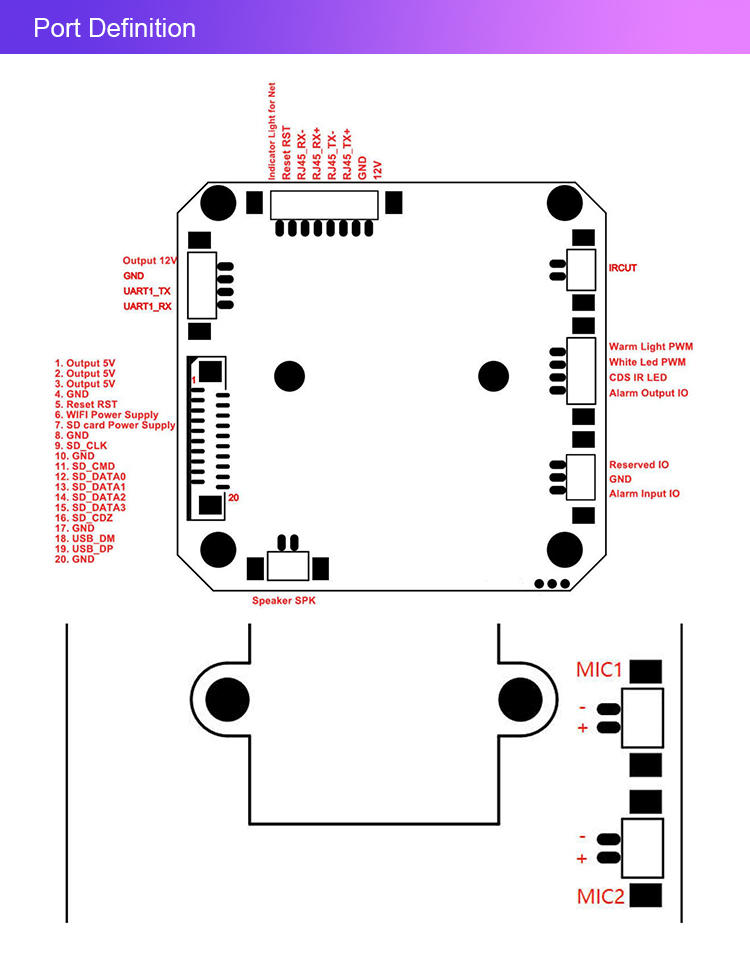

IO Function	RCUT,1CH RESET, Alarm In, Alarm Out, Reserved Port
Others	Extra motorized zoom auto focus lens optional
Coding Format	H.265,H.264
Mainstream	28801664,1-30fps 25601440,2304*1296,19201080,1280720,1-30 fps
Sub-stream	704576,800448,640480,640360,352*288,1-30 fps
Video Coding Compression	128Kbps-8192bps continuous adjustable
Subtitle Overlay	Support channel name, data&time, resolution& characters adding
Data Record	Video, picture
Storage Method	Cycling recording, Alarm recording
Alarm Transfer	Browser, management software, lO output
Protocol	ONVIF
Browser	Support IE6.0 and above(lntemet web server)
Mobile	Support IOS, Android
Temperature	-20℃ to +60℃
Humidity	0%-90%
Power	DC12V/ 120mA
Consumption	1.5W
Dimension	42* 4010mm(3838mm hole)
Weight	17g
