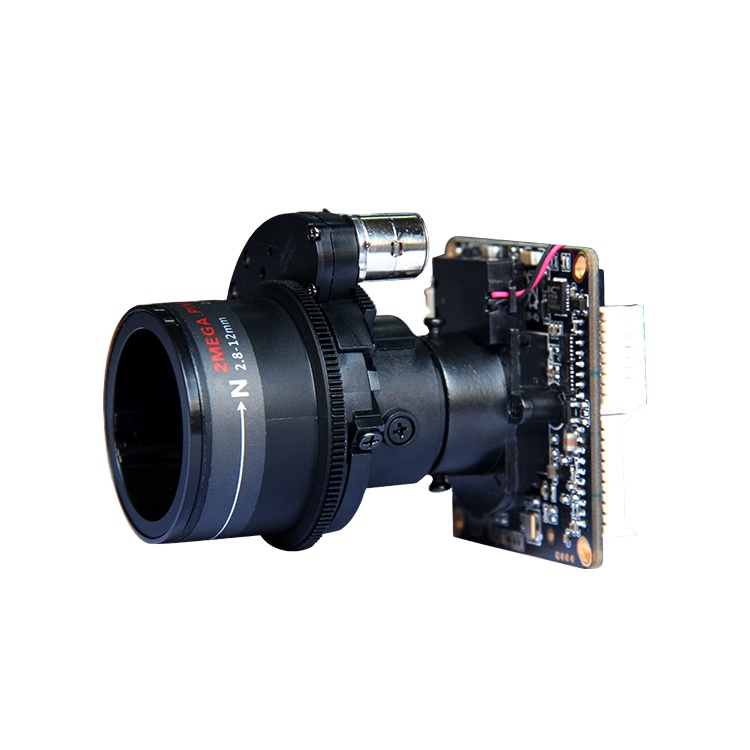

5MP HD H.265 Full Color IP Camera Board Support POE SD Card Slot Audio Speaker

Product category:

Camera Board

SKU:

200968

Price:

$24.70

Quantity	Price
1 - 499	$24.70
500 - Unlimited	$23.70

Description

Model No.	PA4
Hardware
Module	Fullhan 2K DSP+1/3" 5MP Cmos Sensor
LUX	COLOR 0.05Lux@F1.2; B/W 0.005Lux@F1.2;
S/N	≥50db(AGC OFF)
WDR	DWDR; ＞80db
Port
Audio/Intercom Input	MIC Input
Audio Output	MIC Linear Output & Speaker Optional
LED TYPE	CDS IR & Sensor Control & Warm LED
IO port	IR CUT & Reset & Alarm Input & Output
Others	AF Motorized Lens Support
Video Coding
Coding Format	H.265/H.264
Main Steam	2880*1616，1-25FPS/S
Main Steam	25601440、23041296、19201080、1280720，1-30FPS/S
Sub steam	704576、640480、640360、352288，1-30FPS/S
Video Coding Compression	128Kbps-8192bps Continuous Adjustable
Subtitle Overlay	Support Channel Name & Date&Time & Frame & Resolution & 4 Lines of Character Overlay
Data Transmission &Storage
Data Record	Video & Picture
Storage Method	Cycling Recording & Alarm Recording
Alarm Transfer	IO output & Browser & Management Software
Protocol	Standard ONVIF Protocol
Mobile	Support IOS & Android
Browser	Support IE Browser & Management Software Viewing
Normal Parameters
Temperature	-30℃ - +60℃
Humidity	0% - 90%
Power	DC12V /110mA
power	1.3W
size	38* 38*10mm (without lens)
Weight	11g
