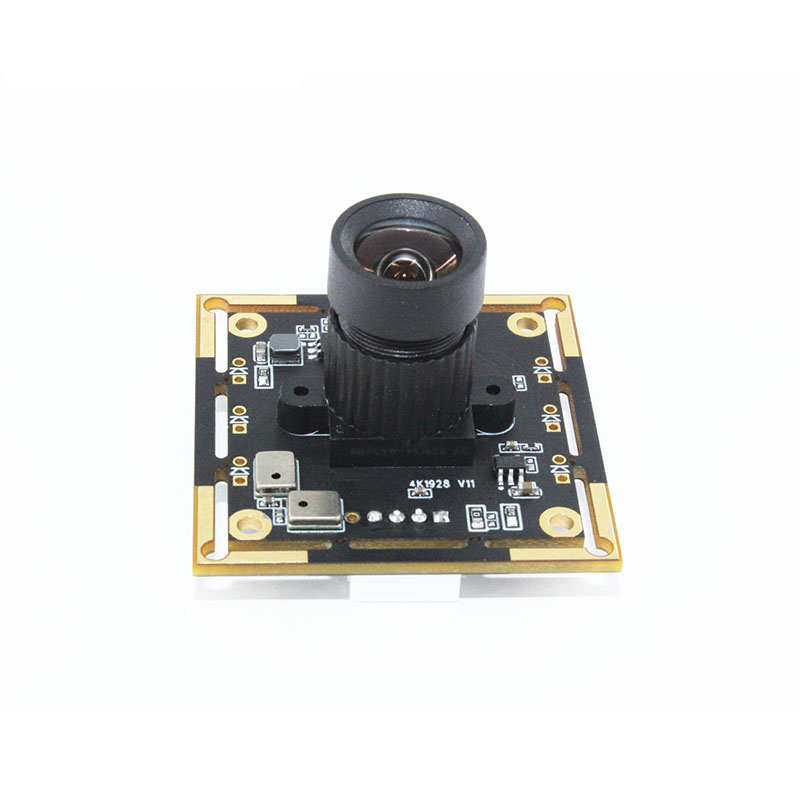

4K Camera module for Face Recognition

Product category:

USB Camera Board

SKU:

217156

Price:

$58.80

Description

Module No.	BM4K1928 V11

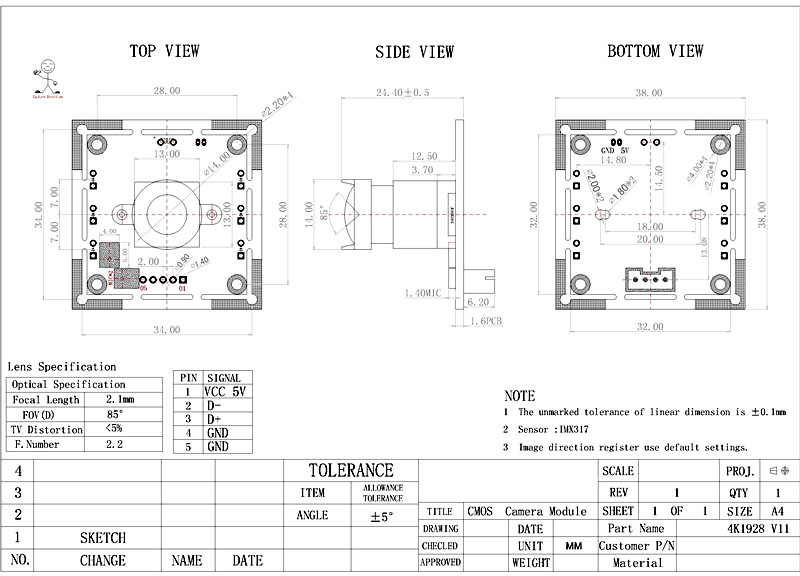

Module Size	38mm × 38mm × 24.4mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	800LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	940mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX317 (1/2.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	3840*2160
Sensitivity	760mv /（lux-sec）
Pixel Size	1.62µm x 1.62µm

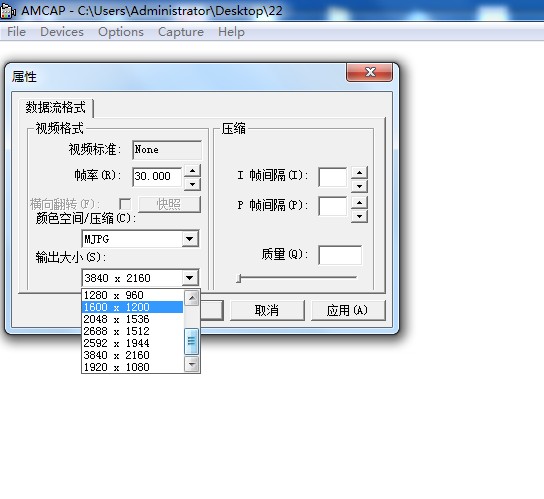

Maximum Image Transfer Rate	MJPEG 1600x1200 30FPS / YUY2 1600x1200 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2048x1536 30FPS / YUY2 2048x1536 3FPS MJPEG 2688x1512 30FPS / YUY2 2688x1512 2FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 2FPS MJPEG 3840x2160 30FPS / YUY23840x2160 1FPS
S/N Ratio	44 db
Max Dynamic Range	82 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	4G
F/No	2.2
EFL	2.1mm
FOV	85°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

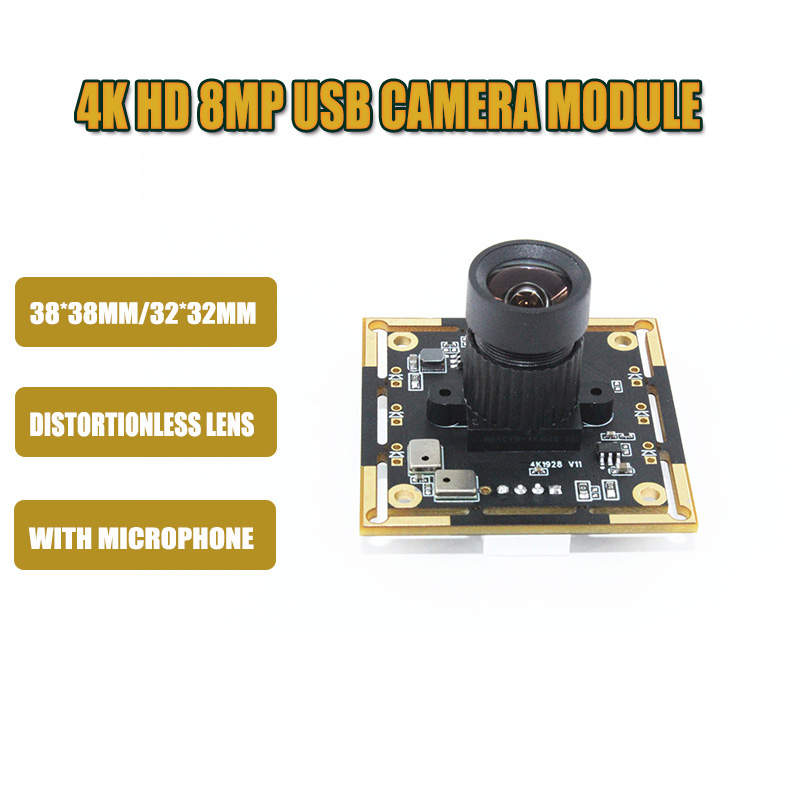

8MP 4K Camera module for Face Recognition/Industrial equipment/Advisement player/Monitoring equipment

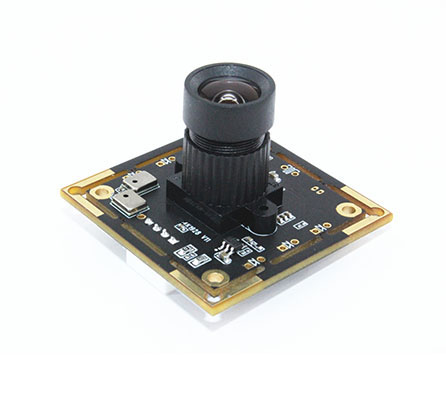

4K Camera module for Face Recognition

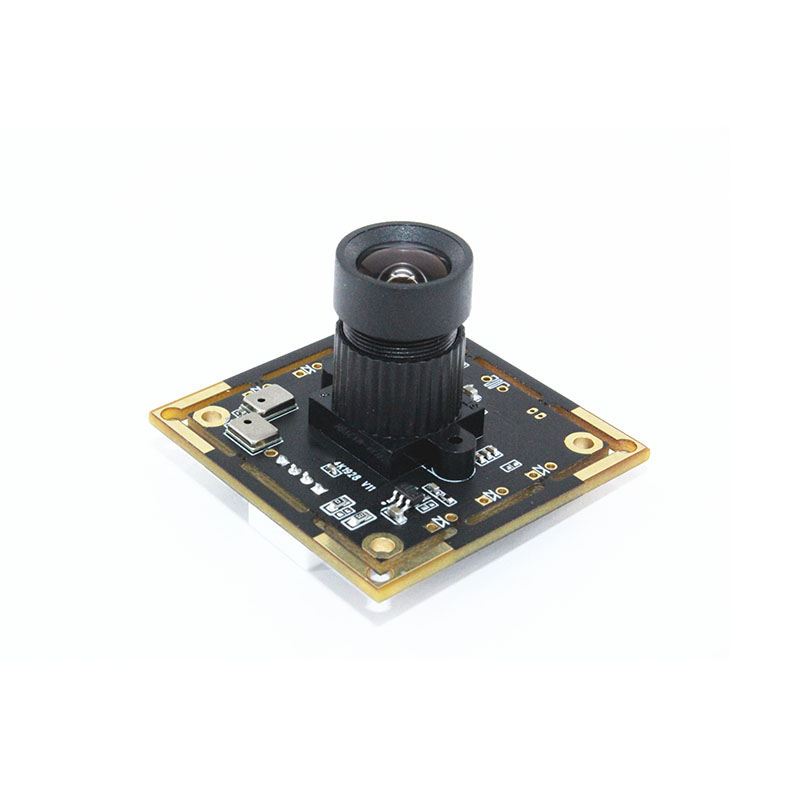

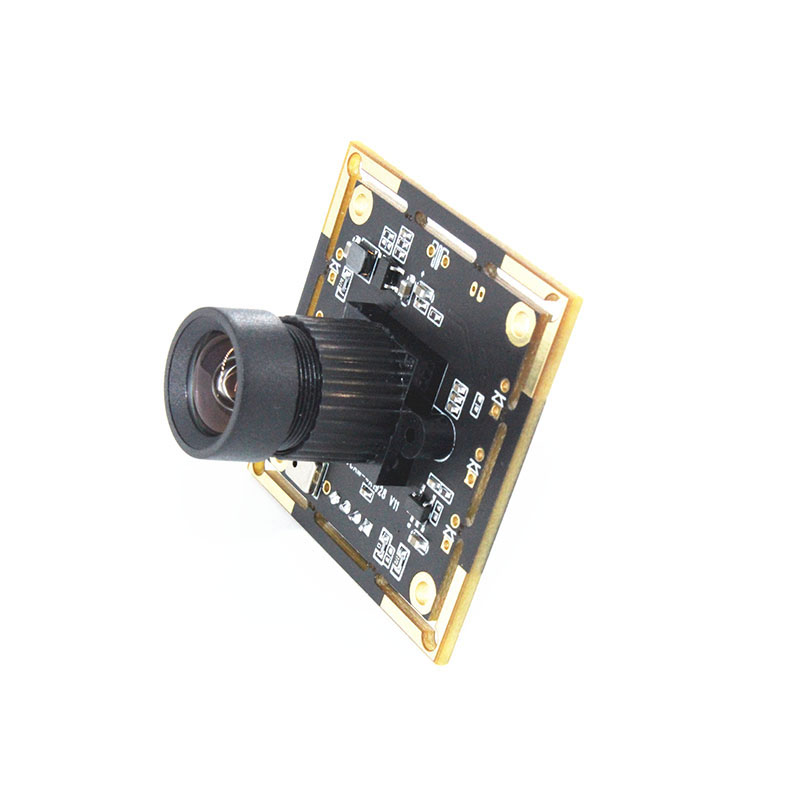

With M12 mount lens, there are many options for M12 lens,lens is adjustable and alternative

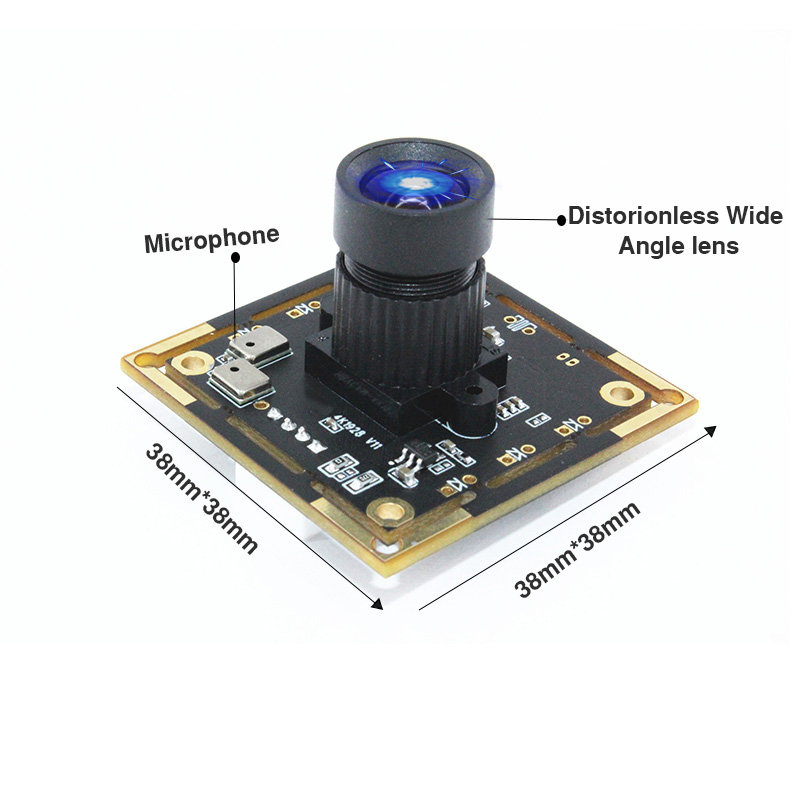

This 4K Camera Module with Microphone

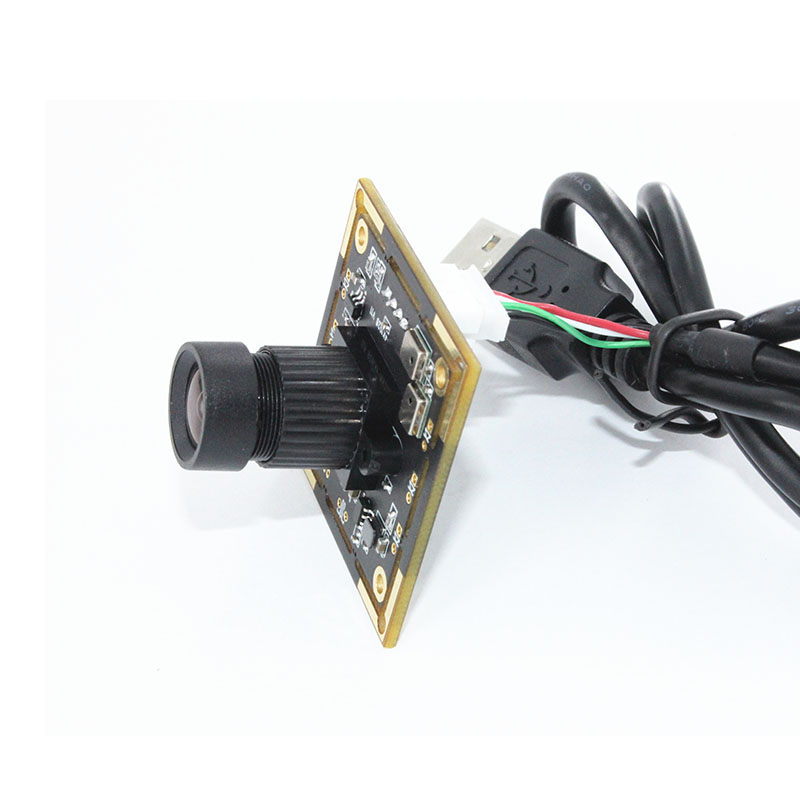

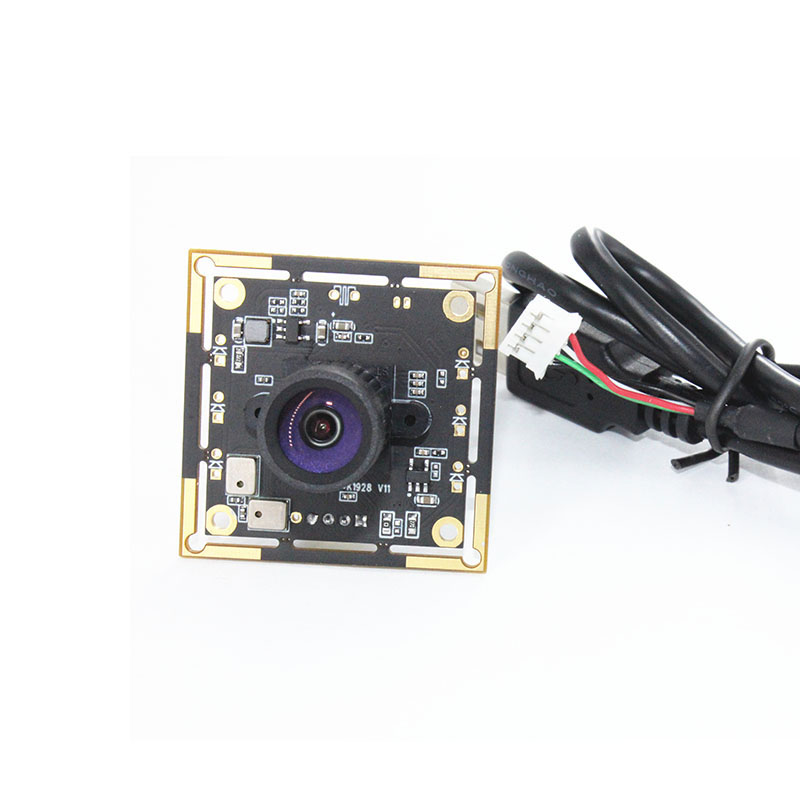

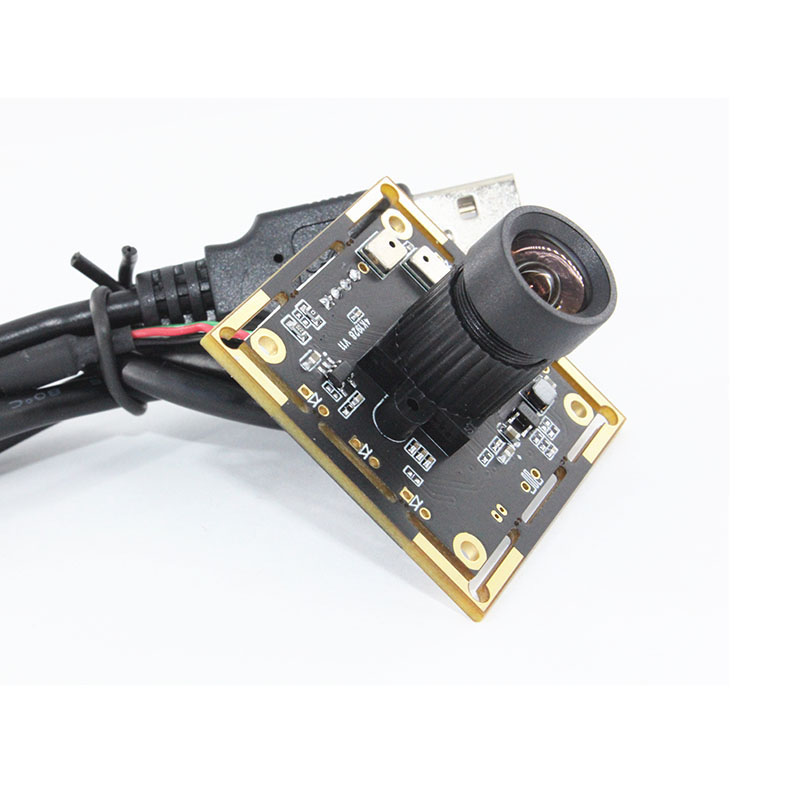

the size is 38mm*38mm, the size is compatible for many euqipments and the sample cable is free

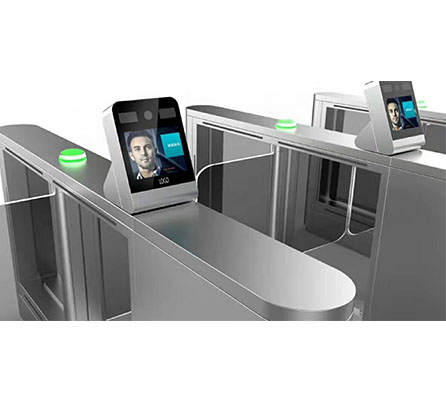

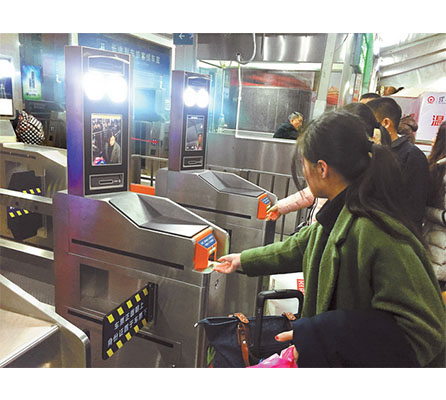

this 4K Camra module can be used in face recognition access control system

4K Ultra High Definition usb camera module, it is free driver for window/Linux/Andorid system with good quality
