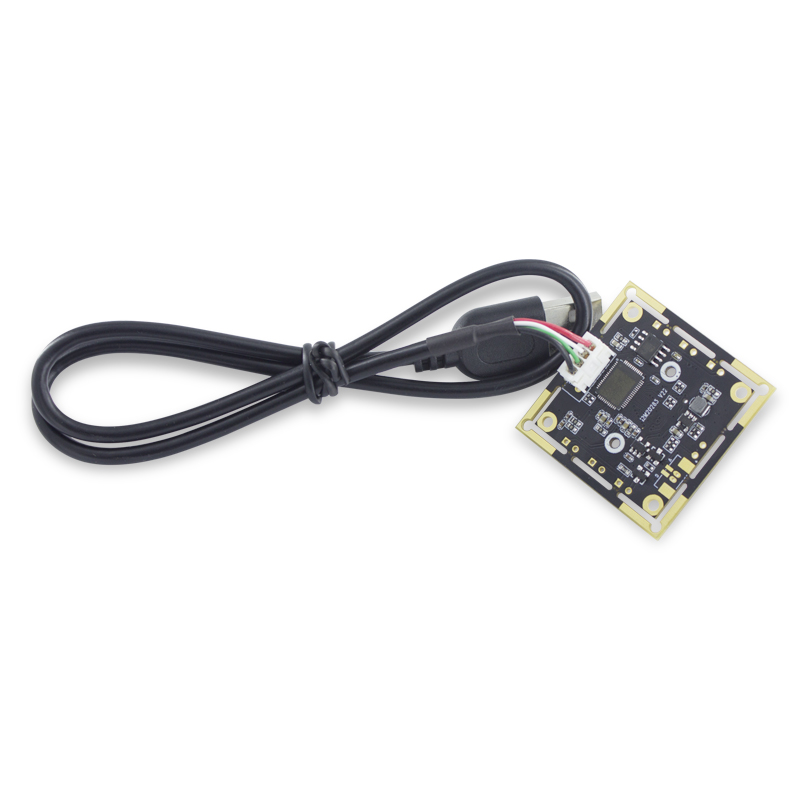

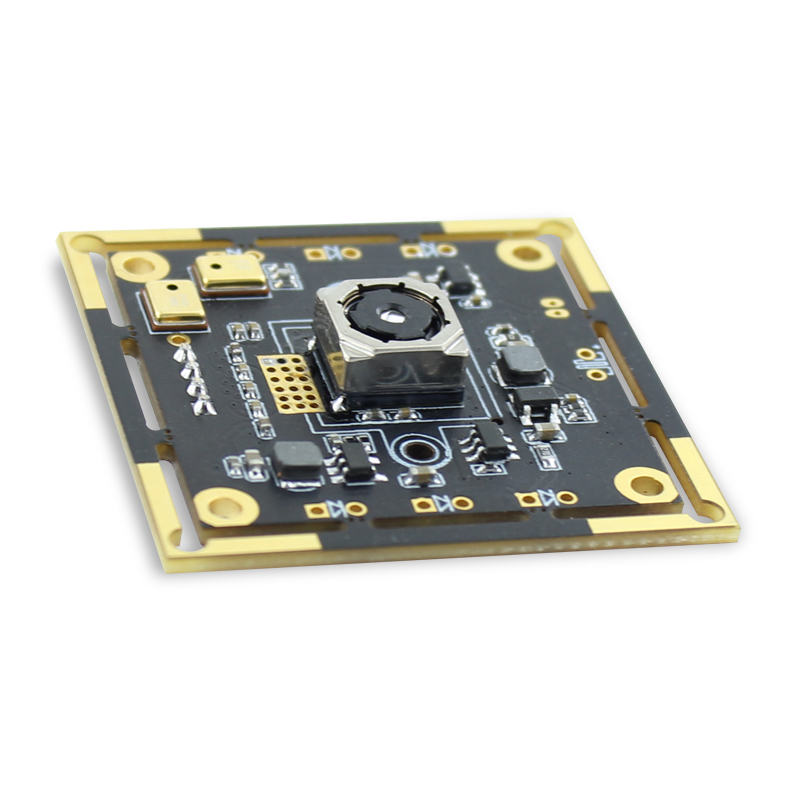

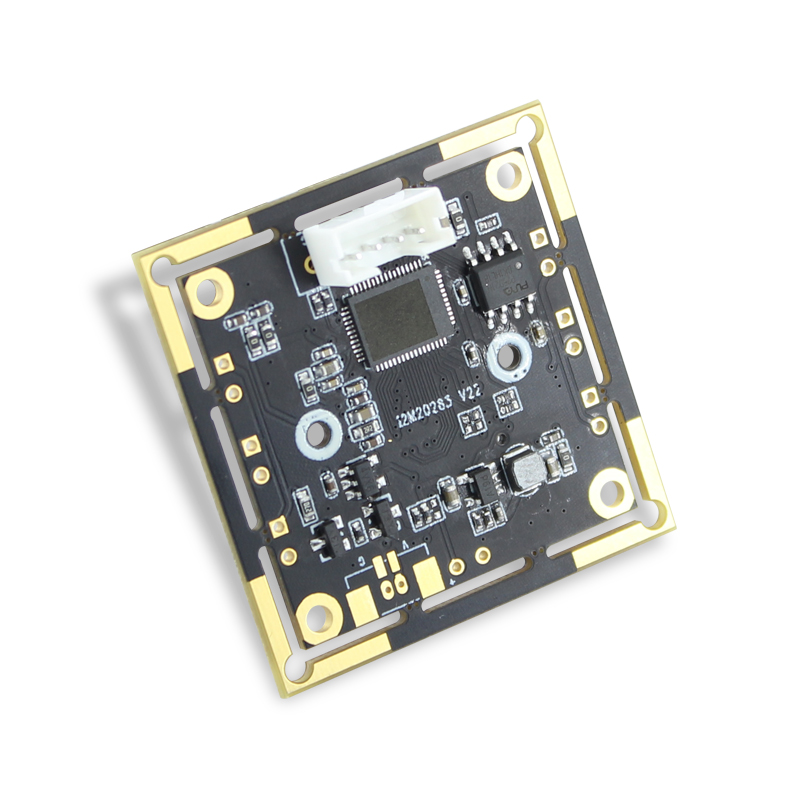

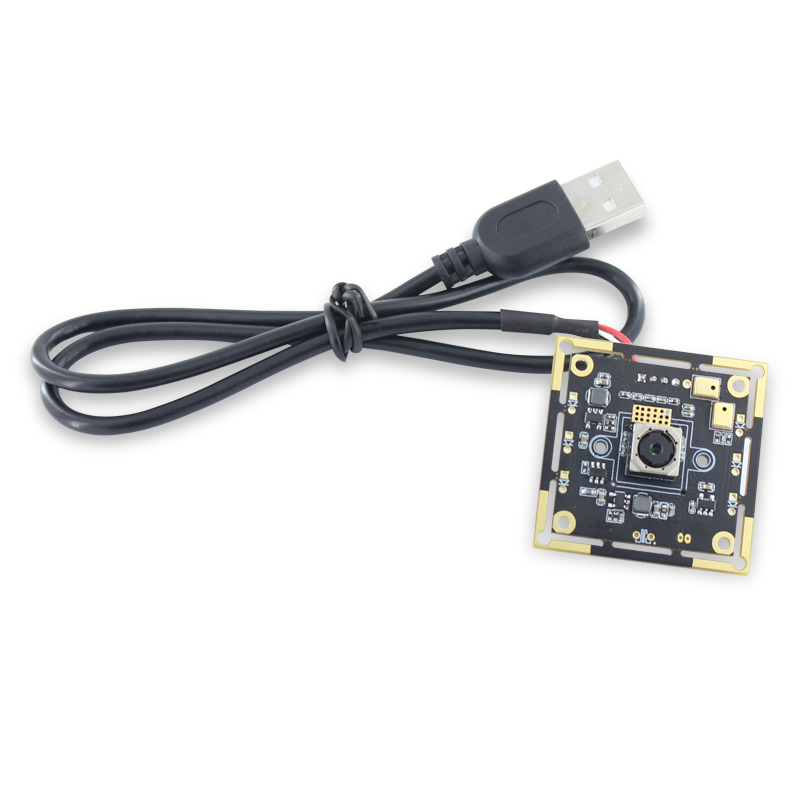

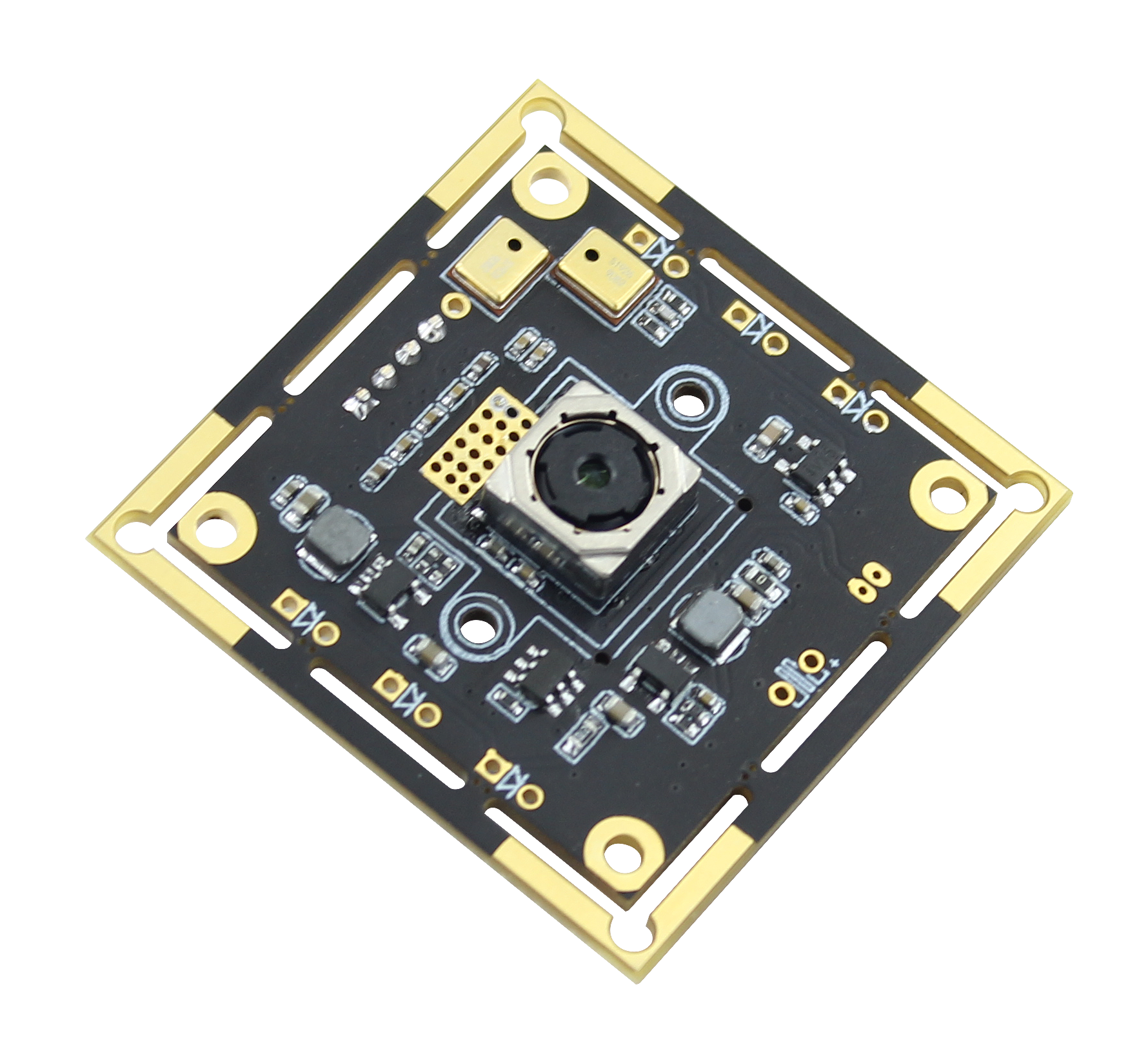

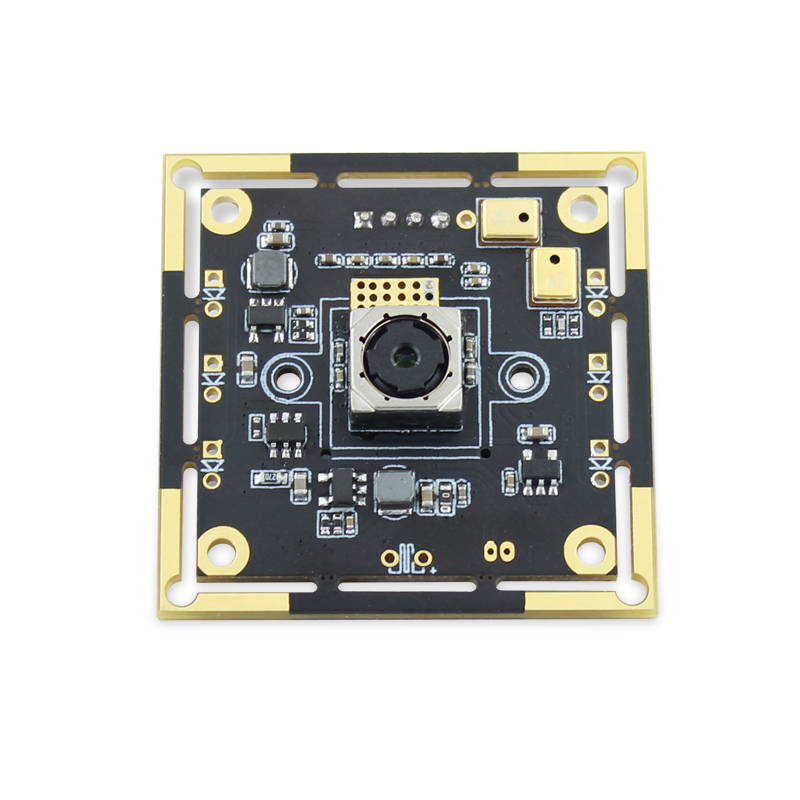

12MP 4K Camera Module 78-degree autofocus distortion-free camera module

Product category:

USB Camera Board

SKU:

216601

Price:

$39.60

Description

Product Name	12MP 4K Camera Module
Module No	BM12M20283 V22 - 78
Module Size	38mm × 38mm × 6.4mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Auto
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	500 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	IMX258 (1/3.06" )
Seneor Package	PLCC,Bare Die
Maximum resolution	3840*3104
Sensitivity	50mV /（lux-sec）
Pixel Size	1.12µm x 1.12µm
Maximum Image Transfer Rate	MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS MJPEG 2592x1944 30FPS / YUY2 2592x1944 1FPS MJPEG 3264x2448 30FPS / YUY2 3264x2448 1FPS MJPEG 3840x2160 30FPS / YUY2 3840x2160 1FPS MJPEG 3840x3104 15FPS / YUY2 3840x3104 1FPS
S/N Ratio	40db
Max Dynamic Range	83db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	6P
F/No	2.0
EFL	3.57 mm
FOV	78°
TV Distortion	<1.5%
Relative Illumination (Sensor)	70%
IR Filter	940±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
