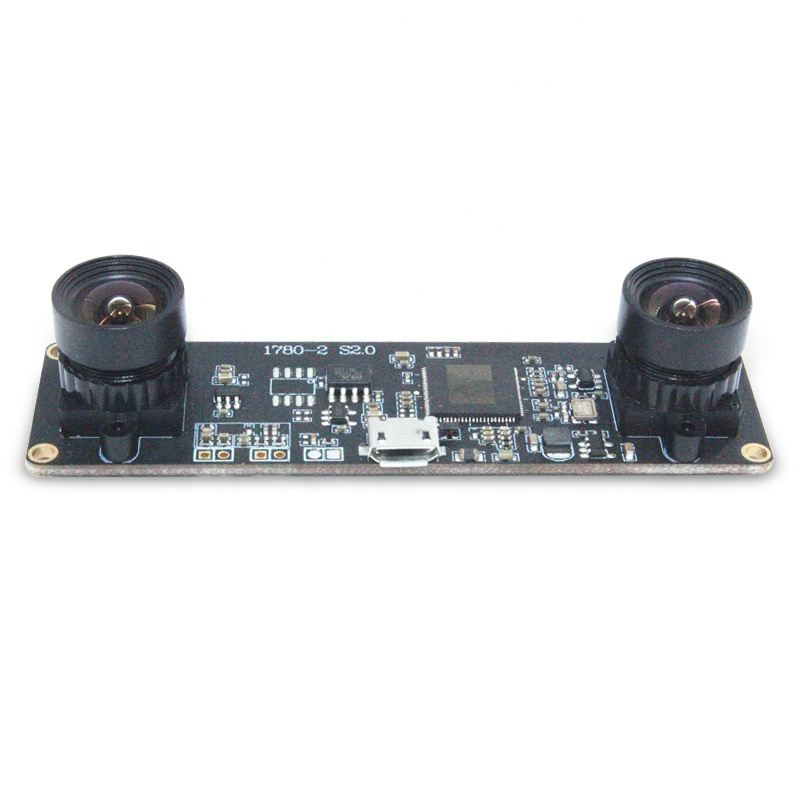

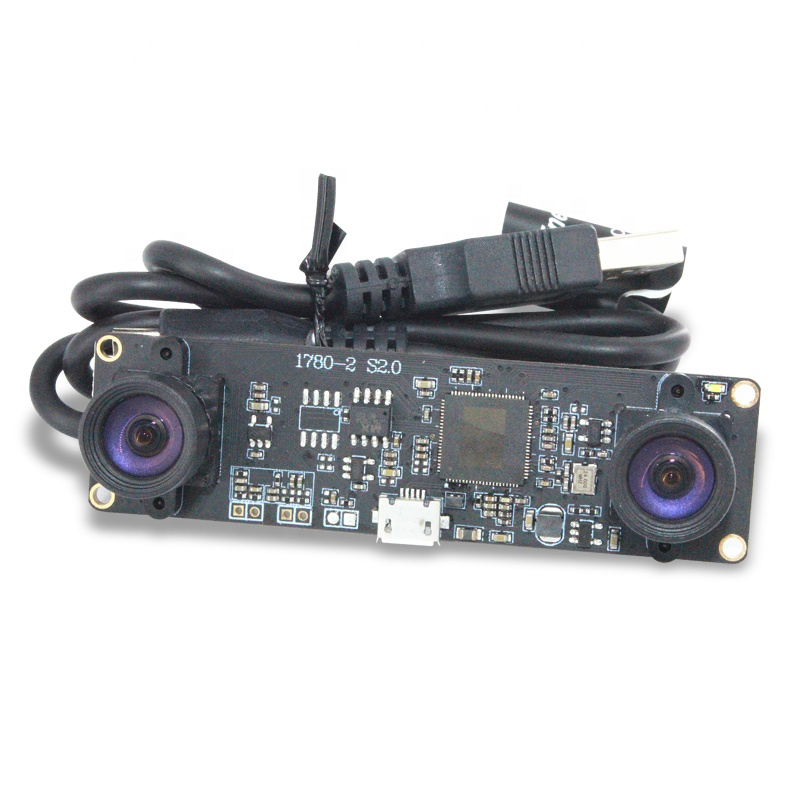

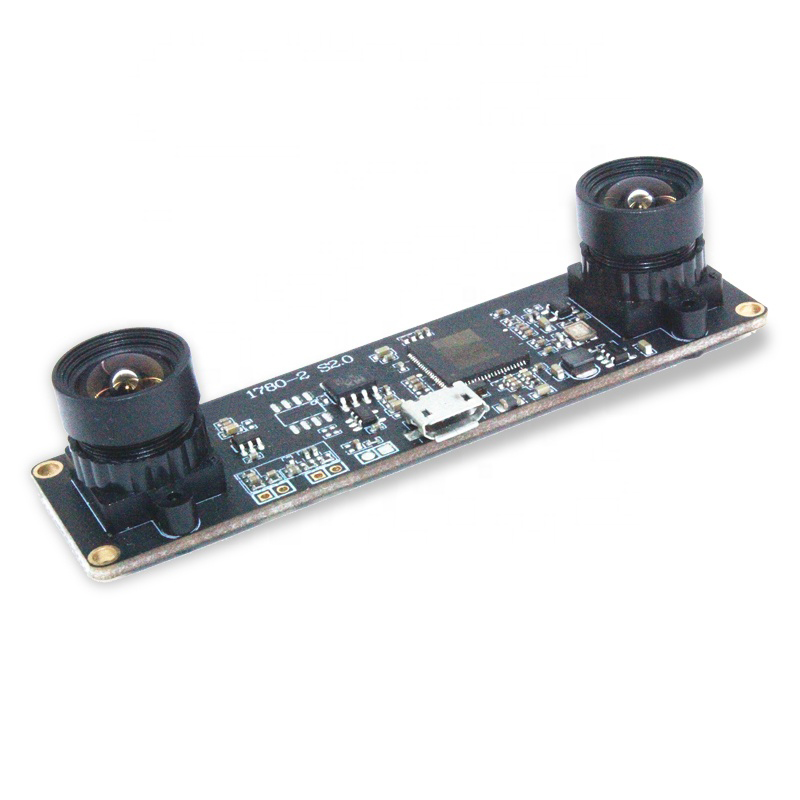

3D depth infrared binocular camera module for face recognition camera

Product category:

USB Camera Board

SKU:

216951

Price:

$40.80

Description

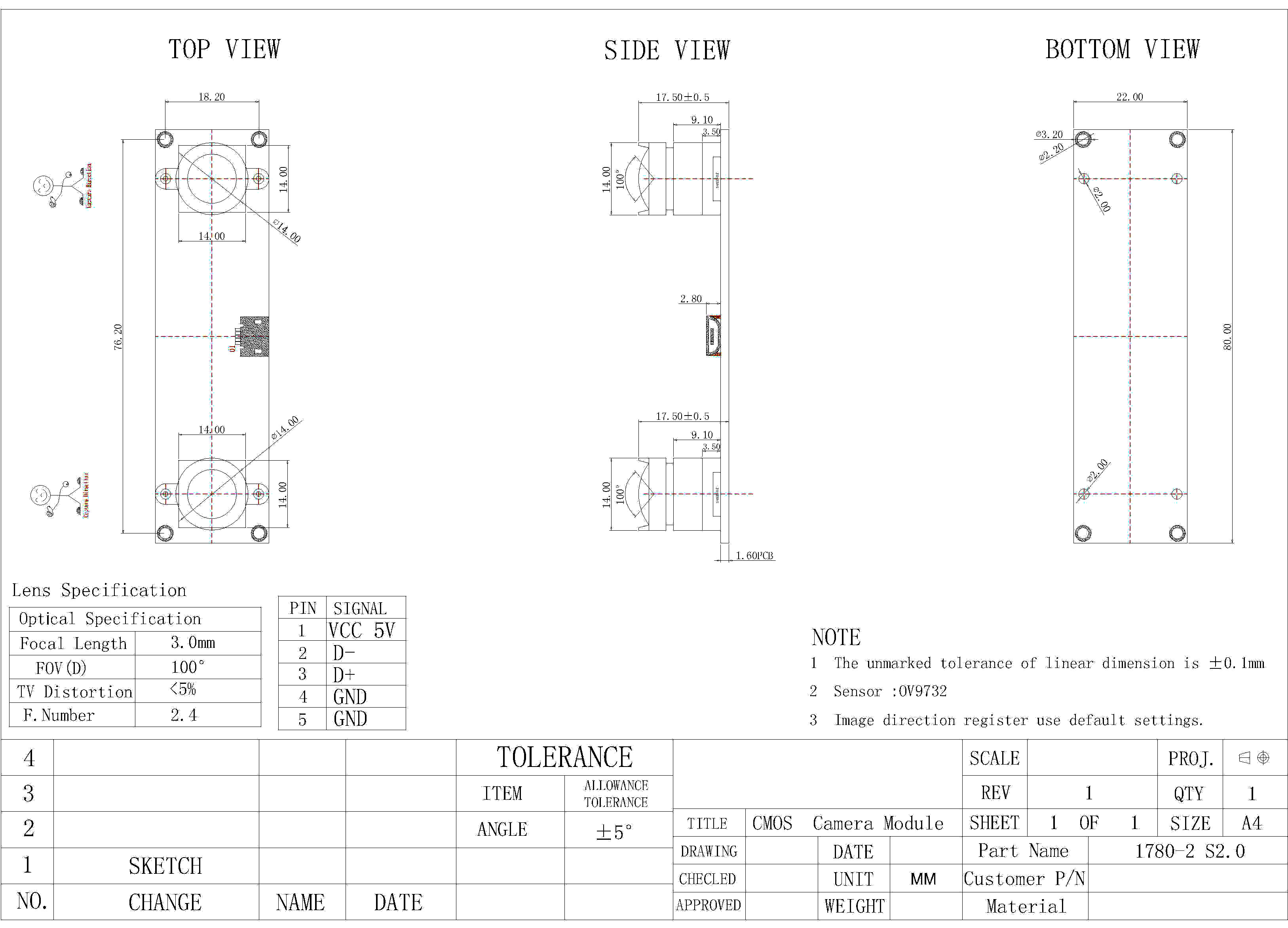

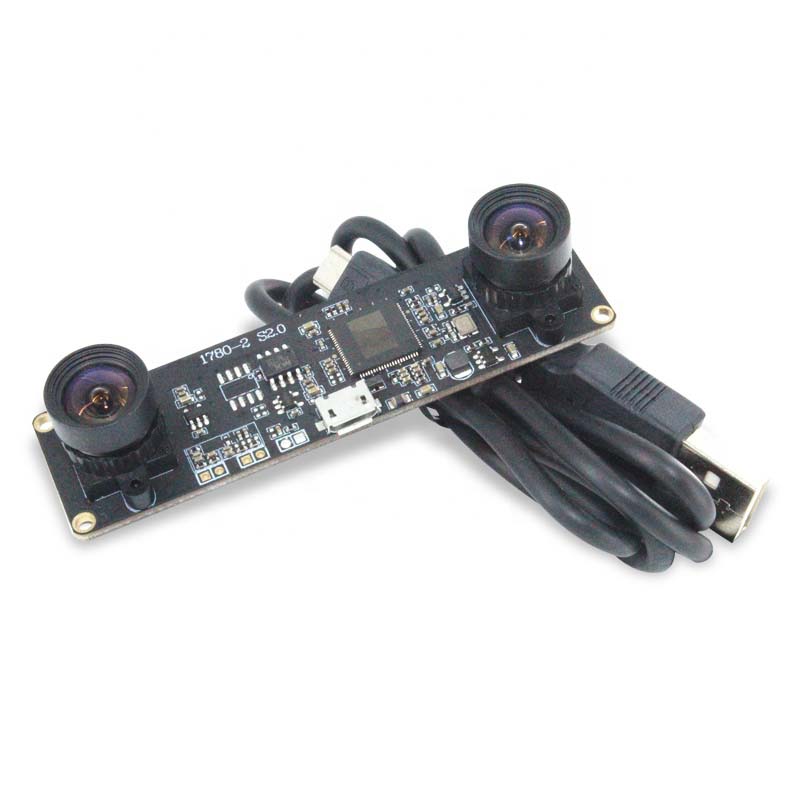

Module No.	1780-2 S2.0
Module Size	80mm × 22mm × 17.5mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	850 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9732 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	2560*720
Sensitivity	2066mV /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x240 30FPS / YUY2 640x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x480 30FPS / YUY2 1280x480 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 8FPS MJPEG 2560x720 30FPS / YUY2 2560x720 5FPS
S/N Ratio	39db
Max Dynamic Range	72db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.4
EFL	3.0 mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Lens	M12 lens, Lens is multi-choice
How to show two images together?
1.	2560*720
2	640*240
3	1280*480
After choose this three resolution, the two image will show together
