2Mp Vga Cmos Af Camera Module 30Fps Wide Lens Sensor OV2720 Mipi Usb Ip 4k camera module global shutter camera module

Product category:

USB Camera Board

SKU:

216883

Price:

$9.60

Description

Product Description

Product Name	2 MP 1080P HD laptop, advertising machine, all-in-one face recognition equipment embedded built-in camera module
Module No.	BMF2143HD V33

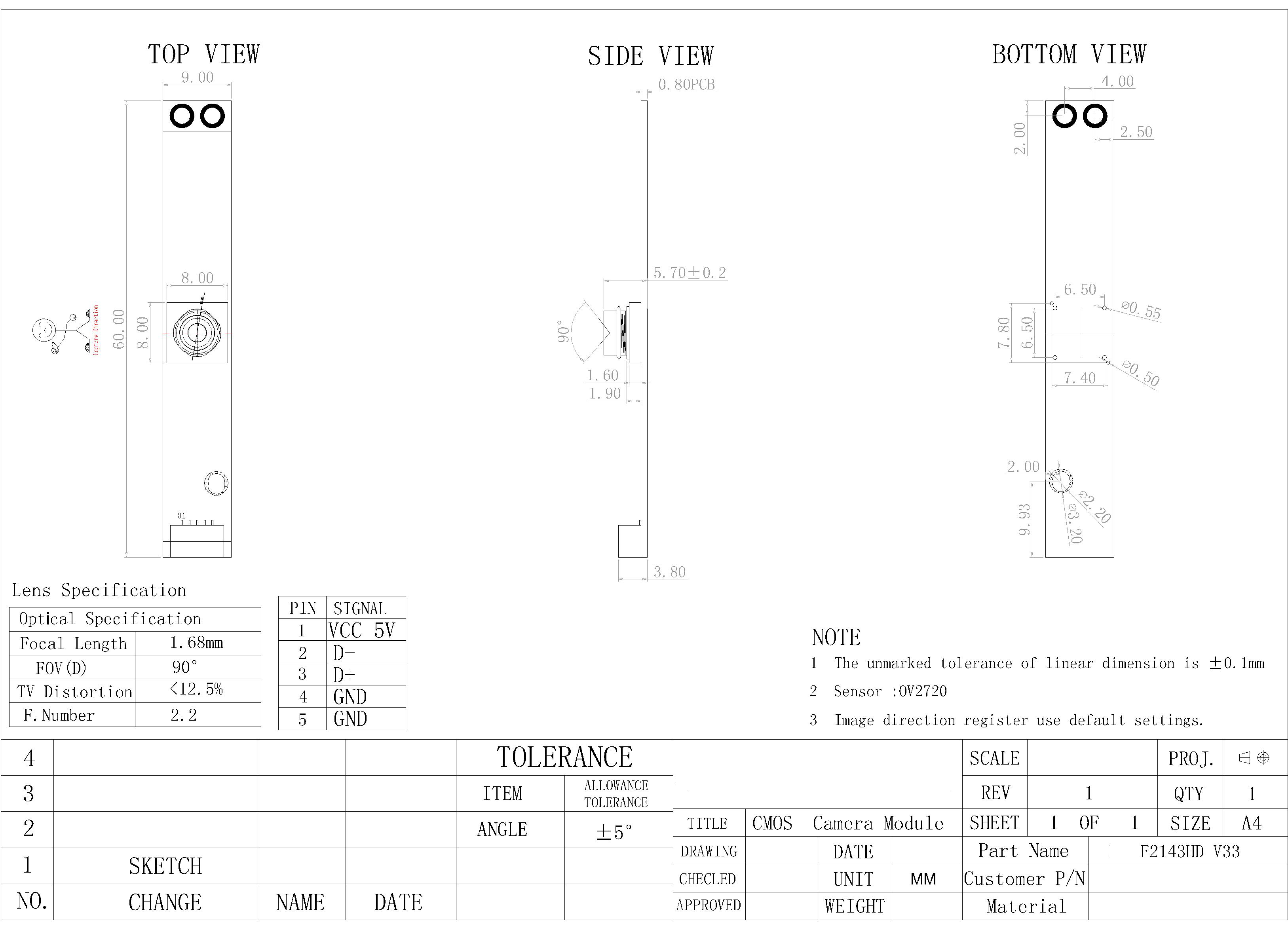

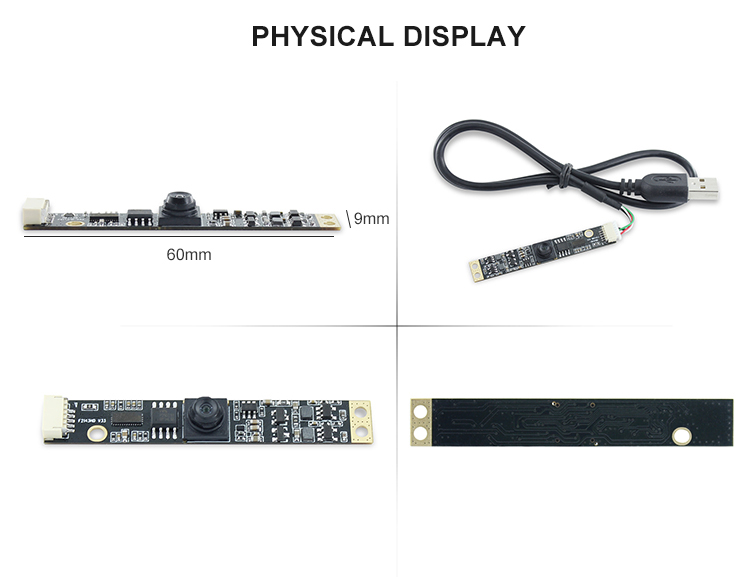

Module Size	60mm × 9mm × 5.7mm±0.2MM
Features	1. Standard advertising machine all-in-one machine structure and hole position 2. The product is cost-effective 3. AF auto focus
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black

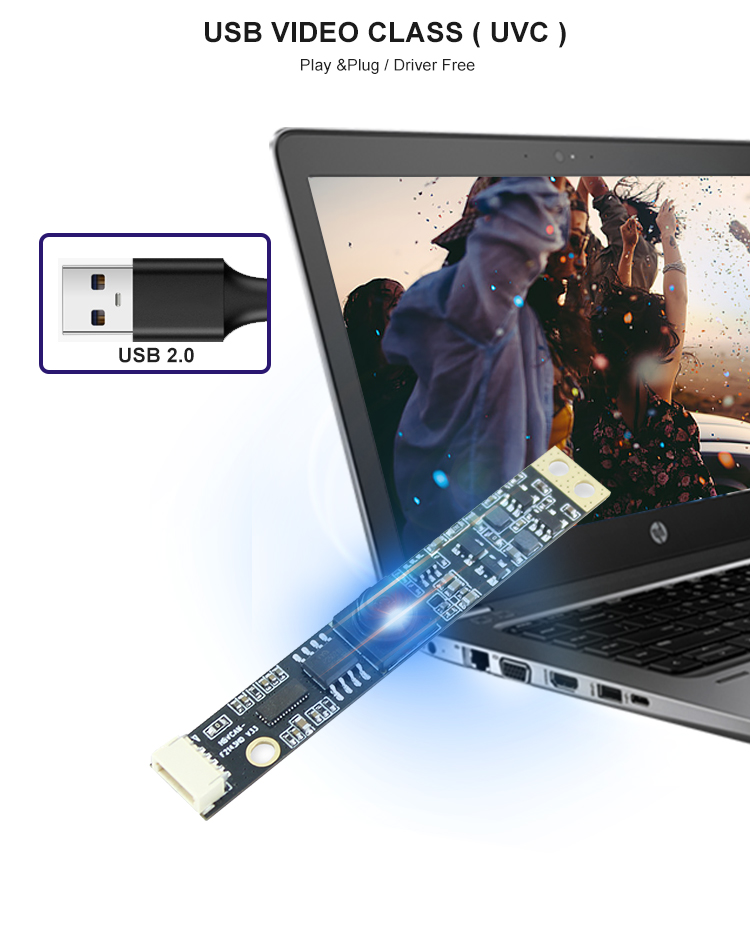

interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	490mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV2720 (1/5.8" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	650mV /(lux-sec)
Pixel Size	1.4µm x 1.4µm
Maximum Image Transfer Rate	MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1280x1024 30FPS / YUY2 1280x1024 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
		S/N Ratio	35 db
		Max Dynamic Range	68 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NC
		Lens Construction	5P
		F/No	2.2
EFL	1.68mm
FOV	90°
TV Distortion	<12.5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH

Detailed Images
