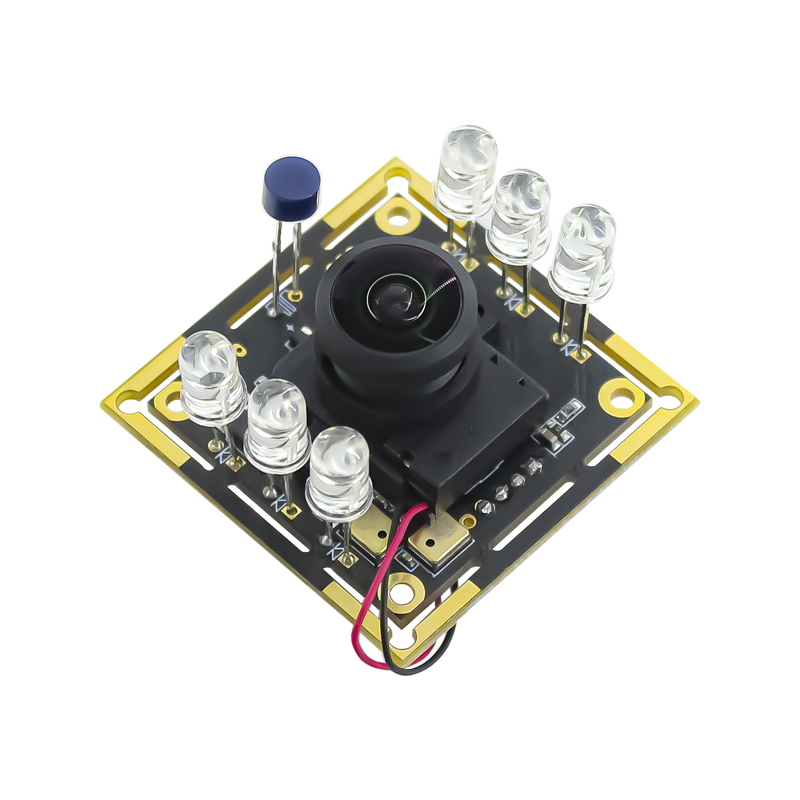

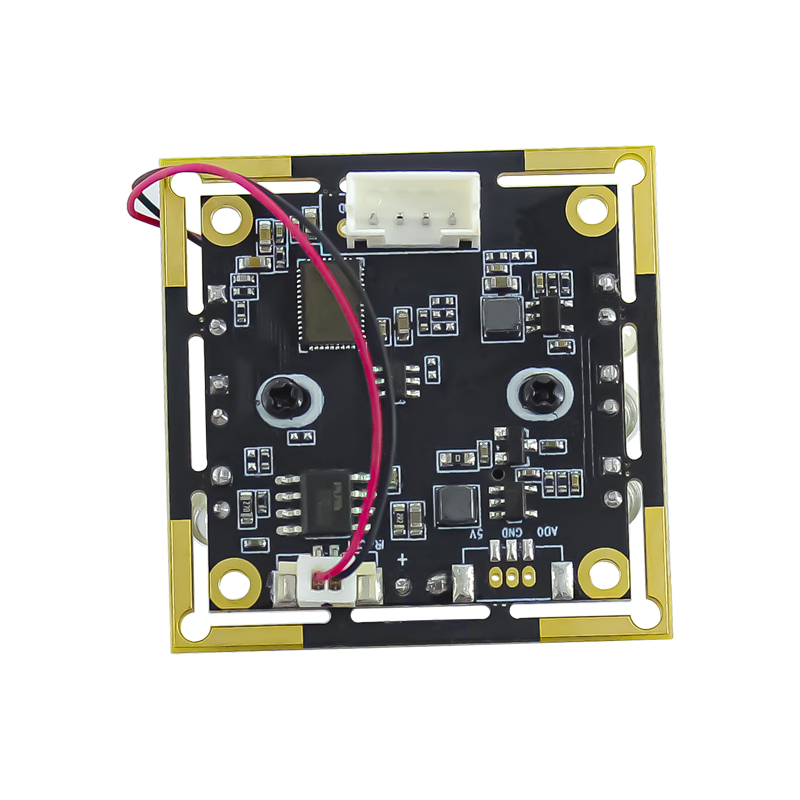

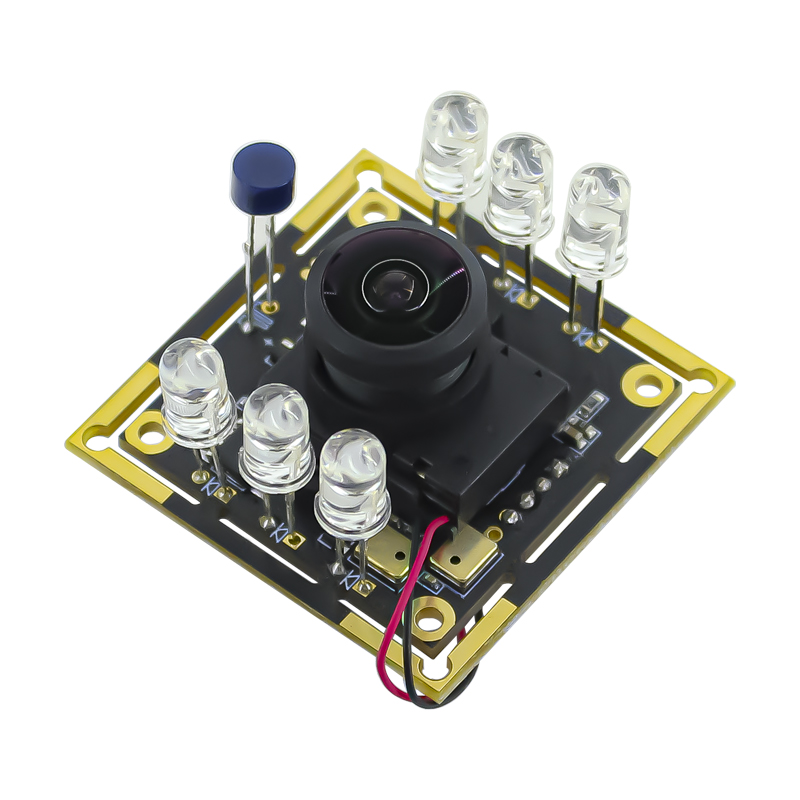

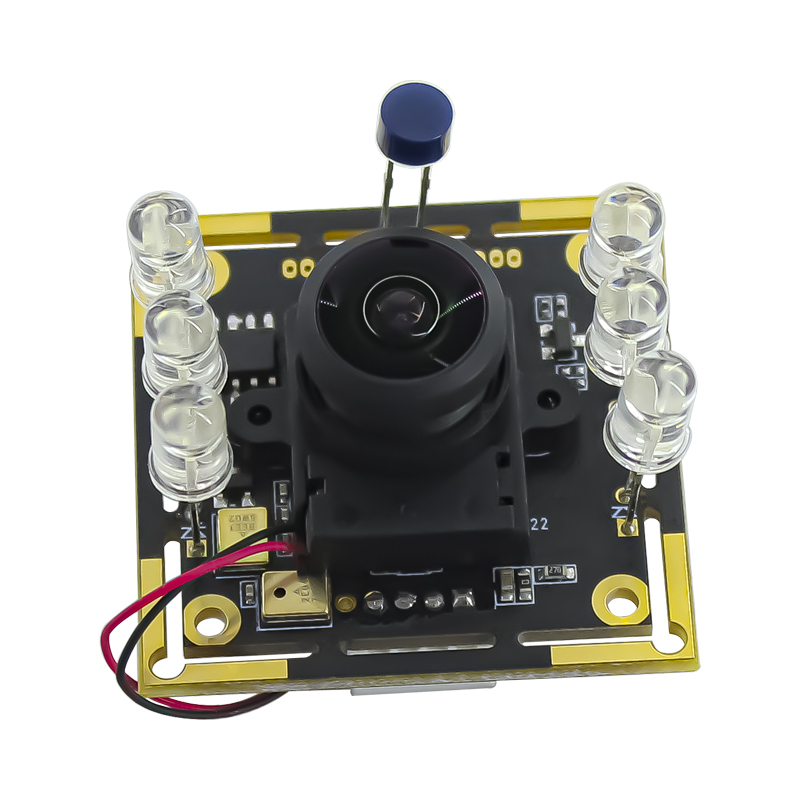

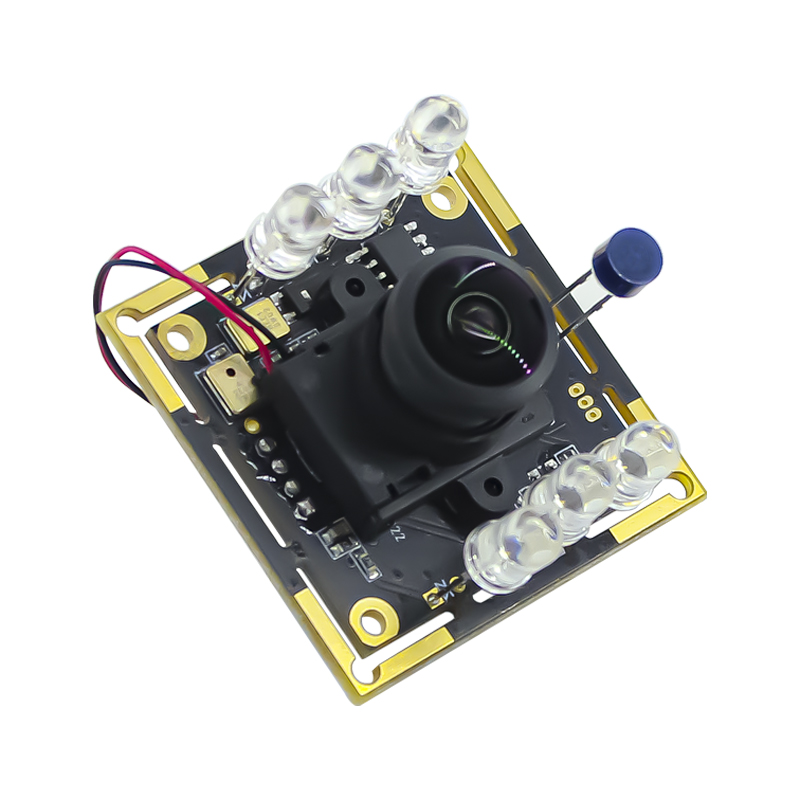

2MP industrial equipment embedded day and night automatic switching built-in camera module

Product category:

USB Camera Board

SKU:

216698

Price:

$26.40

Description

Product Name	Automatic day/night switching USB Camera Module
Module No	BMF2132HDR V22 IR-CUT-180
Module Size	38mm × 38mm × 18.6mm±0.5MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	800mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	PS5260 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	4700mV /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 30FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	46 db
Max Dynamic Range	83 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	Support
Lens Construction	4G
F/No	2.4
EFL	3.15mm
FOV	180°
TV Distortion	<15%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
