2MP camera module Advertising machine built-in camera module

Product category:

USB Camera Board

SKU:

216641

Price:

$21.60

Quantity	Price
1 - 99	$21.60
100 - 499	$19.55
500 - Unlimited	$17.60

full product footer

Description

Product Parameter

Product Name	2MP Face Recognition Camera Module
Module No	BMF20281HD V22 - 105

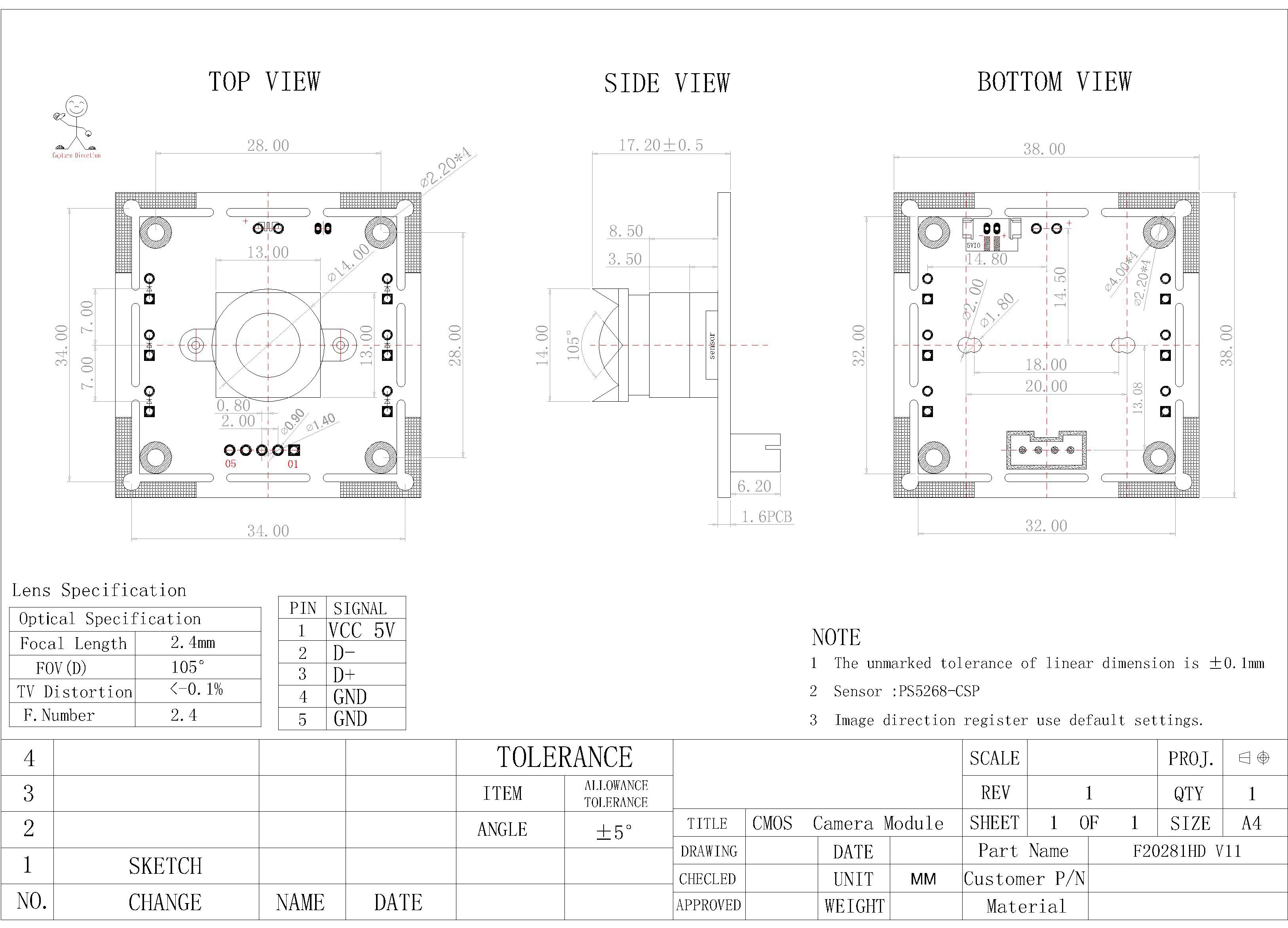

Module Size	38mm × 38mm × 17.2mm±0.3MM
Features	1. Standard industrial camera 38, 32mm plate structure 2. The effect of backlit portrait and recognition is better 3. Wide range of lens options 4. It can be welded with 6 plug-in lamps (infrared white light), which can be made into an open picture, bright and off, and can also be controlled by photosensitivity 5. True hardware wide dynamics 85db
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	600 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	PS5268 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	5800mV /（lux-sec）
Pixel Size	3.0µm x 3.0µm
Maximum Image Transfer Rate	MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 10FPS MJPEG 1024x768 30FPS / YUY2 1024x768 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	41db
Max Dynamic Range	85db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	2G2P
F/No	2.4
EFL	2.4mm
FOV	105°
TV Distortion	<-0.1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
