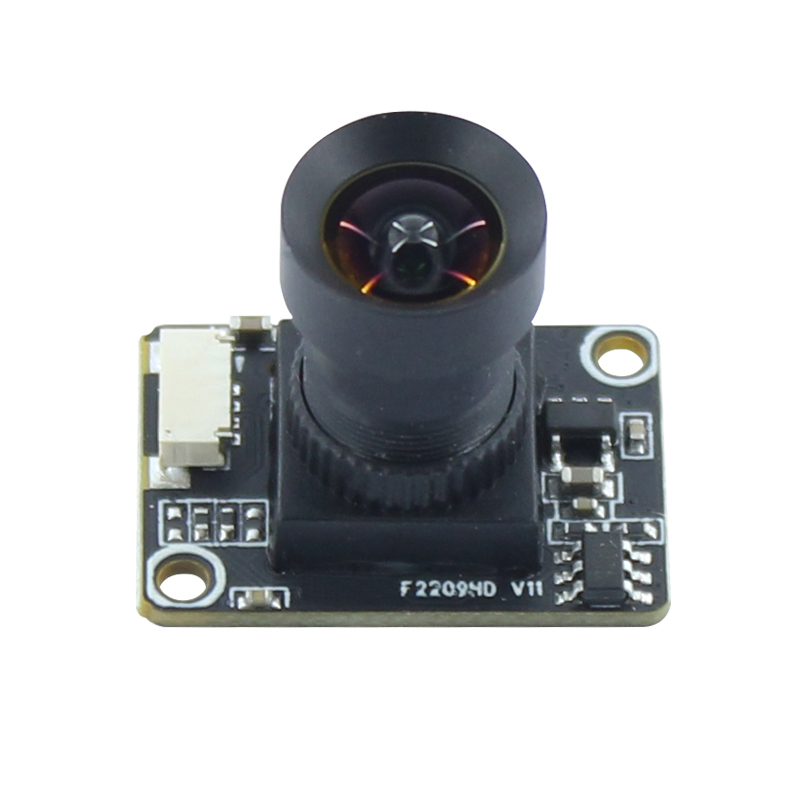

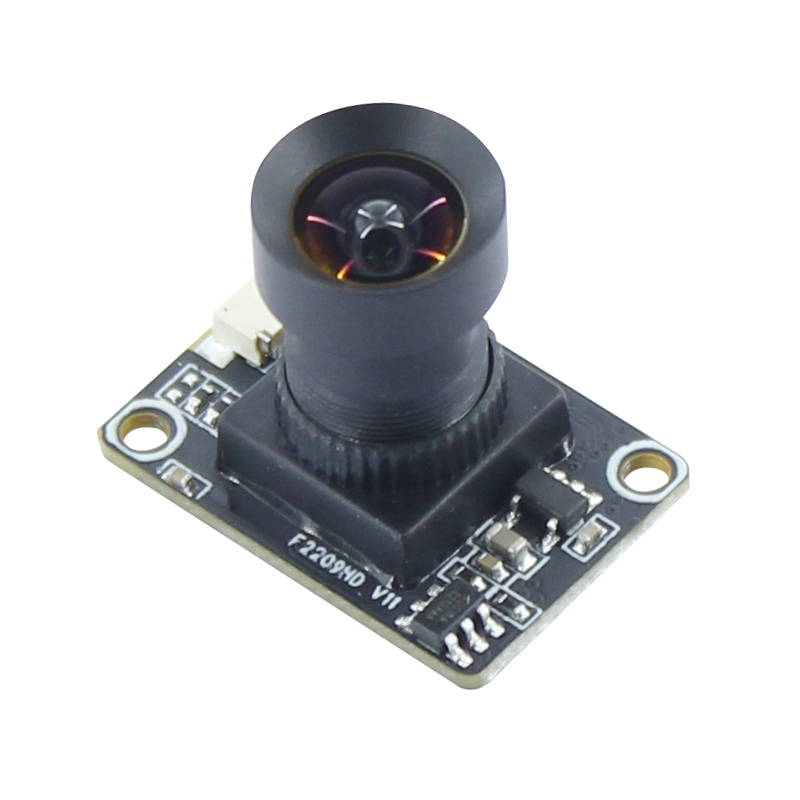

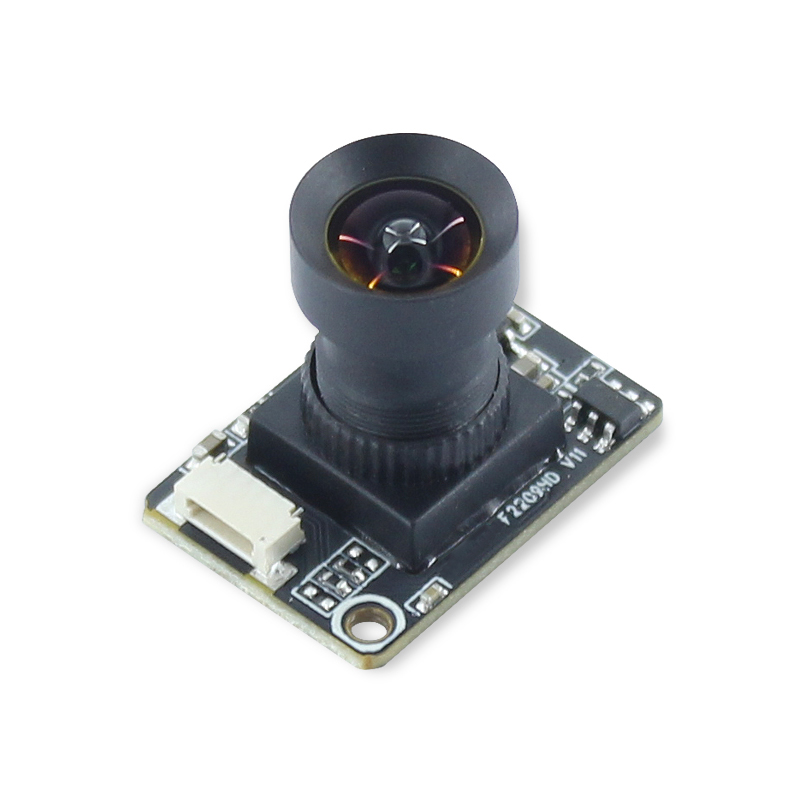

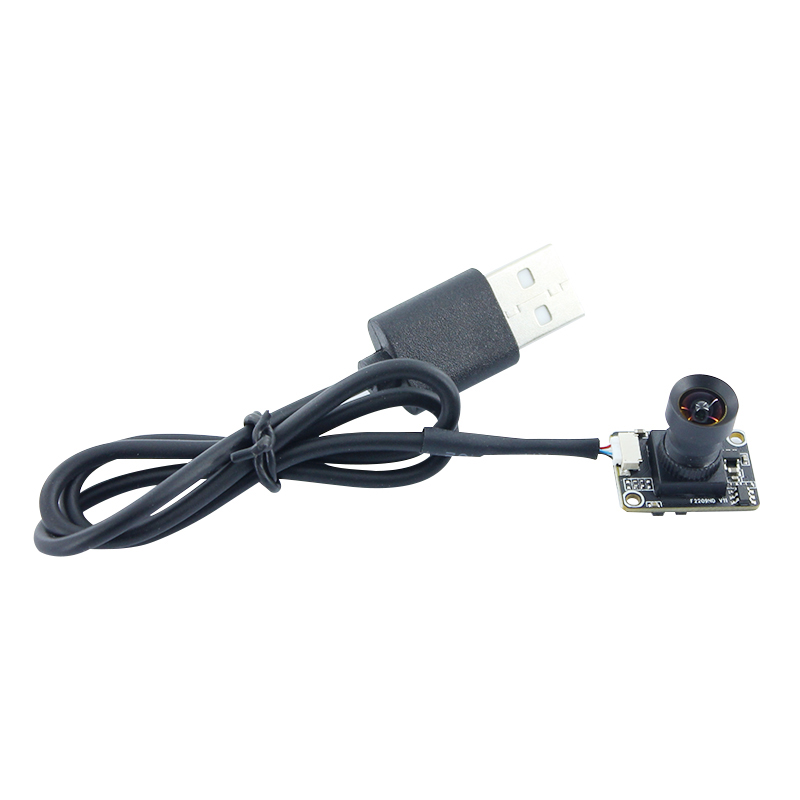

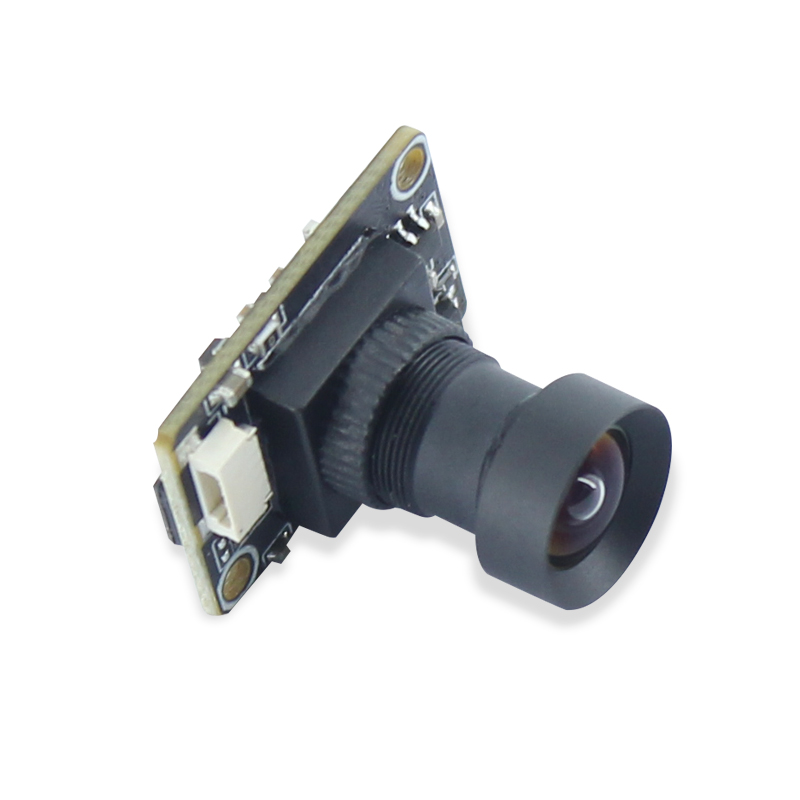

2MP 100 degree advertising machine camera module intelligent terminal camera module

Product category:

USB Camera Board

SKU:

216610

Price:

$26.40

Description

Product Name	2MP 1080P HD Embedded Built-in Camera Module
Module No	BMF2209HD V11-100
Module Size	20mm × 14mm × 16.7mm±0.5MM
Features	1. Industrial camera 20x14mm small plate structure 2. Weldable fill light 3. Fixed focus camera module, small size and good effect
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROHS)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	PS5268 (1/2.7" )
Seneor Package	CSP,Bare Die
Maximum resolution	1920*1080
Sensitivity	5800mV /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1024x768 30FPS / YUY2 1024x768 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 5FPS MJPEG 1920x1080 30FPS / YUY2 1920x1080 5FPS
S/N Ratio	41 db
Max Dynamic Range	85 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	NO
Lens Construction	5G
F/No	2.4
EFL	3.0mm
FOV	100°
TV Distortion	<5%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROHS
