1Mp Zoom Lens Camera Module Hd Usb 2.0 800P Wide Angle Ov9726 Sensor Cmos Module Camera

Product category:

USB Camera Board

SKU:

216955

Price:

$6.00

Description

Product name	1 MP Laptop , advertising machine, all-in-one camera module
Module No.	BMNB20231W V33

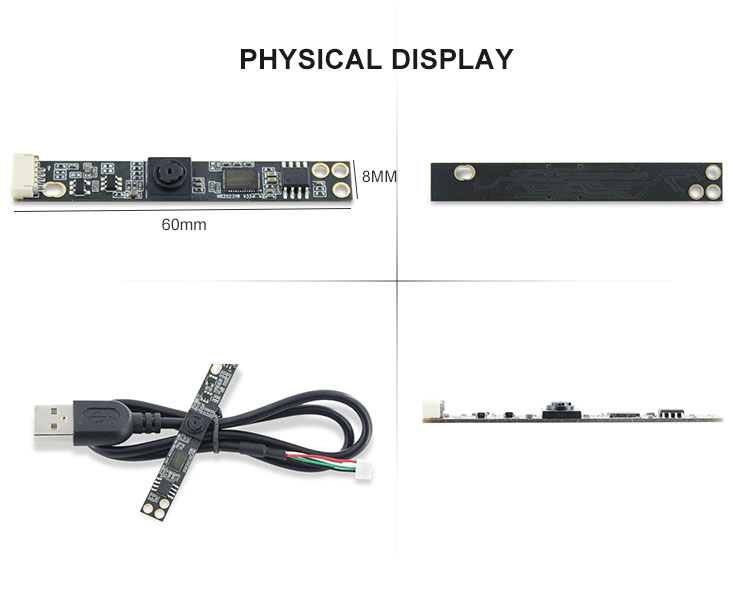

Module Size	60mm×8mm×4.0mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	640 mW
Operating system request	Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9726 (1/6.5" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*800
Sensitivity	1300mV /(lux-sec)
Pixel Size	1.75µm x 1.75µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS / YUY2 800x600 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS
		S/N Ratio	36 db
		Max Dynamic Range	70 db
		Shutter type	Electronic rolling shutter
		AGC/AEC/Whiter balance	Auto
		Output Formats	YUY2/MJPEG
		Microphone	NO
		Lens Construction	3P
		F/No	2.8
EFL	2.8mm
FOV	66°
TV Distortion	<1.0%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
