1MP HD notebook camera module Face and ID matching camera module

Product category:

USB Camera Board

SKU:

216578

Price:

$10.80

Description

Product Name	1MP Office Equipment Camera Module
Module No	BM1924-720 V11-65

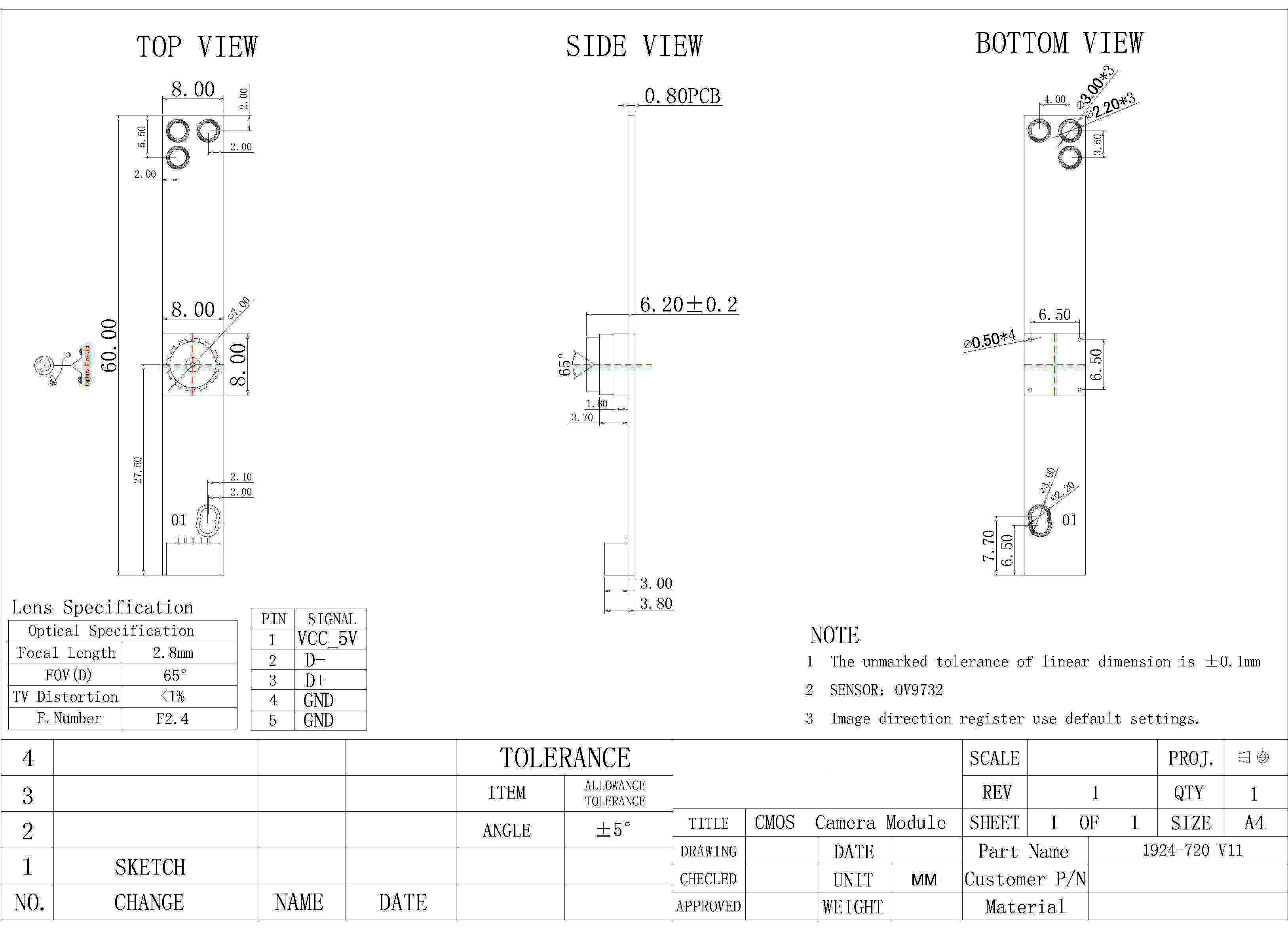

Module Size	60mm × 8mm × 6.2mm±0.2MM
Temperature (Operation)	-30°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fixed
Object distance	30CM-infinity
Resolution	600LW/PH (Center)
PCB printing ink	Black
interface	USB 2.0
Power suuply	USB bus power
supply voltage	DC 5V±5%
Maximum Power consumption	400 mW
Operating system request	Win XP/win 7 8 / vista /android 4.0/ mac /Linux with uvc
Sensor	OV9732 (1/4" )
Seneor Package	CSP,Bare Die
Maximum resolution	1280*720
Sensitivity	2066mv /（lux-sec）
Pixel Size	3µm x 3µm
Maximum Image Transfer Rate	MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS
S/N Ratio	39 db
Max Dynamic Range	72 db
Shutter type	Electronic rolling shutter
AGC/AEC/Whiter balance	Auto
Output Formats	YUY2/MJPEG
Microphone	No
Lens Construction	4P
F/No	2.4
EFL	2.8 mm
FOV	65°
TV Distortion	<1%
Relative Illumination (Sensor)	70%
IR Filter	650±10nm
Module Package	Anti-electrostatic tray
Certifications	FCC/CE/ROSH
